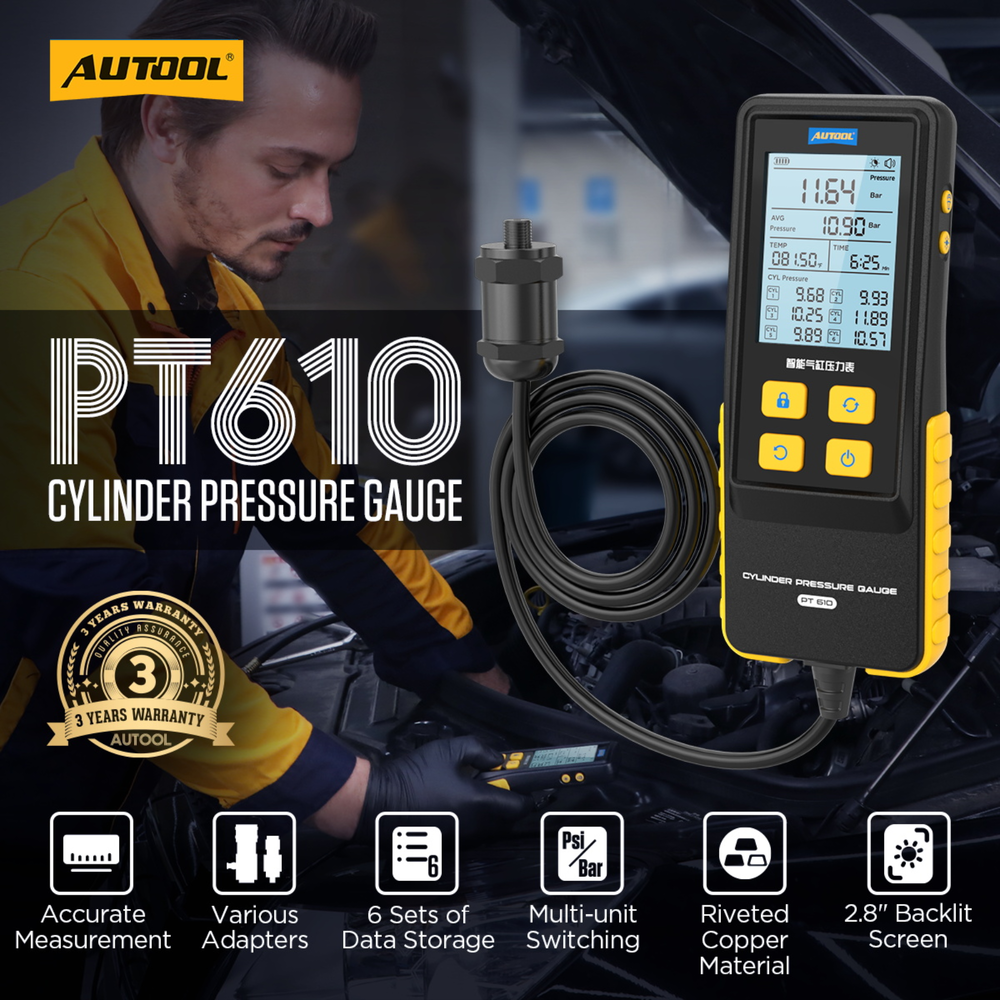

AUTOOL PT610 Cylinder Pressure Gauge

Professional 2.8” LCD Engine Compression Tester

The AUTOOL PT610 Cylinder Pressure Gauge is a precision diagnostic tool designed for accurate engine compression testing. Featuring a 2.8-inch backlit LCD screen, it delivers real-time pressure readings, average pressure values, cylinder temperature, and test duration. With support for up to six-cylinder data storage, it enables efficient comparison and analysis. Built with durable copper fittings and a high-strength rubber hose, it ensures reliable performance for professional automotive diagnostics.

Main Features

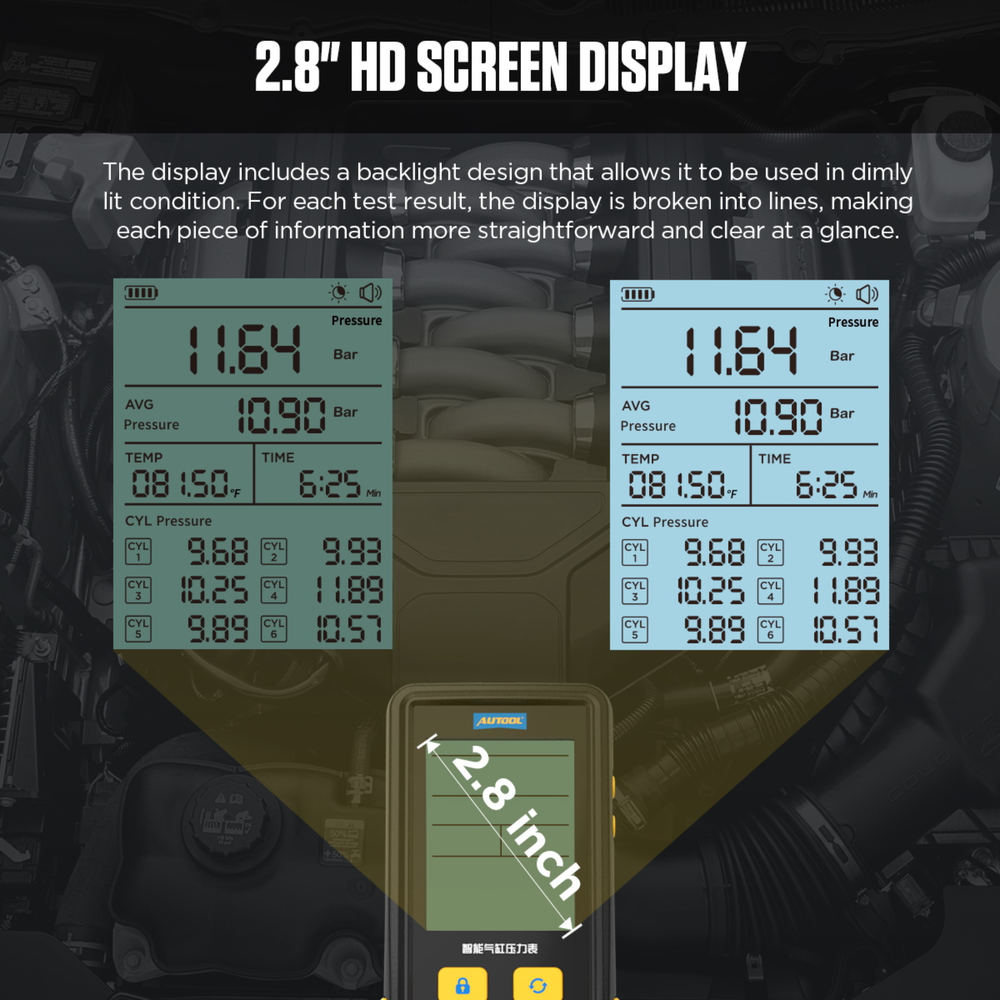

Intelligent 2.8” LCD Display – Provides clear visibility of real-time pressure, average pressure, cylinder temperature, and test time for accurate diagnostics in all working conditions.
High-Precision Measurement System – Delivers readings with 0.01 resolution, ensuring accurate engine compression analysis for professional automotive applications.

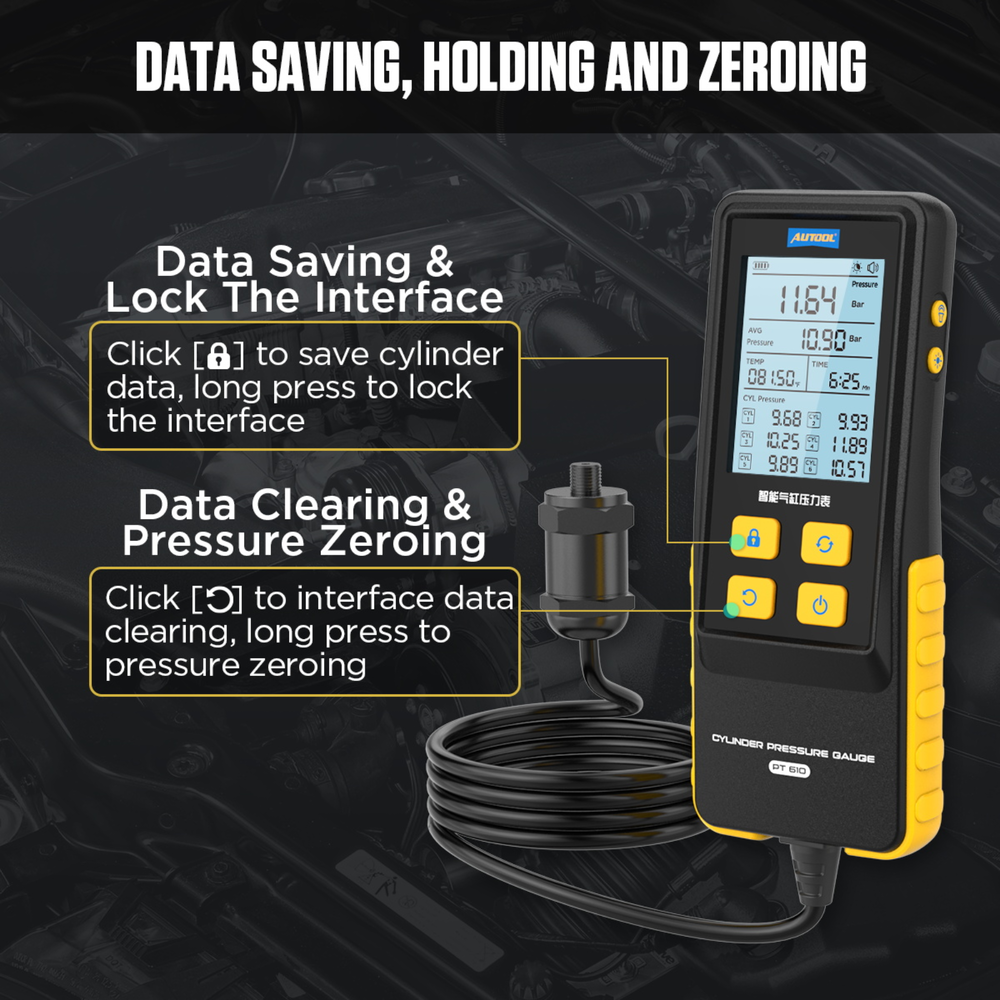

Multi-Cylinder Data Storage – Saves and locks up to 6 test results, allowing easy comparison between cylinders for faster fault detection.

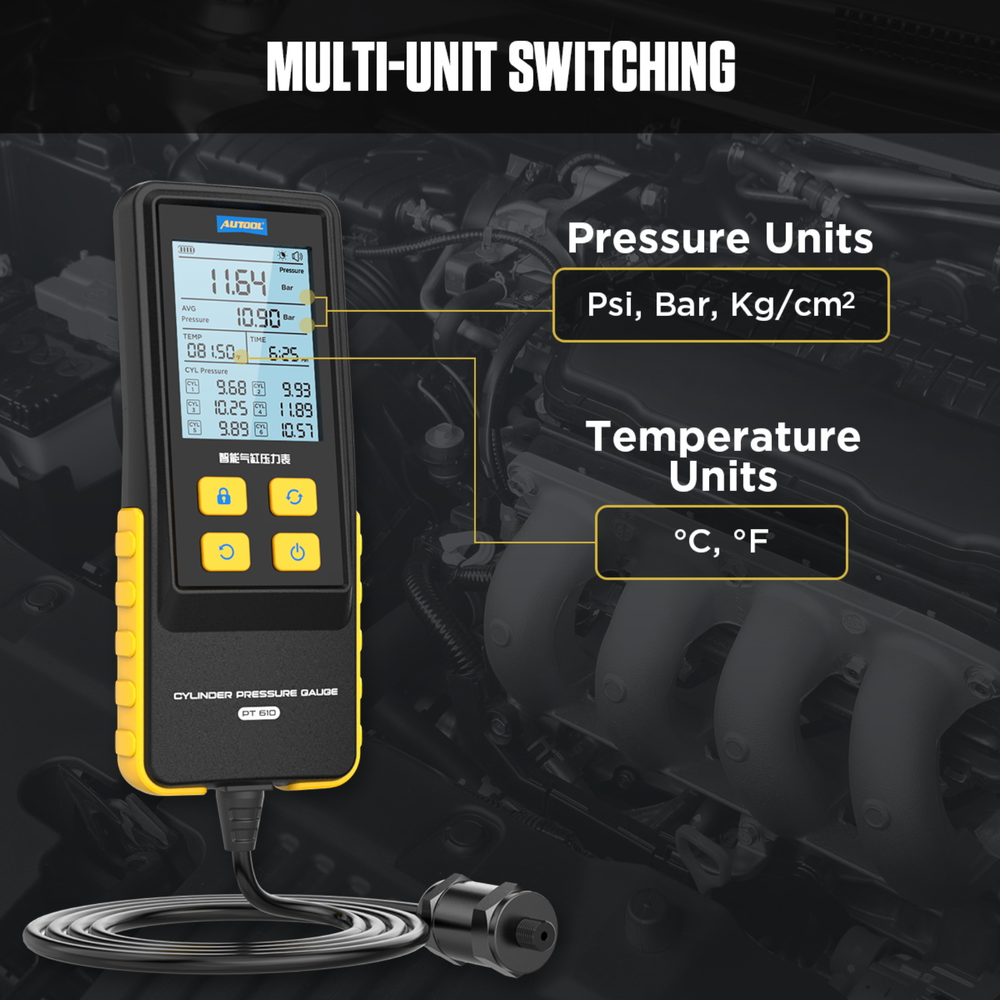

Multi-Unit Pressure Conversion – Supports PSI, BAR, and KG/CM² units with instant switching for flexible diagnostic requirements.

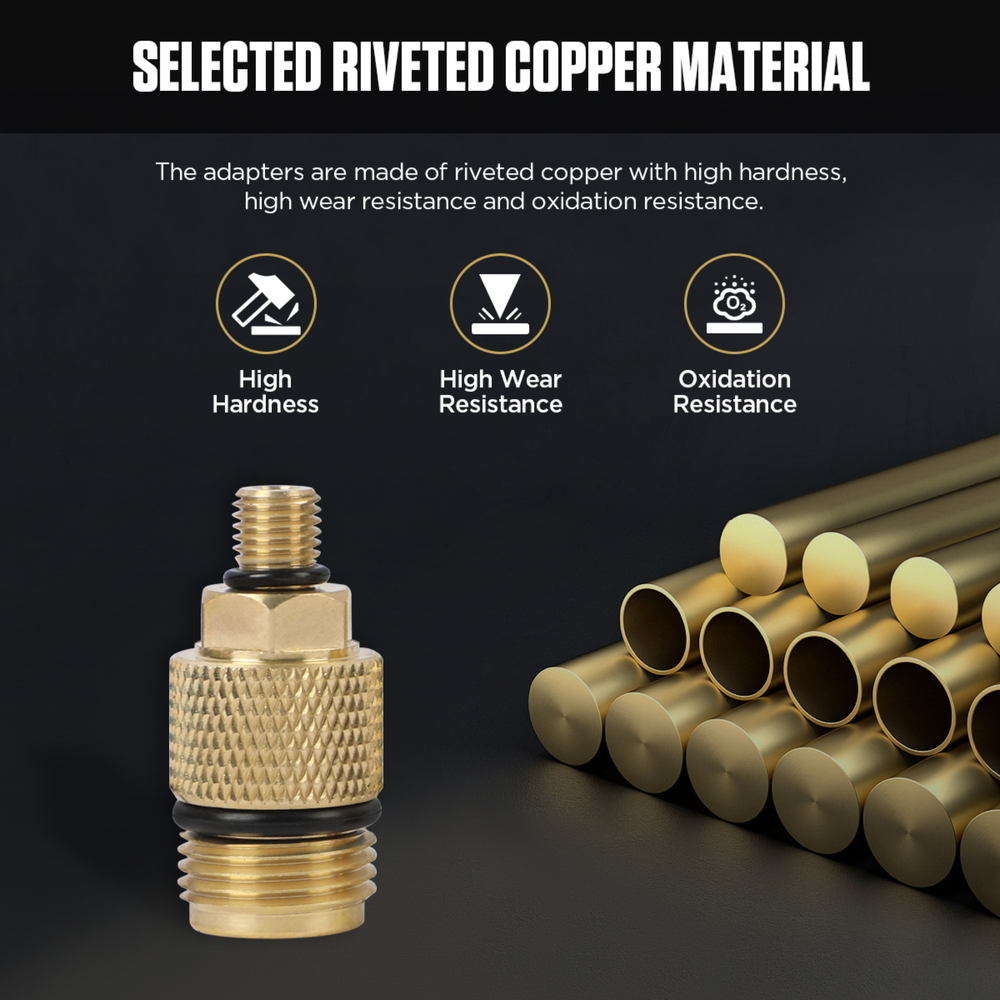

Durable Copper Construction – Built with riveted copper components that resist rust and corrosion for long-term industrial use.
Heavy-Duty Reinforced Hose – Equipped with a 78.7-inch high-strength rubber hose designed to withstand pressure, heat, and repeated bending.
Quick Pressure Release System – Integrated valve allows fast reset of pressure values, improving workflow efficiency during repeated tests.

Package Includes

1 × AUTOOL PT610 Cylinder Pressure Gauge Unit
1 × 2.8” LCD Display Handheld Meter
1 × Heavy-Duty Rubber Hose (78.7 inch)

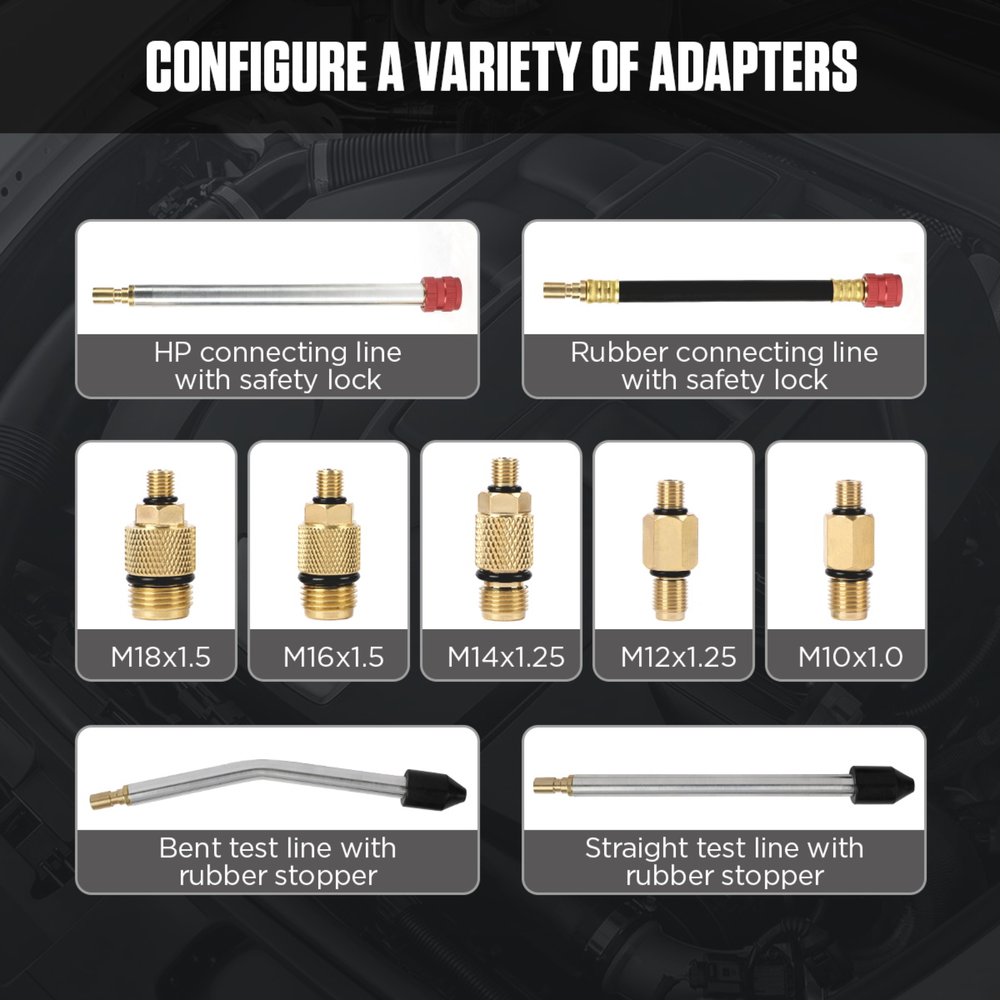

6 × Cylinder Adapter Connectors
1 × Protective Carrying Case
1 × User Manual

AUTOOL PT610 Cylinder Pressure Gauge

2.8” backlit LCD display with clear readings

Real-time pressure and temperature monitoring

Stores up to 6 cylinder test results

High-precision measurement up to 0.01 resolution

Multiple pressure unit conversion (PSI, BAR, KG/CM²)

Durable copper fittings with corrosion resistance

Long 78.7-inch reinforced rubber hose

Quick pressure release valve for fast reset

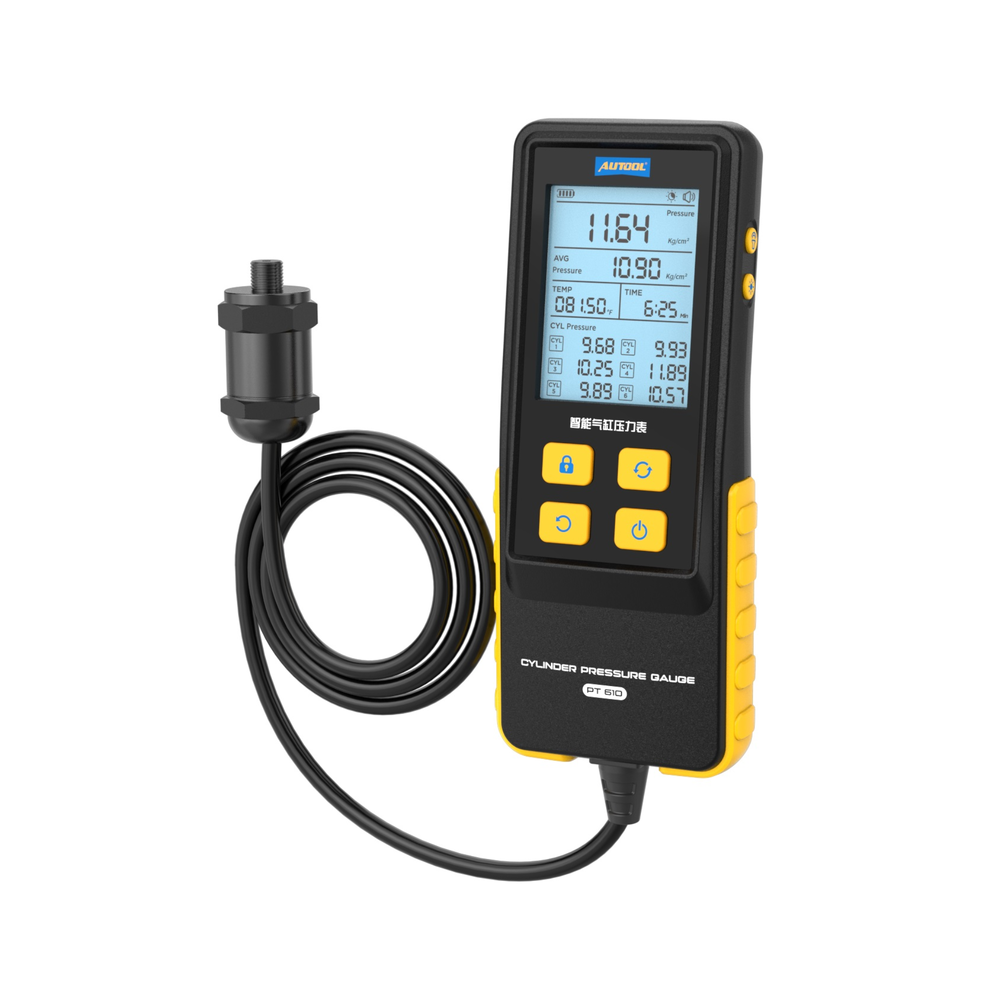

AUTOOL PT610 digital cylinder pressure gauge

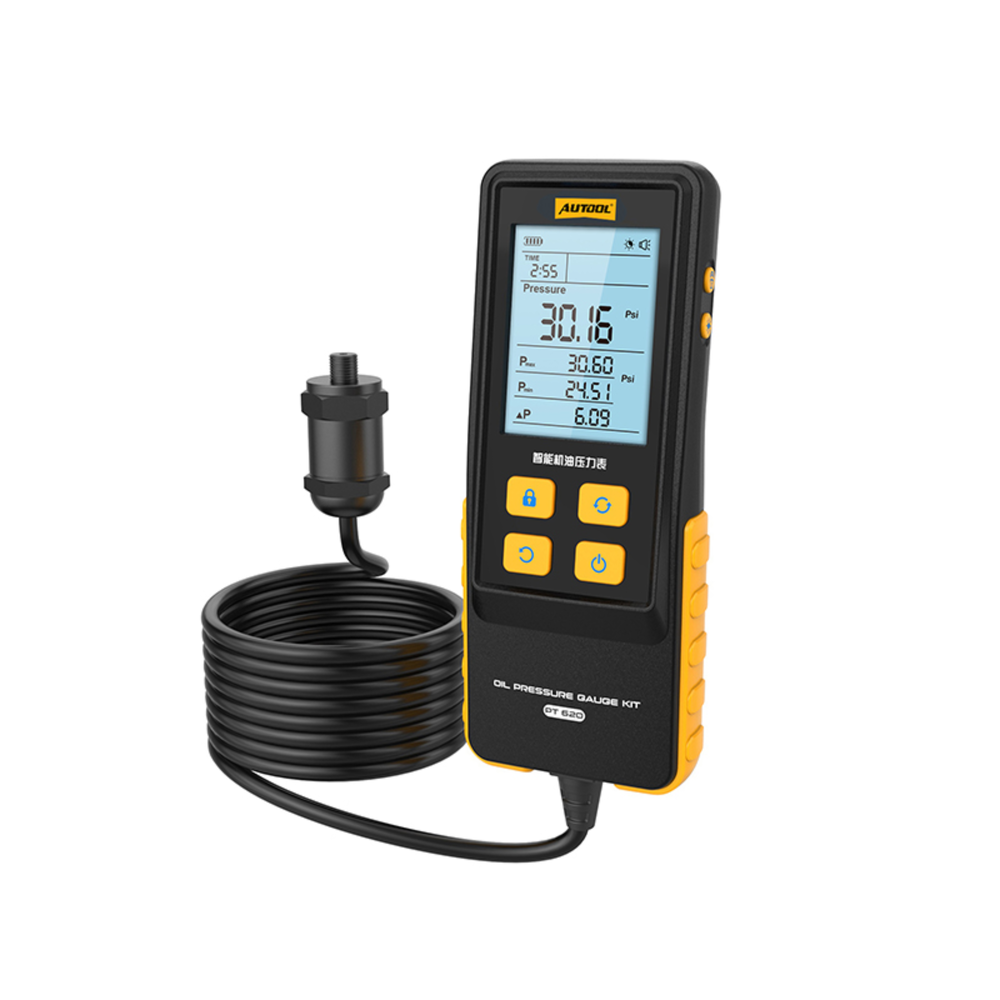

AUTOOL Pressure Gauge Comparison

Comparison Table: PT610 | PT620 | PT630 | PT635 | PT640 | PT650 | PT660

	PT610	PT620	PT630	PT635	PT640	PT650	PT660

DISPLAY & STORAGE
Display Screen	2.8-inch	2.8-inch	2.8-inch	2.8-inch	2.8-inch	2.8-inch	3-inch
Data Storage	6 Sets	X	X	X	X	X	X
CONNECTIVITY & ACCESSORIES
Accessory Connectors	10 Types	18 Types	17 Types	31 Types	3 Types	12 Types	1 Type
Equipped Toolbox	✓	✓	X	✓	✓	✓	✓
Dual-Channel Pressure Testing	X	X	X	X	X	X	Simultaneously Measure Pressure of Two Brake Calipers
MEASUREMENT FUNCTIONS
Data Lock / Clear / Record	✓	✓	✓	✓	✓	✓	✓
Multi-Parameter Display	Max / Min / Avg / Temp / Time / Real-Time Pressure / Cylinder Value	Max / Min / Differential / Time / Real-Time Pressure	Max / Min / Avg / Temp / Time / Real-Time Pressure	Max / Min / Avg / Temp / Time / Real-Time Pressure	Max / Min / Differential / Time / Real-Time Pressure	Max / Min / Differential / Time / Real-Time Pressure	Max / Min / Differential (Dual Caliper) / Real-Time Pressure
Pressure Units	Psi, Bar, Kg/c㎡	Psi, Bar, Kg/c㎡	Psi, Bar, Kg/c㎡	Psi, Bar, Kg/c㎡	Psi, Bar, Kg/c㎡	Psi, Bar, Kg/c㎡	Psi, Bar, Kg/c㎡
PRESSURE RANGE
Pressure Range	0–30 bar	0–30 bar	0–30 bar	0–30 bar	0–360 bar	0–30 bar	10–210 bar
APPLICATION
Applicable Scenarios	Engine Cylinder	Engine Oil Circulation System	Automotive Fuel System	Automotive Fuel System	Fuel Injection Pump Pressure (GDI)	Transmission Fluid Pressure	Brake System Fluid Pressure
	LEARN MORE	LEARN MORE	LEARN MORE	LEARN MORE	LEARN MORE	LEARN MORE	LEARN MORE

AUTOOL PT610 Technical Specifications

Pressure Units: Psi, Bar, Kg/c㎡

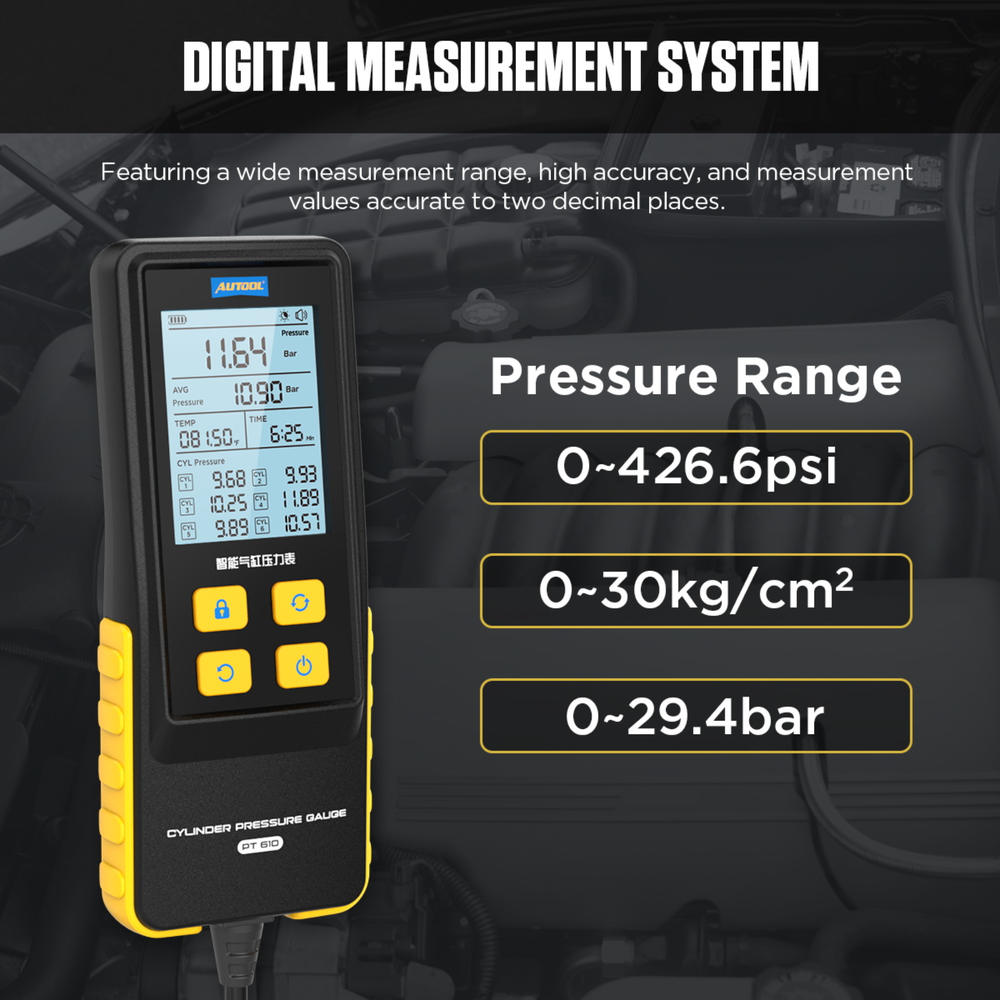

Pressure Range: 0~426.6psi, 0~30kg/c㎡, 0~29.4bar

Display Screen: 2.8-inch backlit LCD

Accessory Connectors: 10 types included

Data Storage: 6 Sets of data

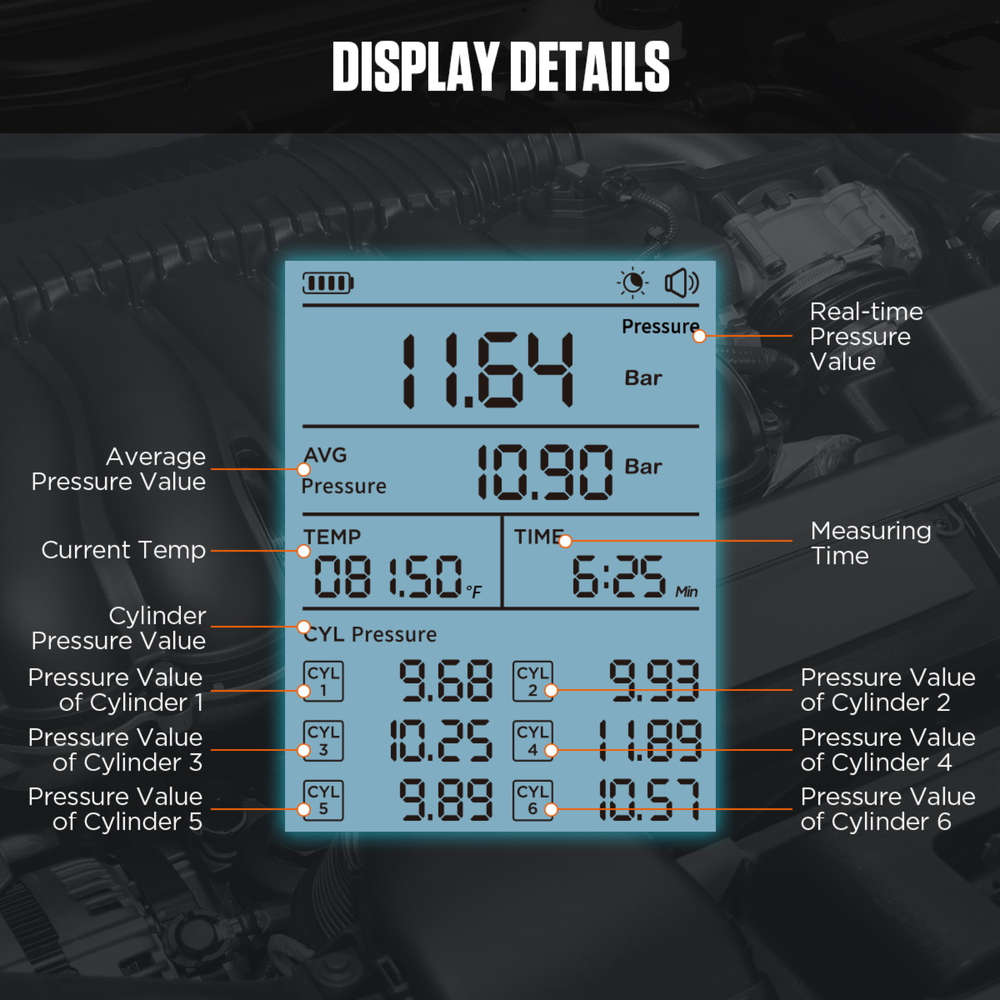

Multi-Parameter Display: Temperature Value, Measurement Time, Real-Time Pressure Value, Average Pressure Value, Pressure value of each cylinder

Temperature Units: °C / °F

Data Lock Function: Yes

Applicable Use: Engine Cylinder

Construction: Corrosion-resistant copper fittings with reinforced hose

Toolbox Included: Yes

The AUTOOL PT610 works as a smart cylinder pressure tool. It has a clear 2.8-inch screen to show real-time pressure, average pressure, and cylinder temperature.
