TDB500 Transponder Key Clone Wizard

TDB500 is a simple machine for cloning vehicle transponder keys using a clever colour coded transponder, making this the most easiest and simple to use cloning tool in the world.

The TDB500 Clone Wizard has 2 modes of operation:

EASY MODE offers simple cloning using our simple colour cloning system, with 5 easy to use colour transponders.
EXPERT MODE offers more in depth transponder cloning, transponder precoding, transponder resetting, transponder preparation to name a few features.

The TDB500 Clone Wizard has an internal rechargeable battery making it both portable and convenient to use, especially when sniffing vehicle key data for ID46 type keys.

The Clone Wizard features a full colour LCD touch screen display, removable tray for cloning transponders and a USB connection for battery charging and PC updates.

Applications http://www.wikiclone.com/

Main Features

Touch Screen LCD Display
Removable Transponder Cloning Tray
Touch Screen Pen
Rechargeable Battery Powered
RF Remote Frequency Test
USB 2.0
Bluetooth Connection
WiFi Connection

The Wifi connection will allow the TDB500 Clone Wizard to connect to a mobile hotspot or router so that it is future proof to allow larger calculations via the Clone Wizard server without the need to connect to a PC or Laptop.

TDB500 Easy Mode Features

Clones:

TEXAS 4C
TEXAS 4D
ID 46
ID48 (WILL BE ADDED AS AN UPDATE PACKAGE)
ID40 (Unlocked)
ID41, Id42
ID44 (Unlocked)
ID45 Megamos
ID13 TEMIC 11,12
PHILIPS NXP ID33

TDB500 Expert Features

Clones:

TEXAS 4C
TEXAS 4D (40 bit) *80 bit will be added at a later date.
Reads : 11, 12, 13, 33, T5, 40, 41, 42, 44, 45, 46, 48, 4C, 4D, 8C and 8E transponders.
Unlocks : ID48 (except Crypto locked types)
TOYOTA/LEXUS Transponder Key Preparation : ID68, ID67, ID70, SMART, G
HONDA/ACURA Transponder Key Reset

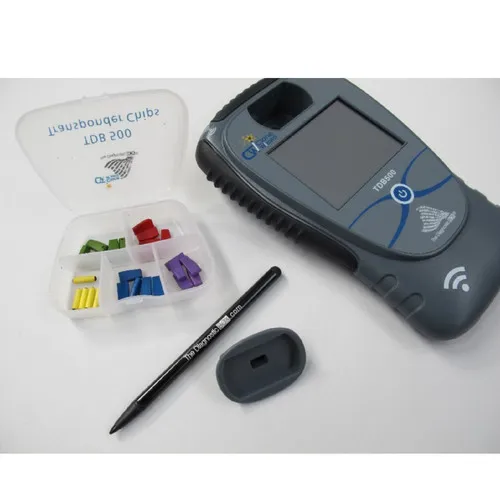

Package Include

1x TDB500 Clone Wizard Machine
1x Carry Case
1x Stylus Pen
1x Transponder Case
5x TDB510 - BLUE Transponder
5x TDB520 - RED Transponder
5x TDB530 - YELLOW Transponder
5x TDB540 - GREEN Transponder
5x TDB550 - PURPLE Transponder

Car Key Cloning With Colour Coded Transponder

Easy & Expert Mode for Advanced Cloning

Rechargeable Battery / Colour LCD Touch Screen / Removable Tray

Designed & Manufactured in UK

RFID FREQUENCY 125KHZ 134.2KHZ 13MHZ

WEIGHT 282 Grams

SIZE 190 mm (L) x 120 mm (W) x 30 mm (D)

BATTERY NOMINAL VOLTAGE : 3.8V

TYPICAL CAPACITY : 1500mAH

LCD Backlit Blue 128x64 dots

OPERATING TEMPERATURE RANGE 32 to 122 Degrees F or 0 to 50 Degrees Celsius

RF DATA FREQUENCY RANGE 27 MHZ TO 900 MHZ

USB CONNECTION 2.0

BLUETOOTH CONNECTION 4.0
