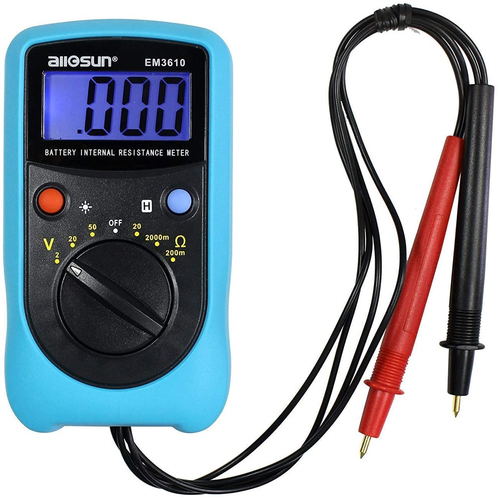

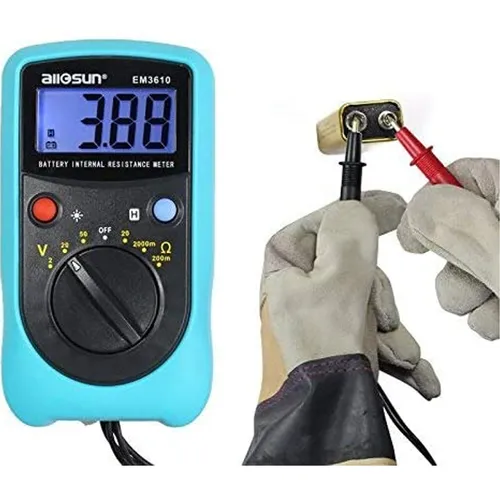

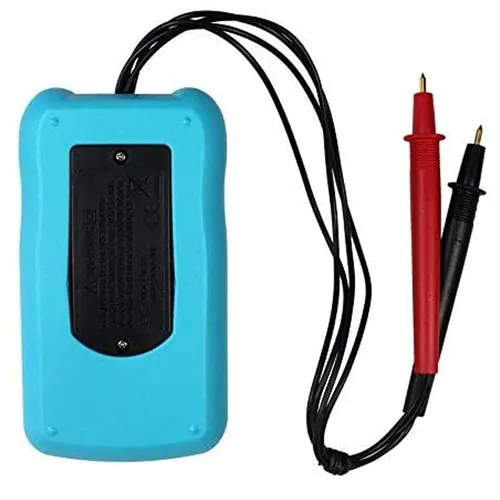

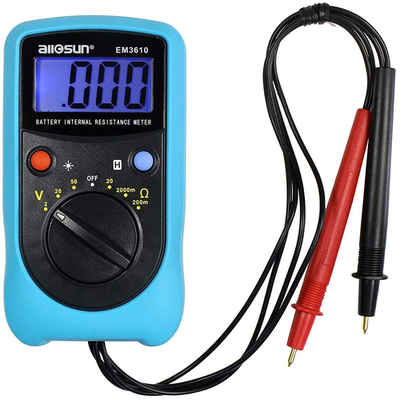

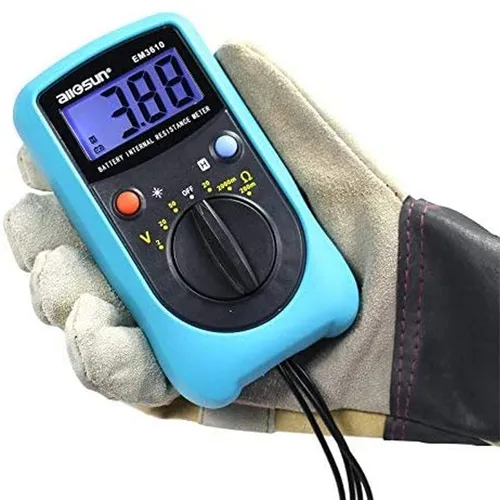

ALLOSUN EM3610 Automotive Digital Battery Analyzer Internal Resistance Meter Voltage Tester

This Automotive Digital Battery Analyser is an architect instrument that can be used for battery measurements. It can be used to measure battery terminal voltage and internal resistance as well as to make normal resistance measurements. The internal resistance is measured with the international standard AC signal (1000Hz±10%) by means of a four-wire method to eliminate the impact of the resistance of the test leads on the measured value, and the battery voltage can also be measured by the same connection method.

Main Features

Digital LCD display, easy to read the measurement result. With backlight, it makes it easy to read in low light areas.
It is mainly used to measure battery terminal voltage and internal resistance.
Adopt four-wire method which helps to ensure the accuracy of the measured value.
It is applicable for the measurement of internal resistances of Lithium-ion, nickel-hydroxide, lithium-manganese cells, or assembled battery.
Powered by 9V battery, 6F22 or equivalent (Not included)

Package Includes

Digital Battery Analyzer Main Unit

Digital LCD display, easy to read the measurement result. With backlight, it makes it easy to read in low light areas.

It is mainly used to measure battery terminal voltage and internal resistance.

Adopt four-wire method which helps to ensure the accuracy of the measured value.

It is applicable for the measurement of internal resistances of Lithium-ion, nickel-hydroxide, lithium-manganese cells, or assembled battery.

Battery Voltage : 0~1.999/ 2.00~19.99/ 20.0~50.0V

Resistance/ Battery Internal Resistance: 0~199m/ 200m~1999m/ 2.00~19.99Ω

Negative Polarity Indication: “-” shown on the display automatically

Operating environment:

Temperature: 0℃~+40℃

Relative humidity :<80%

Temperature Coefficient: 0.1×（specified accuracy）/℃(<18℃ or >28℃)

Battery: 9V battery, 6F22 or equivalent (1 piece)

Size : 150x83x44mm

Weight: 315g
