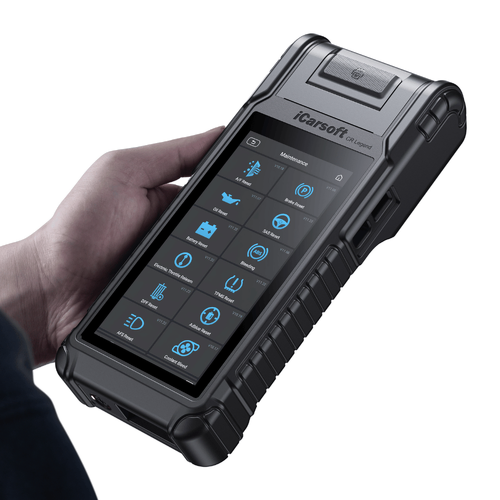

iCarsoft CR Legend is a powerful diagnostic equipment covering over 100 vehicle makes and supporting CAN FD and DOIP protocols with no extra adaptor needed. Capable of performing all system diagnosis and active tests with over 20 service reset functions and more to be added. The scan tool also included battery tester and clamps, digital inspection camera/Videoscope and built in thermal printer to give you a comprehensive vehicle scanning and diagnosis capability.

Another great feature for the iCarsoft CR Legend is its ability to print diagnosis report, battery test report, tyre pressure test report directly via the built-in thermal printer, or shared via email.

The hardware features include Andoird 10 operating system on a 5.9" HD IPS touch screen and Quad-Core MT8385 2GHz processor with 4GB+64GB hardware configuration. Also includes a rear-facing 8 Megapixel Camera & 4500mAh @ 7.6V Internal Rechargeable Battery.

Update (3 years free update) Support Wi-Fi one-key upgrade of operating system, client software, model software and firmware software of the PLC.

Scan Tool Features:

• Supports the full system diagnosis function of more than 100 car makes around the world, which can read version information, code reading, code clearing, data flow reading, action testing, special functions, etc.
• Comprehensive OBD relearn coverage, supports CAN FD (No extra adapters needed) and DoIP protocols.
• Onscreen relearn procedure.
• Display live data in text, graph & analog for easy data review.
• Auto VIN technology can automatically identify model and year information in no time.
• Actuation Test / Bi-directory Test is used to access vehicle-specific subsystem and component tests.
• Steering Angle Sensor (SAS) calibration: Calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
• Oil Light/Service Reset: Support service lamp reset, reset service mileage and service intervals.
• Electronic Parking Brake (EPB): System maintenance deactivates and reactivates the EPB system for replacement and initialization.
• Diesel Particulate Filter (DPF): Regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
• Battery Management System (BMS): Registers new battery to the BMS while battery replacement.
• Electronic Throttle Control system (ETC): Relearns the throttle valve control value while clear or replaces the throttle value.
• ABS Bleeding: Release the air to restore ABS brake sensitivity, or relearn while ABS replaced.
• Injector coding: Relearn the injector control parameter while the injector renewed or replaced.
• Support TPMS programming service: It allows you to look up the tyre sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
• IMMO Service: This function enables you to perform the anti-theft key matching function, so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.
• Air Suspension: Try reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off.
• Gearbox Reset: Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.
• Air Filter Self-learning process after replacing the air filter.
• Seat Match, this utility performs the re-initialization of the power seat adaptive memory.
• Windows/Door/Roof, when replacing door glass and after battery replacement on certain year, make, model vehicles special steps need to be taken in order to properly replace and reprogram the vehicle so the electric windows work properly , the door window glass position can be learned by executing this routine, which enables pinch protection and one touch up function.
• Supports ADblue Reset.
• Supports Stop/Start Reset.
• Supports Tyre Reset.
• Supports Gear Learning.
• Supports Coolant Reset.
• Supports NOX Sensor Reset.
• Supports Transport Mode Reset.
• Language Change, this routine is to change language displayed in the instrument display.
• Automatic software upgrade.
• Easy to feedback test questions online.
• Provides convenient instruction with customer in interface.
• Multi-language: English, German, Dutch, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Hungarian, Traditional Chinese, Korean, Slovenian, Romanian (More languages will be added in the future.) Note!

*Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.

*This scan tool covers 20 years models, so some functions may not be available on all years /models.

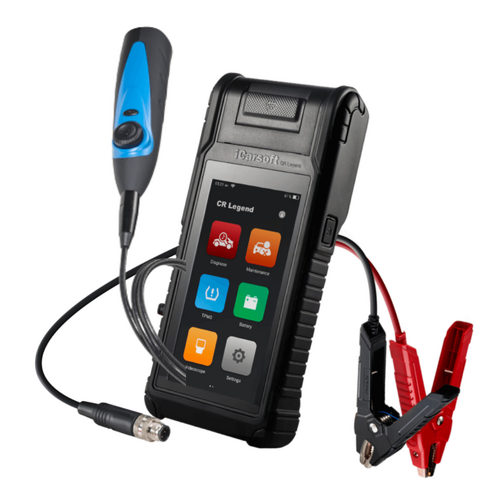

Battery & Electrical Diagnostics

• Battery Health Test: Analyse the health of the car battery, calculate the actual cold start capacity of the battery, and determine the aging degree of the battery, which provides a reliable analysis basis for the inspection and maintenance of the car battery.
• Start System Test: Carry on detection and analysis to the car starter motor, detect the actual starting current and start voltage of the starter motor, so as to determine whether the starter motor is normal.
• Charging System Test: Detect and analyse the car charging system, including generators, rectifiers, rectifier diodes, etc. Through testing, you can know whether the output voltage of the generator is normal, whether the rectifier diode is normal, and whether the charging current is normal.
• Battery Matching: Use car diagnostic equipment to perform a reset process on the monitoring unit of the car battery, clear the original fault information about insufficient battery power, and re-match it, and let the monitoring unit monitor the relevant information of the existing battery as the standard.

Tyre Pressure Detection

• Covers more than 98% of the world's models with tyre pressure system, supports 315MHz/413MHz tyre pressure sensor activation and matching learning, can read tyre pressure data, including: pressure, tyre temperature, battery status and other information, can read/copy/write the sensor ID value supports repeated programming of the sensor.

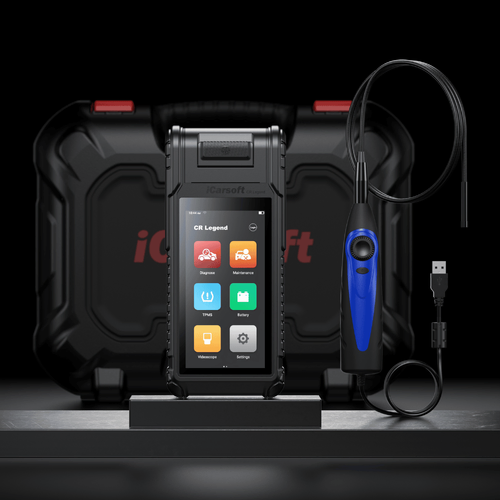

VideoScope

Equipped with external USB port and 5.5mm endoscope.
