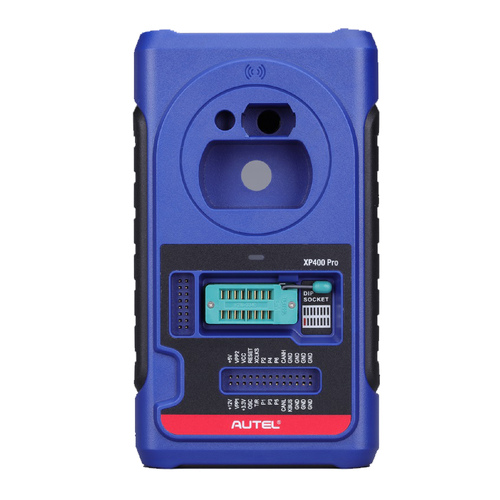

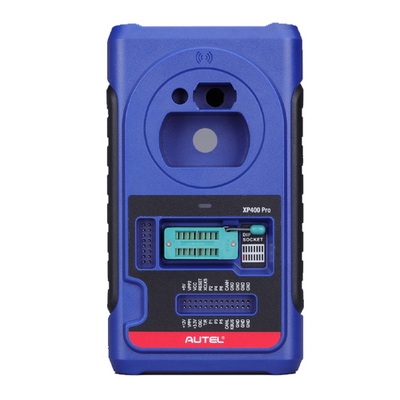

Autel XP400PRO Key Programming Adapter For IM508S & IM608II Pro

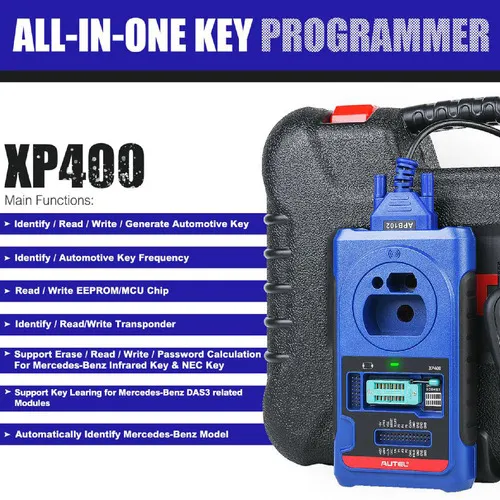

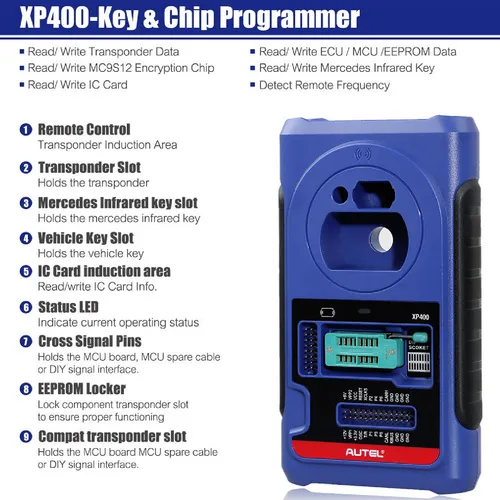

The XP400PRO Key Programmer is designed to work with Autel IM508/ IM608/ IM508S/ IM608II, Auro Otosys IM100/ IM600 Key Programming Tools to perform advanced IMMO functions and Key Chip Programming. A truly powerful automotive key & chip programmer tool that can read/write vehicle chip data, read/write EEPROM/MCU chip, and identify key frequency. Comes with APA104, APA105, APA106, APB102 to cover IMMO functions and Programming capabilities for more than 80 makes and models.

Customers with existing IM608 / IM508 / IM100* / IM600* can now enhance their key programming capabilities by adding the XP400Pro to the kit. The only thing the Otosys IM100 and IM600 will not have when used with XP400Pro is the 4 channel Labscope software and AutoAuth.

Expanded EEPROM functions for more component access
170+ types Odometer component reading functions
180+ Immobilizer ECU component types
40+ Engine ECU component types
2000+ MCU component types
440+ EEPROM component types
Compatible with IM508. IM508S, IM608, IM608II
Includes 1-Year Warranty
Free Software Updates for Life of Tool

XP400Pro adds support for following chips：

EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJITSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine control module-->> ST-->> M29FXXX series chip
IMMO-->> BENZ-->> ESL_W209_W906(Motorola) read/write/erase function
IMMO-->> BMW-->>EWS3 module read/write function
REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase

XP401 Pro adds support for following adaptor board:

APB113 PCF79XX adaptor board
APB114 EWS3 adaptor board
APB115 NEC adapter board
APB118 NEC ELV adaptor board
APB119 TB28FXXX adaptor board
APB120 TMS370 adaptor board
APB121 AM29FXXX adapter board
APB122 AM29FXXX adaptor board1
APB123 AM29FXXX adaptor board2
APB126 M35080/D80 adaptor board
APB127 MC68HC0(7)05BXX adaptor board
APB128 MC68HC05X32 adaptor board

The XP400PRO Key Programmer is designed to work with Autel IM508/ IM608, Auro Otosys IM100/ IM600 Key Programming Tools to perform advanced IMMO functions and Key Chip Programming. A truly powerful automotive key & chip programmer tool that can read/write vehicle chip data, read/write EEPROM/MCU chip, and identify key frequency. Comes with APA104, APA105, APA106, APB102 to cover IMMO functions and Programming capabilities for more than 80 makes and models.

	XP400	XP400PRO
EEPROM read/write	330 chip types	445 chip types Newly added support (AM29FXXX series, MB29FXXX series)
MCU read/write	1541 chip types	2067 chip types
Engine ECU read/write	40 chip types	41 chip types add write support for SIMTEC76(AM29F800BB)_Write
Immobolizer ECU read/write	168 chip types	181 chip types
Odometer read/write	Read odometer module 9 types	Read odometer module 171 types
Airbag read/write	Read airbag module 5 types	Read airbag module 5 types
Frequency detection	315/433/868MHz	315/433/868MHz
Key read/write	Support	Support
Key Unlock	N/A	Support 11 Key Types
Write Key Via Dump	Mitsubishi, Suzuki, Fiat, LandRover, Jaguar	Mitsubishi, Suzuki, Fiat, LandRover, Jaguar
Easy to Use/Stability	Menus are too generic and can’t select intuitively.	Stability of key read/write, chip read/write, IR key read/write are greatly enhanced.
Work with Tablet	Benz: all models key programming functions.	Benz: all models key programming functions
	BMW: CAS4/CAS4+Visa OBD	BMW: CAS4/CAS4+Visa OBD
	VW/Audi/Skoda/Seat/Fiat: Make dealer key	VW/Audi/Skoda/Seat/Fiat: Make dealer key
	LandRover/Jaguar: write key via dump for 2015+	LandRover/Jaguar: write key via dump for 2015+
	Volvo: Smart key & toothless knob-style smart card via dump	Volvo: Smart key & toothless knob-style smart card via dump
	Mitsubishi, Suzuki, Fiat, LandRover: write key via dump	Mitsubishi, Suzuki, Fiat, LandRover: write key via dump
	-	BMW: EWS3 Key programming
	-	Benz: W209 EIZ read/write/erase
	-	Benz: NEC OEM key programming

Operating Temperature: -10℃ ~ 60℃ (14℉ ~ 140℉)

Storage Temperature: -20℃ ~ 60℃ (-4℉ ~ 140℉)

Port: Mini USB, VGA_DB15

Input Voltage: 5 VDC

Operating Current: < 250 mA

Maximum Consumption: 1 W

Device Dimensions (L*W*H): 130 mm * 68 mm * 28 mm

Package Dimensions (L*W*H): 201 mm * 167 mm * 75 mm

Net Weight: 466 g
