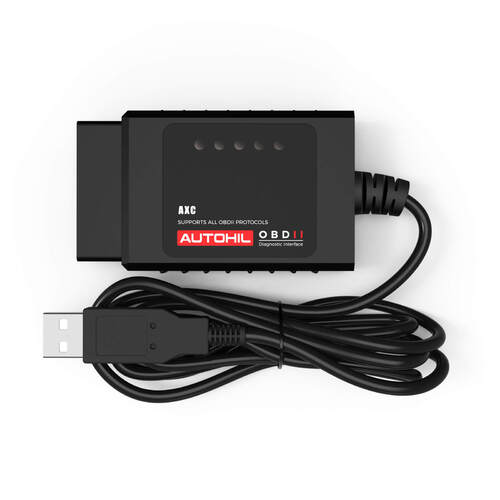

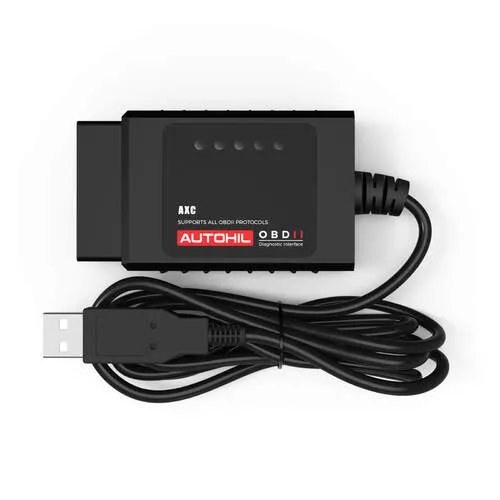

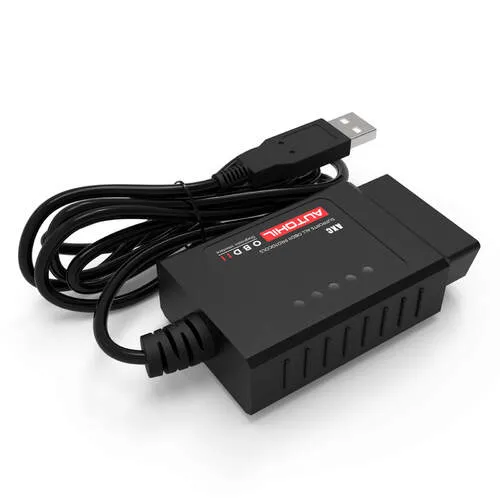

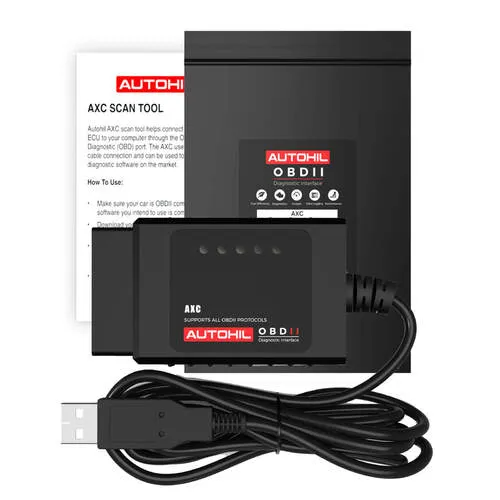

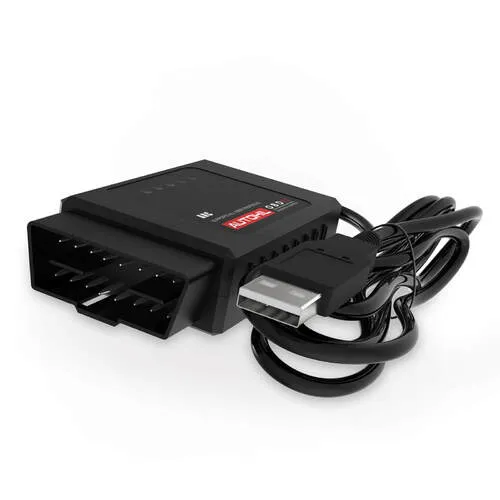

Autohil AXC is an easy-to-use PC cable OBD2 scan tool that can help you connect to your vehicle's engine data using your windows PC. You can diagnose engine trouble codes and know why CHECK ENGINE light is on. Monitor live engine data and parameters or perform other advanced functions. Autohil AXC scanner helps you connect to heaps of OBDII software available for Windows computers (windows 10 currently not supported) giving you more choices on how to use. Simply connect the scanner to OBDII port and PC and run with your preferred Software.

Diagnose Engine Trouble Codes DTCs

Get engine trouble code & its' meanings right on your computer’s screen. Know why your engine light is on and turn it off.

[Reads & Clear DTCs]: Read Engine diagnostic trouble codes DTC and provide both the code and its' meaning and clear them
[Engine Live Data]: Customise and monitor real-time engine parameters.
[Freeze Frame Data]: Recorded system parameters values at the time when engine malfunction first occurred
[Readiness test]: Test and check status of engine emission control systems
[VIN]: Read vehicle info such as Vehicle Identification Number VIN, Calibration IDs CALID and Calibration Verification Number CVN

*This scan tool does not come with any free software. You can find free and paid software online depending on your requirements.

(AUTOHIL-AXC)

Compatible with OBDII vehicles only

Engine Diagnostics + Gauges

USB connection for Windows

Upgraded 25K80 Chip for faster more reliable readings

Communication: USB Cable

Control Chip: PICI8F25K80

Supported Systems: Windows (windows 10 currently not supported)

Operating Voltage: 9-16V

Working current:50mA

Standby current: 45mAH

Power Consumption: 0.75 Watts

Operating Temperature: -15 to 100

Dimensions: Width 4.4cm Length 8cm Height 2.5cm

Compatible OBDII Protocols

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

SAE J1850 PWM (Found on many Ford vehicles)

SAE J1850 VPW (Found on many GM vehicles)
