AUTOOL Premium OBD2 Breakout Box | 12V & 24V Pin Tester

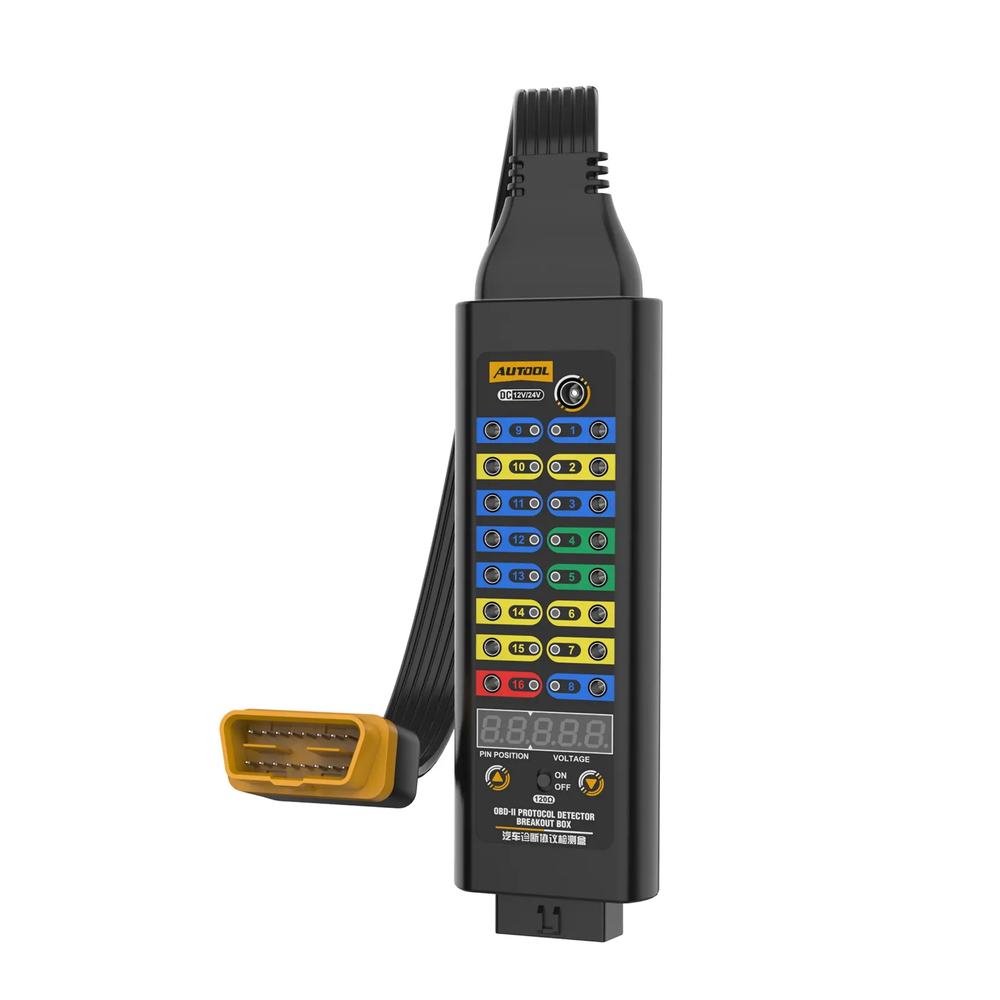

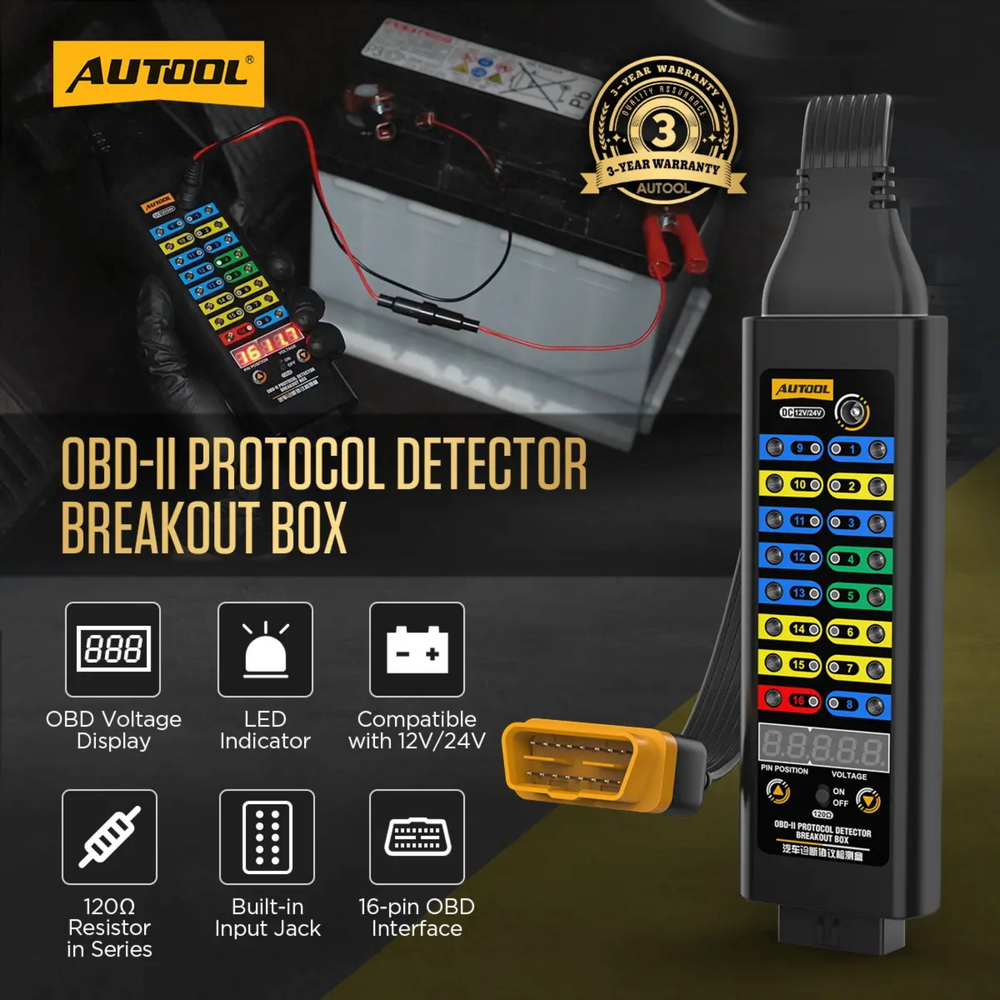

AUTOOL Premium OBD2 Breakout Box diagnostic testing tool

16-pin DLC breakout box for automotive diagnostics

The AUTOOL Premium OBD2 Breakout Box provides technicians with direct access to all 16 OBD2 DLC pins while keeping a compatible diagnostic scanner connected. Designed for professional automotive electrical and network diagnosis, it features real-time selected-pin voltage display, LED connection and activity indicators, 4 mm test access, external measurement support and a switchable 120 Ω resistor mode. Its 45 cm flexible TPU cable allows convenient positioning during workshop testing.

The AUTOOL Premium OBD2 Breakout Box provides technicians with direct access to all 16 OBD2 DLC pins while keeping a compatible diagnostic scanner connected.

Main Features

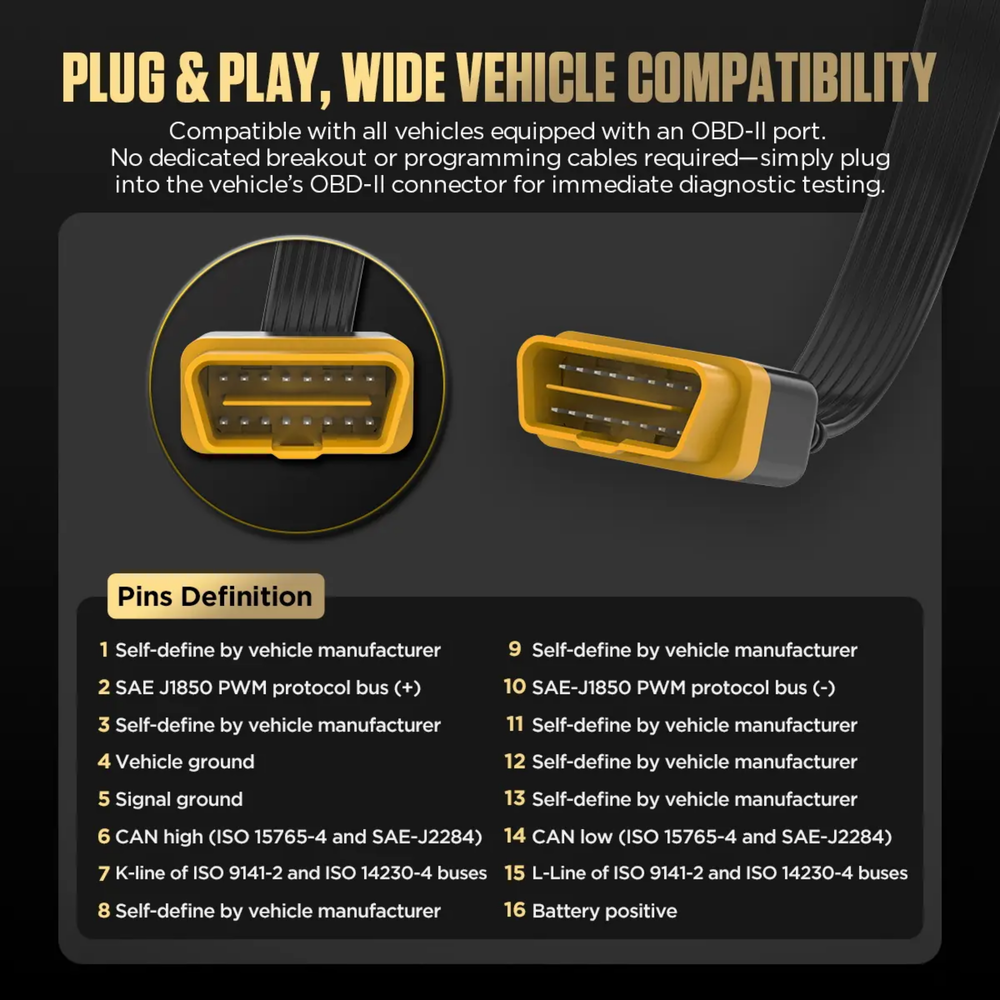

Direct 16-Pin OBD2 Access – Provides convenient access to all 16 OBD2 DLC pins, allowing technicians to perform targeted circuit, power, ground and communication-line checks without repeatedly back-probing the vehicle connector.

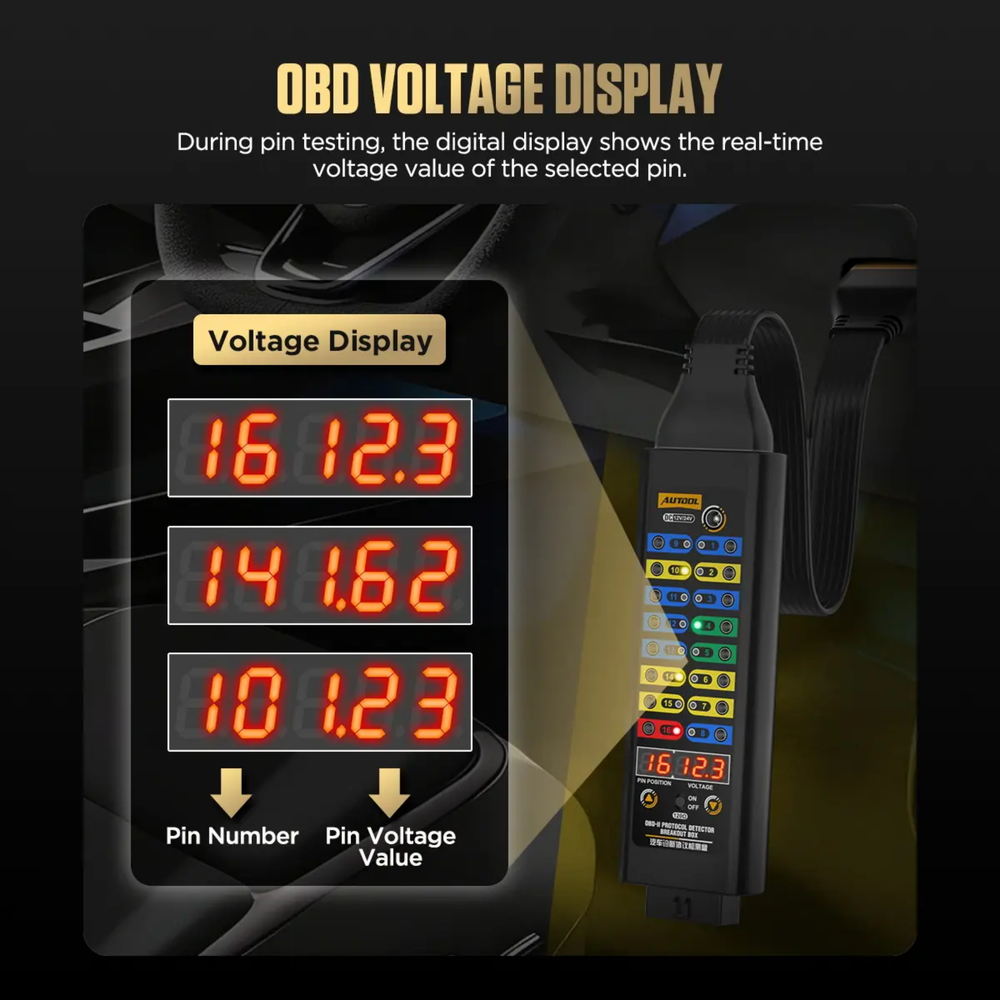

Real-Time Voltage Display – Displays the voltage measured at the selected OBD2 interface point, helping technicians quickly observe circuit conditions during diagnostic procedures.

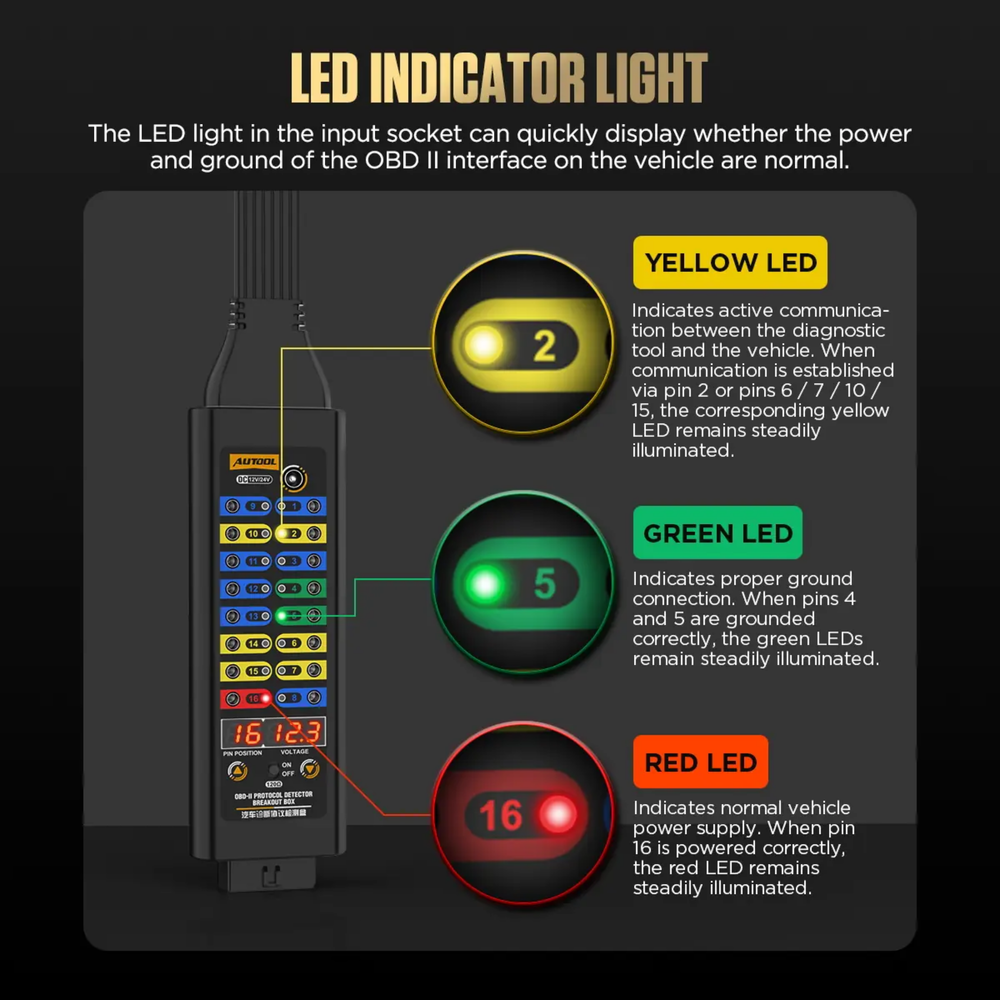

LED Connection & Activity Indicators – Integrated LEDs provide convenient visual cues for identified power, ground and communication lines, helping technicians locate relevant circuits before carrying out detailed measurements.

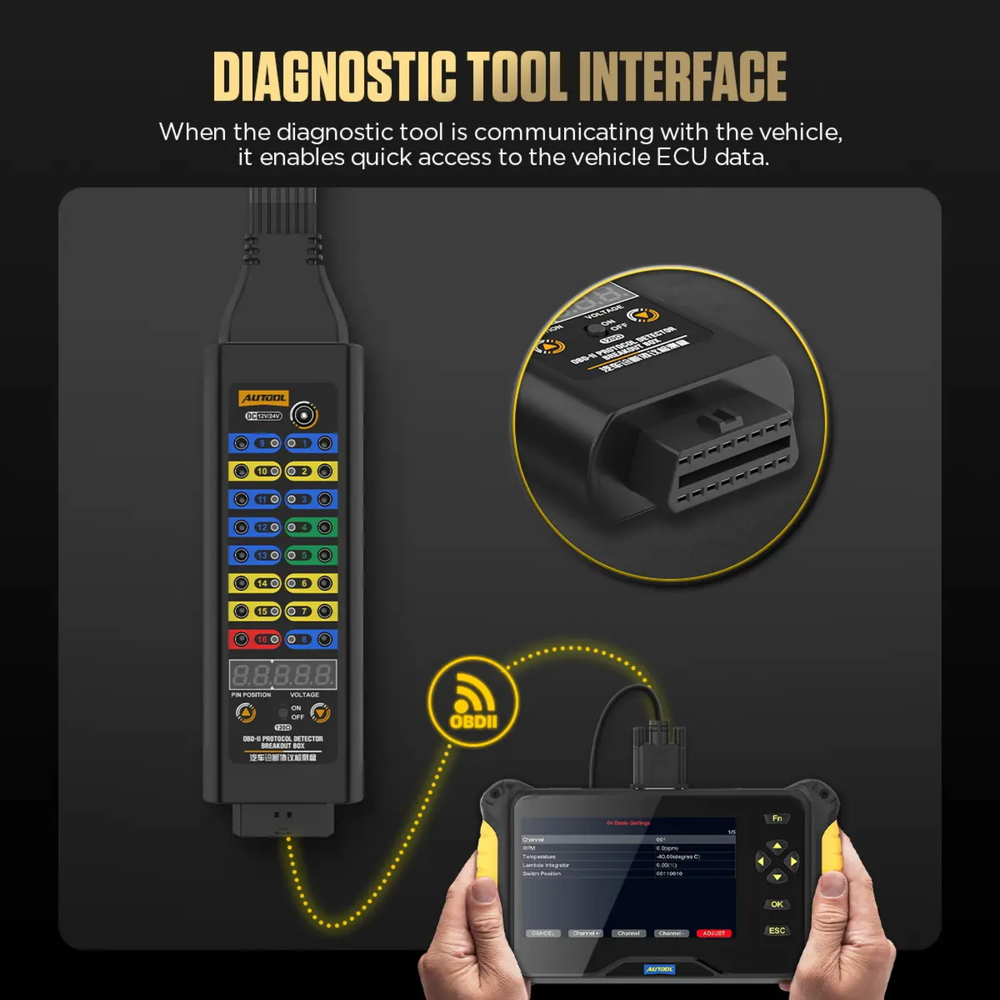

Scanner Pass-Through Connection – Allows a compatible diagnostic scanner to remain connected inline while individual OBD2 pins are accessed for simultaneous scan-tool and electrical testing.

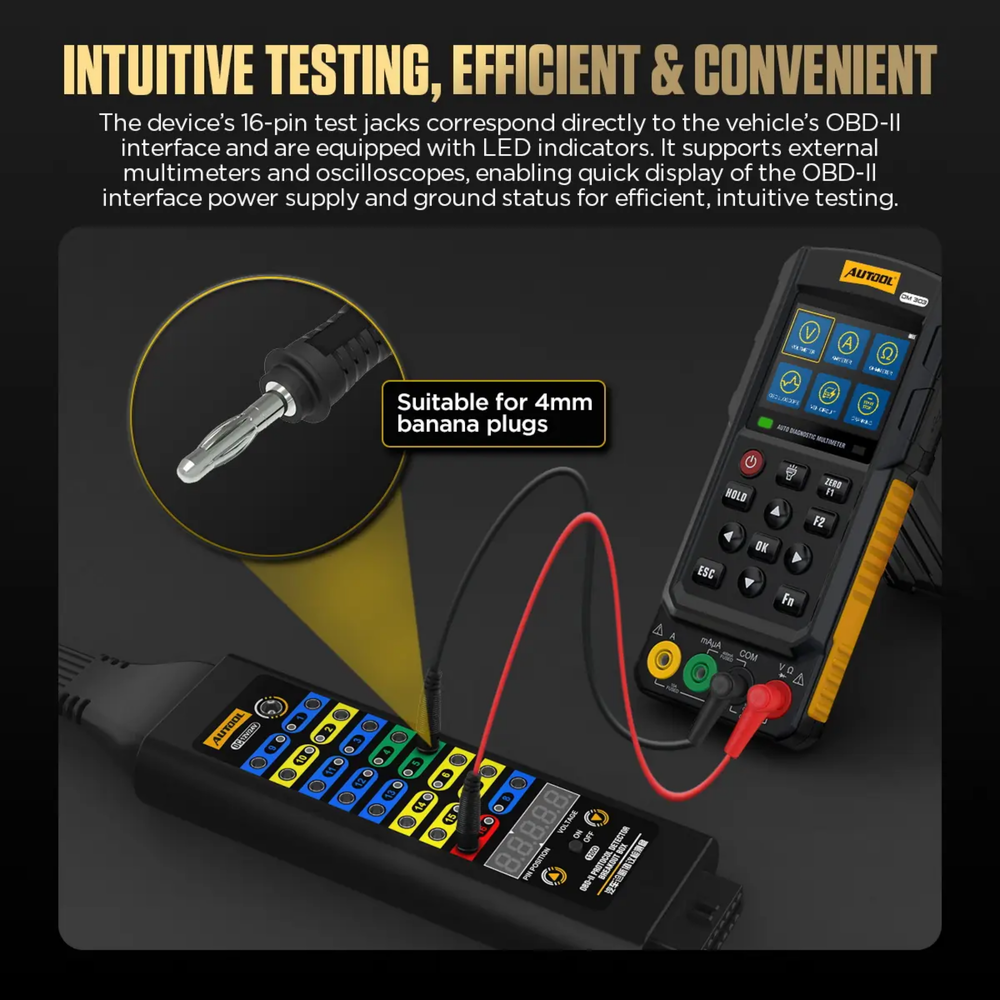

Multimeter & Oscilloscope Compatibility – Provides accessible test points for compatible 4 mm leads, multimeters and oscilloscopes, supporting voltage, waveform and circuit-condition analysis.

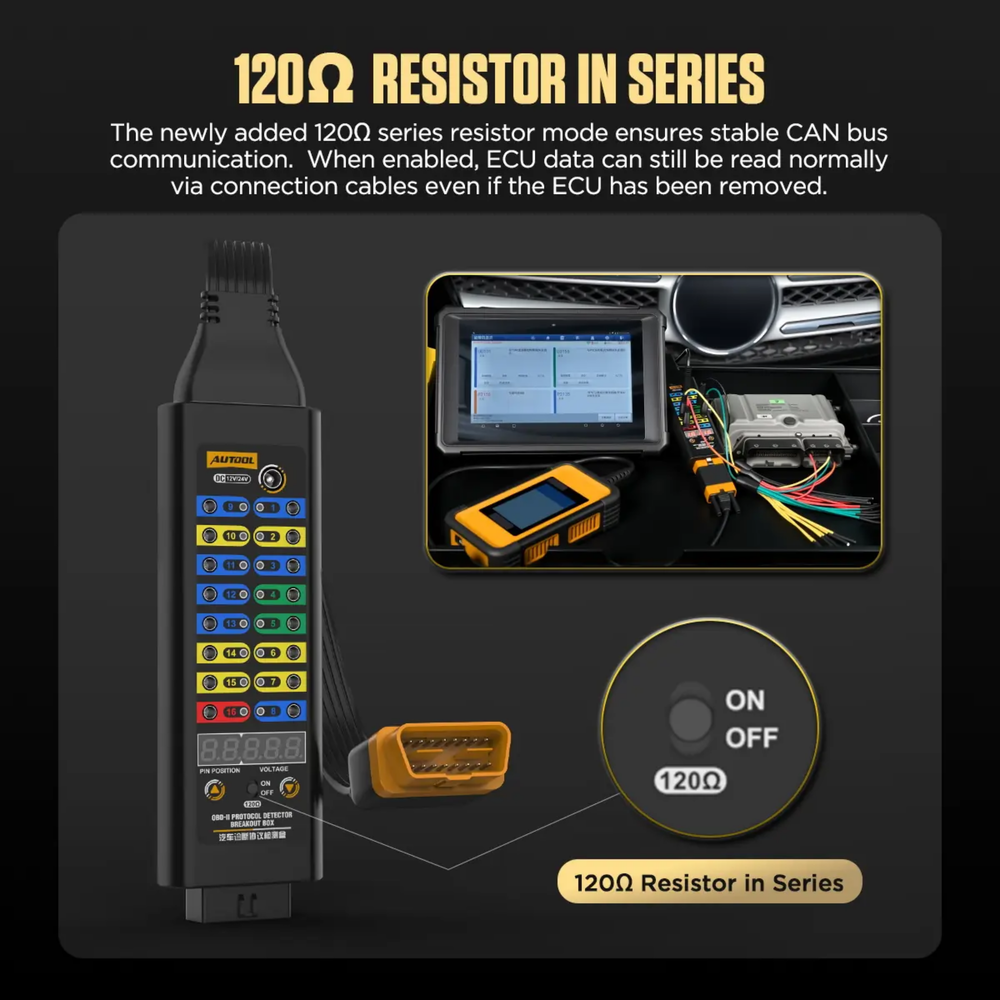

Switchable 120 Ω Resistor Mode – Includes a 120 Ω series-resistor function for use with applicable vehicle network diagnostic procedures and specified circuit configurations.

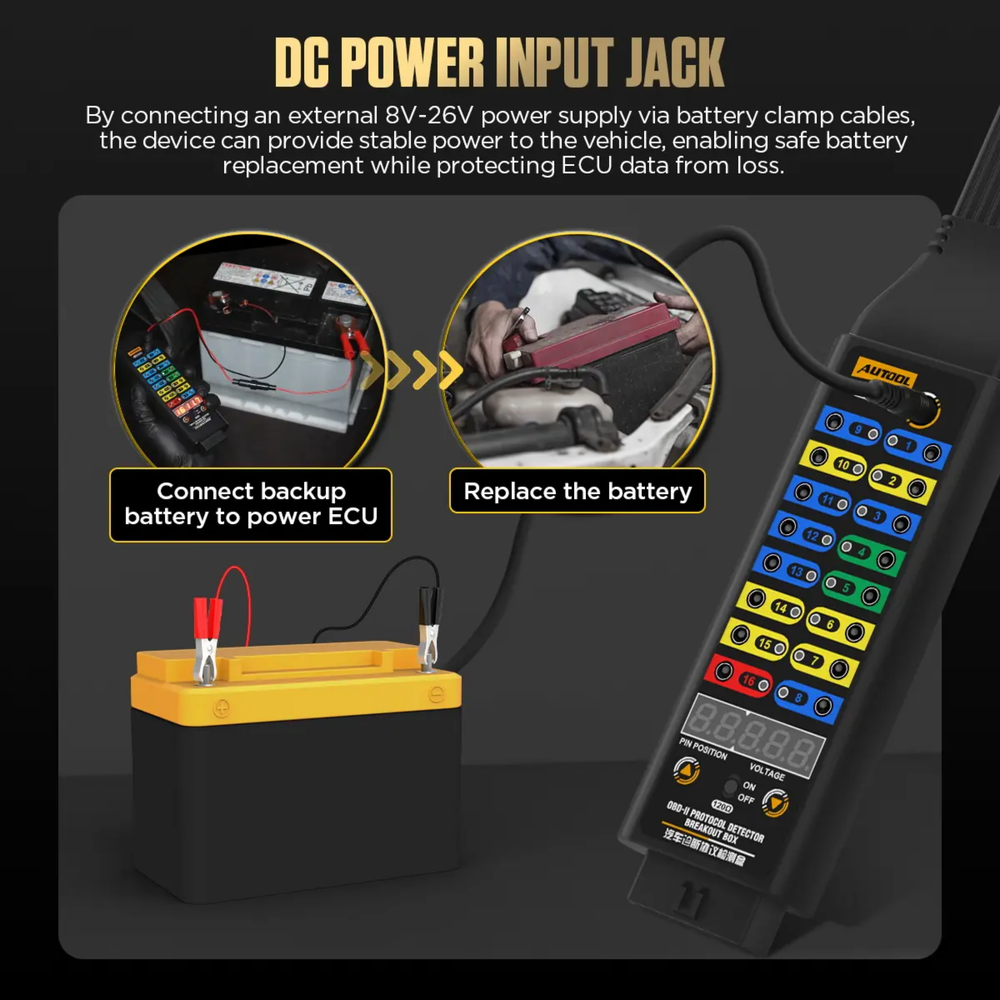

Temporary ECU Power Support – Supports connection of a suitable external power source for temporary ECU power during approved service procedures, subject to correct voltage, polarity and vehicle-specific requirements.
Power & Ground Circuit Testing – Provides accessible breakout points for checking OBD2 connector power supplies and grounds using suitable diagnostic measuring equipment.

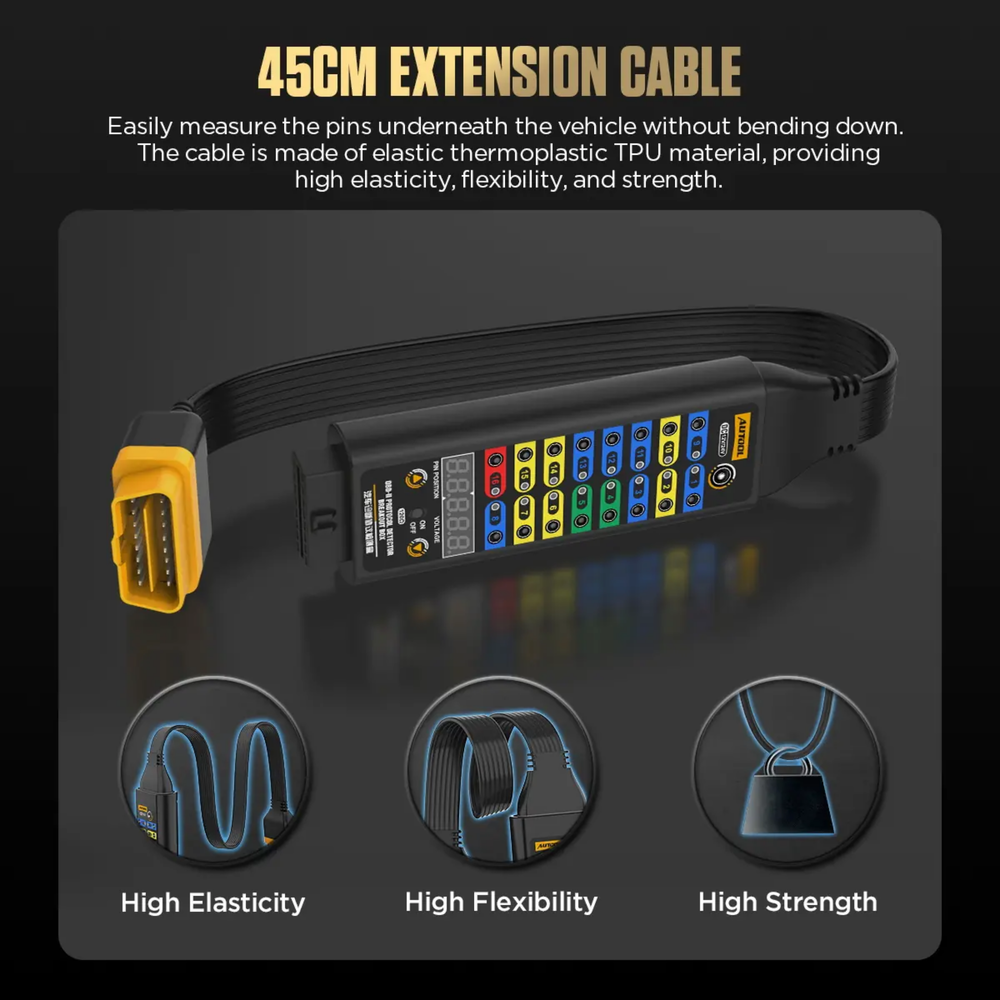

45 cm Flexible TPU Cable – Features a flexible and durable 45 cm TPU diagnostic cable that allows convenient positioning of the breakout box while working around the vehicle interior.
Professional Network Diagnosis Support – Assists technicians when investigating communication faults, network bias voltage, waveform behaviour, termination and other vehicle network conditions when used with the correct test equipment and vehicle-specific procedures.
Built-In Input Jack & Power Cable Support – Provides dedicated power hardware for applicable external supply procedures while keeping diagnostic connections organised and accessible.
Workshop-Safe Diagnostic Access – Moves pin-level testing away from the vehicle DLC to an accessible interface, helping reduce repeated probing of the vehicle connector during professional diagnostic work.

Package Includes

1 × AUTOOL Premium OBD2 Breakout Box
1 × 45 cm OBD2 Diagnostic Extension Cable
1 × Power Cable
Compatible Test Leads / Accessories for Selected Package
1 × User Manual

AUTOOL Premium OBD2 Breakout Box Functions

16-Pin OBD2 Access – Direct access to every DLC pin for circuit testing.
Real-Time Voltage Display – Displays voltage at the selected OBD2 interface point.
LED Status Indicators – Provides quick power, ground and line-activity cues.
Scanner Pass-Through – Keeps a compatible scan tool connected during testing.
4 mm Test Access – Supports compatible multimeter, oscilloscope and test leads.
120 Ω Resistor Mode – Switchable resistor function for specified network procedures.
External Power Input – Supports temporary ECU power during approved procedures.
45 cm TPU Cable – Flexible diagnostic cable suited to repeated workshop use.
Power & Ground Checks – Supports supply and ground circuit assessment.
Professional Diagnostics – Designed for advanced electrical and network testing.

AUTOOL Premium OBD2 Breakout Box diagnostic testing tool

AUTOOL Premium OBD2 Breakout Box Specifications

Diagnostic Port: OBD2

Working Voltage: DC 6V–30V

Load: 2.0 A rated; external load must not exceed 1 A

Operating Temperature: -20°C to 70°C (-4°F to 158°F)

OBD2 Extension Cable Length: 45 cm

OBD Voltage Display: Yes

LED Indicator Light: Yes

Power Cable: Yes

Built-In Input Jack: Yes

Protocol Signal Test Access: Yes

Power Detection: Yes

Ground Circuit Detection: Yes

16-Pin OBD Interface: Yes

120 Ω Series Resistor Mode: Yes

AUTOOL 16-pin OBD2 diagnostic breakout box for technicians
