Launch X431 Smartlink HD 2.0: Which Heavy Diesel Kit Is Right for Your Workshop?

Heavy Diesel vs Passenger Vehicle Diagnostics — Why You Need a Specialised Tool

Standard OBD2 scanners are designed for passenger vehicles and light commercial vehicles. They communicate via protocols like ISO15765 (CAN) and KWP2000 — the standards used by cars, SUVs, and modern utes. They work well on everything from a Hilux to a BMW, but they cannot communicate with heavy diesel commercial vehicles.

Heavy diesel trucks, buses, and commercial machinery communicate via entirely different protocols — primarily SAE J1939 and J1708/J1587. These are the standards used by 24V commercial vehicles, and standard OBD2 tools simply cannot access them. This means that without a purpose-built heavy diesel scan tool, you're locked out of the engine, transmission, ABS, and every other system on a modern truck or bus.

Some of the most common heavy diesel protocols include:

• SAE J1939 — the primary CAN-based protocol used on modern heavy diesel trucks and buses globally, including Volvo, Scania, Freightliner, Kenworth, Isuzu, and more
• SAE J1708 / J1587 — an older heavy diesel protocol still found on legacy trucks and some current models
• CAN FD & DoIP — next-generation protocols used on the latest commercial vehicles and required for future-proof diagnostics

The good news: all three Smartlink HD 2.0 options in this guide support the full range of heavy diesel protocols — so whether you're working on a late-model Scania, an older Freightliner, or anything in between, you're covered.

The Three Smartlink HD 2.0 Options

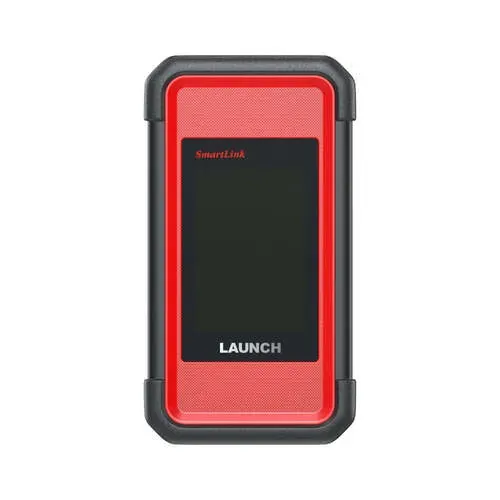

1. Smartlink HD 2.0 Module — Best for Existing X431 V+ Owners

• Standalone HD module — pairs directly with your existing Launch X431 V+ tablet
• Full OE-level heavy diesel diagnostics: read/clear fault codes, live data, actuator tests, ECU coding
• Covers 36+ major truck and commercial vehicle brands across Europe, Americas, and Asia
• Supports J1939, J1708/J1587, CAN FD, and DoIP protocols
• 12V and 24V compatible — works across passenger vehicles and heavy diesel without adapters
• IP65 rated, rugged workshop build
• Full adapter kit included in box — ready to use from day one
• 1 year free software updates

→ If you already own the Launch X431 V+ tablet for passenger vehicle diagnostics, this is the most cost-effective path to full heavy diesel coverage. No second scanner needed — just add the module and your existing setup becomes a complete heavy diesel diagnostic platform covering trucks, buses, agricultural machinery, and construction equipment.

Best for: Existing X431 V+ owners wanting to add heavy diesel capability without buying a new kit.

2. X431 V+ Smartlink HD 2.0 Kit — Best for HD-Focused Workshops

• Complete kit — includes X431 V+ tablet (10.1" Android, 4GB RAM / 64GB storage) and Smartlink HD 2.0 module
• Full OE-level heavy diesel diagnostics: read/clear codes, live data, actuator tests, ECU coding, topology mapping
• Covers trucks, buses, agricultural machinery, construction equipment, and mining vehicles
• 36+ truck brands including Volvo, Scania, Isuzu, Fuso, Freightliner, MAN, DAF, Kenworth, and more
• Key service functions: DPF regeneration, injector coding, SCR/AdBlue reset, ABS bleed, clutch matching, speed limit reset
• 12V and 24V support — no battery conversion required
• Wireless Bluetooth and USB connectivity
• IP65 rated rugged build — designed for workshop and field use
• Full heavy-duty adapter kit included
• 1 year free software updates

→ The complete out-of-the-box solution for workshops and fleet operators where heavy diesel is the primary focus. Whether you're maintaining a transport fleet, servicing buses, diagnosing farm equipment, or keeping earthmoving machinery running, the X431 V+ Smartlink HD 2.0 Kit delivers full OE-level coverage from a single professional platform. One verified customer review sums it up well: it covers a full fleet of different trucks across Scania, Isuzu, Volvo, and DAF — all from one kit.

Best for: HD-focused workshops, fleet operators, mobile mechanics working primarily in transport, agriculture, construction, or mining.

3. X431 V+ with Smartlink HD 2.0 — Petrol & Heavy Diesel Kit — Best for Mixed Fleets

• The ultimate dual-coverage kit — full passenger vehicle diagnostics AND full heavy diesel in one package
• X431 V+ tablet covers 150+ passenger vehicle brands including all major Australian, European, American, and Asian makes
• Smartlink HD 2.0 module adds full OE-level coverage for trucks, buses, agricultural machinery, construction, and mining equipment
• Full system diagnostics across both platforms: engine, transmission, ABS, SRS, body, chassis, and more
• ECU coding, bi-directional active tests, topology mapping, and remote diagnostics
• Extensive service functions: DPF regen, injector coding, SCR/AdBlue, ABS bleed, oil reset, EPB, BMS, SAS, clutch matching, speed limit reset
• 12V and 24V compatible — covers passenger vehicles through to 24V heavy diesel trucks
• Wireless Bluetooth and USB connectivity
• CAN FD and DoIP support for current and next-generation vehicles
• Full adapter kit for both passenger and heavy diesel vehicles included
• 1 year free software updates

→ For workshops and operators who need genuine OE-level diagnostics across every vehicle type — from a Toyota Hilux or Ford Ranger through to an Isuzu truck, Volvo semi, Scania bus, or John Deere tractor — this is the only kit that truly covers it all without compromise. There is very little else on the Australian market that delivers this breadth of coverage from a single professional tool. If you're servicing mixed fleets, running a multi-bay workshop, or simply need one tool that handles every vehicle on your bay, this is it.

Best for: Mixed-fleet workshops, operators servicing both passenger vehicles and heavy diesel, anyone wanting one kit with zero gaps in coverage.

What Can the Smartlink HD 2.0 Actually Do? Full Function Overview

Across all three options, the Smartlink HD 2.0 module delivers the same professional heavy diesel diagnostic capability. Here's what that covers in practice:

• Read and clear fault codes — full system access across engine, transmission, ABS, air suspension, body control, and more
• Live data streaming — real-time monitoring of engine parameters, temperatures, pressures, and sensor readings
• Actuator and active tests — trigger components directly to verify operation
• ECU coding and adaptations — recode and adapt control units after repair or replacement
• DPF regeneration — forced regen for diesel particulate filter compliance
• Injector coding — precise fuel delivery calibration after injector replacement
• SCR / AdBlue monitoring and reset — emissions system maintenance
• ABS bleed and calibration
• Clutch matching and transmission calibration
• Speed limit reset
• Topology mapping — visual system map for faster fault tracing
• Remote diagnostics — diagnose vehicles off-site via the Launch platform

These are the functions that separate a professional heavy diesel diagnostic tool from a basic truck code reader — and they're available across all three kit options.

Heavy Diesel Vehicle Coverage — Which Brands Are Supported?

The Smartlink HD 2.0 covers 36+ major truck and commercial vehicle brands across all major regions:

• European: Mercedes-Benz, MAN, Volvo, DAF, Scania, Iveco, Renault
• American: Freightliner, Kenworth, Peterbilt, International, Mack
• Asian: Isuzu, Fuso, Hino, UD Trucks, Hyundai
• Chinese: FAW Jiefang, Dongfeng, Foton, Shaanxi, Beiben, CNHTC, Yutong

Beyond road transport, coverage extends to agricultural machinery (John Deere, New Holland, and more), construction equipment (excavators, bulldozers, graders, loaders), and mining vehicles — making it a single diagnostic platform for workshops and fleet operators running equipment across multiple industries.

Quick Decision Guide

• Already own the X431 V+ tablet and want to add heavy diesel? → Smartlink HD 2.0 Module
• Starting fresh and primarily servicing trucks, buses, or heavy machinery? → X431 V+ Smartlink HD 2.0 Kit
• Need full coverage across passenger vehicles AND heavy diesel from one kit? → X431 V+ with Smartlink HD 2.0 Petrol & Heavy Diesel Kit

Final Thoughts

All three options share the same professional-grade Smartlink HD 2.0 heavy diesel diagnostic capability — the right choice simply comes down to your existing setup and the vehicles you're servicing. Whether you're adding heavy diesel to an existing X431 V+ setup, kitting out a dedicated truck workshop, or building a single platform that covers every vehicle on your bay, there's a Smartlink HD 2.0 configuration built for your situation.

All products are stocked and supported by our Australian-based team, and we're happy to help confirm which option is the best fit for your workshop before you buy.

*Please note: Feature and vehicle coverage can vary depending on specific model, year, engine, and scan tool software version. We always recommend confirming compatibility before purchasing.

→ Browse our full heavy diesel scan tool range online or reach out to our team on 03 8658 8894 for a recommendation tailored to your fleet and needs.
