Yamaha Motorcycle Diagnostic OBD Cable Kit

Professional Yamaha Motorcycle Diagnostic Cable Kit

The iCarsoft Yamaha Motorcycle Diagnostic Cable Kit is a professional-grade accessory bundle engineered for stable power delivery and dual-device OBD communication in Yamaha diagnostic environments. Combining the MT02-1 external battery power cable with the MT04-1 and MT07 cables, this kit ensures uninterrupted ECU diagnostics, programming stability, and simultaneous data monitoring. Designed for workshop, fleet, and advanced motorcycle service applications, it supports reliable signal integrity and voltage consistency during critical operations.

The iCarsoft MTv6 Yamaha Motorcycle Diagnostic Cable Kit is a professional-grade accessory bundle engineered for stable power delivery and dual-device OBD-II communication in Yamaha diagnostic environments.

Key Features

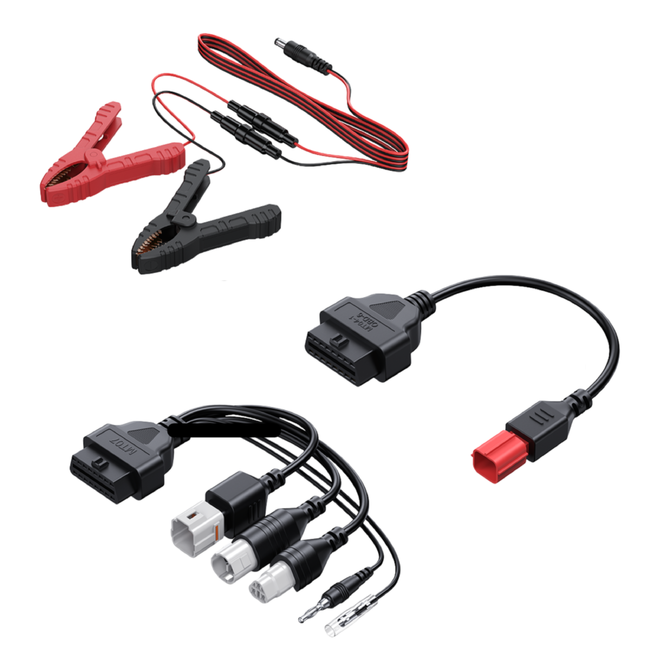

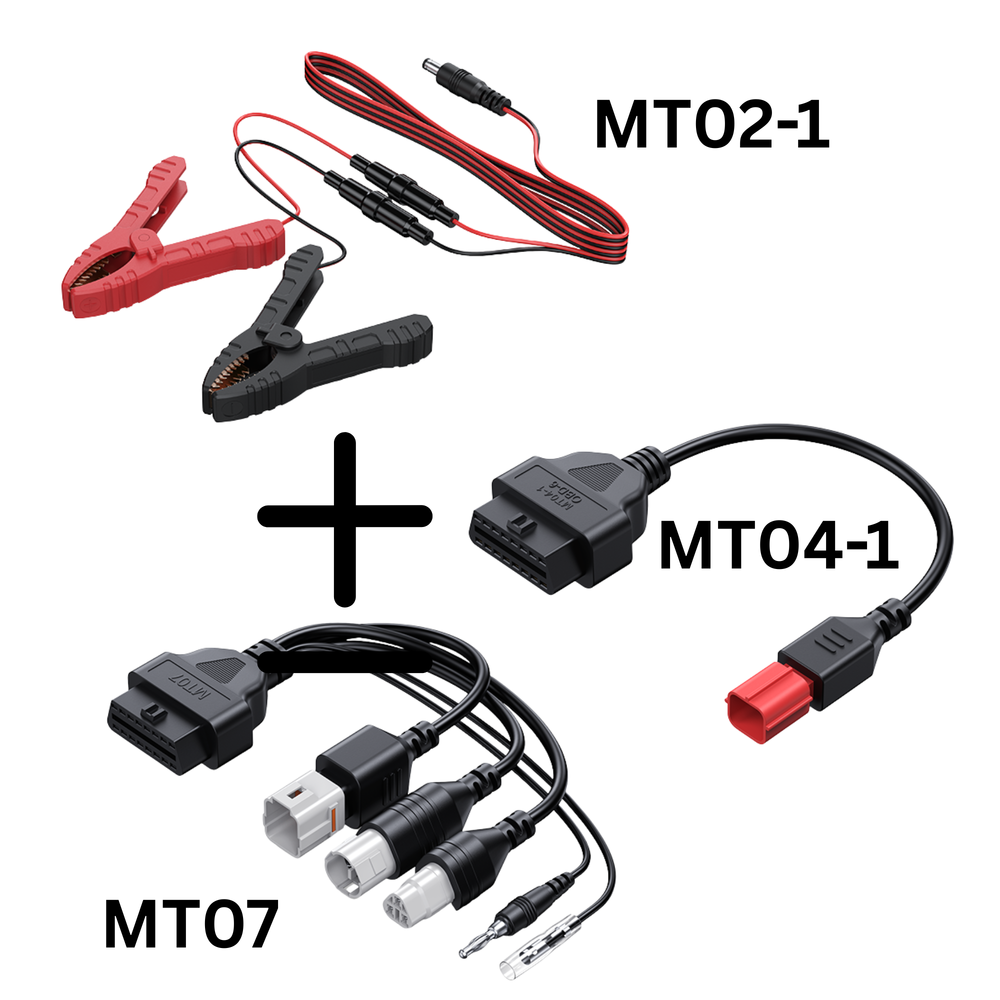

Complete Yamaha Diagnostic Cable Kit – Includes MT02-1 power supply cable (battery clamps with dcc connector), MT04-1 (16 pins to 6 pins adapter), and MT07 (16 pins to 4 pin, 3 pin, 3 pin adapter and 2 auxiliary diagnostic breakout connectors)

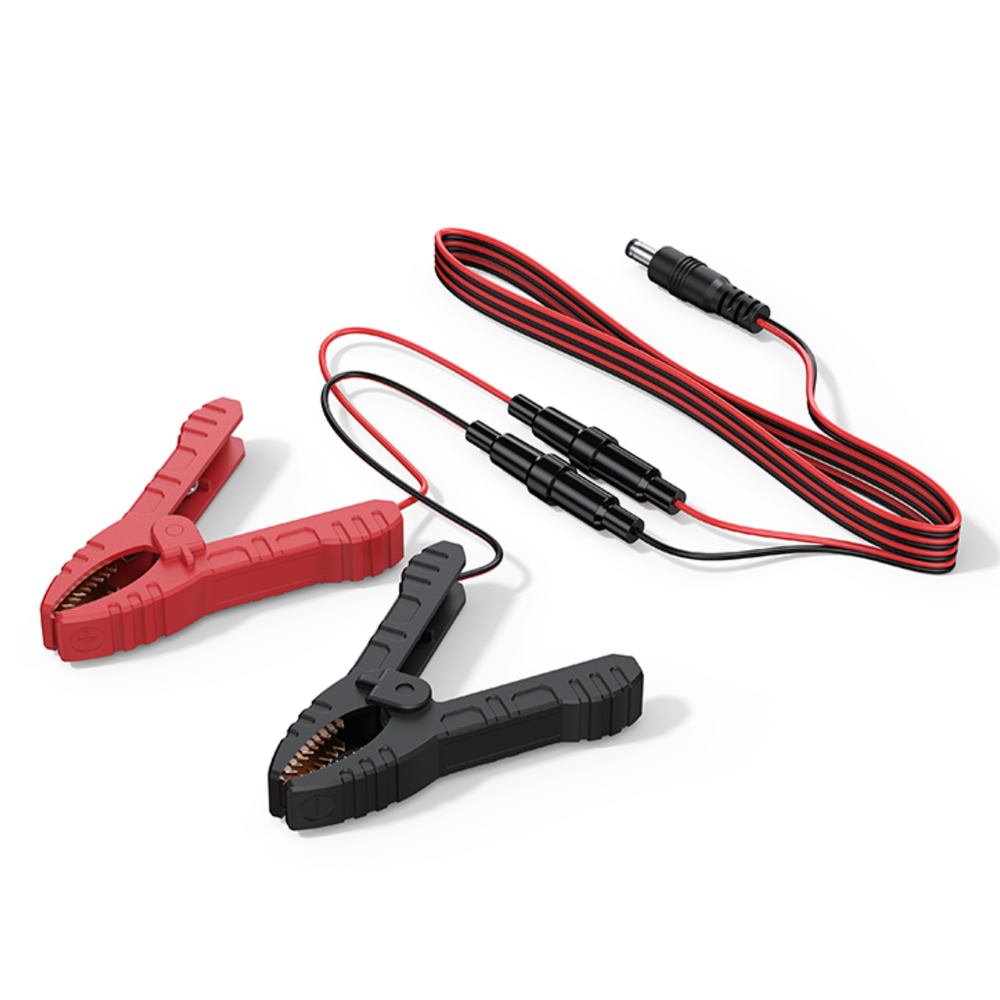

Direct Battery Power Support (MT02-1) – Ensures stable external power during ECU diagnostics and programming.
Yamaha Cable adapter (MT04-1 & MT07) – Enables simultaneous connection of scan tools and telematics devices.
Professional Workshop Construction – Reinforced insulation, moulded connectors, and strain relief design.
Voltage Stability & Signal Protection – Minimizes data interruption and diagnostic failure risks.
Plug-and-Play Integration – No configuration required for compatible Yamaha diagnostic tools.

Package Includes:

1 × iCarsoft MT02-1 Diagnostic Power Supply Cable

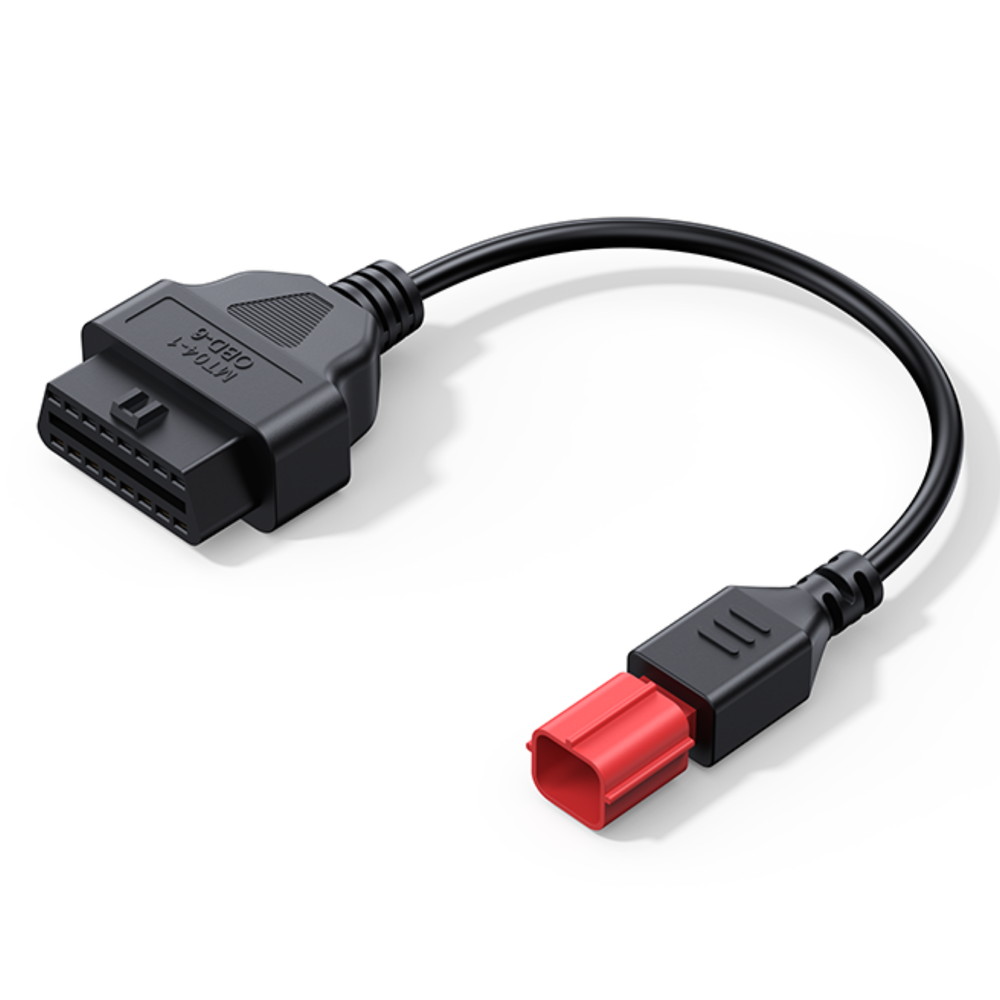

1 × iCarsoft MT04-1 Cable Adapter

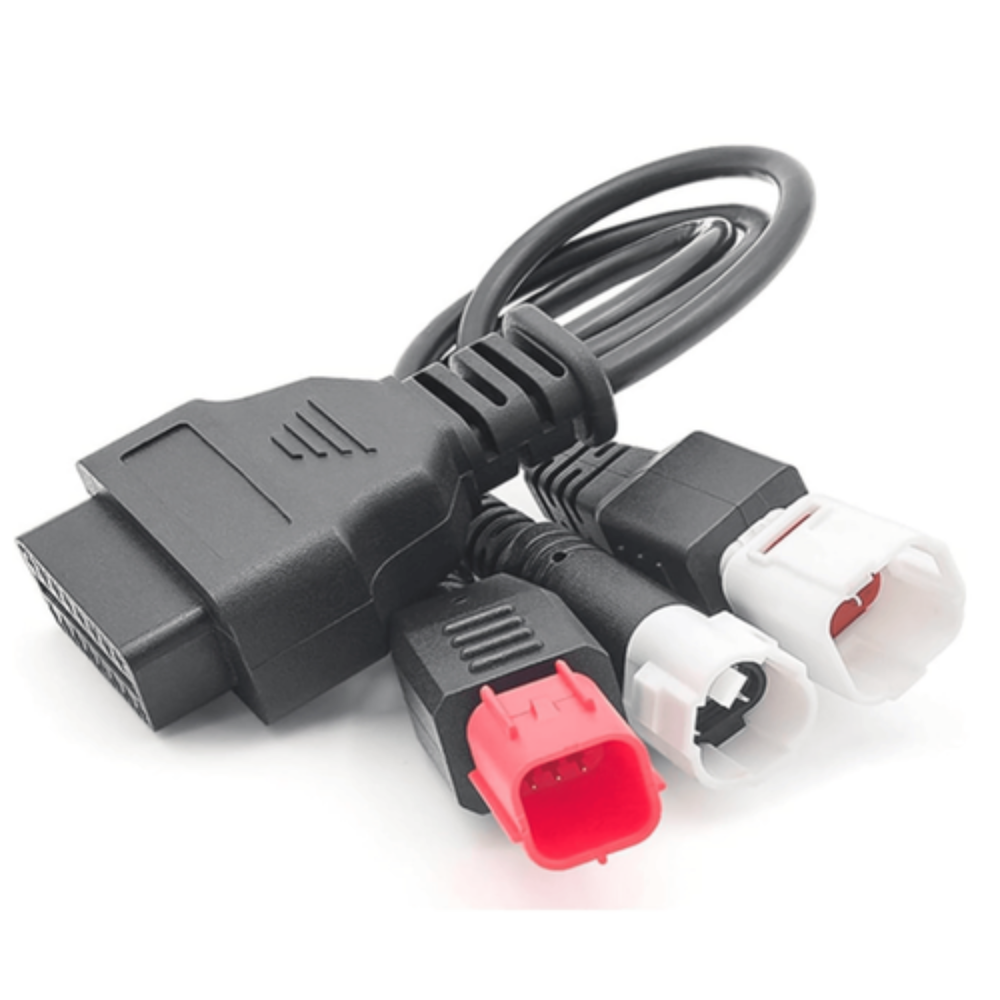

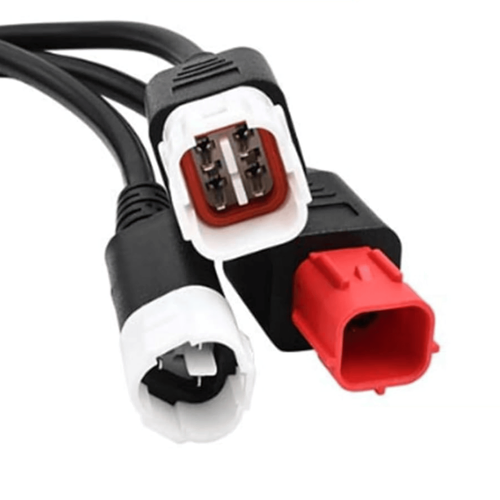

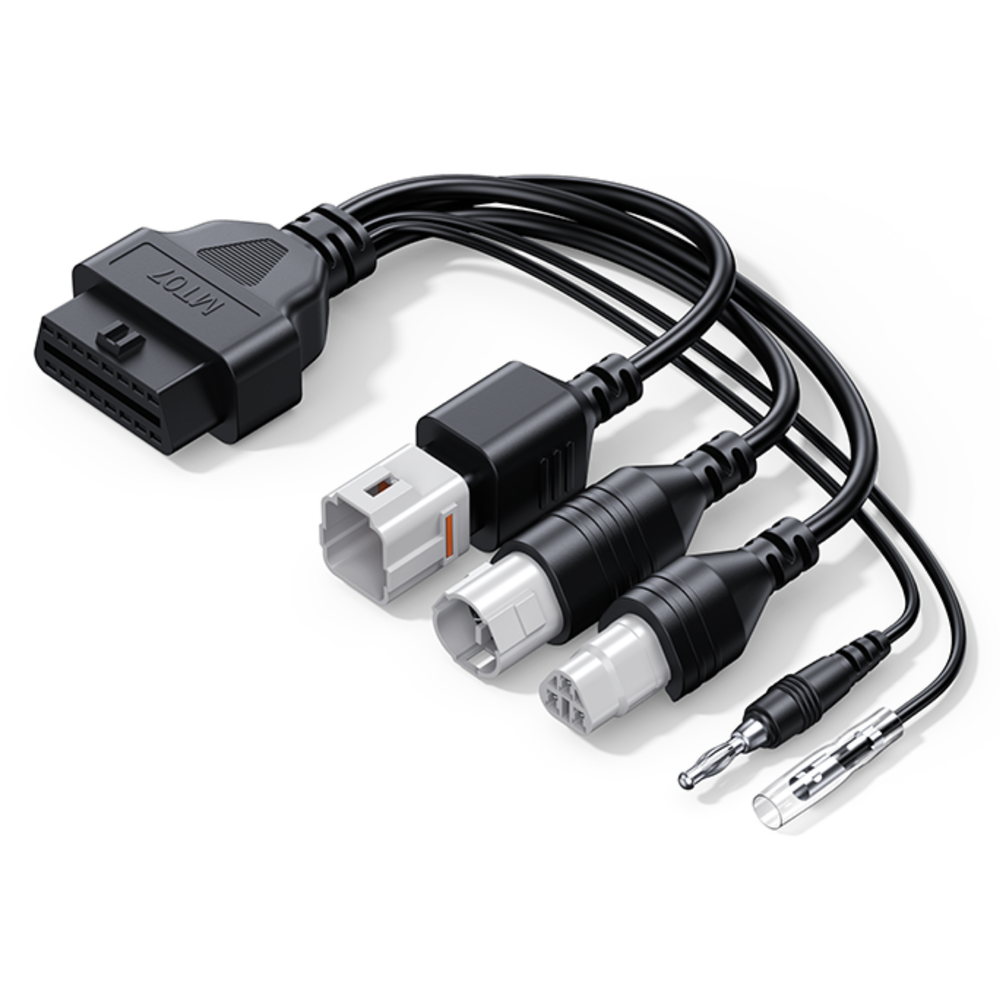

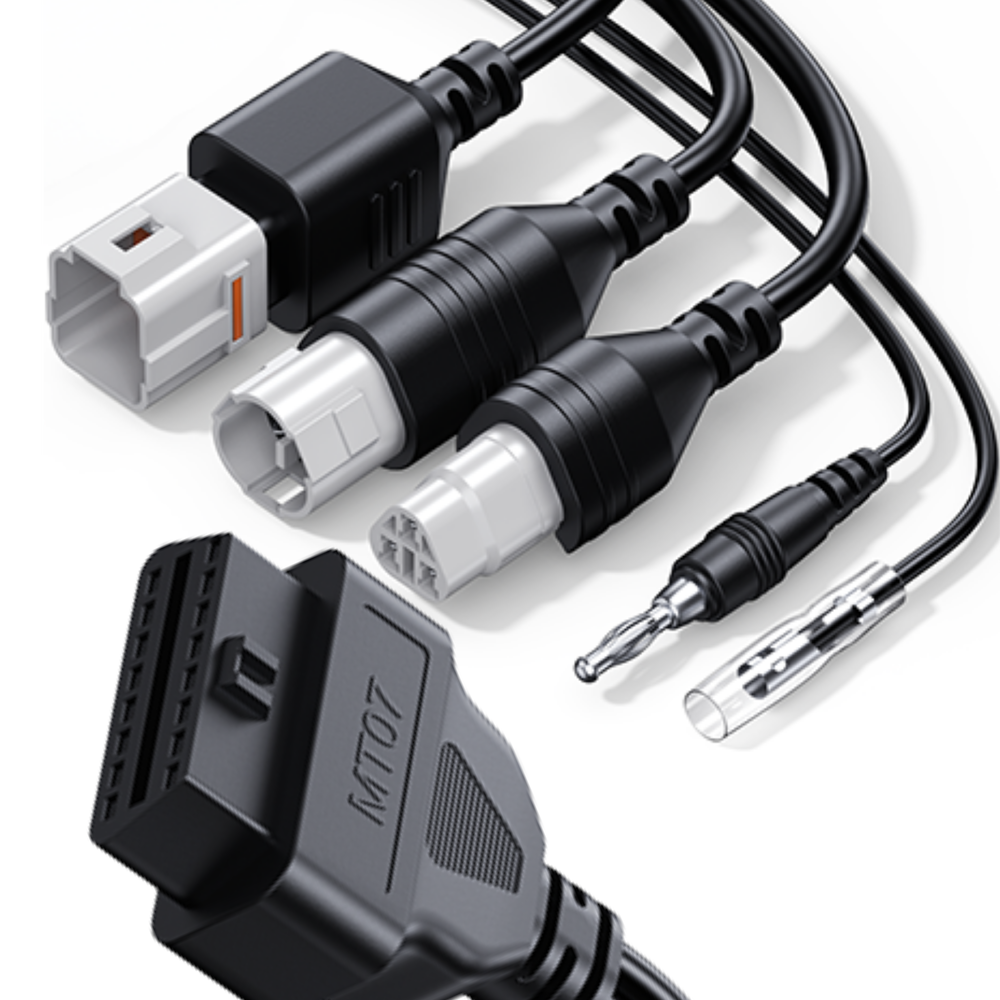

1 × iCarsoft MT07 Cable Adapter

The MTv6 kit integrates stable external battery power delivery with dual OBD communication capability. The MT02-1 maintains uninterrupted voltage during ECU programming, while the MT04-1 and MT07 cable adapters enable concurrent device operation without compromising signal quality. Together, they provide a controlled, professional diagnostic infrastructure for Yamaha motorcycle service environments.

Technical Specifications

Included Models: MT02-1 Diagnostic Power Cable, MT04-1 OBD-II Y Splitter, MT07 OBD-II Y Splitter

MT02-1 Type: External Diagnostic Power Supply Cable

MT02-1 Input Connection: Insulated Battery Clamps (Positive / Negative)

MT02-1 Output Connector: DC Barrel Connector

MT02-1 Cable Length: Approx. 1.5 m

MT02-1 Cable Material: Insulated Copper Wiring

MT04-1 Type: Professional 16-Pin OBD-II Y Splitter Cable

MT04-1 Input Connector: 16-Pin J1962 Male

MT04-1 Output Connectors: Dual 16-Pin J1962 Female

MT04-1 Cable Length: 40 cm (Approx.)

MT07 Type: Dual 16-Pin OBD-II Diagnostic Splitter Cable

MT07 Vehicle Connector: 16-Pin J1962 Male

MT07 Device Connectors: Dual 16-Pin J1962 Female

MT07 Cable Length: 40 cm

Pin Configuration (MT04-1 & MT07): Full 16-Pin Pass-Through

Supported Protocols: CAN, ISO 9141-2, ISO 14230 (KWP2000), SAE J1850 PWM & VPW

Operating Voltage: Standard OBD-II Vehicle Voltage

Operating Temperature Range: -20°C to +70°C

Construction: Reinforced PVC Insulation with Moulded Strain-Relief Connectors

Installation Type: Plug-and-Play (No Configuration Required)

Application: Yamaha Motorcycle Diagnostics, Dual Device OBD-II Monitoring, External ECU Power Supply
