Launch X431 EV Diagnostic Kit | Battery Pack Diagnostics for Electric Vehicles

As electric vehicles become an everyday reality in Australian workshops, the Launch X431 EV Diagnostic Upgrade Kit gives technicians the tools to service them with the same confidence and precision they apply to traditional vehicles. This add-on kit expands your existing X431 PAD V, PAD VII, or compatible X431 PRO-series tablet into a dedicated EV battery diagnostic platform — no separate tool required.

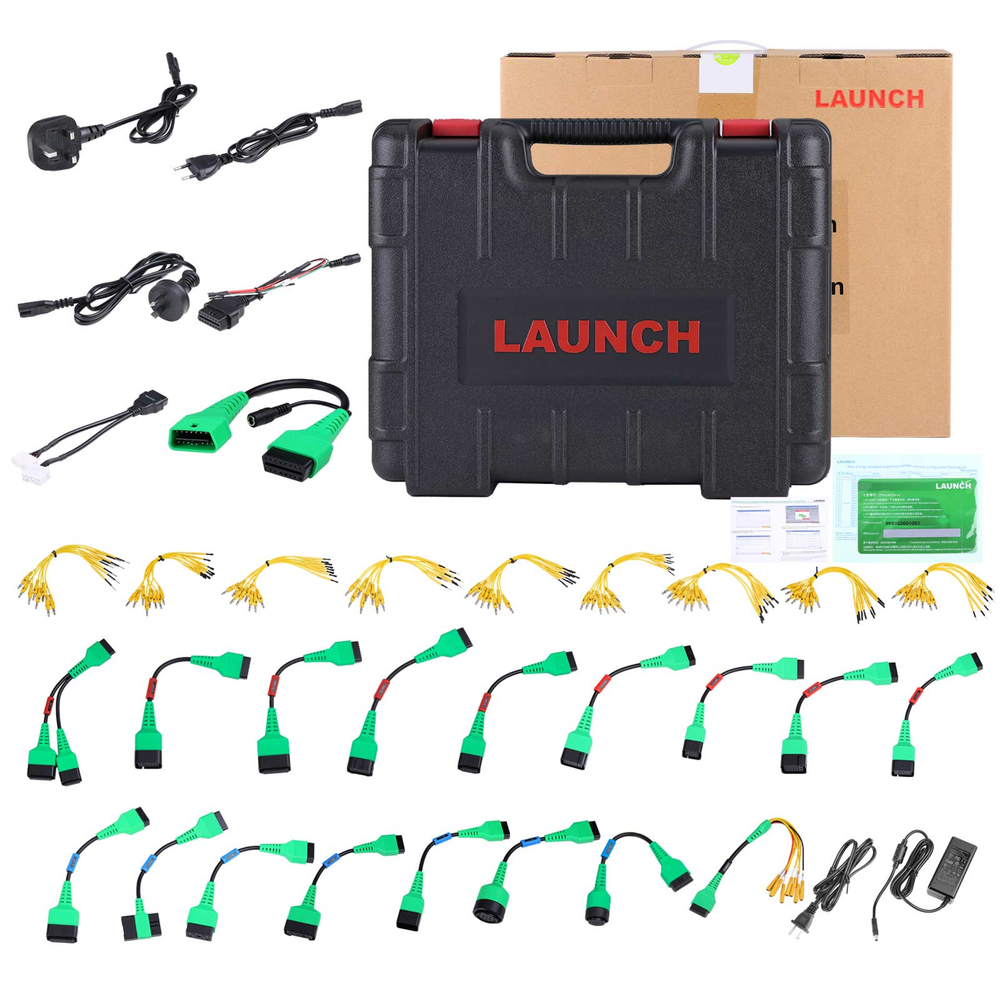

The Launch X431 EV kit includes a comprehensive set of vehicle-specific adapter cables, an 8-pin battery pack detection connector, dedicated Tesla connectors, and an activation card (EV DIAGKIT) that unlocks the New Energy Diagnose module on your X431 scan tool. Once activated, you can read battery pack State of Charge, State of Health, individual cell voltages, temperature data, and live data streams — giving you a complete picture of battery condition in minutes.

With EV registrations growing rapidly across Australia, workshops that can confidently diagnose and report on battery health are already ahead of the curve. This kit makes that possible today.

Key Features

Battery Pack SOC & SOH Analysis — read State of Charge and State of Health to assess overall battery condition and remaining capacity
Individual Cell Voltage & Temperature Monitoring — check every module's voltage and temperature to identify weak or failing cells with precision
Live Data Streaming — real-time battery pack data flow helps pinpoint faults accurately and speeds up repair turnaround
Multiple Connection Methods — supports non-standard battery pack connectors, jumper cables, and standard 16-pin OBD for maximum compatibility across vehicle types
Tesla-Specific Connectors Included — dedicated 12-pin and 20-pin connectors for pre- and post-2015 Model S and Model X, plus a Model 3/Model Y three-electric system test cable
Tesla Airbag Repair Connector — reset Tesla airbag crash data with the included dedicated connector
LAN Network Port Connector — enables local area network diagnostic function for vehicles that require service/maintenance mode entry
Printable & Shareable Reports — battery diagnostic reports can be printed or shared via email directly from your X431 tablet
Activation Card Included — the EV DIAGKIT activation card unlocks battery pack diagnostic software; additional EV brand software can also be downloaded after activation
1 Year Software Updates Included — renewal cards available after the first year to keep coverage current

EV & Battery Pack Coverage

Electric Vehicle Makes:

VW, BMW, Audi, Mercedes-Benz, Seat, Skoda, GM, Ford, FCA, Tesla, BYD, NIO, Xpeng, Li Xiang (Li Auto), Leap Motors, Nezha, Chery New Energy, Roewe New Energy, BAIC New Energy, and more.

Battery Pack Brands:

CATL, BYD, Guoxuan, CALB, Aishun, E-POW, SVOLT, RN Tech, Coslight, and more.

Package Includes:

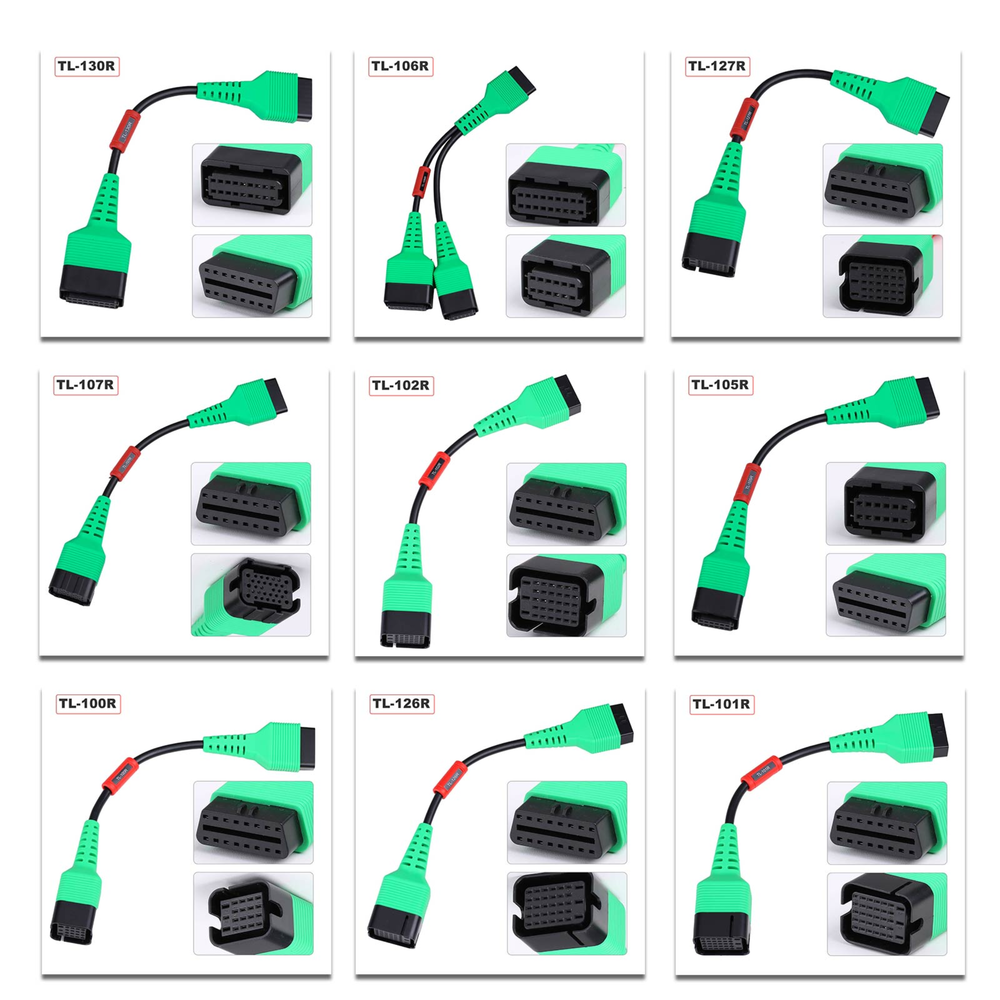

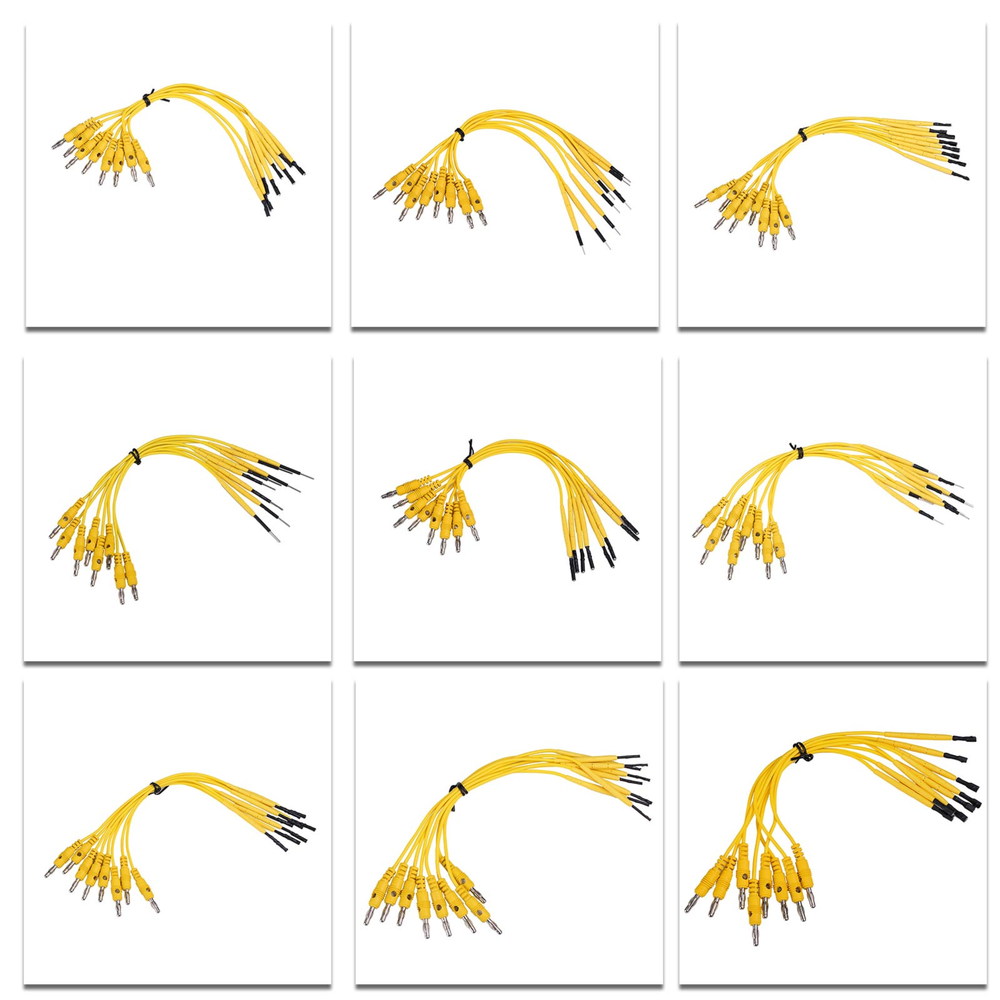

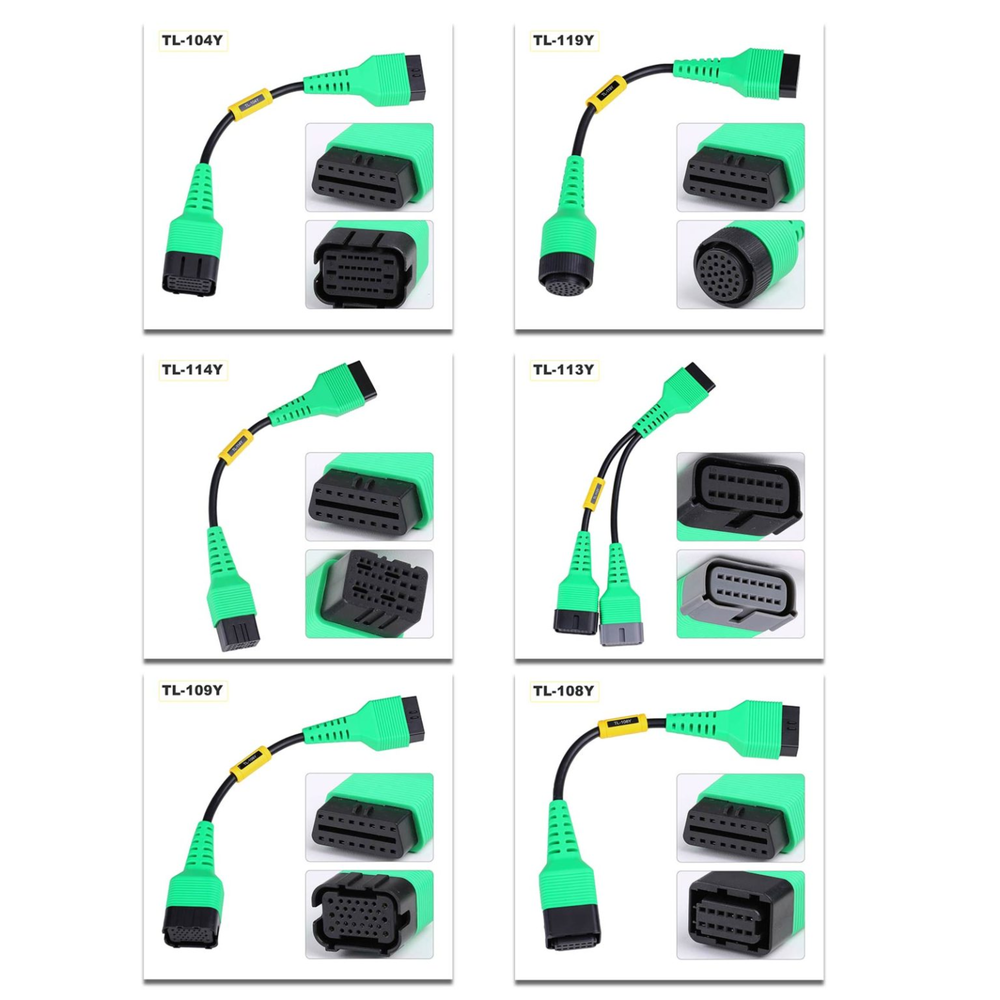

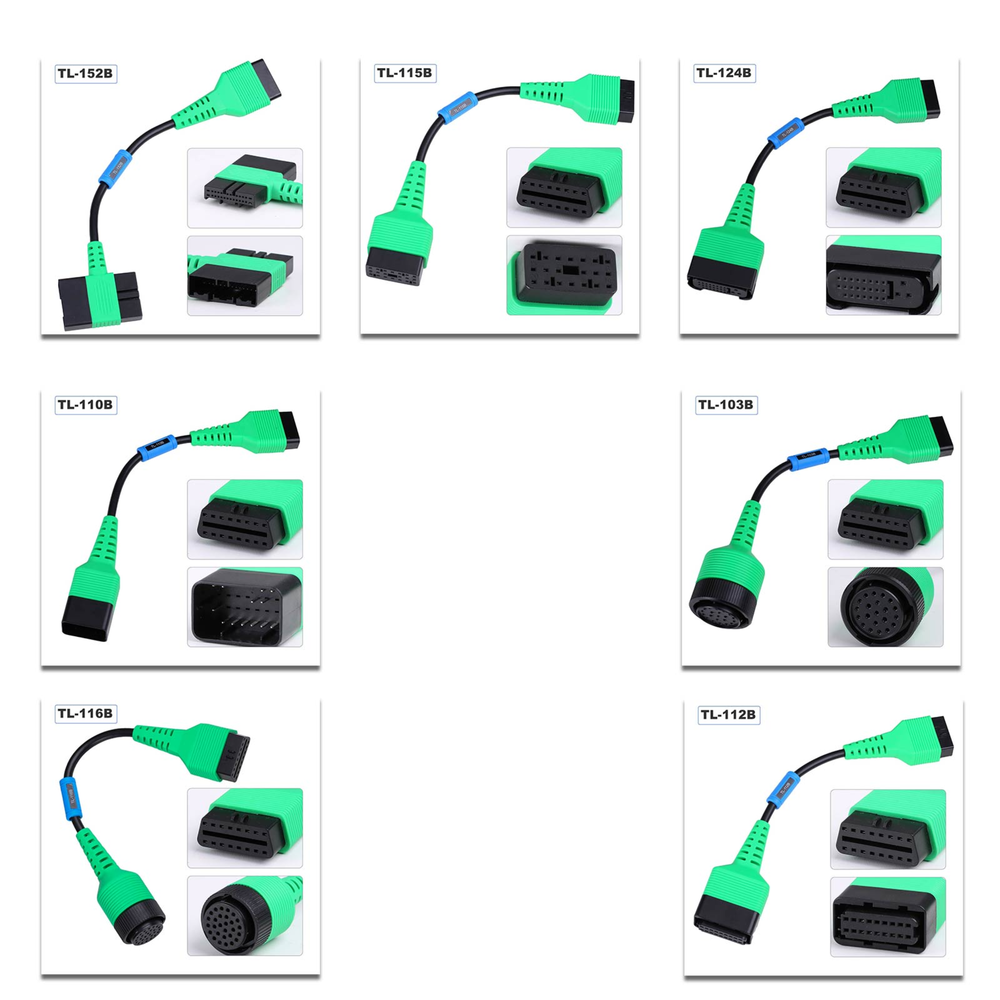

1x Tesla 12+20-pin connector · 1x Tesla airbag repair connector · 1x EV MAX 8-pin battery pack detection connector · 1x OBD16 male-to-female new energy extension cable with DC cable · 1x LAN network port diagnostic connector · 12x X431 PAD IV electric control adapter cables (cables 1, 2, 3, 6, 7, 8, 10, 11, 12) · Battery pack test lines (models 100–103 and additional) · 1x PAD VII AC power adapter · 1x EV DIAGKIT Activation Card · Operation Guide

How to Activate the EV Diagnostic Kit

Getting started takes just a few minutes. Follow these steps after receiving your kit:

Step 1 — Update Your X431 App

Before anything else, update your X431 tablet's main diagnostic app to the latest version. The "New Energy Diagnose" module only appears once the app meets the minimum required version (V7.03.025 for PAD V / V7.00.021 for PAD VII or above).

Step 2 — Open New Energy Diagnose

From the Job Menu on your X431 tablet, tap New Energy Diagnose to enter the EV diagnostic module.

Step 3 — Enter Battery Pack Detection

Tap Battery Pack Detection. The system will check whether your account has an active battery pack diagnostic configuration.

Step 4 — Activate with Your Card

If not yet activated, the tool will navigate to the Mall/Subscription screen. Tap Subscription Renewal Card Pay, then enter the 24-digit activation code from your included EV DIAGKIT card.

Step 5 — Download the Software

Once activation is confirmed, go to Software Update and download and install the battery pack diagnostic software for your required vehicle brands.

Step 6 — Connect & Diagnose

Connect the appropriate adapter cable from the kit to your vehicle, select the battery pack brand on-screen, and begin your diagnosis.
