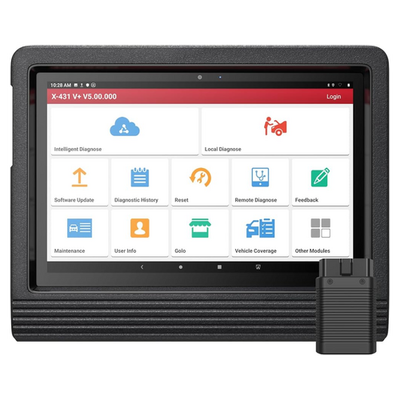

Launch X431 V+ V5.0 Diagnostic Tool
Advanced Diagnostics | ECU Coding | CANFD & DoIP
In Stock
$1,895.00
Proudly Australian
Fast & Free Shipping
Local Support & Warranty
Tested & Trusted Brands
Money Back Guarantee
Secure Payment Methods
Calculate Shipping
SKU
X431VPLUS
Launch X431 V+ V5.0 Scan Tool
The Launch X431 V+ is a professional-grade diagnostic solution designed for workshops, technicians, and fleet maintenance providers. Powered by Android and built with a large 10.1-inch touchscreen, it combines speed, accuracy, and ease of use in one powerful platform. With extensive coverage for passenger cars and light commercial vehicles, bi-directional control, ECU coding, and a wide range of service functions, the X431 V+ provides everything you need to perform advanced diagnostics and streamline workshop efficiency.
Scan Tool Main Features
- Powerful Hardware – 10.1-inch display, Android OS, high-speed processor, 4GB RAM + 64GB storage for stable performance.
- Wireless Connectivity – Flexible options via Wi-Fi and Bluetooth for convenience in the workshop.
- Wide Vehicle Coverage – Supports 12V passenger cars and light commercial vehicles with full-system diagnostics.
- Bi-Directional Control – Perform active tests to accurately check component functionality.
- Advanced ECU Coding & Adaptations – More in-depth and advanced coding functions compared to the X431 Pros Elite.
- Topology Mapping – provides a clear visual layout of vehicle systems and network communication.
- Service Functions – Over 38 maintenance resets including oil service, EPB, TPMS, injector coding, DPF regen, and more.
- Smart Diagnosis – One-click VIN recognition and automatic system scanning.
- Diagnostic History – Stores previous reports and data for easy access and review.
- Workshop Toolbox – Compatible with Launch add-ons such as oscilloscope, sensor box, videoscope, and battery tester.
Packing Includes
- 1 × Launch X431 V+ Main Tablet

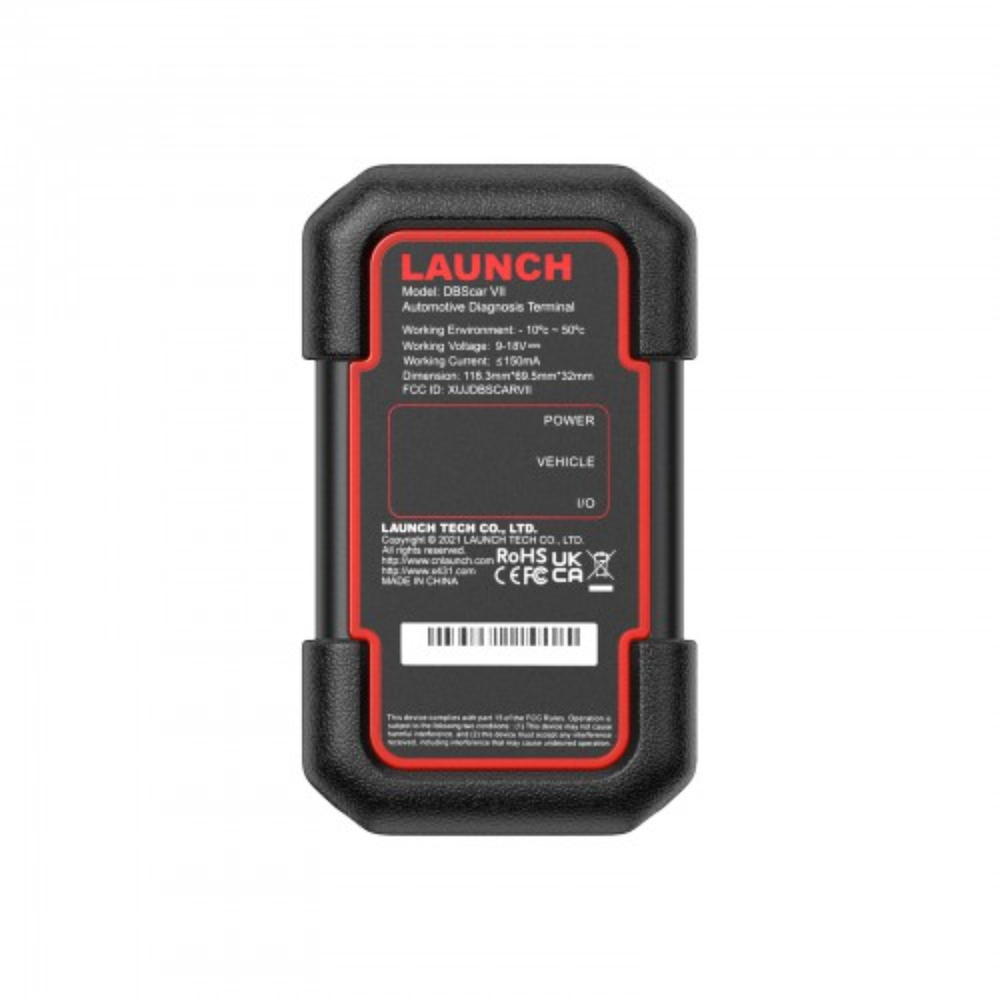

- 1 × Smart Diagnostic Connector (DBSCar)
- Full set of OBD1 and OBD2 connectors/adapters
- 1 × USB cable & power adapter
- 1 × Protective carry case
- User manual & quick start guide
Advanced Coding
The X431 V+ supports advanced ECU coding capabilities, enabling customisation and programming of electronic modules. This allows professionals to adapt new parts, activate hidden functions, or update vehicle software to meet customer needs. Compared to standard tools, it delivers more flexibility and control over vehicle systems.
41+ Service Functions
With 41+ advanced service and reset functions, the X431 V+ goes beyond basic fault clearing to support professional maintenance tasks. These include injector coding, DPF regeneration, transmission reset, throttle adaptation, and more. By consolidating these critical functions into one tool, workshops can handle a wider range of jobs without needing multiple devices.

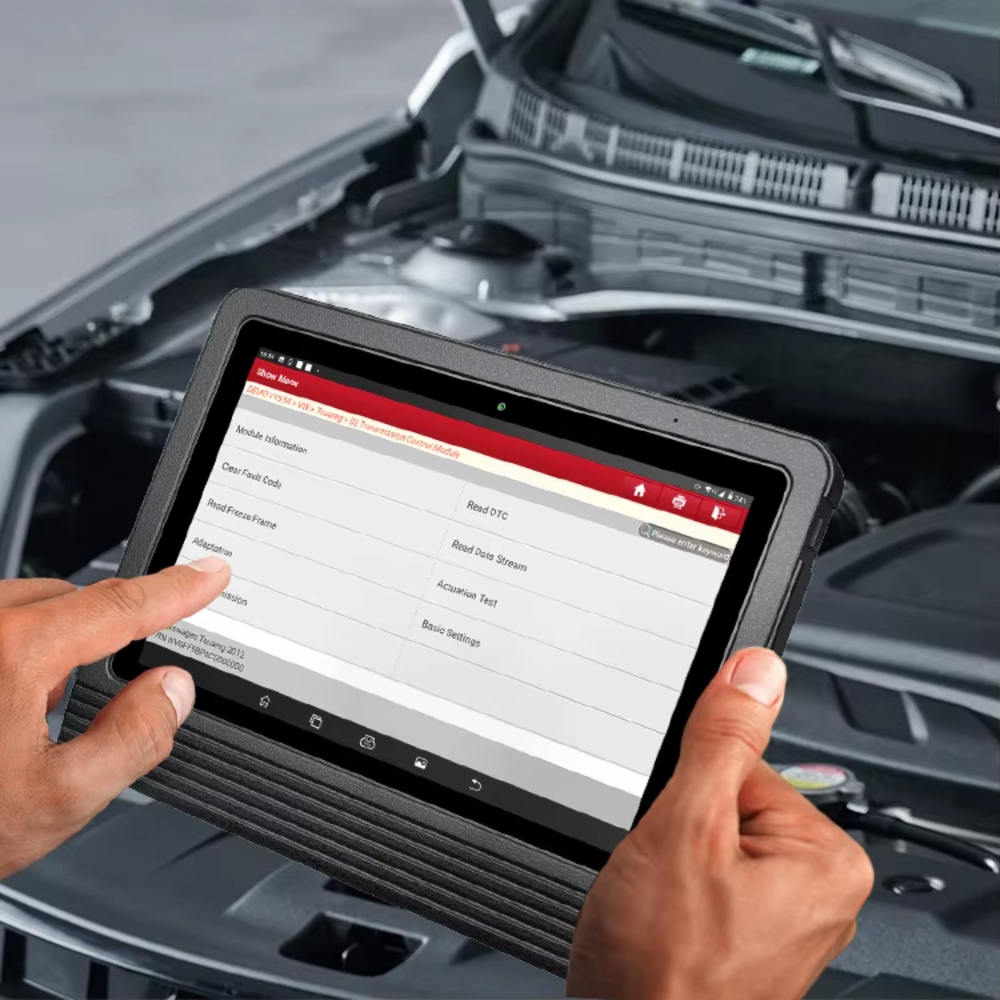

Professional Diagnostics
The X431 V+ scan tool provides comprehensive access to all major vehicle systems, from engine and transmission to ABS, airbag, and ADAS. It can read and clear codes, display live data, and run active tests across every module. This complete coverage ensures technicians can diagnose both common and complex faults with confidence.

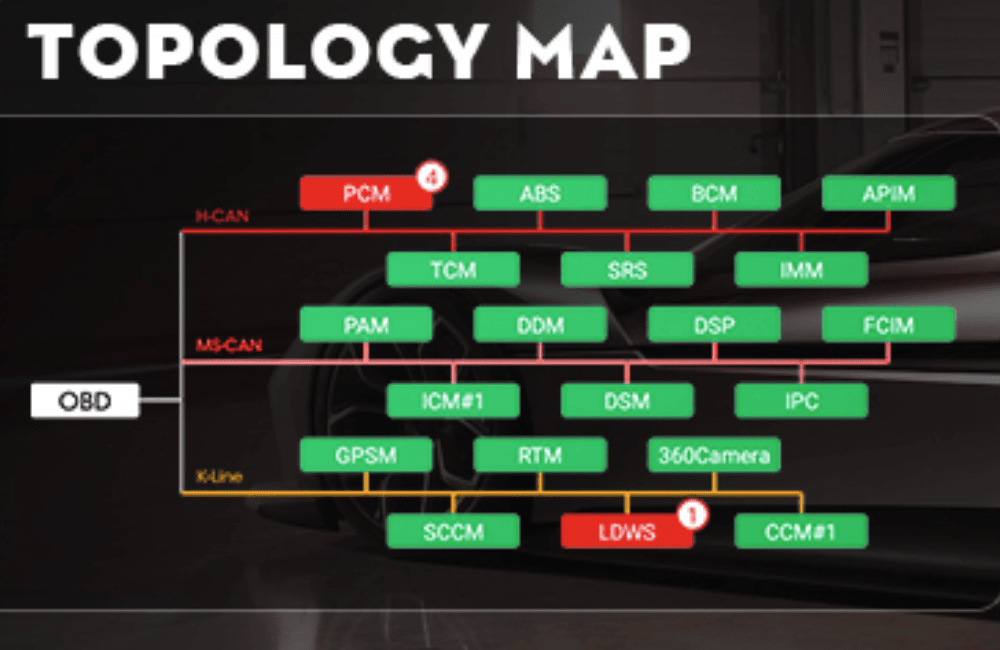

Topology Mapping
The built-in topology feature provides a visual overview of the vehicle’s entire electronic architecture. Technicians can quickly see how systems are interconnected, identify communication issues, and trace faults more accurately. This reduces diagnostic time and improves efficiency, especially on complex modern vehicles.
Guided Functions
Guided functions simplify complicated diagnostic and coding processes by providing step-by-step instructions. This reduces guesswork and minimises errors, making advanced operations accessible even for less experienced technicians. It ensures accuracy while saving time on tasks that would otherwise require specialist knowledge.
Launch X431 Vplus V5.0 Diagnostic Tool
The Launch X431 V+ V5 is not just an upgrade — it’s a complete diagnostic platform designed to keep pace with today’s fast-changing vehicle technologies. Compared to earlier models and mid-range tools, the V+ V5 combines cutting-edge hardware with enhanced software capabilities like advanced ECU coding, 41 service functions, and topology mapping. This means you can take on more complex jobs in-house, reduce reliance on dealer tools, and deliver faster, more accurate repairs.
Its powerful Android 10 tablet, larger memory, and faster processor make diagnostics smoother and more efficient, even with heavy-duty or multi-system scans. Paired with SmartLink C 2.0, it offers wide coverage across passenger, commercial, and new-energy vehicles, giving you confidence that one tool can handle it all. For workshops and fleets looking for a long-term solution that grows with technology, the X431 V+ V5 is a future-proof investment.
Launch Scan Tool Comaprison CRP129X Plus vs X431 V Pros Elite vs X431 V+
Comparison Table
|
Launch CRP129X Plus
|
Launch X431 V Pros Elite
|
Launch X431 V+
|
|
|---|---|---|---|
| Hardware | |||
| Operating System | Android 7.0 | Android 10.0 | Android 10.0 |
| Processor | 1.5GHz | 2.0GHz Quad-core | 2.0GHz Quad-core |
| RAM | 2GB | 4GB | 4GB |
| Connectivity | Wired | Wired | Bluetooth |
| Storage | 16GB | 64GB | 64GB |
| Display | 5" screen | 8" touchscreen | 10.1" touchscreen |
| Battery | 6100 mAh | 6000 mAh | 7000 mAh |
| Software | |||
| Vehicle Coverage | 57+ brands | 108+ brands | 108+ brands |
| System Diagnostics | Full systems | Full system | Full system |
| Operating System | Android 7.0 | Android 10.0 | Android 10.0 |
| Service Functions | 8 | 32+ | 41+ |
| Oil Service Reset | ✓ | ✓ | ✓ |
| EPB (Electronic Parking Brake) | ✓ | ✓ | ✓ |
| ETC (Electronic Throttle Control) | ✓ | ✓ | ✓ |
| BMS (Brake Management Service) | ✓ | ✓ | ✓ |
| SAS (Steering Angle Sensor Calibration) | ✓ | ✓ | ✓ |
| DPF (Diesel Particulate Filter) | ✓ | ✓ | ✓ |
| BLD (ABS Bleed Service) | ✓ | ✓ | |
| INJ (Injector Coding Service) | ✓ | ✓ | ✓ |
| TPMS Reset | ✓ | ✓ | ✓ |
| Auto VIN | ✓ | ✓ | ✓ |
| ECU Coding | - | Basic/Entry | Advanced |
| CANFD & DOIP Support | - | ✓ | ✓ |
| Remote Diagnostics | - | ✓ | ✓ |
| Expansion Module Support | - | - | ✓ |
| Software Updates | FREE LIFETIME | 2 Yrs | 2 Yrs |
| LEARN MORE | LEARN MORE | LEARN MORE |
Launch X431 V+ V5.0
Scan Tool Technical Specifications
| CPU: Qualcomm Snapdragon 450, 8-core 1.8GHz |
| Screen: 10.1 inch 1920*1200 IPS Touch Screen |
| Operation system: Android9.0 |
| Memory: 3GB |
| Storage: 32GB |
| Battery: 7000mAh rechargeable polymer lithium batter |
| Camera: 5.0 mega pixels front and 8.0 mega pixels rear |
| Storage Temperature: -10°C~+45°C |
| Operating Temperature 0°C~+45°C |
VCI Connector Specs:
| Connection: Standard OBDII Interface, Micro USB 2.0 |
| Typical Power Consumption: (12V)Static current 25 mA, |
| overall unit average current: 35 mA |
| Working Temperature: - 20 °C~6 0°C |
| Storage Temperature: -30°C~70°C |
| Working Voltage: powered by vehicle battery, DC 9V-15V |
