Launch X431PRO5 Diagnostic Tool with Smartlink 2.0 / J2534 ECU Programming

LAUNCH X431 PRO5 Plus – Advanced Full-System Diagnostic & Programming Tool

The LAUNCH X431 PRO5 is a flagship global diagnostic scanner engineered for professional workshops, advanced mechanics, and automotive repair centres. Equipped with Smartlink V2.0 and J2534 pass-thru programming, it delivers OE-level ECU coding, bi-directional testing, and full-system diagnostics for 150+ car brands worldwide. Its 10.1-inch touchscreen, quad-core processor, and intuitive interface ensure fast, precise results. With 50+ reset functions, topology mapping, and ADAS calibration support, the PRO5 is an all-in-one solution for advanced vehicle diagnostics.

X431 PRO5 Automotive Diagnostic Tool Full-System Coverage.

Main Features

J2534 ECU Programming with Smartlink V2.0 for OEM-level reprogramming
Full-System Diagnostics covering 99% of vehicle models up to recent models
50+ advanced service/reset functions including Oil, ABS, TPMS, EPB, BMS & Injector Coding
Bi-directional control (Active Tests) to quickly troubleshoot systems and components
Advanced ECU coding with online functions for B-MW, VW, Porsche, Benz & more
Topology Mapping for intelligent data bus visualisation and repair efficiency
10.1-inch HD touchscreen, Android 10.0 OS, 4GB RAM, 64GB storage
Supports DOIP, CAN FD, J2534, and commercial vehicle protocols
Compatible with ADAS calibration, X-PROG3, TSGUN, Battery Tester & more add-on modules
Dual Wi-Fi (2.4GHz/5GHz) with 2 years of free software updates

Package Includes:

LAUNCH X431 PRO5 Main Unit (10.1-inch tablet)
Smartlink V2.0 Wireless VCI (J2534/DOIP/CANFD)
Main OBDII Diagnostic Cable
OBDI & OBDII Adapter Kit (various connectors)
AC Power Adapter & USB Cable
User Manual & Quick Start Guide
Professional Carry Case

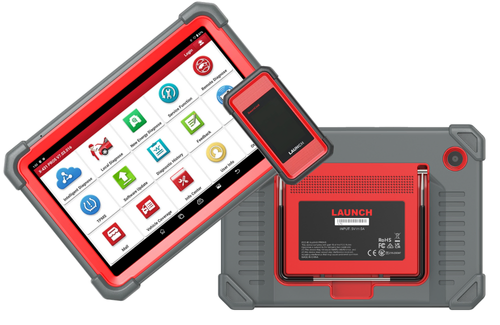

X431 PRO5 Automotive Diagnostic Tool

LAUNCH Smartlink V2.0 Wireless VCI for J2534 Programming

J2534 ECU Programming with Smartlink V2.0 – Enables OE-level ECU programming and reprogramming for major brands including BMW, Benz, VW, Jaguar, Land Rover, and more.

Full-System Diagnostics – Covers 99% of vehicles with complete access to engine, transmission, ABS, airbag, TPMS, immobiliser, and all other onboard systems.

50+ Advanced Service Functions – Includes Oil Reset, EPB, ABS Bleeding, Injector Coding, BMS Reset, TPMS Reset, IMMO, Throttle Matching, Suspension Calibration, and more.

Bi-Directional Control (Active Tests) – Sends commands to ECUs and actuators, allowing fast troubleshooting of systems like ABS, air conditioning, windows, doors, and more.

Advanced ECU Coding – Supports online and offline coding, personalisation, and component matching for brands such as VW, Audi, BMW, Porsche, and Benz.

Topology Mapping – Visualises the vehicle’s data bus systems for faster fault detection and repair efficiency, typically seen only in high-end tools.

ADAS Calibration Support – Works with add-on modules for camera and radar calibration after windshield replacement, collision repair, or suspension adjustments.

Smartlink V2.0 VCI – Wireless communication device supporting J2534, CAN FD, DOIP, and commercial vehicle protocols.

High-Performance Hardware – Features Android 10.0 OS, 2.0 GHz quad-core CPU, 4GB RAM, 64GB storage, and dual-band Wi-Fi for fast operation.

10.1-inch HD Touchscreen – Large, clear display for intuitive navigation and data visualisation.

Expandable Compatibility – Works with additional modules such as X-PROG3, TSGUN, videoscope, battery tester, and ADAS calibration system.

Durable & Workshop-Ready – Rugged design with carry case, long-lasting battery, and two years of free software updates.

LAUNCH X431 PRO5 – J2534 ECU Programming Tool

LAUNCH X431 PRO5 Global J2534 OBD2 Scanner with ECU Programming & Full-System Diagnostics

Technical Specifications

Operating System: Android 10.0

Processor: 2.0GHz 4-core

Memory: 4GB RAM + 64GB ROM

Display: 10.1-inch HD Touchscreen (1280 × 800)

Cameras: Front 5MP / Rear 8MP

Connectivity: USB, Bluetooth, Wi-Fi (2.4GHz & 5GHz dual band)

Supported Protocols: J2534, DOIP, CAN FD, HD Truck Protocols

Power Supply: DC 9–36V via OBDII, 5V/2A charging

Battery: 3.7V / 7000mAh Lithium-Polymer (Rechargeable)

Battery Life: Approx. 5–7 hours continuous use

Dimensions (L × W × H): 274 × 190.5 × 39.5 mm (10.7 × 7.5 × 1.55 in)

Net Weight: ≈1.5 kg

Operating Temperature: 0°C – 40°C (32°F – 104°F)

Storage Temperature: -20°C – 70°C (-4°F – 158°F)

Vehicle Coverage: 150+ American, European, and Asian brands (1996–2025)
