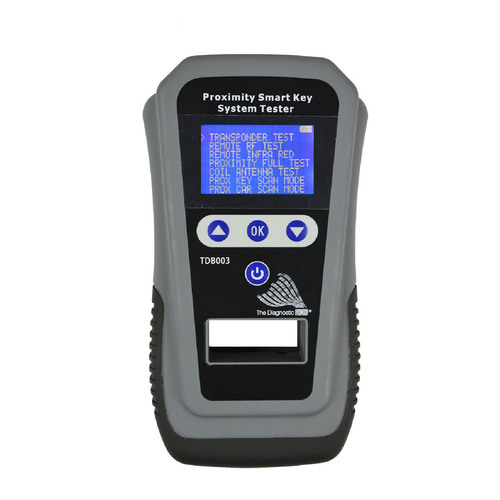

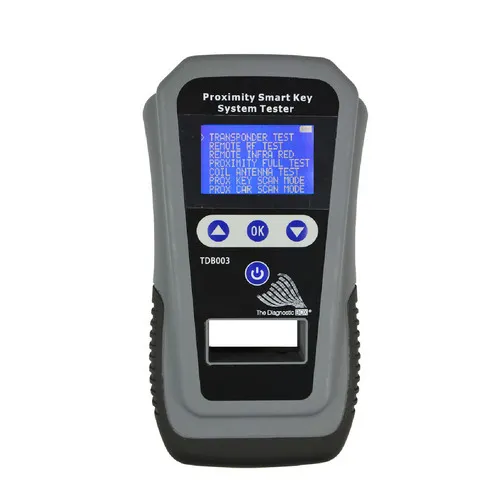

The TDB003 Proximity/Smart Key Systems Tester offers a simple and cost effective way to diagnose and test problems relating to the vehicle immobiliser system, which is made up of a number of components.

The TDB003 enables the transponder key, remote control operation, external vehicle antenna transmitters, internal vehicle antenna transmitters and transponder antenna to be fully tested to ensure that all parts of the system are working.

The TDB003 can display signal levels, frequency measurements, signal waveforms and a number of other useful features.

Main Features

  • Standard transponder key test
  • Infra Red (IR) remote control test
  • Radio Frequency (RF) remote control test
  • Proximity/Smart key test
  • Proximity/Smart vehicle antenna transmitter test
  • Proximity/Smart key signal amplitude level indication
  • Radio Frequency (RF) remote control amplitude level indication
  • Transponder frequency indication
  • Oscilloscope waveform function (FAST and SLOW)
  • Proximity/Smart key system scan modes
  • Audible signal indication
  • Transponder vehicle antenna test

(TDB003)

Proximity/Smart Key System Tester
External, Internal & Transponder Antenna Transmitter Tester
Transponder Key, Remote Control Tester
Display Signal Levels, Frequency Measurements, Signal Waveforms & More
Designed & Manufactured in United Kingdom
BATTERIES: 4 X AAA NiMh RECHARGEABLE OR ALKALINE
BATTERY LEVEL: BATTERY LEVEL INDICATION ON LCD SCREEN
BATTERY LIFE: > 5 HOURS(BASED ON 750 mA/h NiMh
WEIGHT: 115 Grams
OSCILLOSCOPE MODE: 20mS/Div (SLOW) / 10mS/Div (FAST) / SCAN MODE : 2 SECONDS ACROSS SCREEN
SIZE: 90 mm (W) x 170 mm (H) x 38 mm (D)
CURRENT CONSUMPTION: 90 mA
TRANSPONDER TEST: 125kHz Amplitude Modulation / 134.2kHz Frequency Shift Keying (FSK) / Audible Tone for Data signal
LCD: Backlit Blue 128x64 dots
OPERATING TEMPERATURE RANGE: 32 to 122 Degrees F or 0 to 50 Degrees Celsius

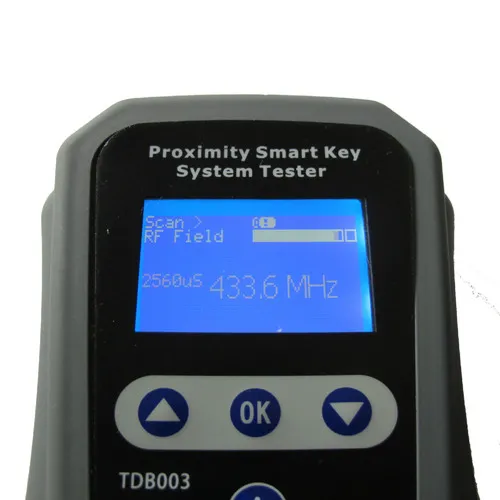

RADIO FREQUENCY TEST: 150 to 999 MHz / Resolution : 0.1 MHz / GRAPH & OSCILLOSCOPE MODES
INFRA RED TEST: UNIVERSAL DETECTION RECEIVER
COIL ANTENNA TEST: Dual 125kHz/134.2kHz SENSING
PROXIMITY SIGNAL TEST: 125kHz to 134kHz RANGE / BAR GRAPH and OSCILLOSCOPE MODES
