TOPDON ONE Professional Diagnostic Scanner

TOPDON ONE Diagnostic Scan Tool

TOPDON ONE ECU coding and vehicle diagnostics tool

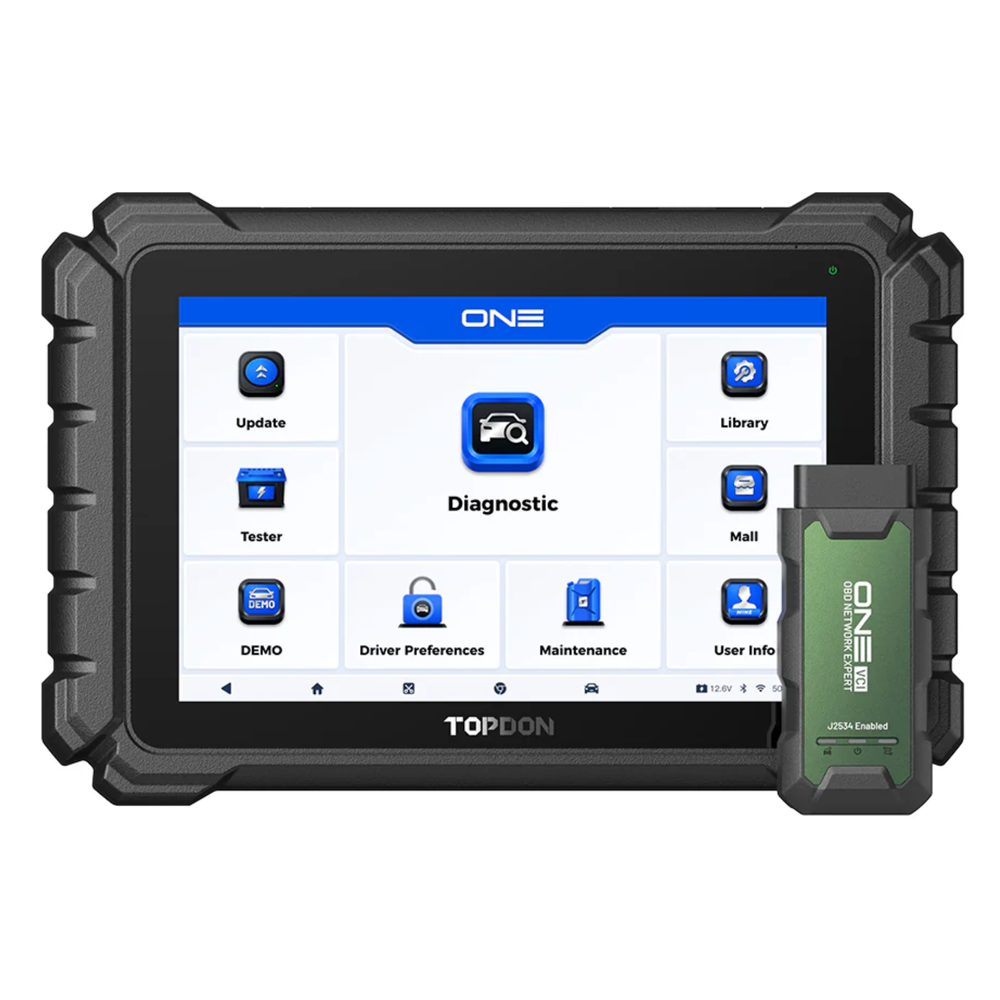

The TOPDON ONE is a professional-grade automotive diagnostic platform engineered for workshops and advanced technicians requiring fast, accurate, and intelligent vehicle diagnostics. Featuring ECU coding, OE-level topology mapping, TopFix AI repair guidance, full-system diagnostics, and support for advanced CAN-FD and DoIP protocols, it delivers dealer-level capabilities across more than 120 vehicle brands. With dual Wi-Fi communication, an 8-core processor, and over 50 maintenance functions, the TOPDON ONE is designed to improve workshop efficiency and streamline complex diagnostic procedures.

The TOPDON ONE is a professional-grade automotive diagnostic platform engineered for workshops and advanced technicians requiring fast, accurate, and intelligent vehicle diagnostics.

Main Features

ECU Coding & Module Configuration – Perform dealer-level ECU coding, module matching, component initialisation, and system configuration for supported vehicles. Ideal for module replacement, feature activation, and advanced workshop repairs.
One-Click Customisation – Pre-configured coding shortcuts for selected Benz, BMW, and Volkswagen models allow technicians to quickly adjust convenience and comfort functions without manual coding procedures.
OE-Level Topology Mapping – Displays an OE-style network map showing all vehicle modules, communication status, and fault locations, helping technicians identify issues faster and improve diagnostic accuracy.
TopFix AI Repair Guidance – Integrated AI-powered repair assistance provides fault code explanations, possible causes, repair suggestions, and supporting technical information to streamline troubleshooting procedures.
50+ Maintenance Functions – Supports a wide range of service functions including Oil Reset, EPB, BMS, DPF regeneration, Dynamic ADAS calibration, camshaft learning, injector coding, and additional system calibrations.
Advanced Protocol Support – Supports CAN-FD and DoIP communication protocols required for modern vehicles, ensuring compatibility with newer BMW, Mercedes-Benz, GM, Chrysler, Volkswagen, Volvo, Jaguar, and additional models.
Security Gateway Access – Provides authorised SGW access support for FCA, Renault, Nissan, and other protected vehicle systems for diagnostics, coding, active tests, and service procedures where supported.
Dual Wi-Fi Communication – Dual Wi-Fi modules deliver faster and more stable communication between the tablet and VCI compared with conventional Bluetooth-only diagnostic platforms.
High-Performance 8-Core Processor – Powered by an advanced 8-core CPU for responsive operation during full-system scans, ECU coding, live data analysis, and extended workshop diagnostics.
Full-System Diagnostics – Performs complete vehicle scans across more than 120 vehicle manufacturers with the ability to read and clear fault codes, monitor module communication, and analyse vehicle systems.
Live Data Stream Analysis – Displays up to 12 live data parameters simultaneously for efficient sensor comparison, system monitoring, and fault diagnosis during real-time testing.
Professional Diagnostic Reporting – Generate structured diagnostic reports containing DTC information, module status, and repair data for workshop documentation and customer reporting.

Package Includes

TOPDON ONE Diagnostic Tablet
VCI Interface
Charger
Diagnostic Extension Cable
USB-C to USB-C Cable
USB-A to USB-C Cable
Quick User Guide
Carrying Case
Packaging Box

Professional-grade automotive diagnostic platform

Dealer-level ECU coding and module configuration

OE-level topology mapping for fast fault detection

TopFix AI intelligent repair guidance

50+ advanced maintenance and service functions

CAN-FD and DoIP protocol support

Full-system diagnostics for 120+ vehicle brands

Dual Wi-Fi communication for stable high-speed operation

8-core processor for rapid diagnostic performance

Multi-parameter live data display

Professional diagnostic report generation

Security Gateway (SGW) access support

Android 12 operating system with 10.1" touchscreen

TOPDON ONE ECU coding and vehicle diagnostics tool

Tablet Specifications

CPU: 8-core processor, 2.0 GHz

Memory: 4 GB RAM

Storage: 128 GB ROM

Display: 10.1-inch LCD, 1280 × 800 resolution

Battery: 10,000 mAh (3.8V), PD fast charging (5V/3A, 9V/3A, 12V/2.5A)

Camera: 16 MP rear camera

Bluetooth: Bluetooth 5.0 (range: 33 ft / 10 m)

Wi-Fi: Dual Wi-Fi modules, STA/AP modes / 2.4 GHz IEEE 802.11 b/g/n; 5 GHz IEEE 802.11 a/n/ac

I/O: Power button, USB-A (host), USB-C (host/device)

Sensors: Ambient light sensor (ALS), temperature sensor, acceleration sensor (G-sensor)

Operating System: Android 12.0 (closed system)

Operating Temperature: −10°C to 50°C (14°F to 122°F)

Storage Temperature: −20°C to 70°C (−4°F to 158°F)

Product Dimensions: 311 × 207 × 39 mm (12.24 × 8.15 × 1.54 in)

Net Weight: 1,574 g (3.47 lb)

Languages: 15 (English, French, German, Spanish, Portuguese, Russian, Japanese, Korean, Italian, Traditional Chinese, Simplified Chinese, Turkish, Polish, Serbian, Slovak)

VCI Specifications

Bluetooth: 5.0 (range: 33 ft / 10 m)

Memory: 256MMemory: 256M

Operating Temperature: −10°C to 50°C (14°F to 122°F)

Storage Temperature: −20°C to 70°C (−4°F to 158°F)

Operating Temperature: −10°C to 50°C (14°F to 122°F

Net Weight: 96 g (3.39 oz)
