TOPDON ArtiDiag Moto Motorcycle Diagnostic Tool

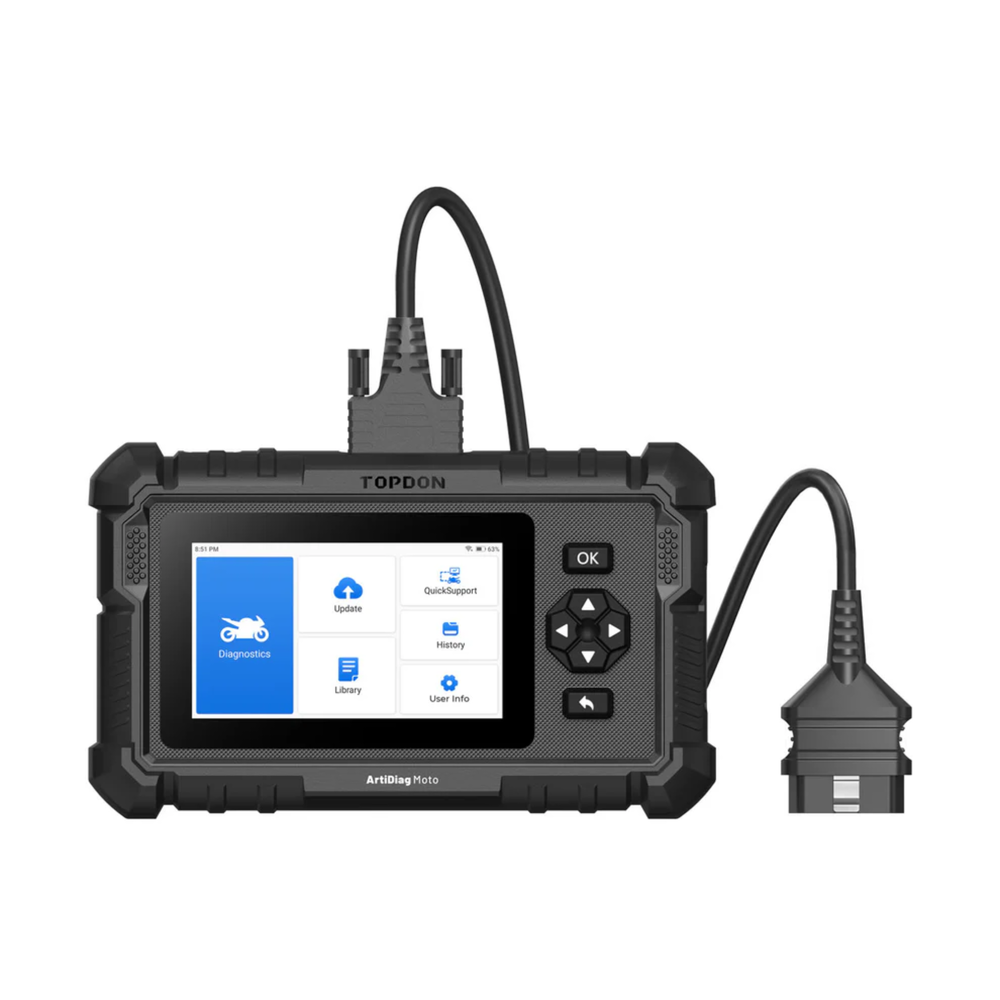

TOPDON ArtiDiag Moto Diagnostic Tool

Advanced Diagnostic Capabilities for Motorcycle Systems

The TOPDON ArtiDiag Moto is a professional-grade diagnostic scan tool designed for motorcycles, ATVs, UTVs, and side-by-sides. Supporting 15 major global brands including BMW, Honda, Harley-Davidson, KTM, Yamaha, and Ducati, it delivers full-system diagnostics with accurate fault detection and real-time data analysis. Featuring a 5-inch Android-based touchscreen, it enables fast ECU communication, service resets, and active testing. Includes 1 year of software updates for continuous compatibility..

Main Features

Full System Diagnostic Coverage – Provides in-depth diagnostics across all major motorcycle systems including engine, ABS, ECU, transmission, and electrical modules for accurate fault detection and system analysis.

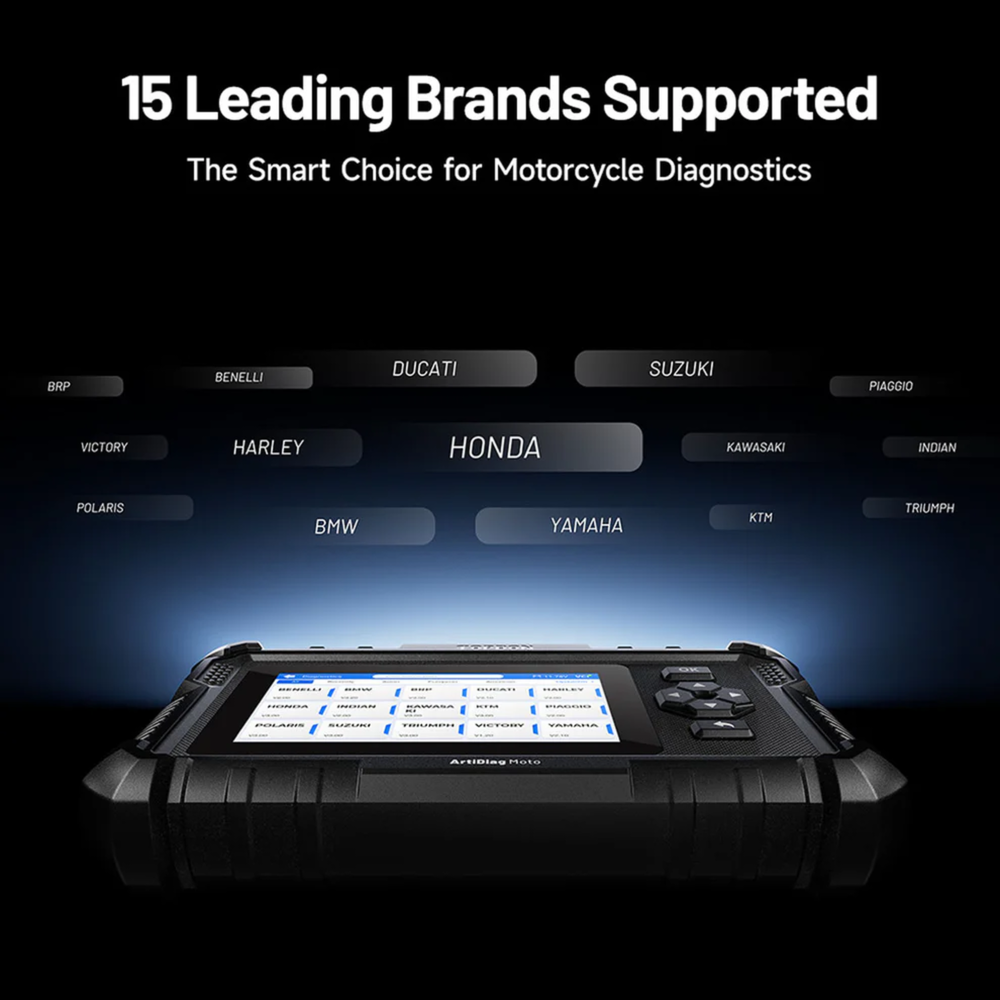

Multi-Brand Compatibility – Supports 15 leading motorcycle manufacturers: DUCATI / BMW / PIAGGIO / KTM / BENELLI / TRIUMPH / HARLEY / BRP / INDIAN / SUZUKI / VICTORY / POLARIS / HONDA / YAMAHA / KAWASAKI
Advanced Service Reset Functions – Enables essential maintenance tasks such as oil reset, TPS reset, BMS reset, ABS bleeding, and clutch adaptation to support routine servicing and repairs.
Active Component Testing – Performs real-time actuation tests on key motorcycle components such as throttle, injectors, and braking systems to verify operational performance without disassembly.
Live Data Stream Monitoring – Displays real-time ECU data parameters in graphical and numerical formats to assist in accurate troubleshooting and performance evaluation.
ECU Coding and System Configuration – Supports advanced ECU coding and parameter adjustments for compatible models to enhance customization and performance tuning.
Motorcycle Personalization Functions – Allows configuration of OEM-level settings and feature activation/deactivation to tailor motorcycle behavior to rider preferences.
AutoVIN Intelligent Identification – Automatically detects vehicle information via VIN scanning to reduce manual input and speed up the diagnostic process.
5-Inch Android Touchscreen Interface – Equipped with a responsive 5-inch display running Android OS, providing a smooth and intuitive user experience during diagnostics.
Wi-Fi Software Update Support – Enables one-click wireless updates to ensure the tool remains compatible with new motorcycle models and updated diagnostic protocols.

Package Includes

ArtiDiag Moto
OBD Diagnostic Cable
Power Adapter
USB Cable (USB-C to USB-C)
Carrying Case
Quick User Guide

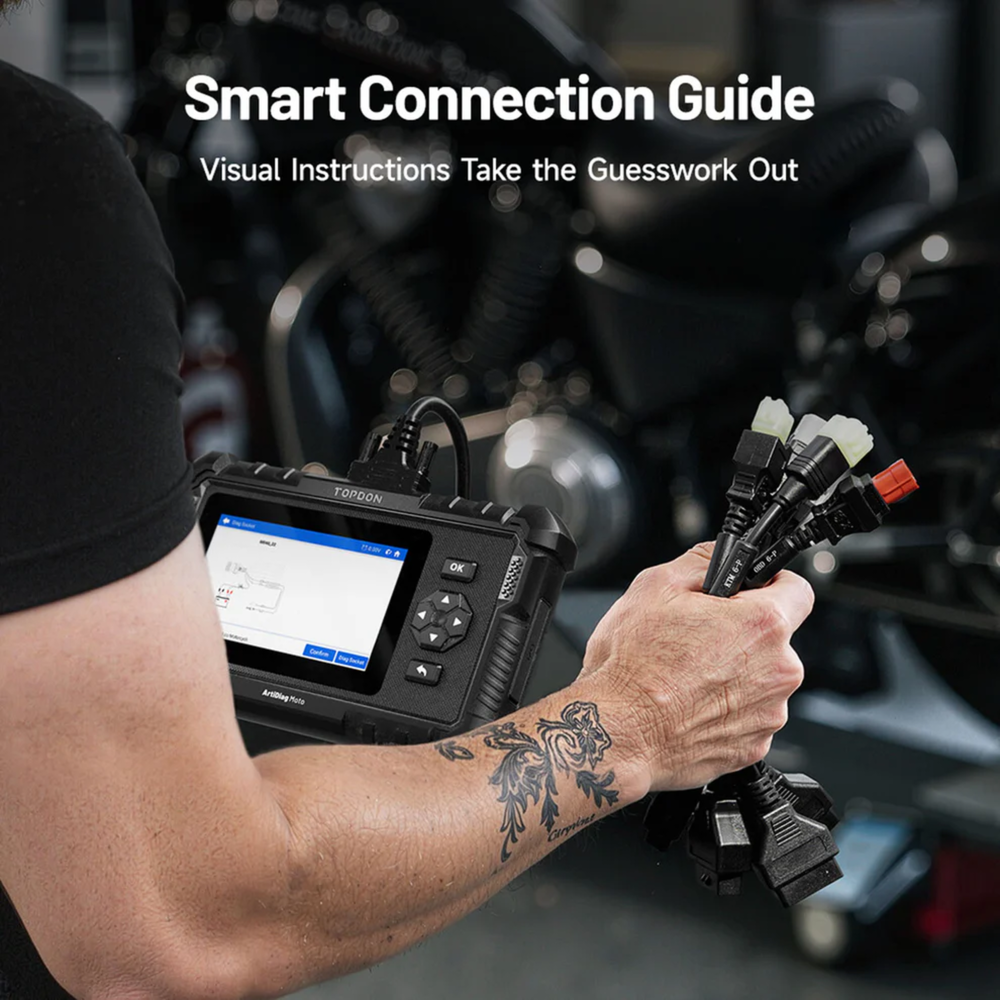

Packing List
OBD 6-P (M010) Cable
DUCATI 4-P (M012) Cable
HARLEY 4+6-P (M013) Cable
BMW 10-P (M014) Cable
BRP 6-P (M016) Cable
POLARIS 8-P (M017) Cable
SUZUKI 6-P (M018) Cable
KTM 6-P (M019) Cable
HONDA 4-P (M021) Cable
KAWASAKI 4+4-P (M022) Cable
KAWASAKI 4+6-P (M023) Cable
YAMAHA 3+4+3-P (M024) Cable
BENELLI 6-P (M026) Cable
BENELLI 4-P (M027) Cable
KAWASAKI 6-P (M032) Cable
KAWASAKI 8-P (M033) Cable
MULTI 3-P with Power Clamps (M034) Cable
AEON 6-P (M036) Cable

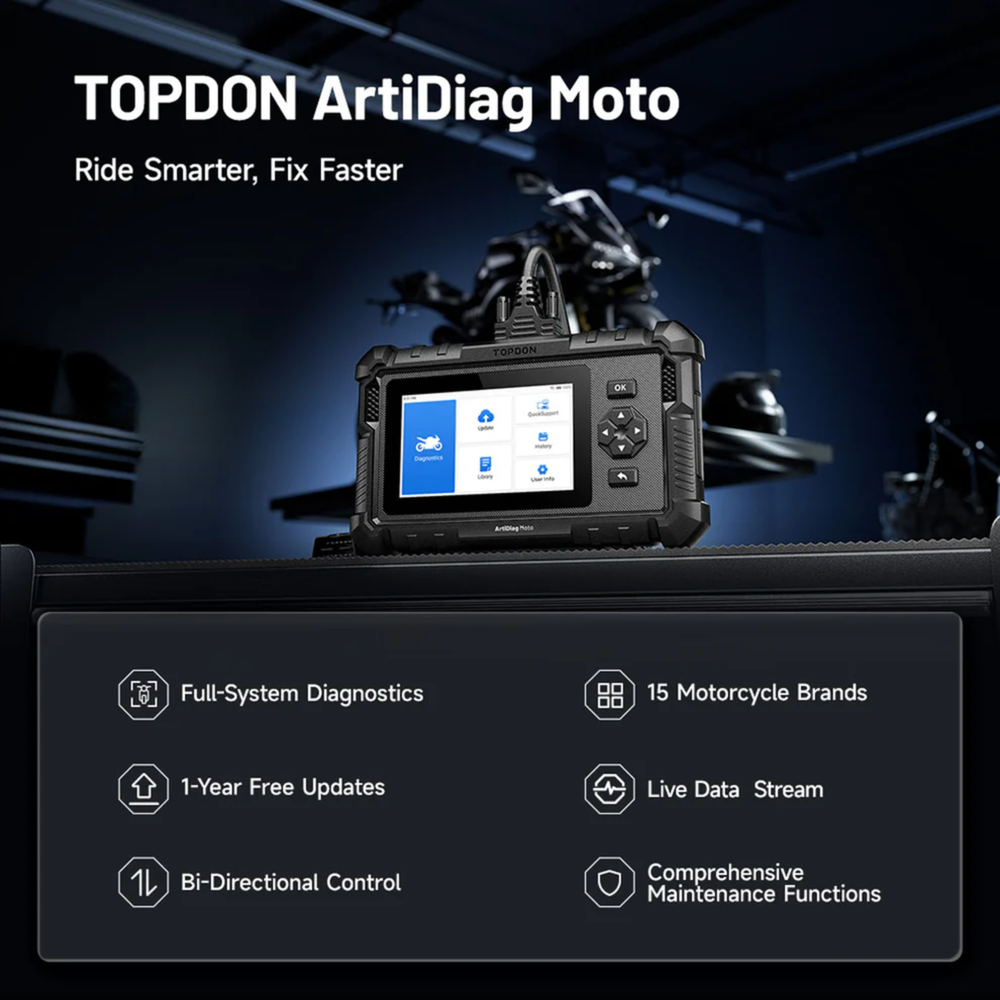

TOPDON ArtiDiag Moto Professional Motorcycle Diagnostic Scan Tool

Full system diagnostics across engine, ABS, ECU, and electrical systems

Supports 15 major motorcycle brands globally

Advanced service functions including oil reset, TPS reset, BMS reset, and ABS bleeding

Active testing for real-time component verification

Live data stream monitoring for accurate fault analysis

ECU coding and system calibration support

Personalization and configuration adjustments for supported models

Fast AutoVIN identification for efficient workflow

Wi-Fi update support for continuous software enhancement

User-friendly 5-inch touchscreen interface with Android OS

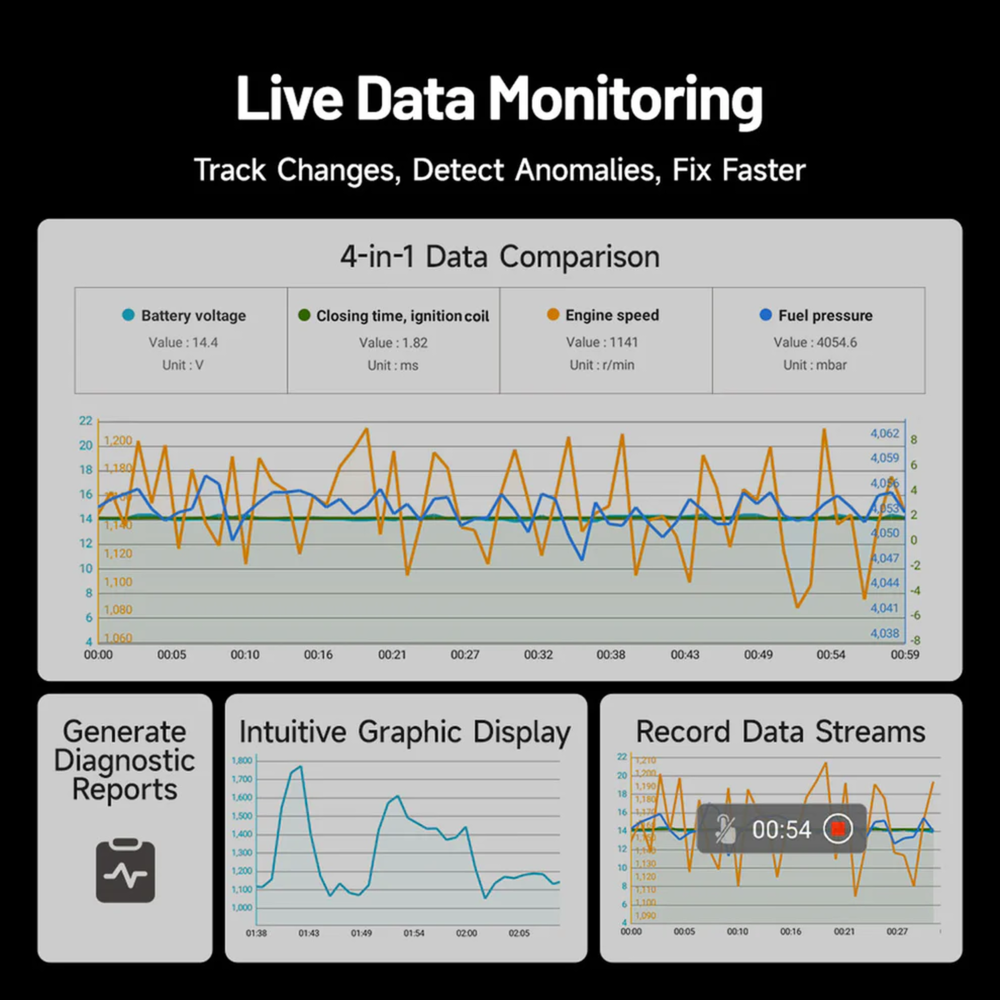

Motorcycle full system diagnostics live data screen display

TOPDON Motorcycle Diagnostic Tools Comparison

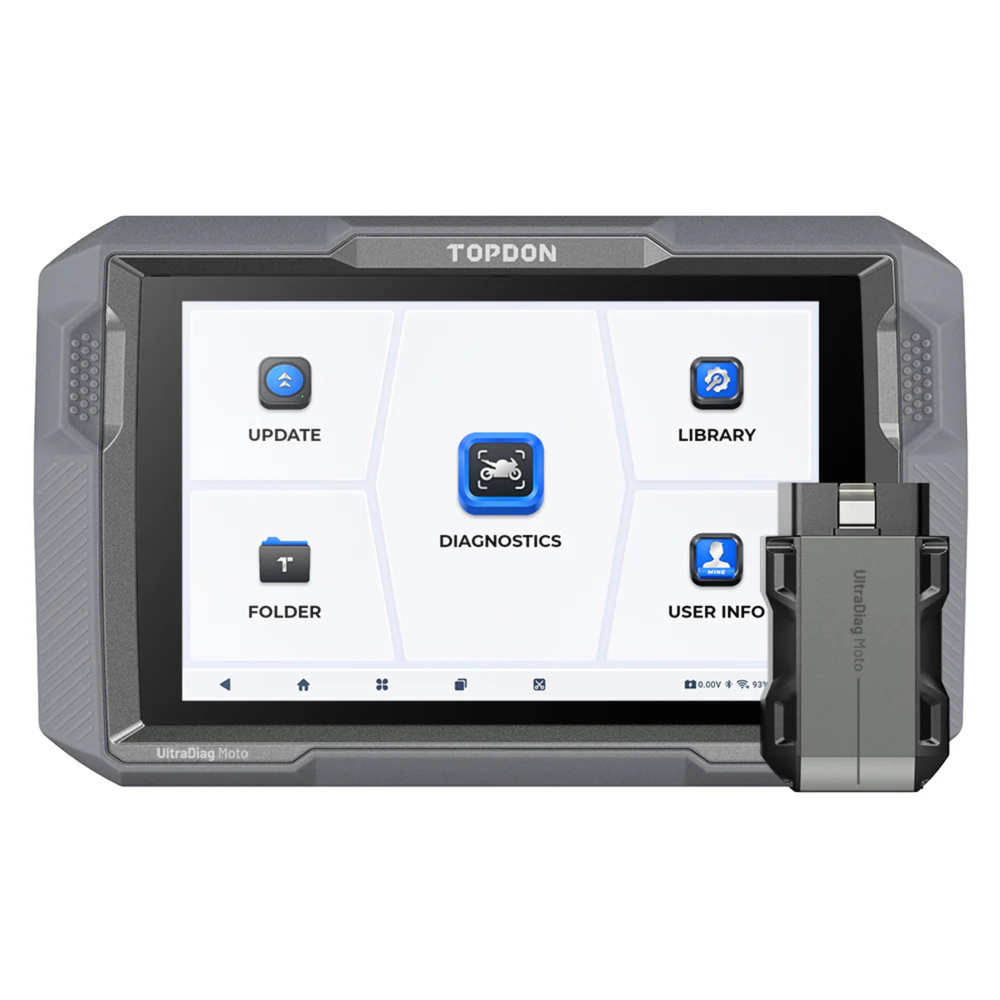

Comparison Table: ArtiDiag Moto | UltraDiag Moto

	ArtiDiag Moto	UltraDiag Moto

Hardware
CPU	4-Core 1.8GHz	4-Core 1.8GHz
RAM	2G	2G
ROM	32G	32G
Battery	3350mAh / 3.8V	10000mAh / 3.7V
Operating System	Android 11.0	Android 11.0
Screen Size	12.7cm (5")	20.3cm (8")
Screen Resolution	1280×720	1280×800
WiFi	2.4 & 5 GHz	2.4 & 5 GHz
Camera	-	Rear 5MP
Weight	600g	1031g
Communication	Main Cable	VCI / Bluetooth
DLC Connectors	18	29
Software
Vehicle Voltage Monitoring	✓	✓
Other Special Features	✓	✓
Special Functions	Full Service Functions	Full Service Functions
Supported Vehicle Makes	15 Makes	81 Makes
Others
Remote Desktop	✓	✓
	LEARN MORE	LEARN MORE

TOPDON ArtiDiag Moto – Technical Specifications

CPU: 4-Core, 1.5GHz Processor

Memory: 2GB RAM

Storage: 32GB Internal Storage

Battery Capacity: 3350mAh / 3.8V

Operating System: Android 11.0

Screen Size: 5-inch Display

Screen Resolution: 1280 × 720

WiFi: 2.4GHz & 5GHz Dual Band

Weight: 600g (1.32 lbs)

Included Cables: 18 Adapter Cables for Multiple Brands

Basic Functions: Full System Diagnostics, AutoVIN, ECU Info Reading, DTC Read & Clear, Live Data Stream, Active Tests, OBD Diagnostics, Vehicle Voltage Monitoring

Service Functions: Oil Reset, Idle Speed Adjustment, TPS Reset, ABS Bleeding, Clutch Initialization, Odometer Writing, ECU Reset, CO Regulator, A/F Reset, VIN Writing, BMS Reset, TPMS Reset

Special Functions: 35+ Advanced Functions including IMMO and Programming Support

Vehicle Coverage: 15 Motorcycle Brands (Ducati, BMW, Piaggio, KTM, Benelli, Triumph, Harley-Davidson, BRP, Indian, Suzuki, Victory, Polaris, Honda, Yamaha, Kawasaki)

System Accessibility: DLC Location Guidance, DLC Query, Technical Service Bulletin (TSB), Repair Information, Remote Desktop Support

Upgrade Method: Wi-Fi One-Click Online Updates

Subscription: First Year Free, Renewal $199/year

Language Support (Software): Chinese, English, German, Spanish, French, Italian, Portuguese

Language Support (App): 16 Languages including Japanese, Russian, Korean, Turkish, Polish, Bulgarian and more
