TOPDON BT200 12V/24V Battery Tester

TOPDON BT200 12V/24V Automotive Battery Tester

Charging System Analyzer, 2000CCA Digital Load Tester

The TOPDON BT200 is a professional automotive battery analyzer engineered to deliver accurate diagnostics for 12V and 24V lead-acid batteries. Designed for technicians, workshops, and vehicle owners, it performs comprehensive battery, cranking, and charging system tests with up to 99.5% accuracy. By analyzing voltage, CCA performance, and charging output, the BT200 provides reliable insight into battery condition and electrical system health. Its compact design, intuitive operation, and clear color display make advanced diagnostics efficient and accessible in both workshop and mobile environments.

Main Features

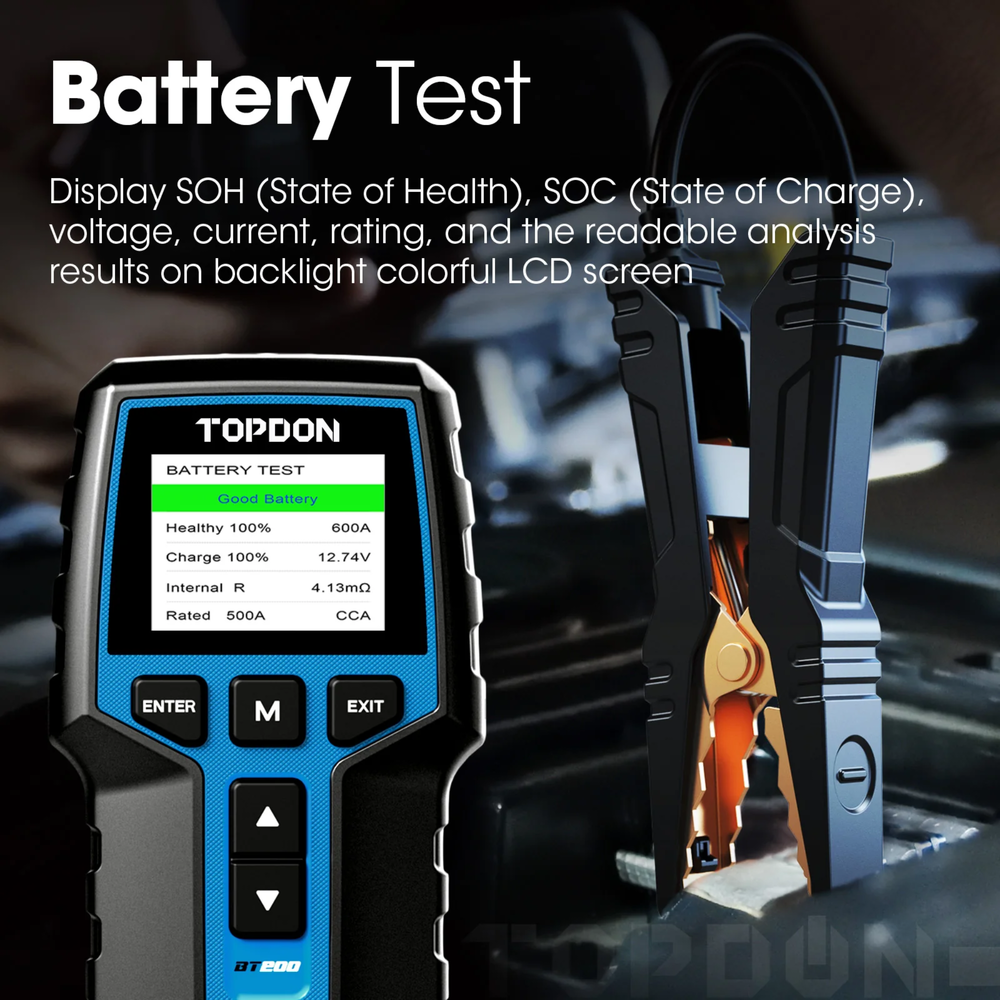

Comprehensive Battery Diagnostics – Performs full battery evaluation including voltage, CCA testing, State of Health (SOH), and State of Charge (SOC) to determine real battery condition.

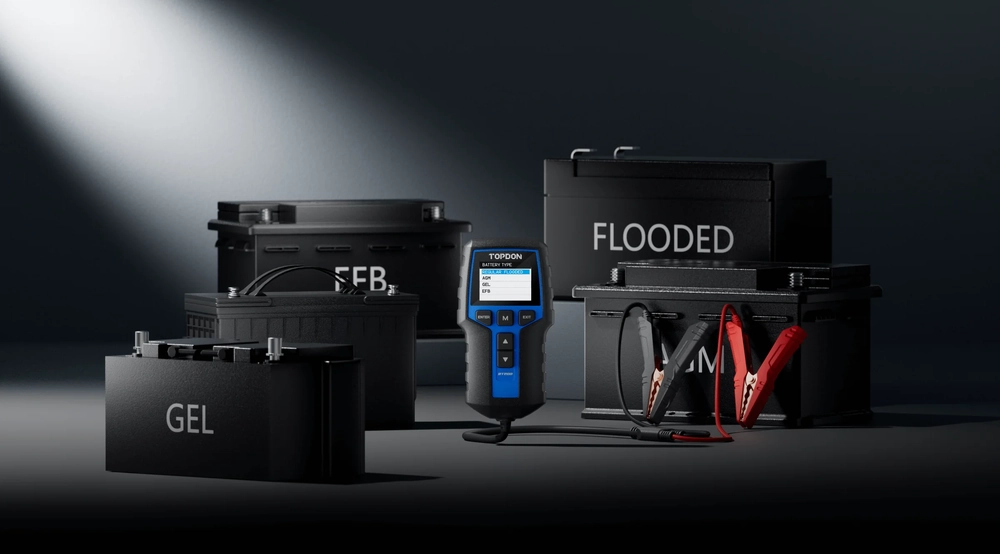

Wide Battery Compatibility – Supports Flooded, AGM, Gel, EFB, and VRLA lead-acid batteries used across modern automotive systems.
Advanced Cranking Test – Analyzes voltage drop during engine startup to confirm starting reliability and detect early battery weakness.

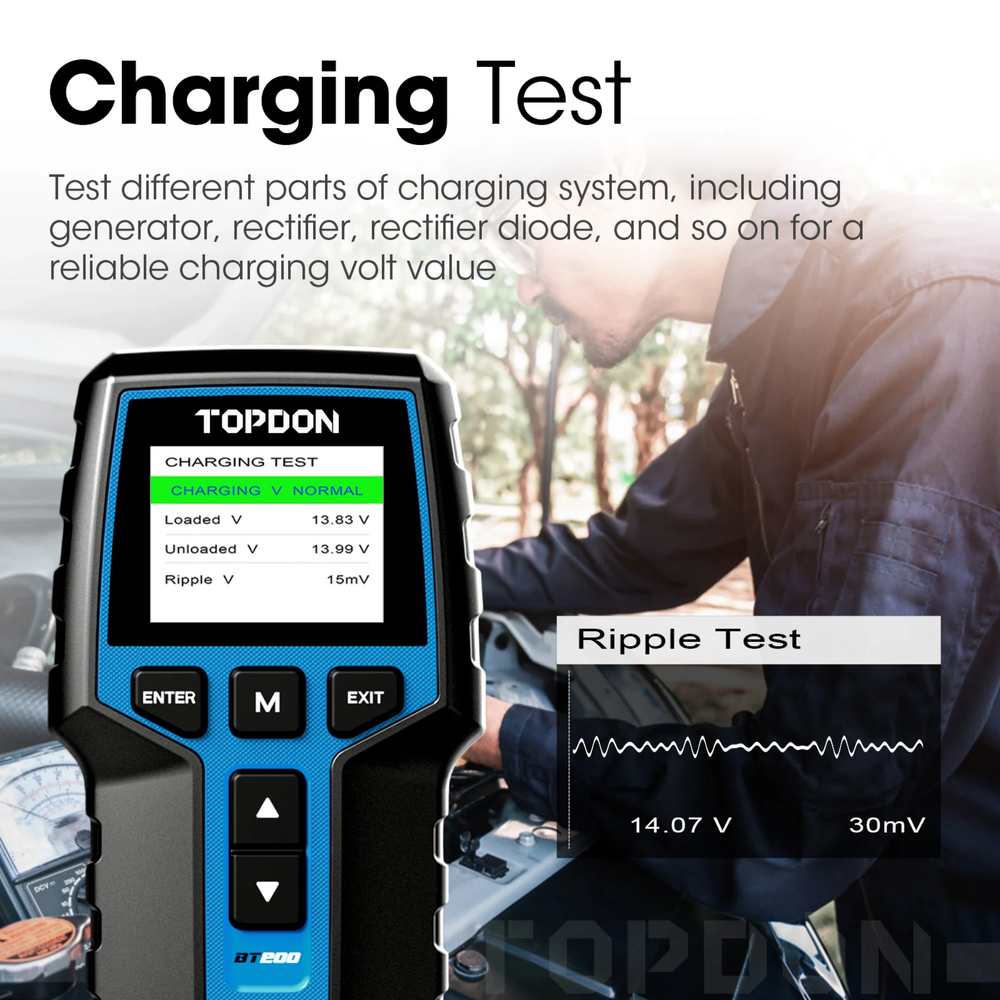

Charging System Analysis – Evaluates alternator output and regulator performance using loaded and unloaded voltage testing.

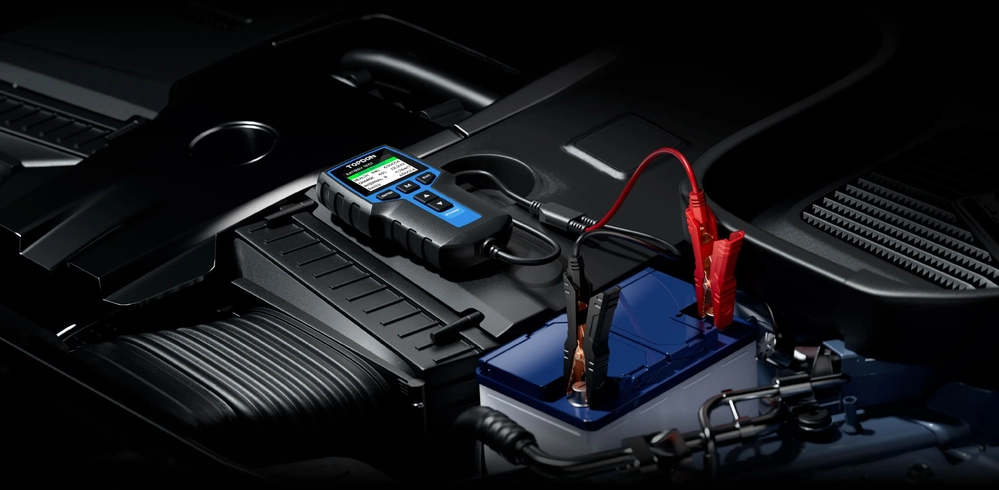

Fast & Intuitive Operation – Simple clamp connection enables immediate diagnostics without complex setup or technical experience.
High-Visibility Color Display – 2.4-inch LCD provides clear, easy-to-read diagnostic data in workshop or outdoor conditions.

Package Includes

1 × TOPDON BT200 Battery Tester
1 × User Manual

Professional Battery & Charging System Diagnostics

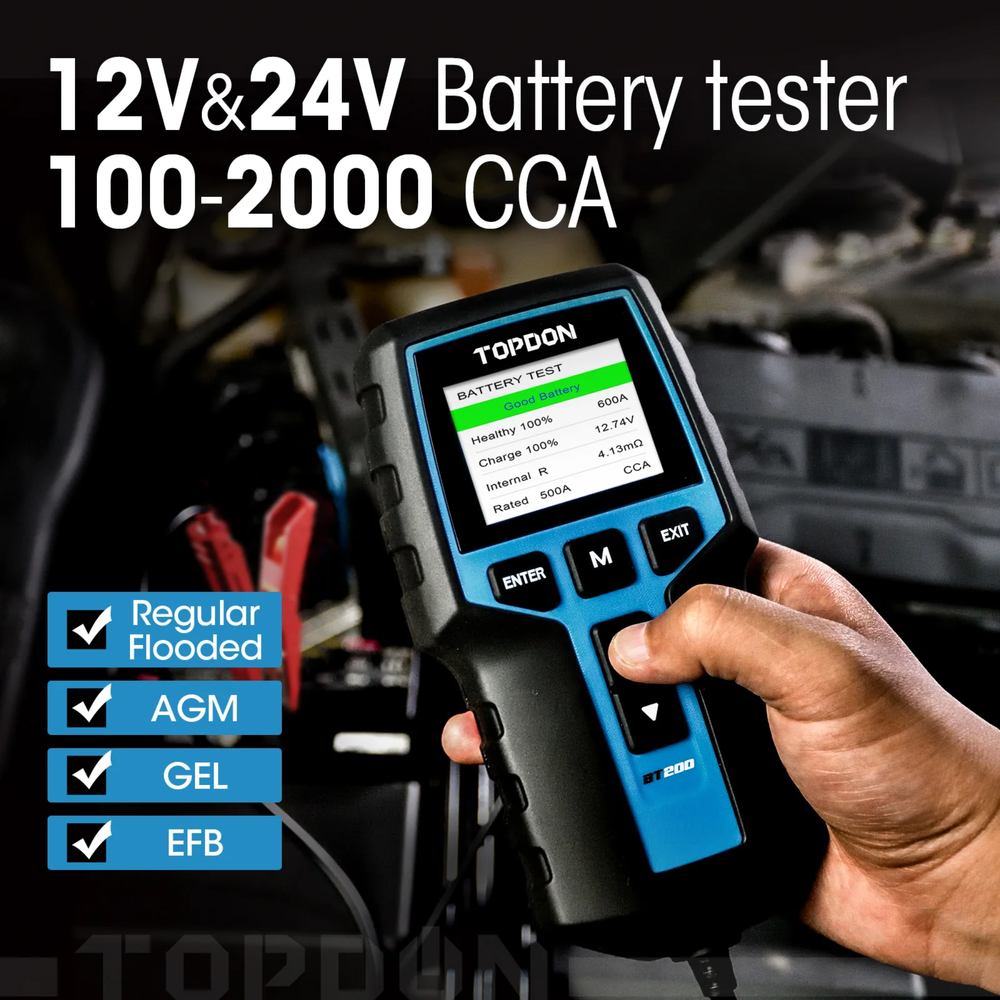

12V & 24V battery system testing

Battery, cranking & charging diagnostics

99.5% testing accuracy

Supports major lead-acid battery types

SOH & SOC battery health analysis

2.4" color LCD display

Fast plug-and-test operation

Compact and portable design

Reliable alternator system evaluation

Professional-grade diagnostic performance

The TOPDON BT200 is a professional automotive battery analyzer engineered to deliver accurate diagnostics for 12V and 24V lead-acid batteries.

TOPDON Battery Tester Comparison

Comparison Table: TOPDON BT200 | TOPDON BT300P | TOPDON BT600

	TOPDON BT200	TOPDON BT300P	TOPDON BT600

Battery Type
Testing Voltage	12V / 24V	12V / 24V	12V / 24V
Application	Flooded / AGM / Gel / EFB / VRLA	Flooded / AGM / Gel / EFB / VRLA	Flooded / AGM / Gel / EFB / VRLA
Testing Range	100–2000 CCA / 30–220Ah (GB)	100–2000 CCA / 30–220Ah (GB)	100–2000 CCA / 30–220Ah (GB)
Battery Standard	CCA / CA / BCI / MCA / DIN / IEC / EN / SAE / JIS / GB	CCA / CA / BCI / MCA / DIN / IEC / EN / SAE / JIS / GB	CCA / CA / BCI / MCA / DIN / IEC / EN / SAE / JIS / GB
Test Function
Battery Test	12V	12V	12V
Cranking Test	12V / 24V	12V / 24V	12V / 24V
Charging Test	12V / 24V	12V / 24V	12V / 24V
System Test	-	-	12V
Ripple Test	✓	✓	✓
Resistance Test	-	-	-
Sequence Test	-	-	-
Data Retrieve	1 time	1 time	1 time
Software
Software Update	-	-	✓
Screen
LCD Display	2.4" Colour	2.4" Colour	3.5" Colour
Other
Built-In Printer	-	✓	✓
Languages	EN / ES / FR / DE / IT / PT / RU / JA	EN / ES / FR / DE / IT / PT / RU / JA	EN / ES / FR / DE / IT / PT / RU / JA
	LEARN MORE	LEARN MORE	LEARN MORE

TOPDON BT200 Battery Analyzer Technical Specifications

Display: 2.4" Color LCD

Display Resolution: 320 × 240 Pixels

Supported Voltage: 12V / 24V

Cable Length: 920 mm (36.22 in)

Working Temperature: -20°C to 70°C (-4°F to 158°F)

Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Dimensions: 178 × 94.5 × 33 mm

Weight: 440 g (0.97 lb)

Battery Types: Flooded, AGM, Gel, EFB, VRLA

Testing Functions: Battery, Cranking, Charging System

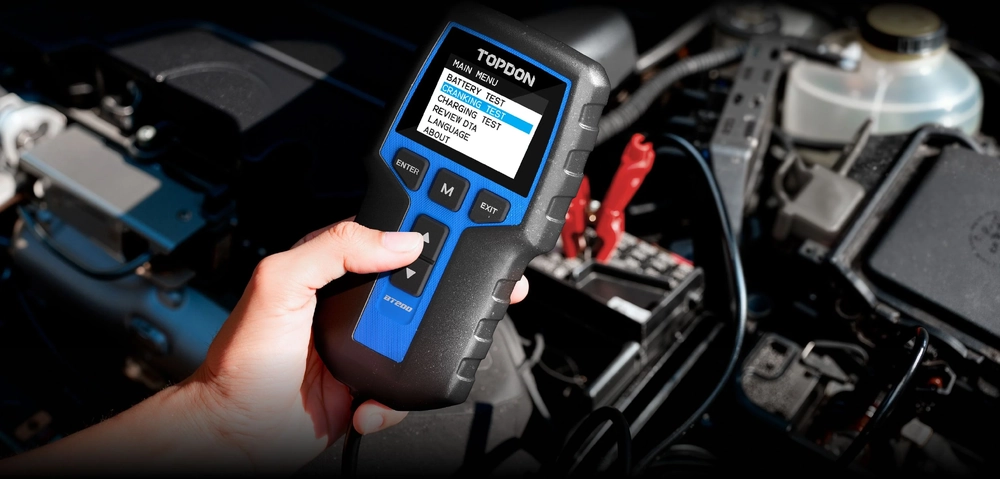

TOPDON BT200 12V 24V battery analyzer LCD display
