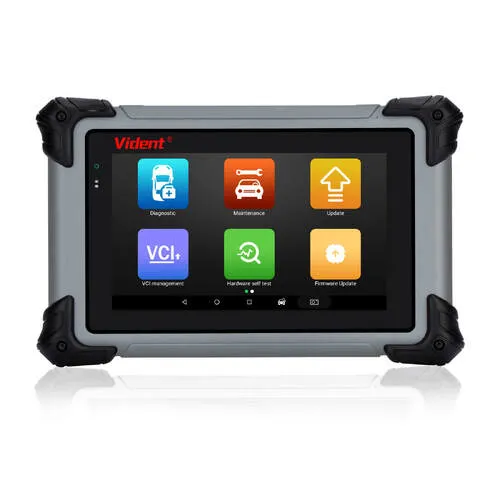

VIdent iSmart800 Pro Diagnostic OBD Scan Tool
SKU code: iSmart800pro
The iSmart800 Pro auto diagnostic scanner empowers workshop and mobile mechanics with a professional-level diagnostic functionality. Featuring a user-friendly Android interface, solid-state 72GB hard drive, Cortex-A17 1.3GHz processor and a 7” 1024x600 HD IPS LCD touch screen; the iSmart800Pro supports all systems ECU diagnosis as well as 40+ service functions for over 100 car brands making it one of the best scan tools you can get for under $1000.
Software Features
Coverage - covers over 100 American, European and Asian makes from 1994 to most recent models
Diagnostics - complete capabilities for codes, live data, freeze frame, functional tests, ECU information and adaptation for dozens of vehicle systems.
CAN FD - Supports CAN FD protocols with no additional adapters required.
Service Functions - performs variety of most common service functions including oil service and mileage interval reset, EPB, ABS & SRS, BCM/SIR reseting, DPF regeneration, throttle body alignment, steering angle sensor calibration, battery replacement and many more.
Fast Diagnostics- Automatic and manual VIN identification for easy ECU accessibility. One-touch Auto scan with read and quick erase-codes options and automatic vehicle-specific system detection, meaning you won't have to waste time scanning through data that is not relevant
Live Data - Customised text and graph live data with ability to record all available live data parameters and graph any four on screen at once
Study and compare mode of Live data - real-time data can be compared against known good measurements
Data Manager - Comprehensive data manager that can store thousands of vehicle records, customer data, vehicle IDs, fault codes, repair notes and diagnostic results
Data Logging - Interactive Data Logging sessions and remove control enable direct contact with Vident Technical
Updates - 3 years free software update
Scan Tool Service Functions
ABS Bleed | EVAP Test | Seat Match | Adblue |
Head Light | EGR Reset | Steering Angle | Coolant |
Ajust Fuel | Prime Fuel Pump | Sun Roof | Power Balance |
Airbag | Gear Box | Suspension | High Voltage Battery |
AT Adaption | Gear Learn | TPMS | GPF |
Battery | Immobilizer | Throttle Sensor Reset | Cruise |
Clutch Adaption | Injector Coding | TCM Oil Reset | Motor Angle |
Change Tyre Size | Change Language | Turbo | NOx Reset |
DPF | Odometer | Windows Door | Stop/Start |
EPB | Oil Reset | A/C Learn | Transport |
Package Includes
- 7.0" IPS LCD touch screen
- Diagnostic Cable & connector
- AC/DC Power Adapter (12V)
- User Manual
(iSmart800pro)
Compatible with OBDI & OBDII vehicles |
70+ Vehicle Brands |
Professional diagnostics + Service Reset + Coding |
7" high-resolution IPS Rated tablet |
32GB hard drive and Intel Quad-core processor |
3 years free updates |
Operation System: Android 7.1 |
Processor: Cortex-A7, 1.3GHz |
Memory: 1GB RAM & 72GB ROM |
Display: 7" Touch Screen, 1024*600 |
Connectivity: WiFi, DB-15, Type C, Micro SD Card |
Input Voltage: 12V, 2A |
Battery Capacity: 7200mAh |
Operating Temp: 0 to 55°C (14 to 131°F) |
Storage Temp: -20 to 60°C (-4 to 140°F) |
Dimensions: 246mm x 156mm x 32mm |
TF Card: Supports TF X1 Max 128G |
Speaker: Built-in 8Ω/.08 waterproof speaker x1 |
Microphone: Sensitivity:-42db, output impedance 2.2KΩ |
IP Rating: IPS |
Vident OBD Scan Tools
Comparison Table
iLink-400AU
|
iAuto-700AU
|
iAutomaster Pro
|
iAuto-730AU
|
iSmart800 Pro
|
|
---|---|---|---|---|---|
Display | 2.8" | 4.3" | 4.3" | 4.3" | 7.0" |
Touch Screen | - | - | - | - | ✓ |
Data Manager | - | - | - | - | ✓ |
WiFi Connection | - | - | - | - | ✓ |
Compatibility |
OBD-I / OBD-II |
OBD-I / OBD-II |
OBDI / OBD-II |
OBDI / OBD-II |
OBDI / OBD-II |
Coverage |
1 Brand |
70+ Brands |
70+ Brands |
70+ Brands |
70+ Brands |
Add Car Brands | ✓ | - | - | - | - |
Full System Scan | ✓ | ✓ | ✓ | ✓ | ✓ |
Auto VIN Identification | ✓ | ✓ | ✓ | ✓ | ✓ |
Live Data | ✓ | ✓ | ✓ | ✓ | ✓ |
Bi-Directional Active Test | ✓ | - | ✓ | ✓ | ✓ |
ECU Coding Adaptation | ✓ | - | - | ✓ | ✓ |
Oil Service Reset | ✓ | ✓ | ✓ | ✓ | ✓ |
EPB(Electronic Parking Brake) | ✓ | ✓ | ✓ | ✓ | ✓ |
BRT(Battery Configuration) | ✓ | ✓ | ✓ | ✓ | ✓ |
DPF(Diesel Particulate Filter) | ✓ | ✓ | ✓ | ✓ | ✓ |
TBA/TPS(Throttle Body Alignment) | ✓ | - | ✓ | ✓ | ✓ |
Injector Coding | ✓ | - | ✓ | ✓ | ✓ |
SAS(Steering Angle Sensor Reset) | ✓ | - | ✓ | ✓ | ✓ |
ABS Bleed | ✓ | - | ✓ | ✓ | ✓ |
Suspension Match | ✓ | - | ✓ | ✓ | ✓ |
EGR | ✓ | - | ✓ | ✓ | ✓ |
TPMS | ✓ | - | ✓ | ✓ | ✓ |
Turbo | ✓ | - | ✓ | ✓ | ✓ |
Gear learn | ✓ | - | ✓ | ✓ | ✓ |
Immobolizer | ✓ | - | ✓ | ✓ | ✓ |
Adjust Fuel | ✓ | - | ✓ | ✓ | ✓ |
Sunroof Reset | ✓ | - | ✓ | ✓ | ✓ |
Gearbox | ✓ | - | ✓ | ✓ | ✓ |
TCM Oil Reset | ✓ | - | ✓ | ✓ | ✓ |
AT Adaptation | ✓ | - | ✓ | ✓ | ✓ |
Change Tyre Size | ✓ | - | ✓ | ✓ | ✓ |
Clutch | ✓ | - | ✓ | ✓ | ✓ |
Seat Match | ✓ | - | ✓ | ✓ | ✓ |
PFP | ✓ | - | ✓ | ✓ | ✓ |
Windonws Door | ✓ | - | ✓ | ✓ | ✓ |
Software Update | Free | Free | Free | Free | 3 Yrs Free |
LEARN MORE | LEARN MORE | LEARN MORE | LEARN MORE | LEARN MORE |
Comparison tables are for reference only. They demonstrate general functions and features of our products. The compatibility for these functions may vary depending on vehicle's make, model and year. Refer to our function lists or contact us for more information.
