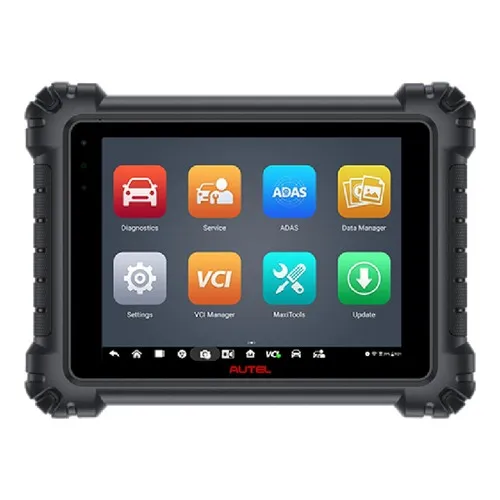

Autel MaxiSys MS909 Scan Tool

The MaxiSys MS909 features a 10-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The MS909 features the new MaxiFlash VCI, a combination VCI and vehicle communication tool providing faster dual Wi-Fi vehicle and network communications. The MS909 features front and rear cameras and a rechargeable Lithium battery providing 8 hours of continuous use to ensure you always have the power to scan.

Main Features

Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
Automatic system and software updates with real-time push message notifications via internet
Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organised
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

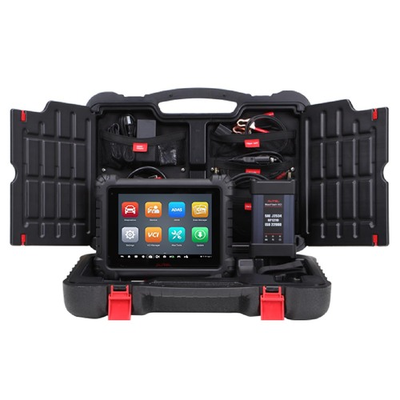

Package Includes

Main unit MaxiSys MS909

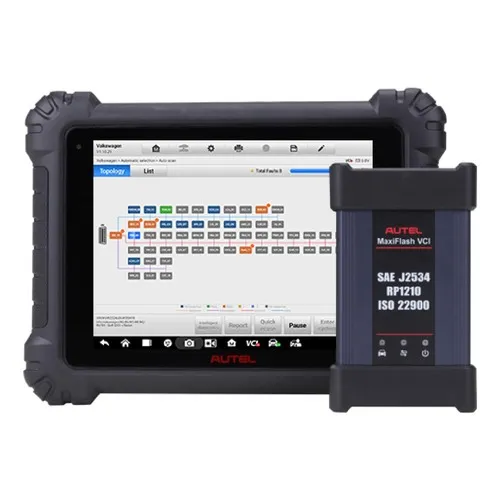

MaxiFlash VCI
Main Cable V2.0
USB Cable V2.0
AC/DC Adapter 12V
CigLighter Cable
Light Fuse x2 (6x30mm)
Clipper Cable
Quick Reference Guide
Packing List
Soft Cloth
Carrying Case

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes

Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming

9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen

Guided Procedures with DTC Analysis and Fault Code Solutions

Android 7.0 OS powered by an Octa-core Processor

Autel MaxiSys Diagnostic Scan Tools

Comparison Table

	MaxiSYS MS906 PRO	MaxiSYS MS906 BT	MaxiSYS Elite	MaxiSYS 909
Hardware
Vehicle Connection	Cable	MaxiVCI	MaxiFlash VCI	MaxiFlash VCI
Display Size	8"	8"	9.7"	9.7"
Memory Storage ROM	32GB	32GB	64GB	128GB
Battery	11600 mAh	10000 mAh	13600 mAh	15000 mAh
Connector Kit	✓	✓	✓	✓
Operating System	Android 7/10	Android 4.4.2, KitKat	Android 4.4.4	Android 7
Camera Rear	✓	✓	✓	✓
Software
All System Scan	✓	✓	✓	✓
Service Reset	✓	✓	✓	✓
Bi-Directional Control	✓	✓	✓	✓
Auto VIN Technology	✓	✓	✓	✓
ECU Coding		✓	✓	✓
(J2534 Pass-Thru)				✓
Data Manager	✓	✓	✓	✓
Shop Manager	✓	✓	✓	✓
Optional Add-ons
Advanced TPMS
Oscilloscope		✓	✓	✓
Inspection Camera		✓	✓	✓
ADAS		✓	✓	✓
	LEARN MORE	LEARN MORE	LEARN MORE	LEARN MORE

Operating System	Android 7.0
Processor	Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (TWO USB HOST Type A, ONE USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5.0 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jac
Power and Battery	15000mAH 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
