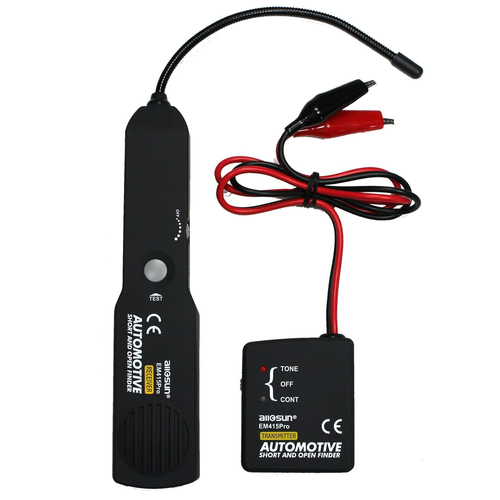

This EM415Pro Automotive Wire Tracker is designed to identify and trace wires or cables without damaging the insulation. You can also use it in checking for short circuits and exacting open circuits and so on. There are a sender and a receiver included in the instrument. A great tool for any workshops fixing cable and wire problems.

Main Features

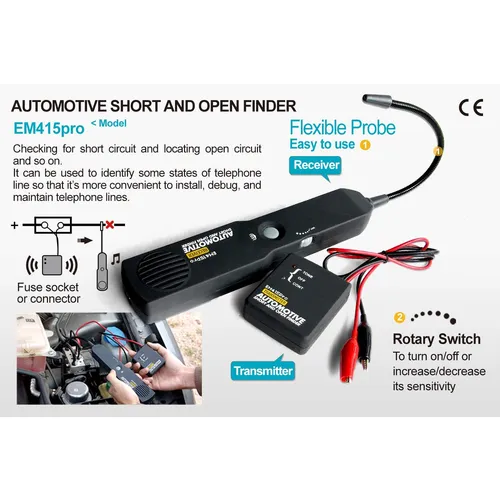

• Widely applied in Checking Short Circuit, Locating Open Circuit, Wire Tracing, Wire Identification, etc. Quickly and easily target broken wires, current leaks, and so on.
• Diagnose and judge the breakpoint from Slight Change of the continuous audio signal from the receiver. Transmitter and receiver LEDs show open or short circuit conditions
• Operates on DC voltages from 6 to 42 Volts under any circumstances
• 7" flexible Probe allows reaching wires in congested places
• Adjustable sensitivity for all tracing needed. Internally protected against power surges and overloads

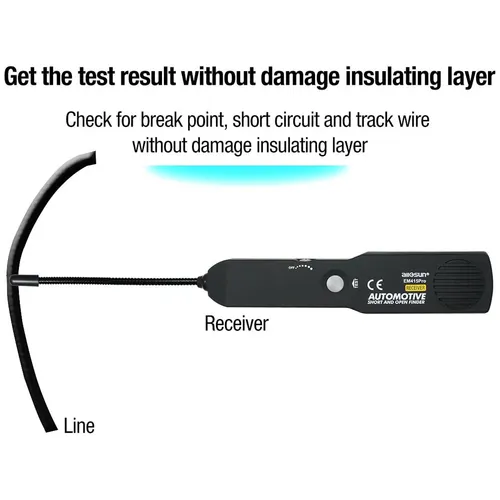

How to use the probe?

• The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach wires in congested or difficult areas.
• Depending on the circuit characteristic and sensitivity settings, the probe will pick up the signal from the wire in a range of positions.
• However, for the best possible range, the Receiver’s probe tip (black cap) should be positioned perpendicular (at 90o) to the wire being traced and either above or below it.

Product Includes

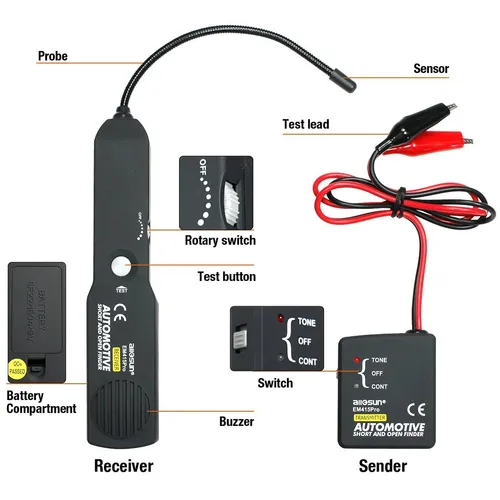

• Automotive Short and Open Finder Sender Unit
• Automotive Short and Open Finder Reciever Unit
• User Manual

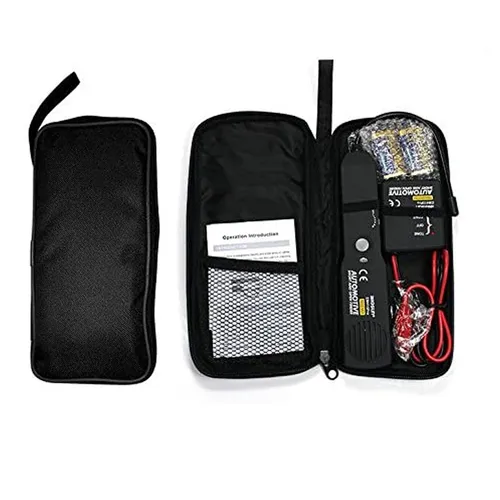

• Carrying Bag
