Hantek TO1154D 4CH Oscilloscope with Signal Generator

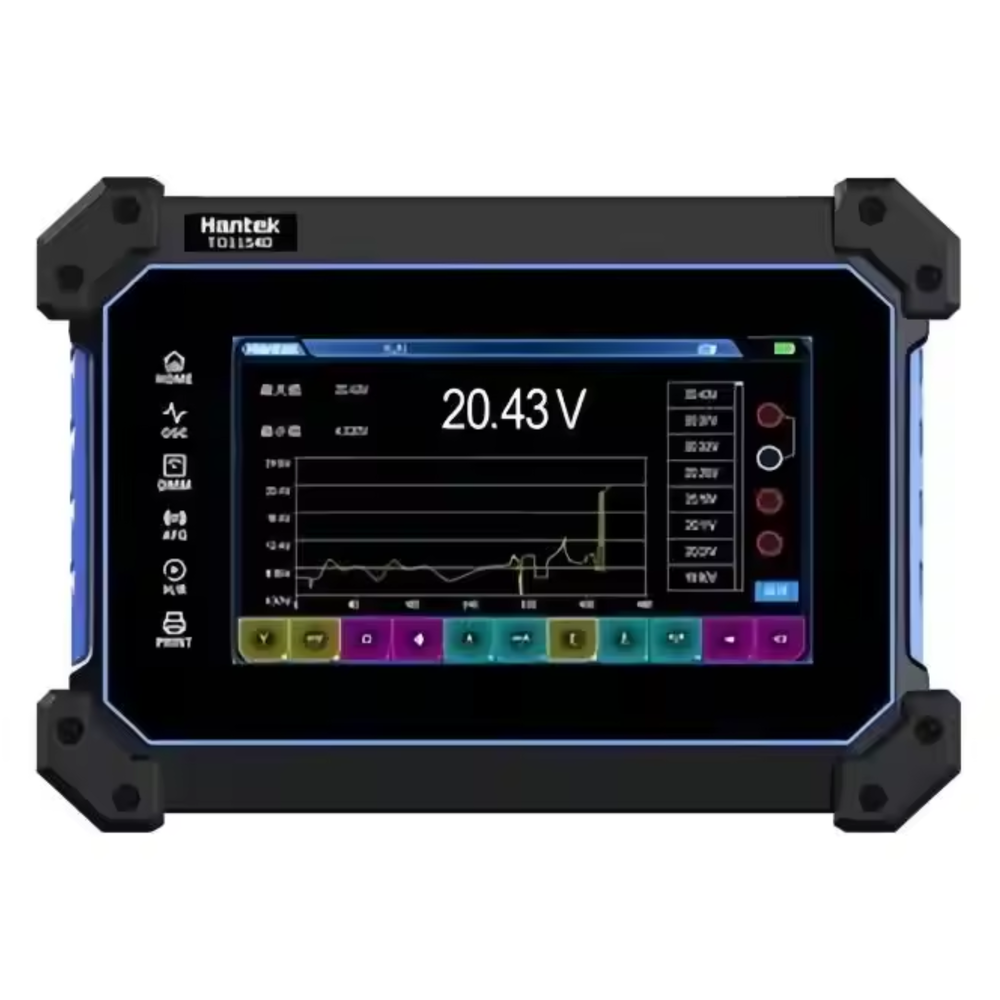

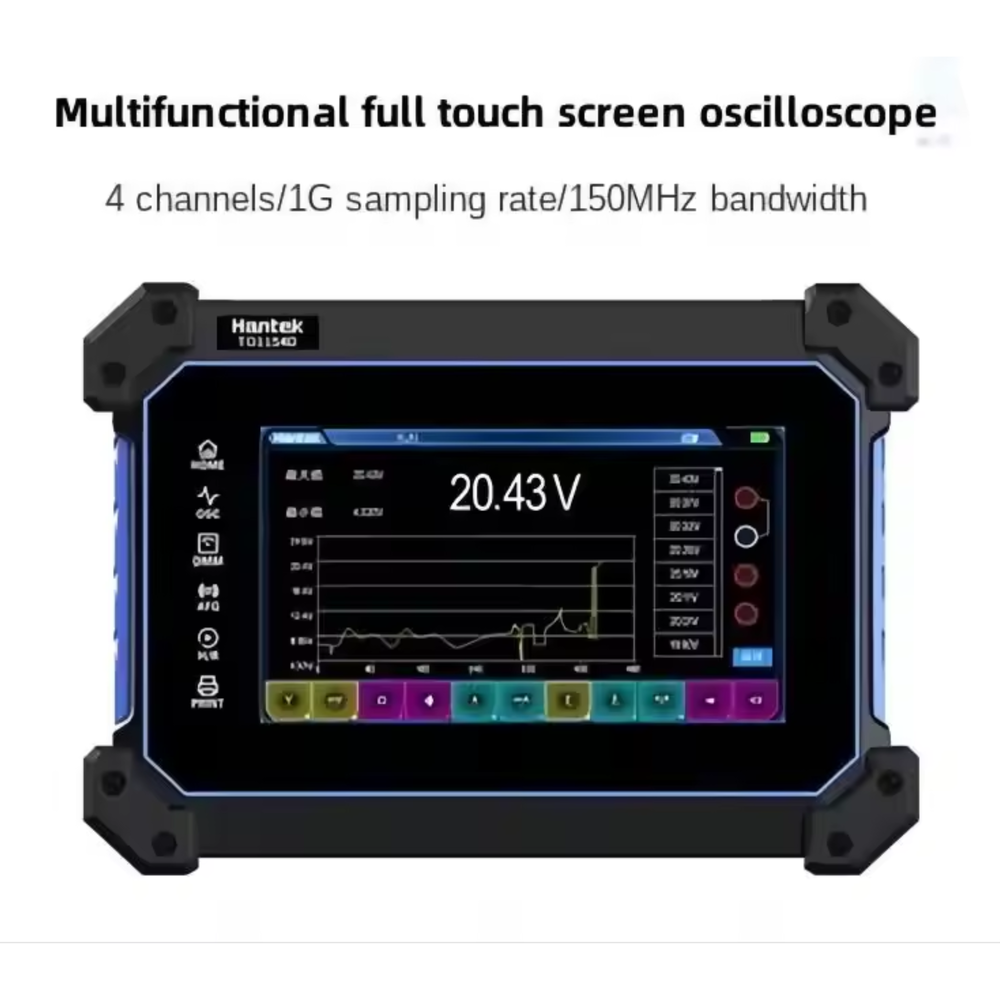

Hantek TO1154D Touchscreen Digital Oscilloscope

The Hantek TO1154D is a high-performance, multi-functional diagnostic instrument engineered for advanced electronic testing and automation applications. Featuring a responsive touchscreen interface, 150MHz bandwidth, and 1GSa/s real-time sampling, it delivers precise waveform analysis across four channels. This all-in-one solution integrates a digital oscilloscope, 25MHz arbitrary signal generator, and high-accuracy multimeter, providing a compact yet powerful tool for engineers, technicians, and field professionals requiring reliability, portability, and efficiency.

Main Features

4-Channel Digital Oscilloscope – Provides simultaneous multi-signal analysis with 150MHz bandwidth and high-resolution waveform capture for complex diagnostics.
High-Speed Sampling Performance – Delivers up to 1GSa/s real-time sampling rate, ensuring accurate signal reconstruction and minimal data loss.
Integrated Arbitrary Signal Generator – Includes a built-in 25MHz waveform generator with multiple waveform outputs and AM/FM modulation support for simulation and testing.
High-Precision Digital Multimeter – Supports voltage, current, resistance, capacitance, and diode testing with data logging, trend analysis, and statistical evaluation.
Advanced Touchscreen Interface – Features a responsive multi-touch display with an intuitive user interface, enabling efficient navigation and operation.
Deep Memory Storage (8Mpts) – Allows extended waveform recording and detailed signal analysis over longer time intervals.
Portable and Rugged Design – Engineered with a suspension foot stand, anti-shock construction, and compact form for reliable field use.
Integrated Data Recording & Analysis – Enables long-term monitoring with waveform storage, CSV export, and FFT spectrum analysis functionality.
High-Capacity Battery System – Equipped with a 10,000mAh lithium battery for extended operation and standby capability.
Fast Charging with Type-C Interface – Supports 18W fast charging and universal compatibility with modern charging devices.

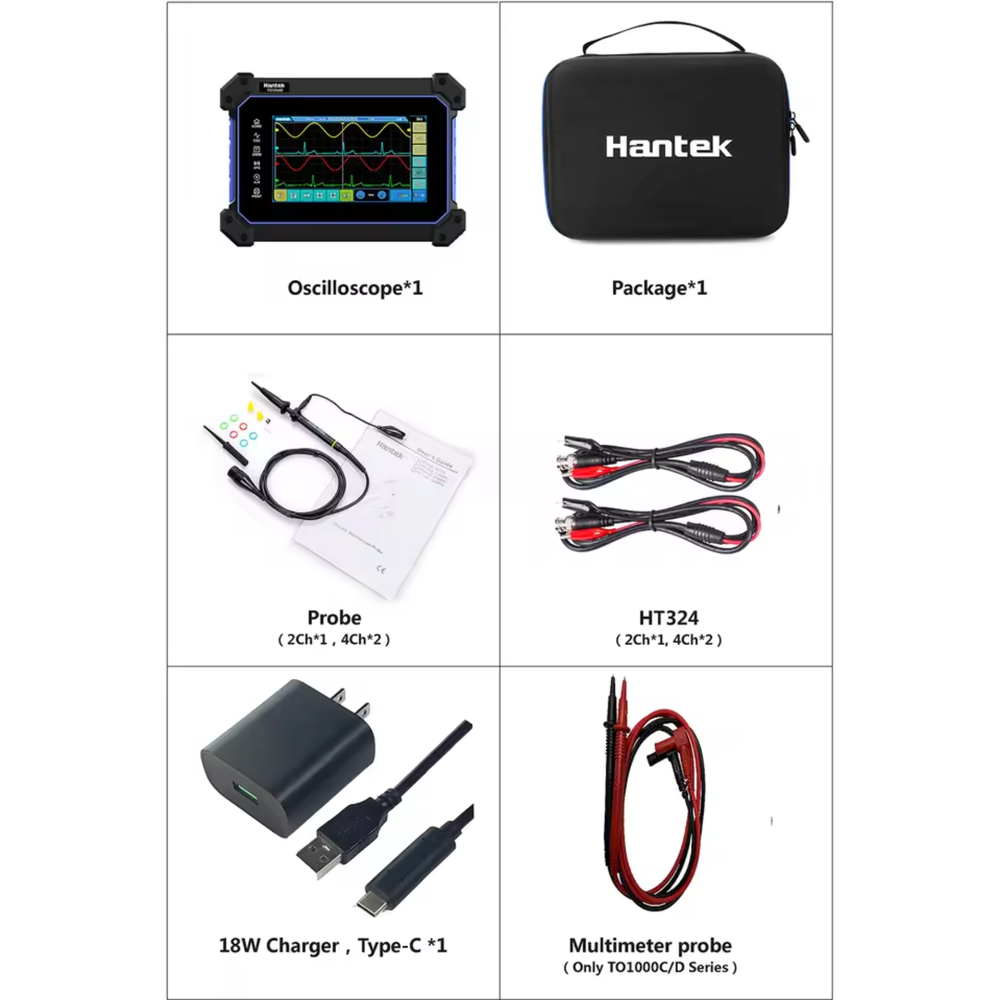

Package Includes

Hantek TO1154D Oscilloscope Unit
Oscilloscope Probes (2CH / 4CH configuration)
HT324 Test Leads
18W Type-C Power Charger
USB Connection Interface
User Manual

Advanced Multi-Function Testing Capabilities

4-channel digital oscilloscope with 150MHz bandwidth

1GSa/s real-time sampling rate for precise signal capture

Integrated 25MHz arbitrary waveform generator

Built-in high-precision digital multimeter

7-inch touchscreen display with intuitive interface

8M memory depth for extended waveform storage

Portable design with built-in lithium battery

USB connectivity for data transfer and storage

Multi-trigger modes and advanced measurement functions

Fast Type-C charging support

Hantek TO1154D Touchscreen Digital Oscilloscope. The Hantek TO1154D is a high-performance, multi-functional diagnostic instrument engineered for advanced electronic testing and automation applications. Featuring a responsive touchscreen interface, 150MHz bandwidth, and 1GSa/s real-time sampling, it delivers precise waveform analysis across four channels.

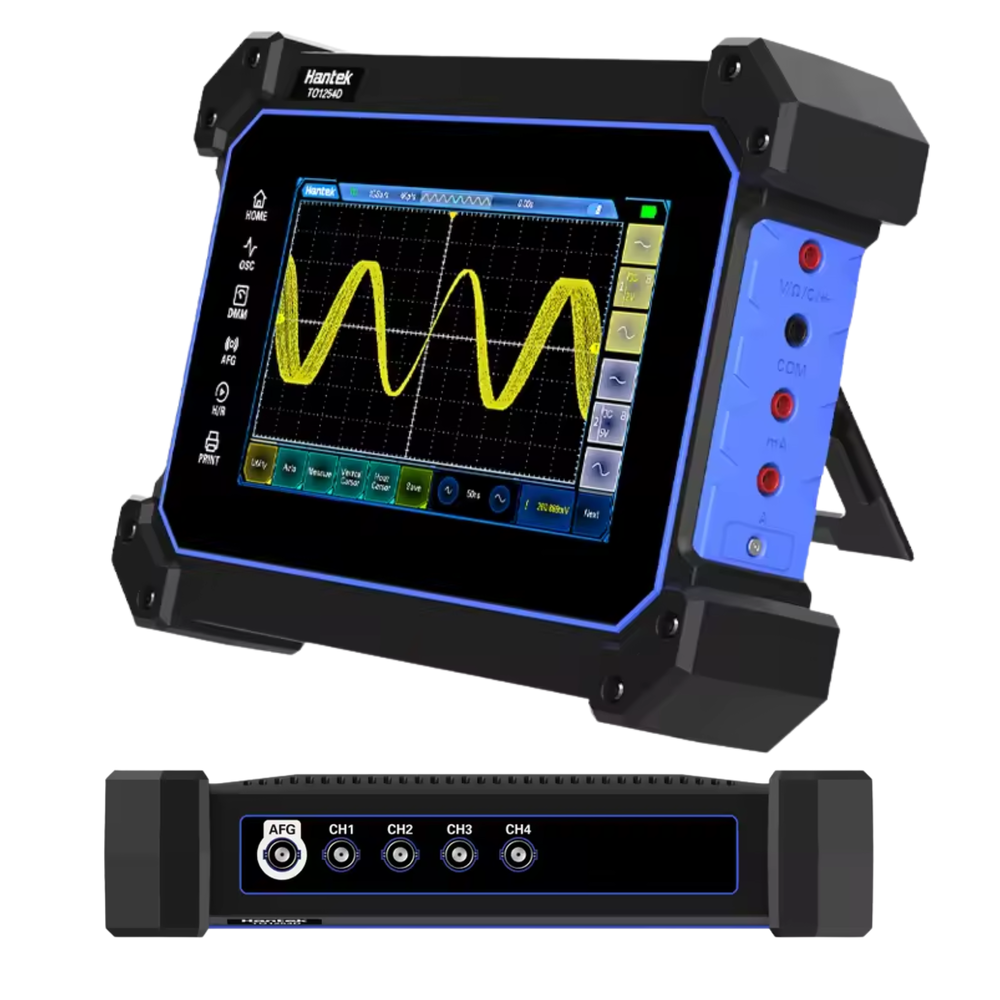

Hantek TO1154D Touchscreen Digital Oscilloscope with Integrated Signal Generator

Technical Specifications

Display: 7” TFT LCD touchscreen, 800 × 480 resolution

Channels: 4 analogue channels + 1 signal output

Bandwidth: 150 MHz

Sampling Rate: 1GSa/s real-time

Storage Depth: 8Mpts

Waveform Capture Rate: 30,000 wfm/s

Signal Generator Frequency: Up to 25 MHz

Signal Generator Resolution: 12-bit

Multimeter Functions: Voltage, Current, Resistance, Capacitance, Diode

Maximum Input Voltage: 300V RMS (oscilloscope), 600V (multimeter)

Trigger Modes: Edge, Pulse Width, Video, Slope, Timeout

Measurement Functions: 42 automatic measurements

FFT Analysis: Supported

Interface: USB Host & USB Device

Battery: 10,000mAh lithium battery

Charging: 18W Type-C fast charging

Power Consumption: <8W

Dimensions: 248 × 176 × 54 mm

Weight: 1.2 kg
