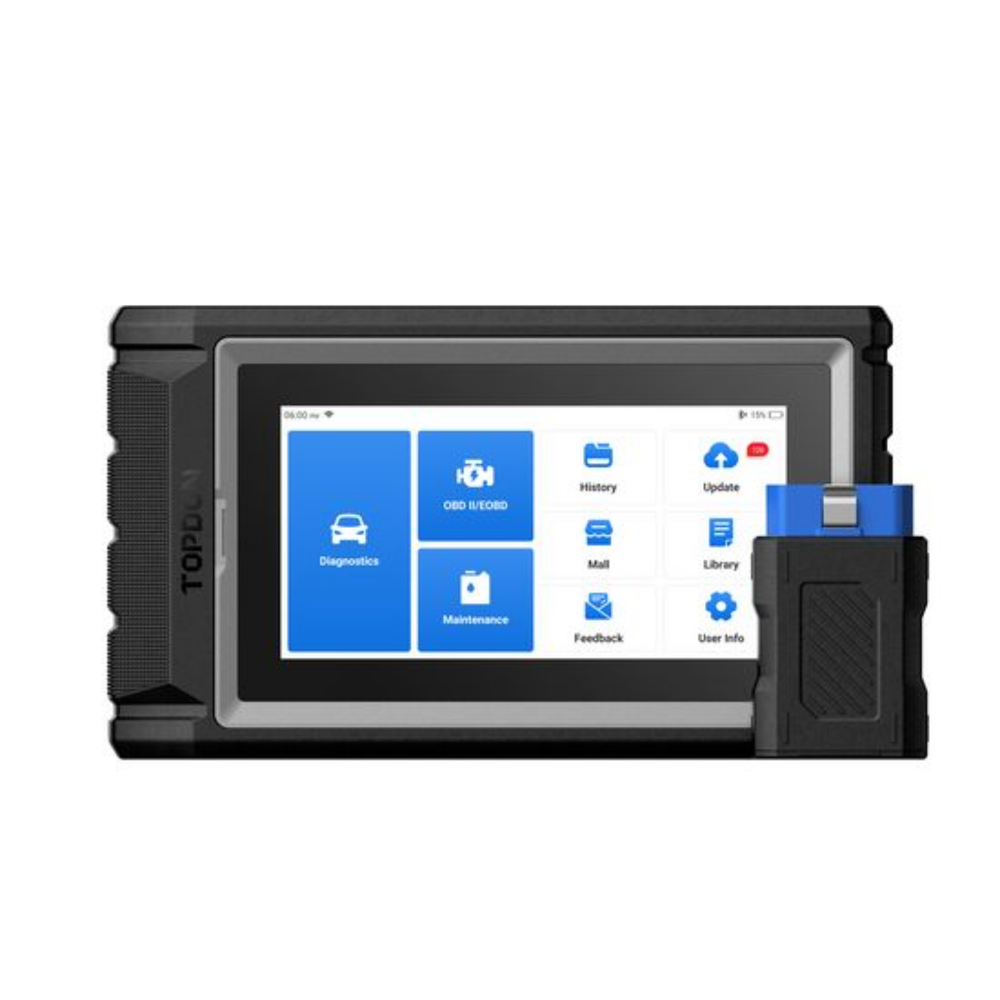

TOPDON ArtiDiag800BT 2 OBD2 Scanner with Active Test & CAN-FD

TOPDON ArtiDiag800BT 2 Professional OBD2 Diagnostic Scanner

The TOPDON ArtiDiag800BT 2 is a professional-grade automotive diagnostic scanner engineered for workshops and advanced technicians. Equipped with full-system diagnostics, bi-directional control, CAN-FD protocol support, and FCA Secure Gateway access, it delivers comprehensive vehicle analysis across 80+ brands. Featuring Bluetooth 5.0 wireless connectivity, AutoVIN identification, 28+ maintenance services, and complete OBD2 functionality, this tool ensures precise fault detection, efficient troubleshooting, and reliable service operations.

TThe TOPDON ArtiDiag800BT 2 is a professional-grade automotive diagnostic scanner engineered for workshops and advanced technicians.

Scan Tool Main Features

Full-System OE-Level Diagnostics – Perform comprehensive diagnostics across Engine, Transmission, ABS, SRS, EPB, TPMS, BCM, HVAC, and additional control modules with ECU information, DTC reading/clearing, and real-time live data monitoring.
Bi-Directional Active Testing – Execute component activation tests by sending commands directly to the ECU, enabling functional verification of fuel pumps, cooling fans, injectors, windows, wipers, mirrors, and other actuators without disassembly.
CAN-FD Protocol Support – Diagnose next-generation vehicles utilizing CAN-FD communication, ensuring compatibility with 2020+ GM and Chrysler platforms for faster data transmission and enhanced system access.
FCA Secure Gateway Access (SGW) – Unlock protected vehicle modules on FCA platforms, allowing authorized code clearing, active testing, and advanced diagnostics on Fiat, Chrysler, Dodge, and related models.
28+ Advanced Service Functions – Perform essential maintenance procedures including Oil Reset, EPB Reset, SAS Calibration, DPF Regeneration, Injector Coding, TPMS Reset, ABS Bleeding, BMS Registration, Throttle Adaptation, and more.
Complete OBD2 Mode 1–10 Coverage – Access all OBD2 functions including live data, freeze frame, I/M readiness, onboard monitoring, oxygen sensor tests, and permanent code retrieval for 1996+ compliant vehicles.
Wireless Bluetooth Diagnostics – Operate efficiently with stable Bluetooth 5.0 connectivity, providing up to 10 meters of wireless range for unrestricted workshop movement.
AutoVIN & Intelligent AutoScan – Automatically identify vehicle information via VIN recognition to accelerate diagnostic workflow and minimize manual data entry errors.
Advanced Live Data Visualization – Display multi-parameter data streams in graphical and numerical formats with waveform comparison for precise system analysis.
Integrated Reporting & Data Recording – Generate detailed diagnostic reports, record data streams for further analysis, and share documentation for improved service transparency and customer communication.

Packing Includes

1 × TOPDON ArtiDiag800BT 2 Diagnostic Tablet
1 × Bluetooth VCI Connector
Type-C to USB Cable
Power Adapter (Regional Variant)
Carrying Case
User Manual

Why Buy the TOPDON ArtiDiag800BT 2?

TThe TOPDON ArtiDiag800BT 2 is a professional-grade automotive diagnostic scanner engineered for workshops and advanced technicians. Equipped with full-system diagnostics, bi-directional control, CAN-FD protocol support, and FCA Secure Gateway access, it delivers comprehensive vehicle analysis across 80+ brands.

OE-level full-system diagnostics for 80+ vehicle brands

Bi-directional control (active test) for component activation

CAN-FD protocol support for newer GM & Chrysler platforms

FCA Secure Gateway (SGW) access for authorized diagnostics

28+ advanced service and reset functions

Complete OBD2 Mode 1–10 functionality

Bluetooth 5.0 wireless communication (up to 10m range)

AutoVIN automatic vehicle identification

Live data graphing with multi-parameter comparison

6-inch LCD touchscreen with Android 10 OS

2GB RAM + 64GB ROM for smooth performance

5050mAh rechargeable battery

2 years of free software updates

Technical Specifications – TOPDON AD800 BT2 Diagnostic Tablet Scanner

Model: ArtiDiag800BT 2

Display: 6-inch LCD Touchscreen

Operating System: Android 10

RAM: 2GB

ROM: 64GB

Battery Capacity: 5050mAh

Connectivity: CAN, CAN-FD, OBD, OBDII, EOBD

Connectivity: Bluetooth 5.0

OBD Interface: OBD / OBDII / CAN / EOBD

Protocol Support: CAN-FD

Secure Gateway: FCA SGW, Renault Gateway

Special Functions: E28+ Maintenance Services

Supported Systems: Engine, ABS, SRS, SAS, TPMS, EPB, DPF, Transmission, BCM & More

Wireless Range: Up to 10m (33ft)

Working Temperature: 0℃–50℃

Storage Temperature: -20℃–60℃

Dimensions: 215 × 126 × 46 mm

Net Weight: 660g

Warranty: 1 Year

Free Updates: 2 Years

Vehicle Compatibility & Platform Coverage

Supported Vehicle Types:

Passenger vehicles (1996 and newer OBD2 compliant models)
Global coverage across 80+ automotive brands
10,000+ vehicle models worldwide

Advanced Platform Coverage

FCA Group vehicles with SGW (Fiat, Chrysler, Dodge)
CAN-FD equipped vehicles (2020+ GM & Chrysler platforms)
Manual VIN entry supported for non-AutoVIN vehicles
