LAUNCH X431 PRO3 APEX Professional All-System Diagnostic Scan Tool

The LAUNCH X431 PRO3 APEX is a professional all-system diagnostic scan tool designed for workshops, automotive technicians and advanced vehicle diagnostics. Featuring OE-level system diagnostics, online and offline ECU coding, topology mapping, bi-directional control, 37+ service functions, CAN FD and DoIP support, it provides comprehensive coverage across 160+ vehicle brands. The 10.1-inch touchscreen, Android 10, 4GB RAM and 64GB storage deliver a fast, reliable platform for complex diagnostic and repair tasks.

Scan Tool Main Features

• Full-System OE Diagnostics – Comprehensive diagnostics across supported vehicle systems, including Engine, Transmission, ABS, SRS, EPB, TPMS and body control modules.
• Online & Offline ECU Coding – Perform supported ECU coding, module matching, configuration and selected vehicle customisation functions.

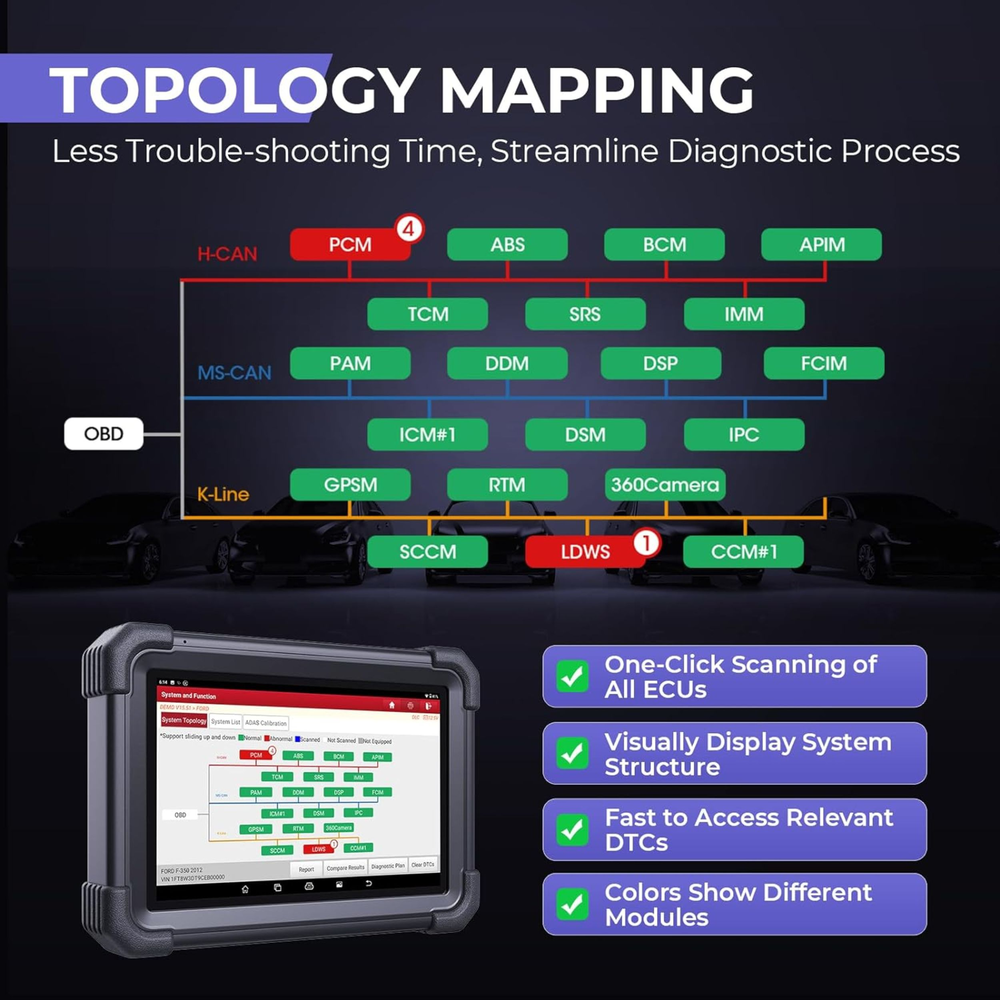

• Advanced Topology Mapping – Visualise vehicle communication networks, module status and DTC locations to identify faults more efficiently.
• CAN FD & DoIP Support – Communicate with compatible modern vehicles using advanced CAN FD and DoIP protocols for faster diagnostic data transfer.
• Bi-Directional Control – Perform active tests on supported vehicle systems and components to verify operation and pinpoint faults.
• 37+ Service Functions – Access a comprehensive range of reset, relearn, adaptation and calibration functions for supported vehicles.
• 160+ Vehicle Brand Coverage – Diagnose a broad range of global vehicle brands, with coverage varying by make, model, year and system.
• FCA & Renault SGW Access – Access supported security gateway-equipped vehicles for additional diagnostic, service and coding functions.
• VAG Guided Functions – Follow guided diagnostic procedures with operating tips, matching, settings and coding instructions for supported VAG vehicles.
• Programmable Module Installation – Support PMI procedures on compatible vehicles for module replacement and initialisation.
• IMMO & Key Programming Expansion – Extend supported immobiliser and key programming capabilities with the optional LAUNCH X431 PROG-3.
• 12-in-1 Live Data Graph – Monitor multiple live data parameters simultaneously in graphical format for more efficient vehicle analysis.
• Diagnostic Reports – Generate, save, download, print and share diagnostic reports for workshop records and repair documentation.
• 24V Heavy-Duty Expansion – Extend diagnostics to compatible heavy-duty trucks and commercial vehicles using the optional LAUNCH HD module.

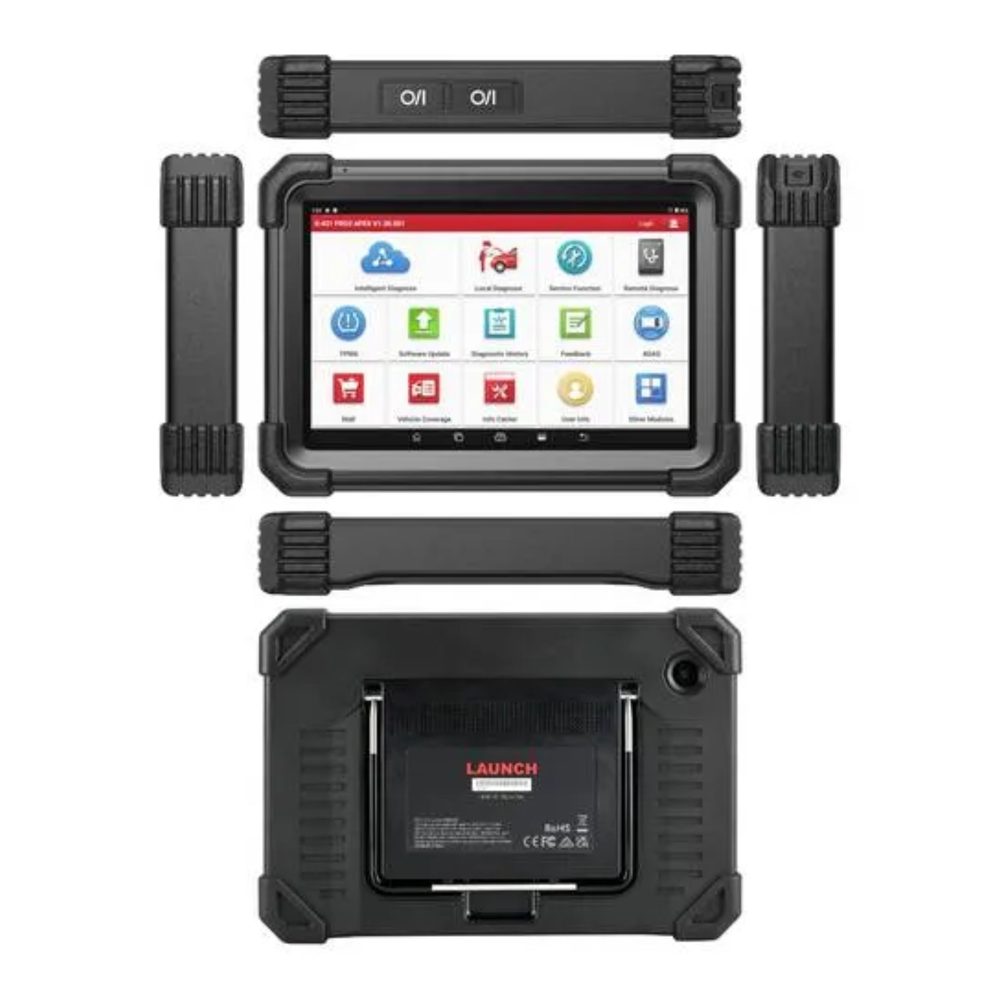

• 10.1-Inch Touchscreen – View diagnostic information clearly on a 10.1-inch LCD touchscreen with 1280 × 800 resolution.
• Powerful Hardware Platform – Features Android 10, a 2.0GHz quad-core processor, 4GB RAM, 64GB storage and a 6300mAh battery.

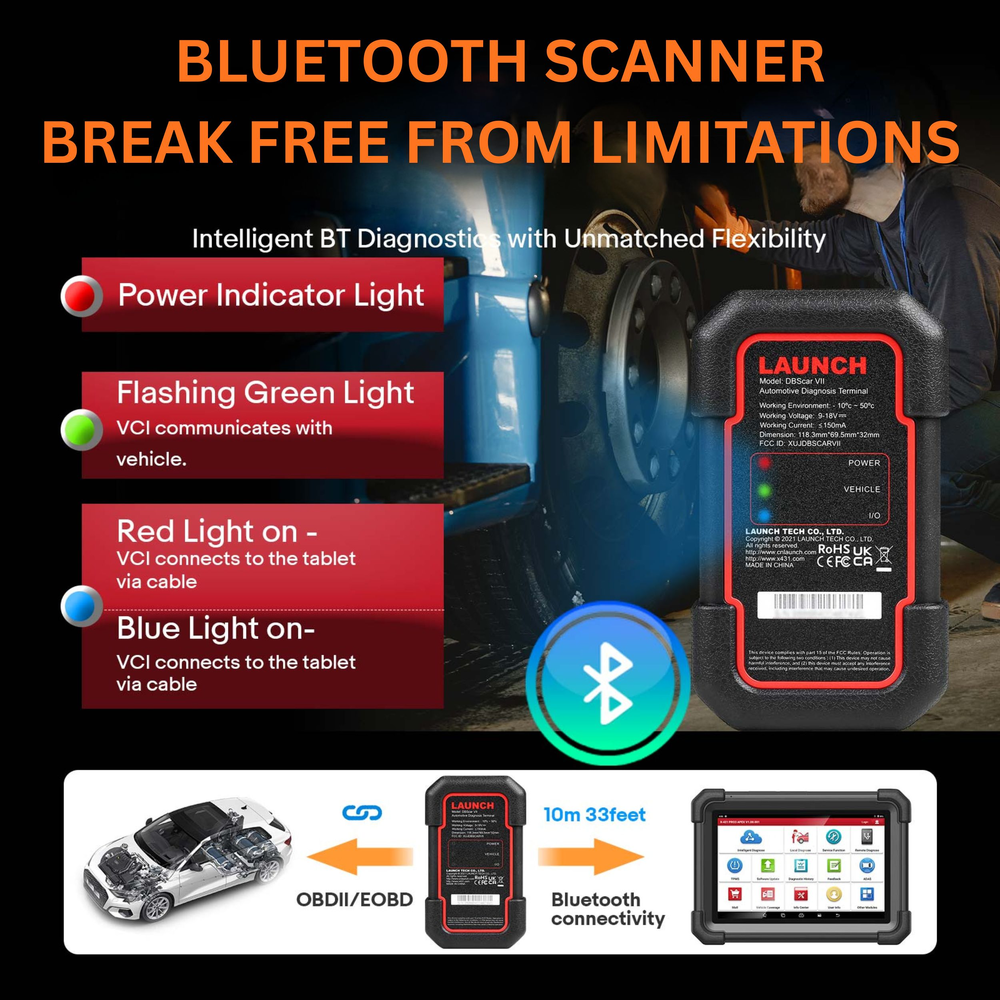

• DBScar VII VCI – Includes the upgraded diagnostic connector with Bluetooth and USB communication plus CAN FD and DoIP compatibility.
• 25+ Language Support – Provides a multilingual interface that can be changed directly through the device settings.

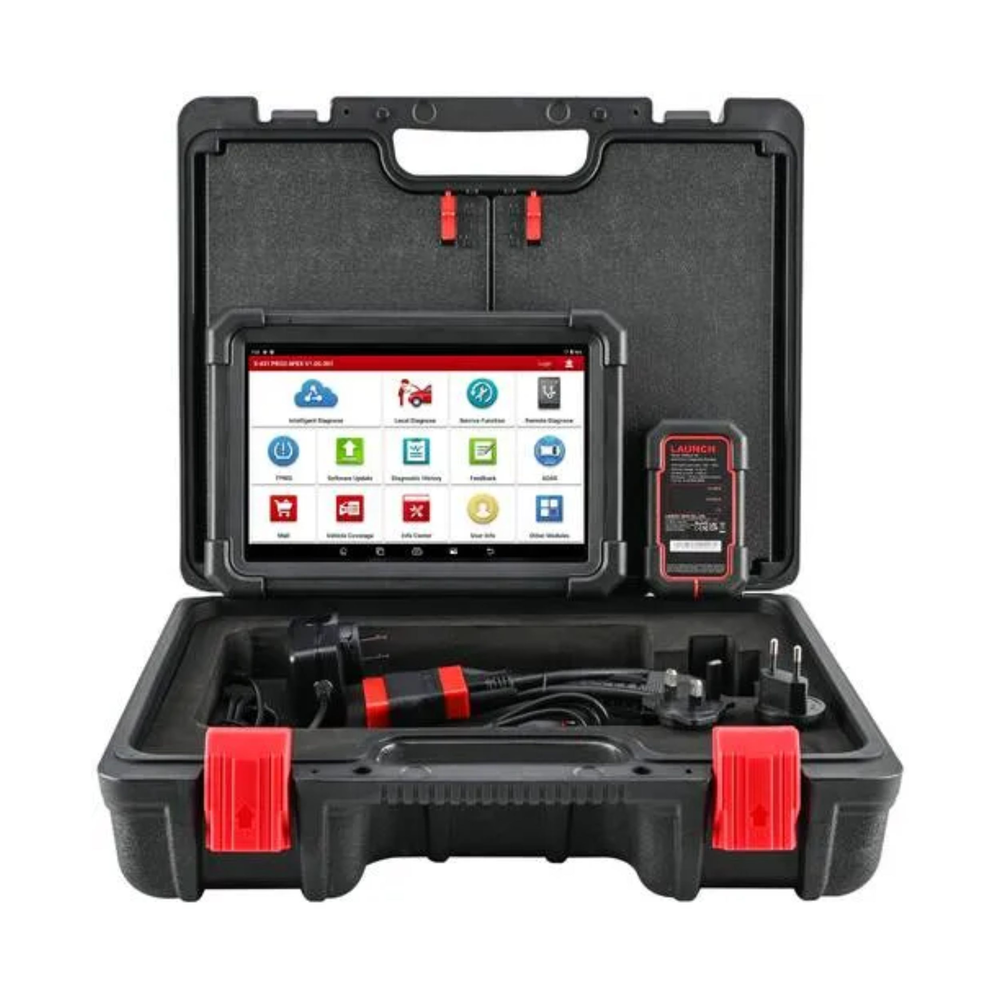

Packing Includes

• 1 x LAUNCH X431 PRO3 APEX Diagnostic Tablet
• 1 x DBScar VII
• 1 x Diagnostic cable
• 1 x Power Adapter
• 1 x Type-A to Type-C USB cable
• 1 x User Manual
• 1 x PIN envelope
• 1 x Quick Guide
