Autel MaxiCOM Ultra Lite Scan Tool All Service Functions Support Topology Mapping

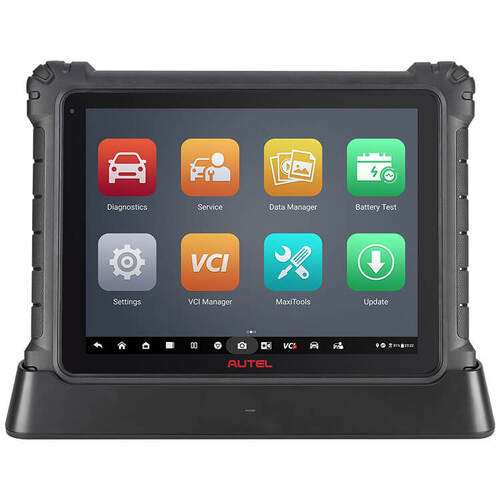

Autel MaxiSys Ultra Lite Diagnostic Tool

The Autel MaxiSys Ultra Lite is designed to be the ultimate diagnostic tool for automotive professionals. It combines advanced features like ECU programming, active tests, and comprehensive system diagnostics on OBD1 and OBD2 compatible vehicles including the Australian, European and Japanese cars. With a large 13-inch touchscreen display, the tool supports seamless navigation for quick and effective diagnostics across a wide range of vehicle models. Whether you're handling complex repairs or routine maintenance, this tool has everything you need.

Main Features:

Advanced ECU programming and coding for comprehensive vehicle diagnostics
12.7 inch touchscreen with split-screen functionality for multitasking
Supports diagnostics for over 80 global vehicle brands
Upgraded MaxiFlash VCI for faster, more stable wireless connections
Real-time Topology Mapping for viewing system status
Supports key fob programming and immobilizer functions
Cloud-based services: Repair tips, troubleshooting guides, and diagnostic reports
5-in-1 communication support including CAN FD and DoIP
2 year of free software updates included

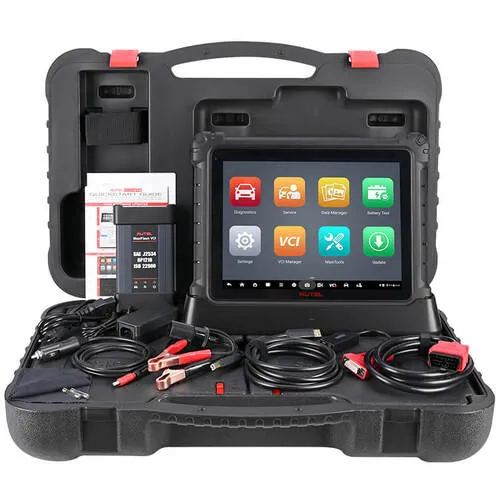

Package Includes:

MaxiSys Ultra Lite Main Unit

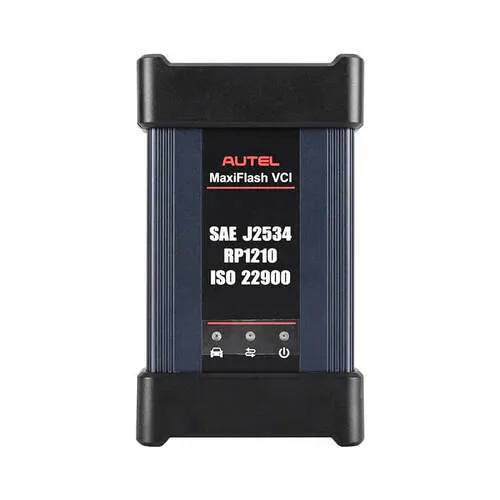

MaxiFlash VCI
Docking Station
Main Cable V2.0
USB 2.0 Cable V2
AC/DC Adapter (12V)
Auxiliary Power Outlet Adapter
Spare Fuse (6x30mm, 2 pcs)
Clamp Cable
USB to Ethernet Adapter
Quick Reference Guide
Packing List
Soft Cloth
Carrying Case (Dimensions: 650x185x430 mm)

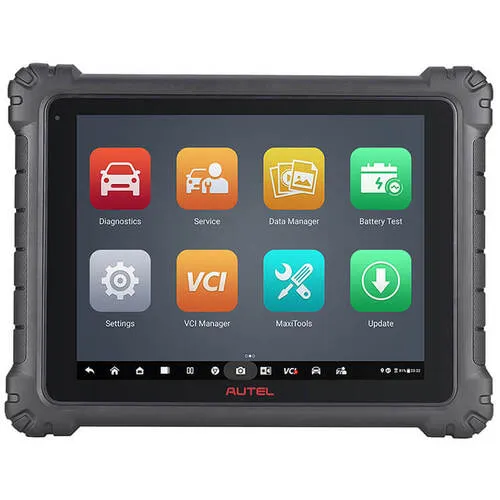

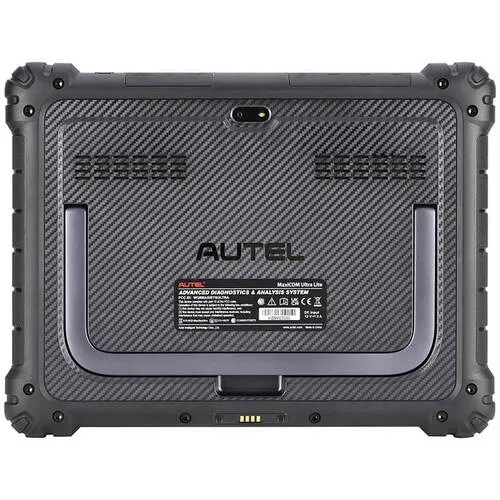

Autel MaxiCom Ultra Lite

MaxiCOM Ultra Lite is a multi-platform diagnostics solution comprised of a powerful 12.7-inch TFT-LCD touchscreen Android-based tablet, a VCI communication and diagnostics unit, and an on-tool and cloud-based instructions and advice.

Autel MaxiCom Ultra Lite

Operating System
Android 7.0

Processor
Samsung Exynos 8895V octa-core Processor
(2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)

Memory
4GB RAM & 256GB On-board Memory

Display
12.7 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen

Connectivity

WiFi x2 (802.11 a/b/g/n/ac 2x2 MIMO)
Bluetooth v.2.1 + EDR
GPS
USB 2.0 (Two USB HOST Type A, one USB mini device)
HDMI 2.0
SD Card (Support up to 256GB)

Camera

Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5 Megapixel

Sensors

Gravity Accelerometer
Ambient Light Sensor (ALS)

Audio Input/Output

Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack

Power and Battery

18000mAh 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply (Operating temperature: 0°C to 45°C)

Input Voltage
12V/3A Adapter

Operating Temperature
0 to 50°C (32 to 122°F)

Storage Temperature
-20 to 60°C (-4 to 140°F)

Dimensions (WxHxD)
366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")

Weight
2.18 kg (4.81 lb.)

Supported Protocols
CAN FD; DoIP; PLC J2497; ISO-15765; SAE-J1939; ISO-14229 UDS; SAE-J2411 Single Wire CAN (GMLAN); ISO-11898-2; ISO-11898-3; SAE-J2819 (TP20); TP16; ISO-9141; ISO-14230; SAE-J2610 (Chrysler SCI); UART Echo Byte; SAE-J2809 (Honda Diag-H); SAE-J2740 (GM ALDL); SAE-J1567 (CCD BUS); Ford UBP; Nissan DDL UART with Clock; BMW DS2; BMW DS1; SAE-J2819 (VAG KW81); KW82; SAE J1708; SAE-J1850 PWM (Ford SCP); SAE-J1850 VPW (GM Class 2)
