Autel BT608 Battery & Electrical System Analyser

Autel MaxiBAS BT608 Battery & Electrical System Analyzer

The Autel MaxiBAS BT608 is a professional battery and electrical system analyser designed for accurate automotive battery testing, battery registration and electrical system diagnostics. Using Adaptive Conductance technology, it assesses battery health and cold cranking performance across supported battery types and CCA ratings. The BT608 supports in-vehicle and out-of-vehicle testing, cranking and charging system analysis, VIN and battery identification, full-system diagnostics, code reading and clearing, and report printing through its built-in thermal printer.

The Autel MaxiBAS BT608 is a professional battery and electrical system analyser designed for accurate automotive battery testing, battery registration and electrical system diagnostics.

System Analyzer Main Features

Adaptive Conductance Technology – Provides accurate battery health analysis by assessing cold cranking capability and reserve capacity while helping reduce incorrect or repeated diagnoses.
Wide Battery Testing Range – Tests supported 12 V automotive batteries from 100 to 3000 CCA across multiple battery technologies.
Multiple Battery Type Support – Compatible with Flooded, AGM, AGM Spiral, EFB and GEL cell batteries for comprehensive automotive battery analysis.
In-Vehicle & Out-of-Vehicle Testing – Supports battery testing both while installed in the vehicle and outside the vehicle for flexible diagnostic applications.

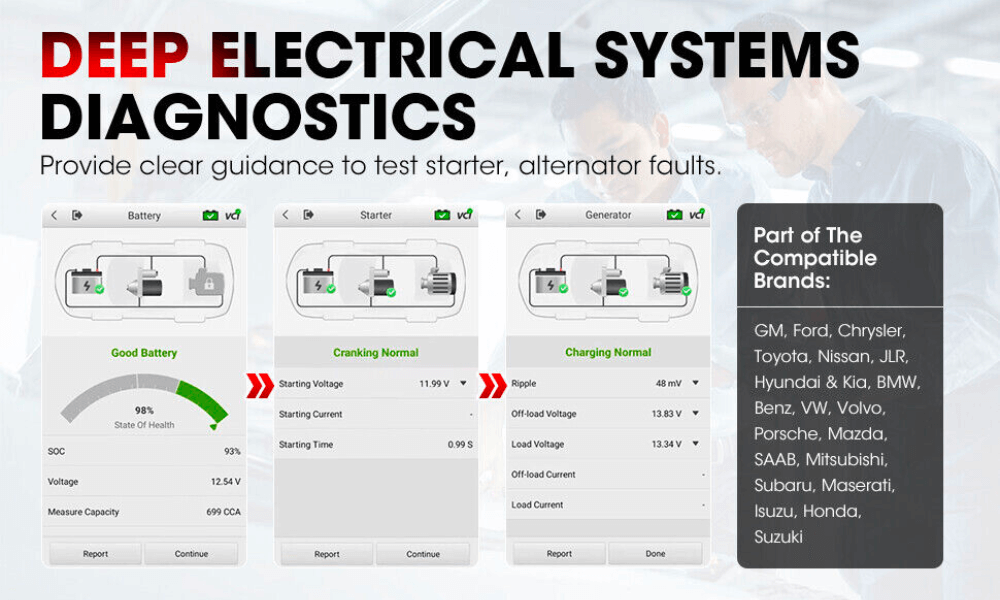

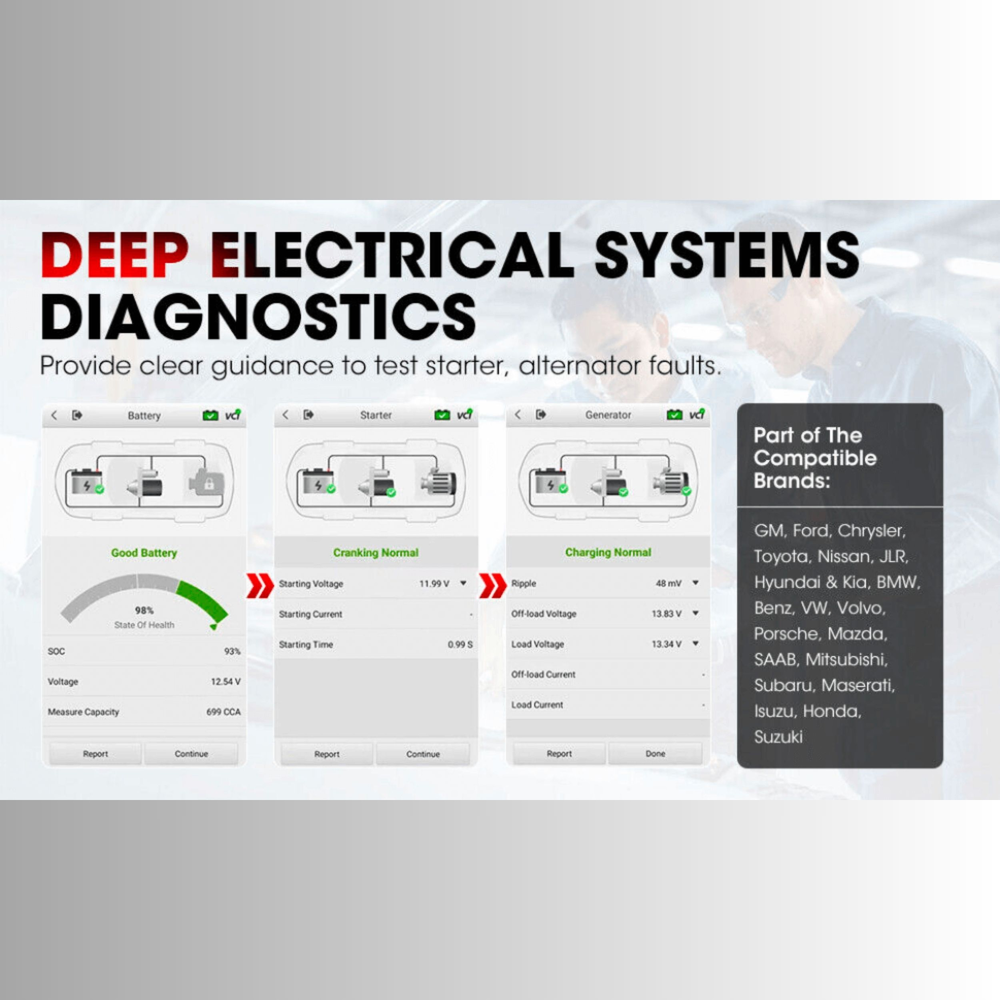

Cranking & Charging System Testing – Performs comprehensive analysis of automotive cranking and charging systems to help identify potential starter and alternator-related issues.
Full-System Vehicle Diagnostics – Provides wireless full-system vehicle scanning with the ability to read and clear diagnostic trouble codes across supported vehicle systems.
One-Touch Battery Registration – Supports one-touch battery registration to help configure compatible replacement batteries within supported vehicle systems.
VIN & Battery Identification – Uses VIN scanning, automatic or manual VIN entry and battery barcode scanning to quickly identify relevant vehicle and battery information.
Built-In Thermal Printer – Prints battery and electrical system test reports directly from the diagnostic tool for convenient workshop documentation.
Wi-Fi Report Sharing – Supports sharing customised diagnostic reports by email for customer records and workshop documentation.
Multiple Battery Testing Standards – Supports CCA, CA, SAE, EN, IEC, DIN, JIS and MCA battery rating standards for broad battery testing compatibility.
Integrated Test Guidance – Provides illustrated instructions to assist technicians with correct battery positioning and testing procedures.

Packing Includes

1 x BT608 Main Unit
1 x MaxiCVI MV200 Series
1 x Battery Clamp Cable
2 x Paper Roll
2 x Battery Side Post Terminal TYPE T
2 x Battery Side Post Terminal TYPE S
1 x Power Adapter
1 x USB Cable

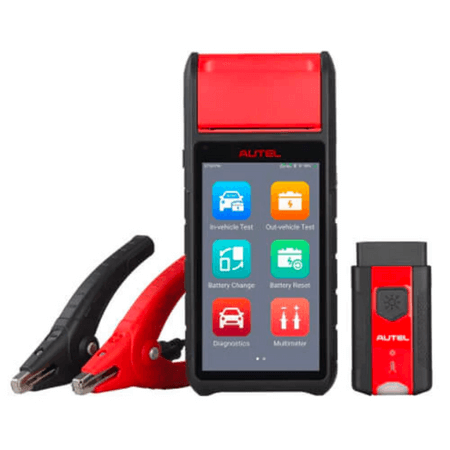

Autel MaxiBAS BT608 Battery Tester

Autel BT608 battery and electrical diagnostic kit with accessories

Adaptive conductance battery analysis

100–3000 CCA battery testing range

Flooded, AGM, EFB and GEL battery support

In-vehicle and out-of-vehicle battery testing

Cranking and charging system testing

Full-system vehicle diagnostics

One-touch battery registration

VIN and battery barcode scanning

Built-in thermal printer

Wi-Fi diagnostic report sharing

CCA, CA, SAE, EN, IEC, DIN, JIS and MCA support

Illustrated battery testing guidance

Autel MaxiBAS BT608 Battery Tester Specifications

Operating System	Android 9.0
Screen Display	5.5" LCD touch screen, 720 × 1280 resolution
Storage	32 GB
Connectivity	Wi-Fi (802.11 a/b/g/n/ac), USB 2.0, Type-C, Bluetooth 5.0 + EDR
Camera	8 Megapixel
Input Voltage	5 V DC
Working Current	450 mA at 7.7 V DC
Internal Battery	7.7 V, 3000 mAh
CCA Range	100 to 3000 A
Voltage Range	1.5 to 36 V
Working Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-10° to 60° C (14° to 140° F)
Dimensions (L × W × H)	204 mm × 90 mm × 32 mm (8.03" × 3.54" × 1.25")
Weight	510 g (1.12 lb.)
