Autel MaxiSys Ultra EV – Advanced EV & Hybrid Diagnostic Tool

Professional diagnostics for Electric, Hybrid, Gas & Diesel vehicles

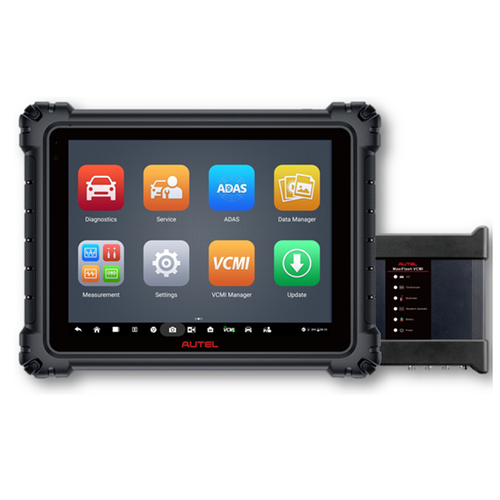

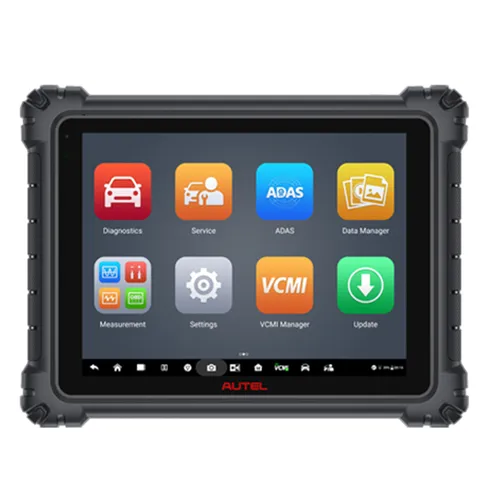

The Autel MaxiSys Ultra EV is a flagship diagnostic tool designed for workshops servicing modern electric and hybrid vehicles as well as petrol and diesel. With its 12.9-inch touchscreen, MaxiFlash VCMI (5-in-1 device), and a dedicated EVDiag Box, it delivers the most advanced diagnostic and high-voltage testing available in the market.

Engineered for the next generation of vehicles, the Ultra EV combines OE-level full system coverage, EV battery pack analysis, and expanded topology mapping, giving technicians the confidence to handle everything from internal combustion engines to advanced EV drivetrains.

Scan Tool Main Features

• All-in-One Coverage – Supports U.S., European, and Asian vehicles: electric, hybrid, petrol, and diesel.
• Advanced EV Diagnostics – Perform complete high-voltage system analysis, read/erase codes, and view live data.
• Battery Pack Analysis – Test via OBD or directly with included specialty cables and jumpers; ensures safe and accurate EV battery assessment.
• State of Charge / State of Health – Accurately analyse battery condition for true insight into lifespan and performance.
• High-Voltage System Guidance – Detailed block diagrams, connection graphics, and step-by-step disassembly instructions enhance technician safety.

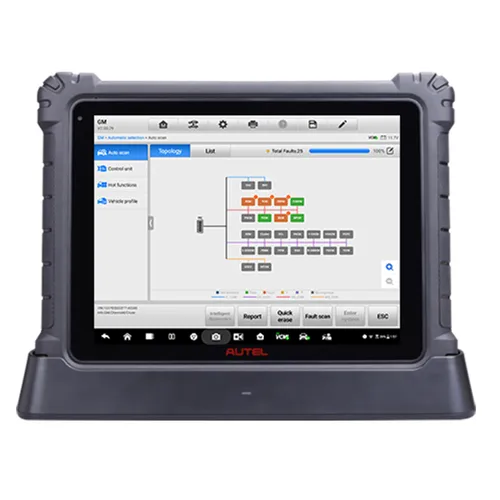

• Topology Mapping – Quickly visualise all vehicle modules and communication pathways for faster fault isolation.
• MaxiFlash VCMI – Combines oscilloscope, multimeter, signal generator, CAN bus tester, and J2534 pass-thru programming in one device.
• EVDiag Box Included – Purpose-built for secure EV battery and high-voltage component testing.
• Cloud-Based Data Manager – Save and share customer data, vehicle records, diagnostic reports, and technician notes.
• Interactive Data Logging – Directly connect with Autel support for troubleshooting and software assistance.
• Workshop Efficiency – One-stop multitasking with file, data, and customer management to streamline workflow.

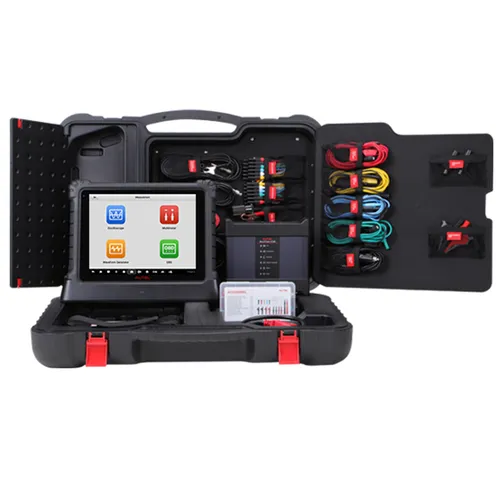

Main Devices

• 1 × MaxiSys Ultra Main Unit
• 1 × MaxiFlash VCMI (4-in-1 Oscilloscope, Waveform Generator, Multimeter, CAN BUS Tester)
• 1 x EVDiag Box – Built for secure EV battery and high-voltage component testing.
• 1 × Docking Station
• 1 × Carrying Case
• 1 × Tool Box

Cables & Power

• 1 × Main Cable V2.0
• 1 × USB 2.0 Cable V2
• 1 × AC/DC Power Cable V2
• 1 × Cigarette Lighter Cable
• 1 × Clipper Cable

Test Leads & Probes

• 4 × Scope Test Leads
• 2 × Multimeter Test Leads
• 2 × Secondary Ignition Pickups
• 2 × Attenuators 20:1
• 4 × 6pcs Breakout Leads
• 1 × 2pcs Multimeter Probes
• 2 × 2pcs Flexible Back-pinning Probes
• 1 × 5pcs Back-pinning Probes (Red / Green / Blue / Yellow / Black)
• 2 × Back-pinning Probe Screws
• 20 × Back-pinning Replacement Needles
• 2 × Small Crocodile Clips (V2)
• 1 × 2pcs Large Dolphin Clips

Documentation & Accessories

• 1 × User Manual
• 1 × Packing List
• 1 × Soft Cloth
