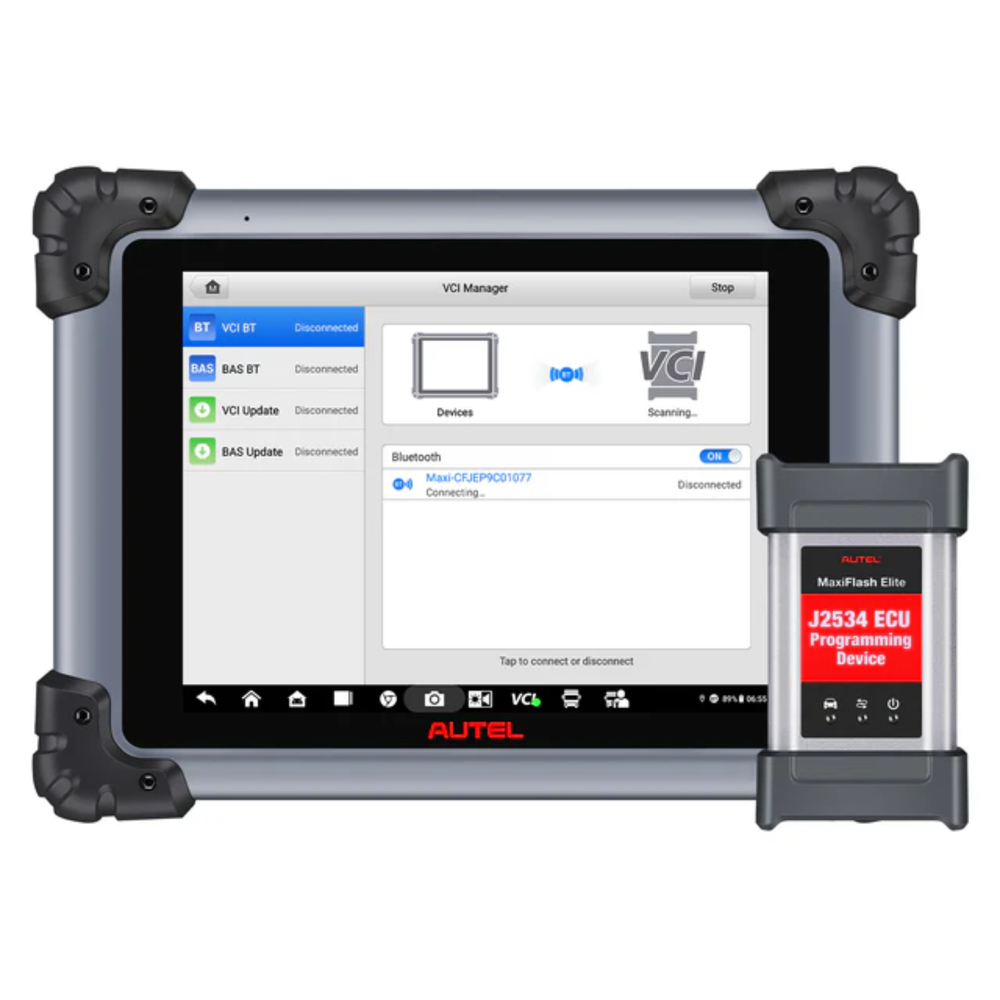

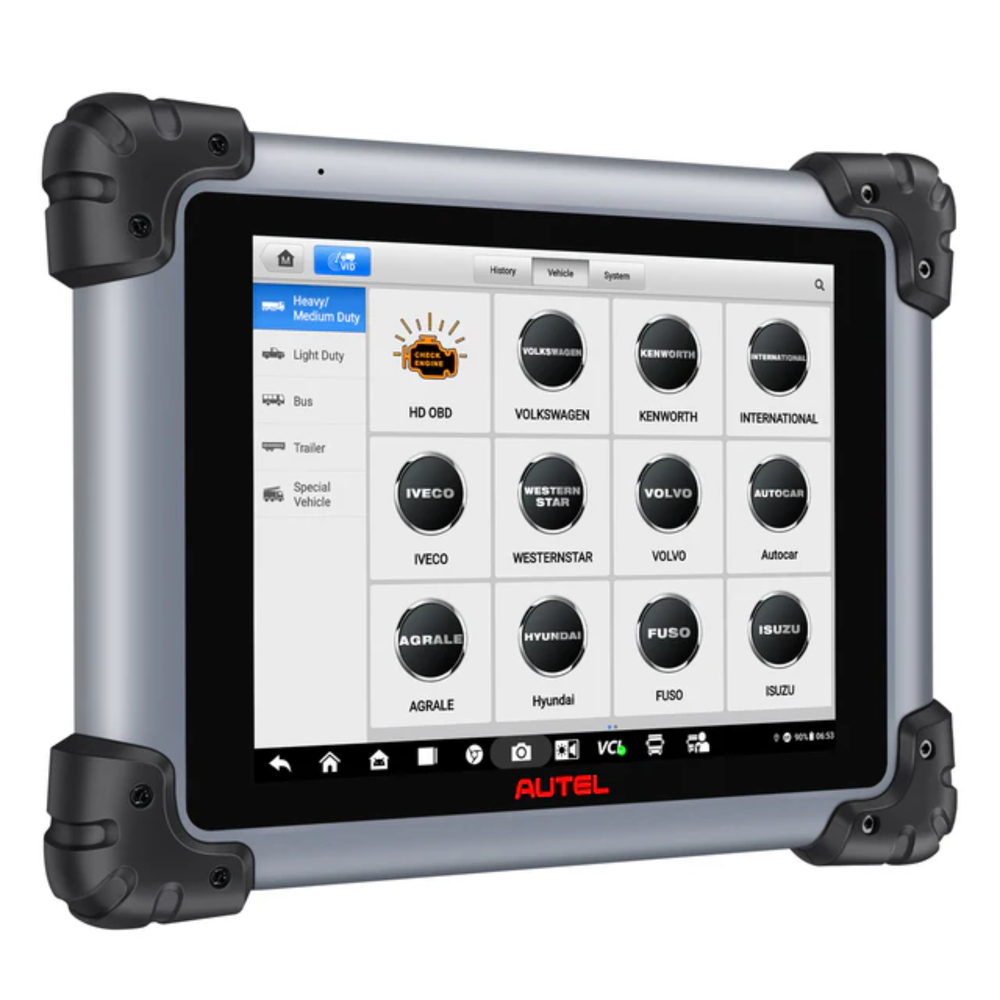

Autel MaxiSYS MS908CV II Heavy Duty Diesel Diagnostic Scan Tool

MaxiSYS MS908CV II Heavy Diesel Commercial Vehicle Diagnostics Tool

Complete Commercial Vehicle Diagnostics

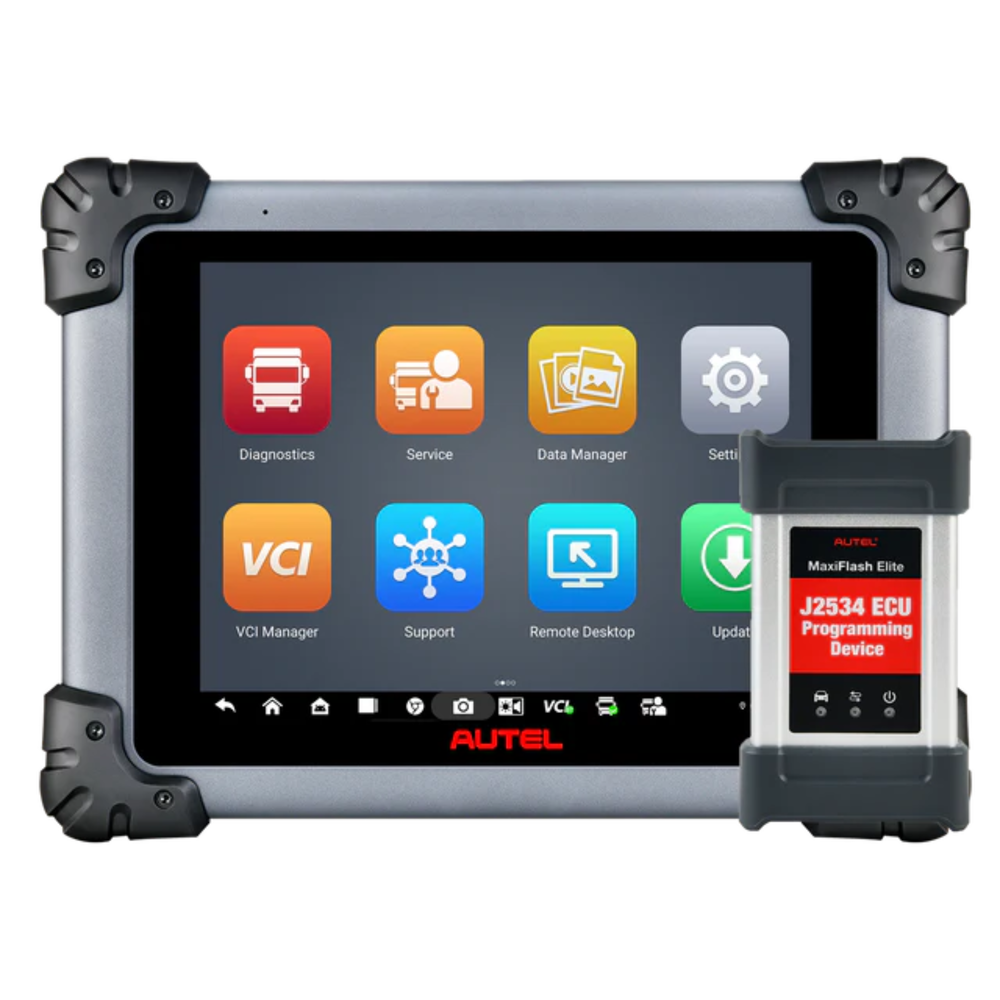

The Autel MaxiSYS MS908CV II is a professional-grade commercial vehicle diagnostic system designed for comprehensive fault detection, ECU coding and advanced service functions across light, medium and heavy-duty vehicles. Featuring a 9.7″ touchscreen tablet, wireless VCI communication, and Android 10 OS, it delivers fast and accurate diagnostics. With support for 150+ vehicle brands, bi-directional control and over 40 service functions, it is built for workshops demanding reliability, efficiency and precision.

Main Features

Full System Diagnostics (Class 1–9 Coverage) – Delivers complete fault detection across engine, transmission, ABS, braking and all onboard systems for commercial vehicles, buses and heavy machinery.
ECU Coding & Module Matching – Enables ECU replacement adaptation and advanced system programming to resolve complex electronic faults and restore vehicle performance.
Bi-Directional Active Control – Performs real-time component activation such as injector testing, EGR operation, fuel pump control and actuator checks for precise fault isolation.
40+ Service Functions – Includes DPF regeneration, oil reset, ABS bleeding, injector coding, SAS calibration and more for complete workshop capability.
Wireless Diagnostic Communication – MaxiFlash VCI provides stable Bluetooth connectivity up to 70 metres for unrestricted workshop mobility.
AutoVIN & AutoScan Technology – Automatically identifies vehicle details and scans all available systems for fast diagnostics and reporting.
High-Performance Hardware – Powered by Android 10 OS, Octa-core processor, 4GB RAM and 128GB storage for smooth operation and fast processing.

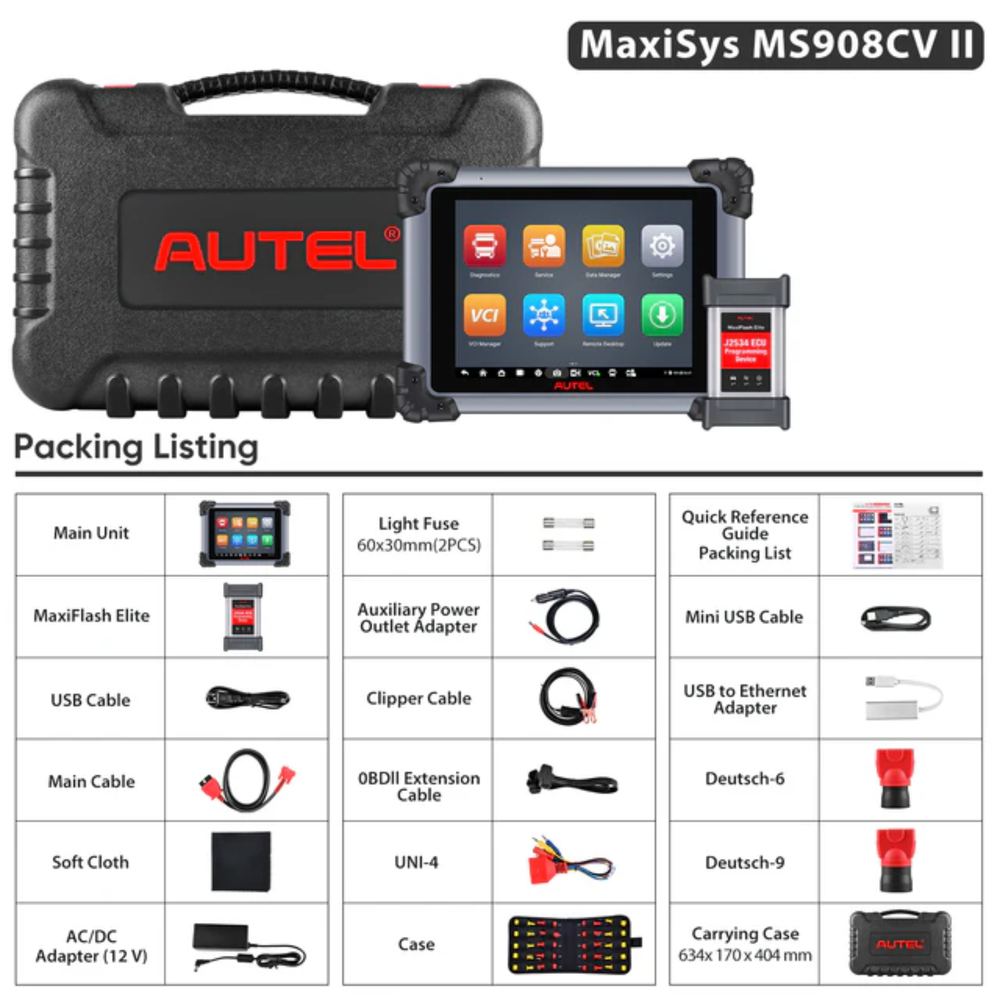

Package Includes

Main diagnostic tablet unit
MaxiFlash Elite VCI (wireless interface)
Main OBD diagnostic cable
AC/DC power adapter (12V)
USB cable
Mini USB cable
Auxiliary power outlet adapter
Carrying case
Quick reference guide
Clipper cable set
Deutsch connectors (6-pin & 9-pin)
OBDII extension cable
USB to Ethernet adapter
Protective soft cloth

A Wireless, Heavy Duty Diagnostic Scan Tool Features

Full system diagnostics for Class 1–9 vehicles

ECU coding and module matching capability

Bi-directional active control testing

Over 40 service and maintenance functions

Wireless Bluetooth VCI up to 70m range

AutoVIN and AutoScan for rapid identification

Supports 150+ commercial vehicle brands

Android 10 with high-speed Octa-core processor

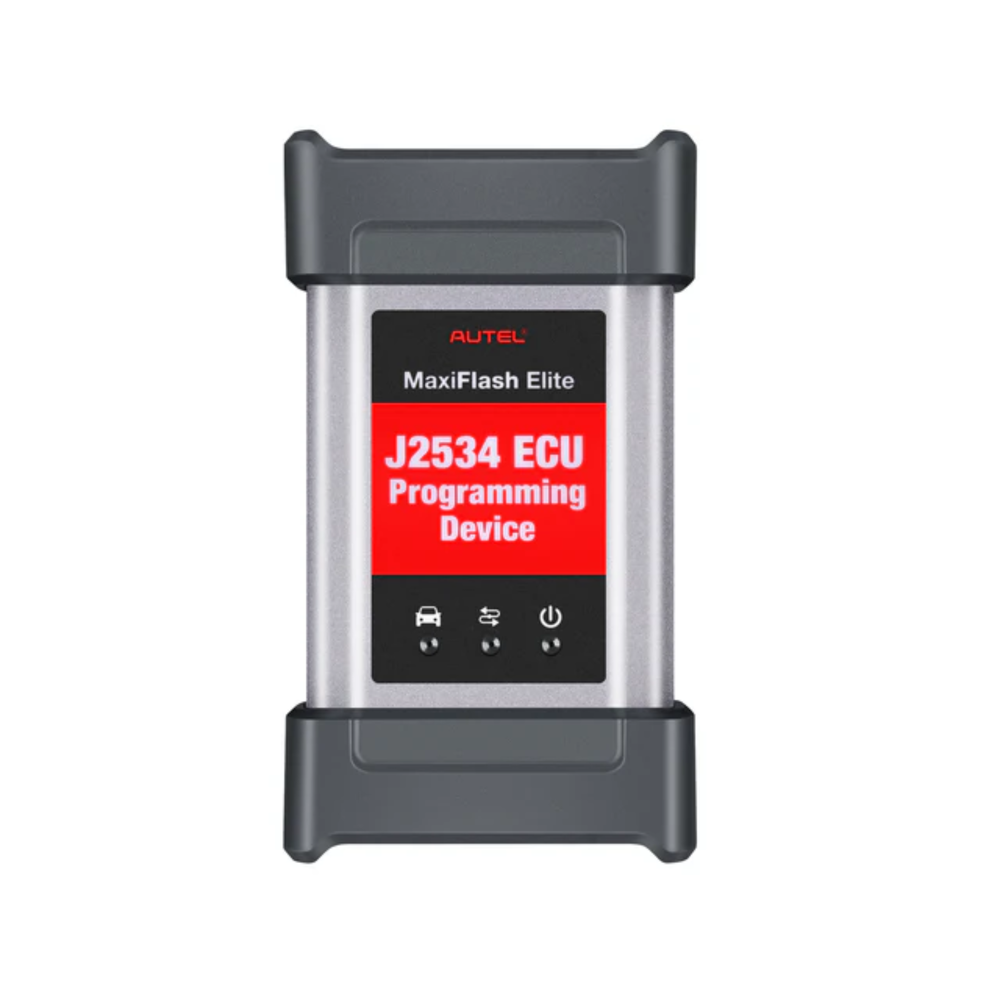

Autel MS908CV II wireless VCI module for heavy-duty diagnostics

Autel Elite II Pro J2534 ECU programming tool Technical Specifications

Operating System: Android 10.0

Processor: Octa-core (2.2GHz + 1.8GHz architecture)

Memory: 4GB RAM / 128GB storage

Display: 9.7″ LED capacitive touchscreen (2048 × 1536)

Connectivity: Wi-Fi 802.11 a/b/g/n/ac, Bluetooth v5.0, USB 2.0, HDMI

Battery: 11,000 mAh lithium-polymer

Camera: 16MP rear camera with flash

Sensors: Gravity sensor, ambient light sensor

Input Voltage: 9–24V

Power Consumption: 6.5W

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 60°C

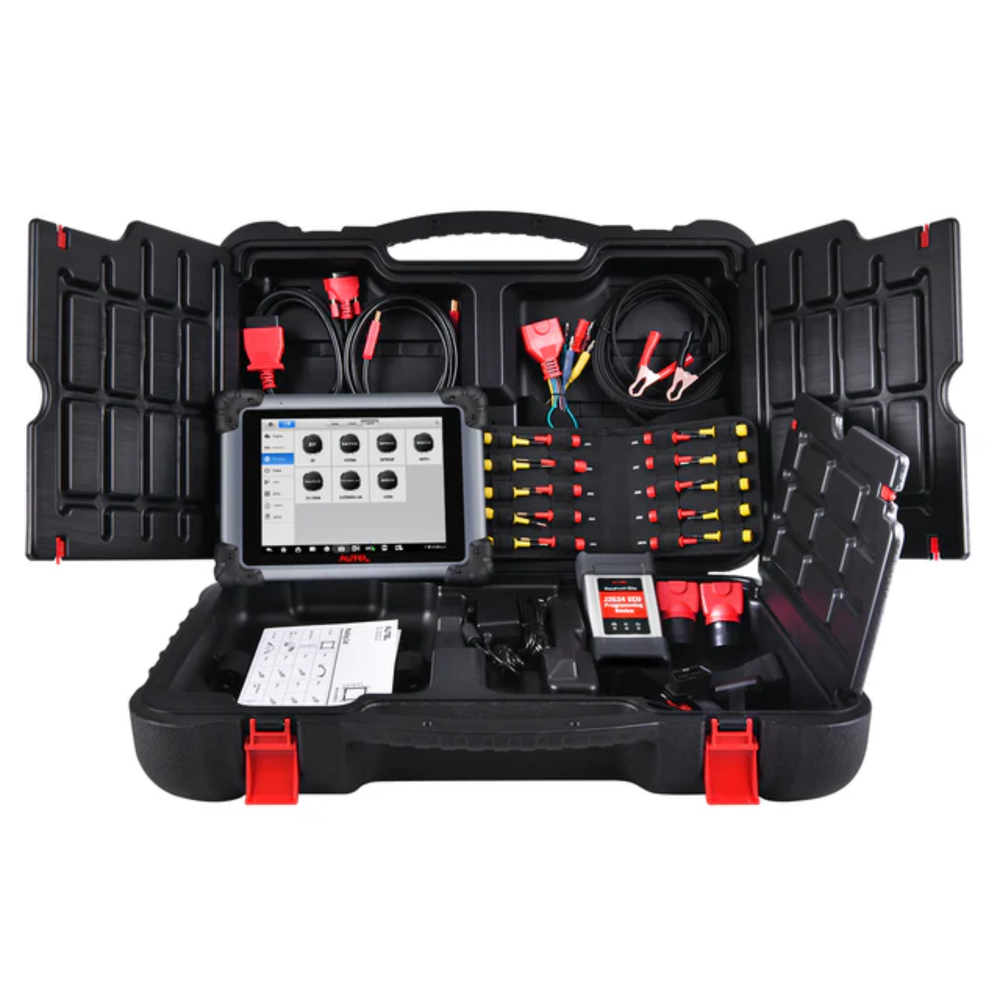

Autel MaxiSYS MS908CV II complete diagnostic kit
