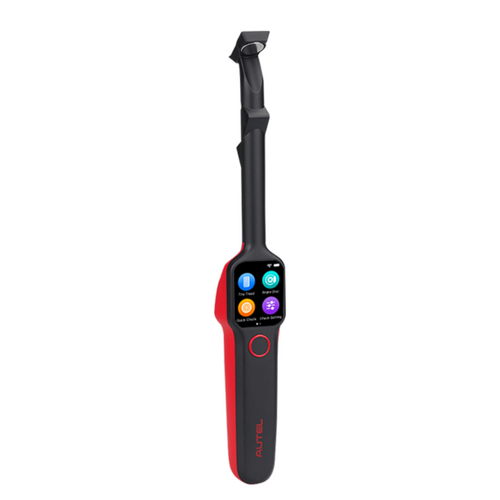

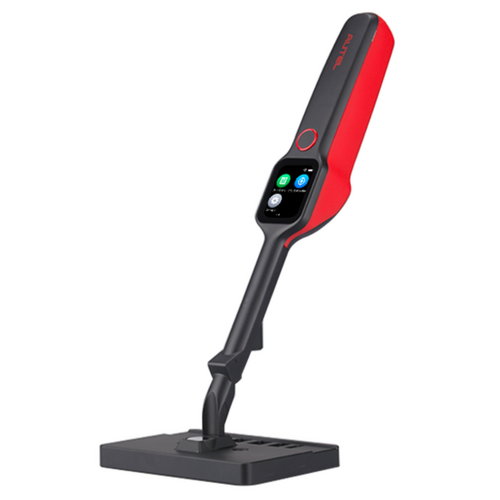

Autel MaxiTPMS TBE200 Tyre Brake Disc & Tread Depth Laser Examiner

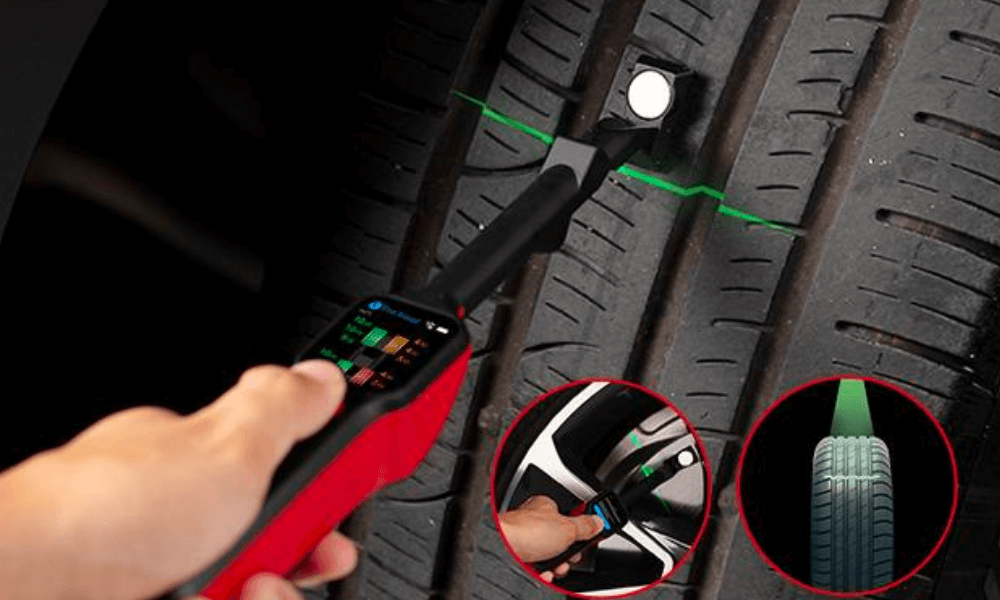

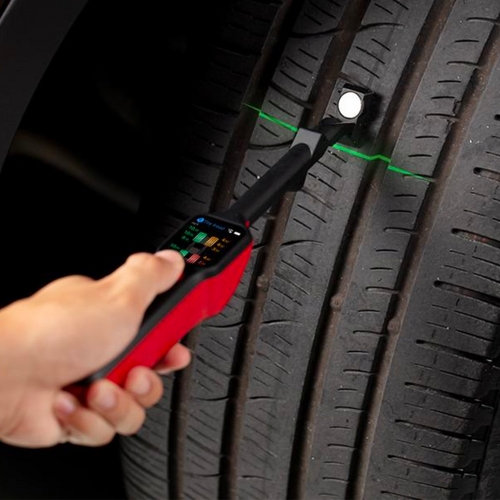

The Autel MaxiTPMS TBE200 is a laser-enabled tyre tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tyres. It features a 1.65” AMOLED super retina touchscreen, displaying measurement data curves in real-time. TBE200 provides uneven wear analysis and detailed replacement & maintenance suggestions for quick tyre service. The TBE200 dual cameras enable users to document tyre wear and damage and scan Tyre Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.

LASER MEASUREMENT

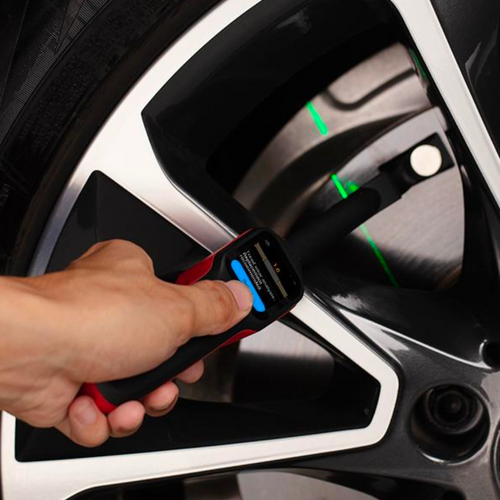

• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement

• Laser measurement with 0.1mm accuracy

• Full tread measurement

• Quick Check both tyre tread depth & brake disc

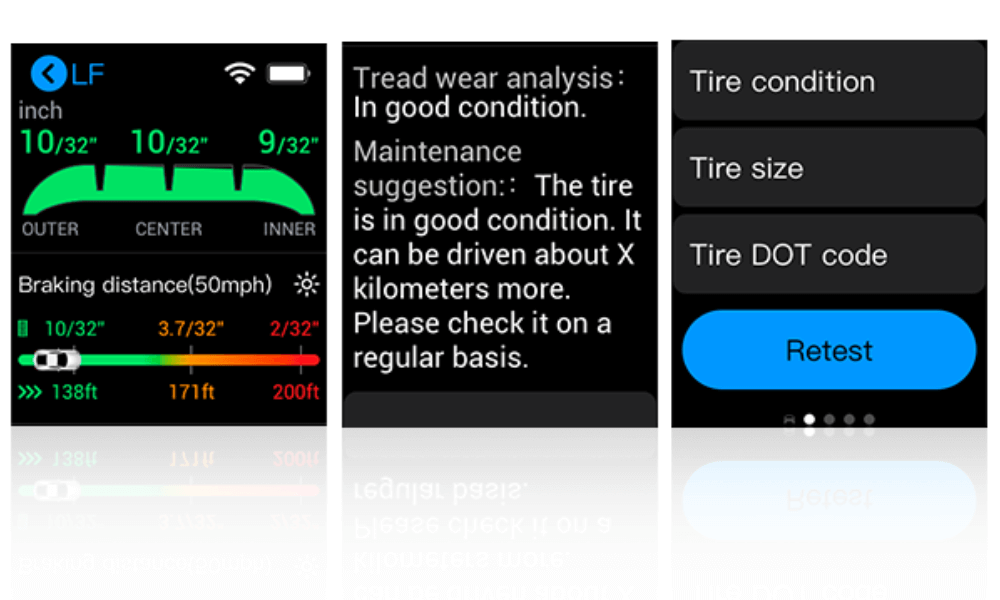

REAL-TIME TYRE HEALTH ANALYSIS

• Real-time measurement data on touchscreen

• Measurement data curve display

• Uneven wear analysis

• Test detail for single tyre tread / brake disc

• Detailed replacement & maintenance suggestions (tyre/brake disc replacement, tire rotation/alignment servicing)

• Scan DOT, tire expiration notice, tyre recall lookup

• Take photos of tyre wear & damage

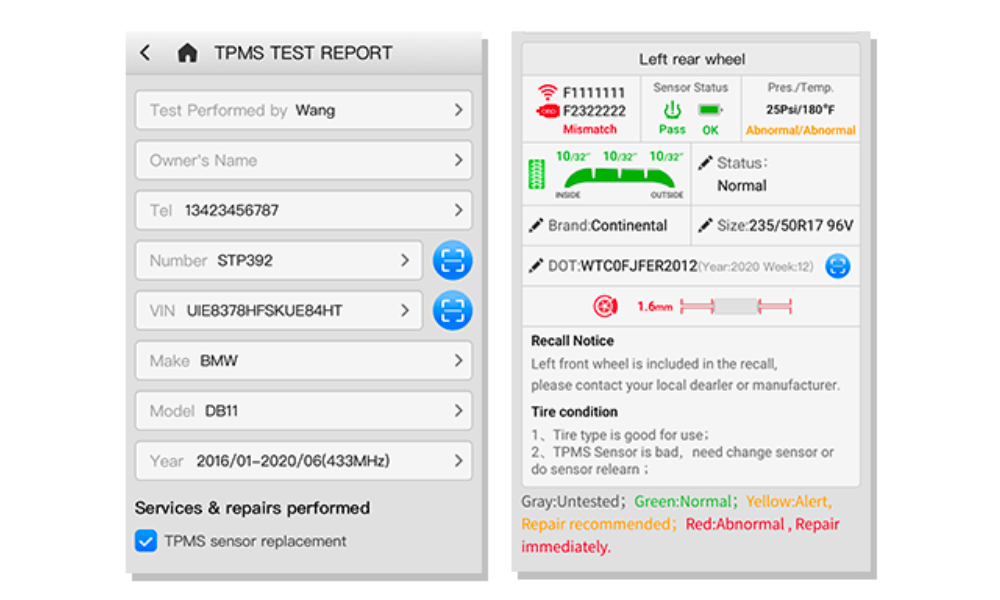

COMPREHENSIVE TEST REPORT

Comprehensive Test Report: TPMS health, Tyre tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)

EASY TO USE QR CODE REPORT DOWNLOAD & SHARING

Generate QR codes for tyre tread depth and brake disc measurements to allow for easy report sharing & download via mobile phones or tablets.

Recommended Use Indoor

Processor 4x ARM Cortex-A35 (1.5 GHz)

Memory 1GB RAM LPDDR3 & 4GB ROM

Display 1.65-inch AMOLED capacitive touchscreen with 348×442 resolution

Connectivity • Wi-Fi • USB 2.0, Type C

Camera CMOS WXGA, 1 megapixel & 8 megapixel, 30fps

Audio output Output: Beep

Power and Battery • 3.7 V/3000 mAh 18650 lithium-ion battery • Charges via 5 V AC/DC power supply

Tested Battery Life Around 8 hours of continuous use

Battery Charging Input 5 V/1.5 A

Power Consumption 300 mA (AMOLED on with default brightness) @3.7 V

Operating Temp. -10 to 45°C(14 to 113°F)

Storage Temp. -20 to 60°C (-4 to 140°F)

Dimensions (W x H x D) 283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”)

Net Weight 188 g (0.41 lb.)
