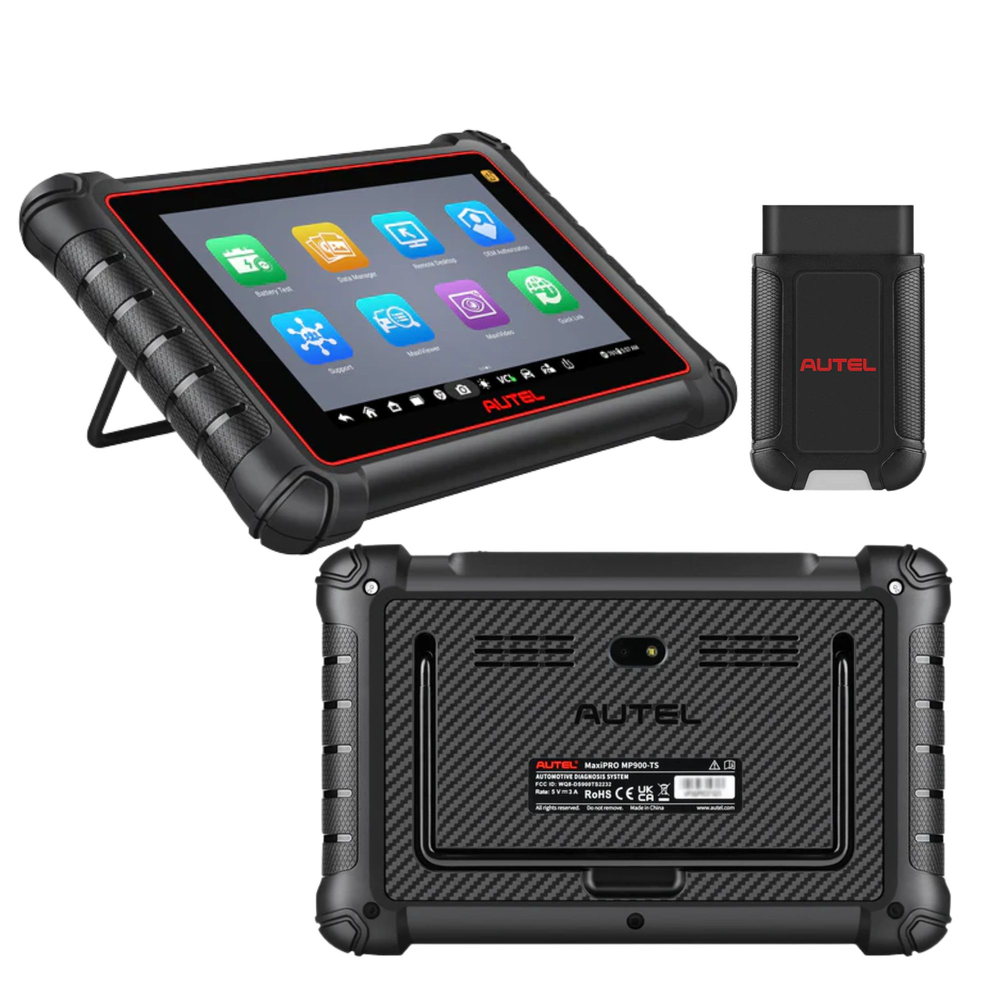

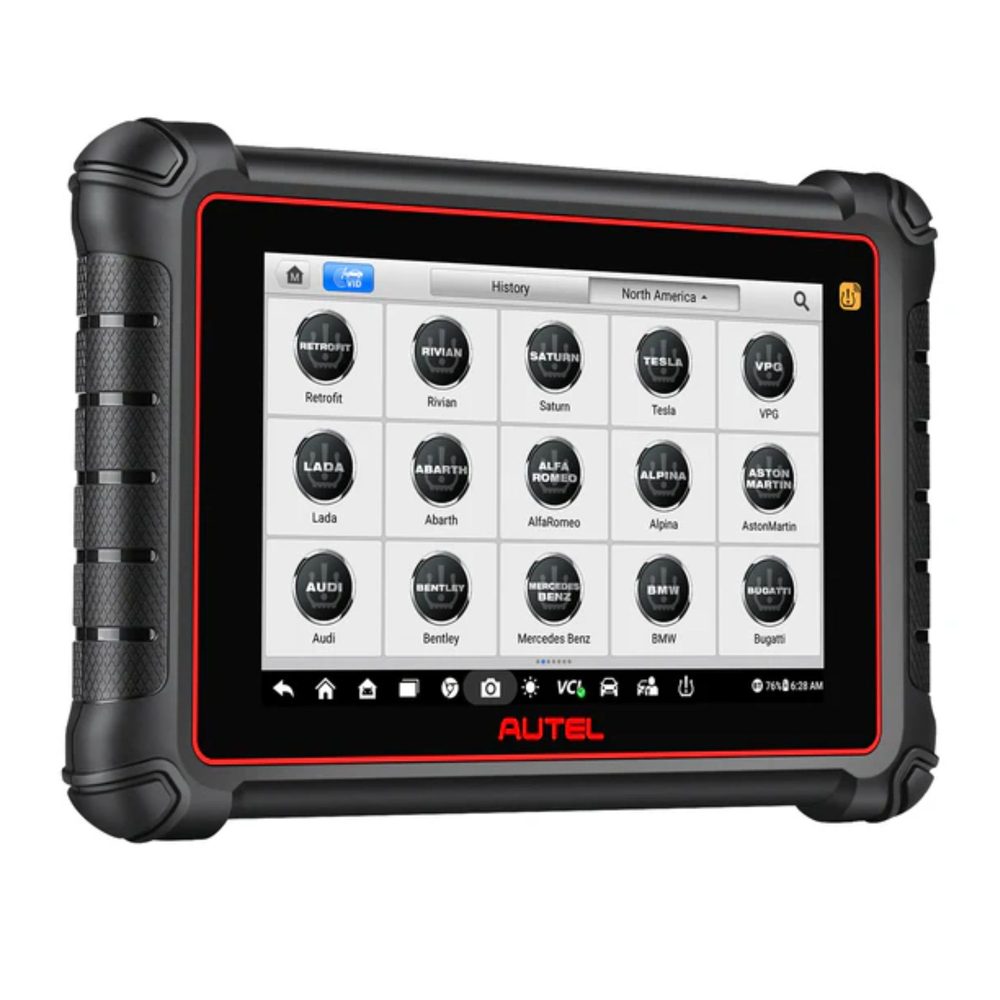

Autel MaxiPRO MP900-TS Professional Diagnostic & TPMS Tool with DoIP, CAN FD

Autel MaxiPRO MP900-TS Automotive Diagnosis & TPMS Solution

The Autel MaxiPRO MP900-TS is a professional automotive diagnostic and TPMS management system engineered for modern workshop automation. Built on Android 11 with an 8-inch high-resolution touchscreen, it delivers OE-level diagnostics across all electronic systems while supporting advanced DoIP and CAN FD protocols.

Integrated wireless VCI communication, intelligent AutoVIN identification, and comprehensive TPMS programming and relearn functions make the MP900-TS a powerful, portable solution for efficient diagnostics, maintenance, and data-driven service operations.

The Autel MaxiPRO MP900-TS is a professional automotive diagnostic and TPMS management system engineered for modern workshop automation.

Scan Tool Main Features

Extensive Vehicle Coverage – Supports U.S., Asian, and European vehicle manufacturers
OE-Level System Diagnostics – Complete access to all electronic systems with bi-directional control
Advanced Diagnostic Functions – Reads and clears DTCs, displays live data, ECU information, and performs active tests
ECU Adaptation & Matching – Supports coding, calibration, and system relearn procedures

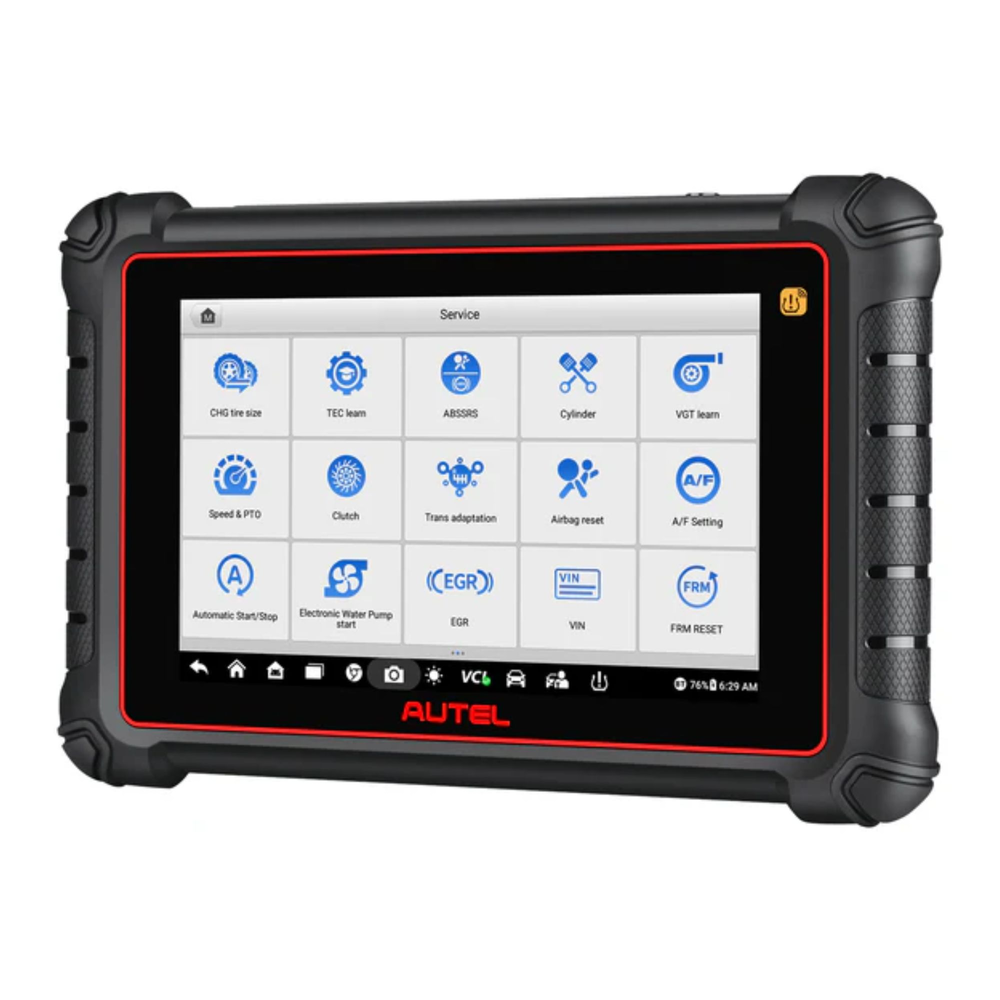

Comprehensive Service Functions – Over 40 integrated maintenance and reset operations
DoIP & CAN FD Support – Enables high-speed communication with modern vehicle platforms
Smart AutoVIN Identification – Automatically detects vehicle information for faster diagnostics
Wireless VCI Communication – Reliable Bluetooth diagnostics via MaxiVCI V150
Automatic Software Updates – Real-time updates with push notifications
Remote Technical Support – Instant access to professional assistance when needed
Advanced TPMS Diagnostics – Reads TPMS DTCs with detailed fault descriptions
Complete TPMS Health Check – One-step analysis of sensor status and system condition
TPMS Sensor Activation – Activates all known OE and aftermarket TPMS sensors
MX-Sensor Programming – Programs Autel MX-Sensors for replacement and service
OBD & On-Screen Relearn – Guided TPMS relearn procedures for accuracy and efficiency
Pre- & Post-Scan Reporting – Supports professional inspection documentation
Centralized Data Management – Organizes vehicle records, customer data, and service history

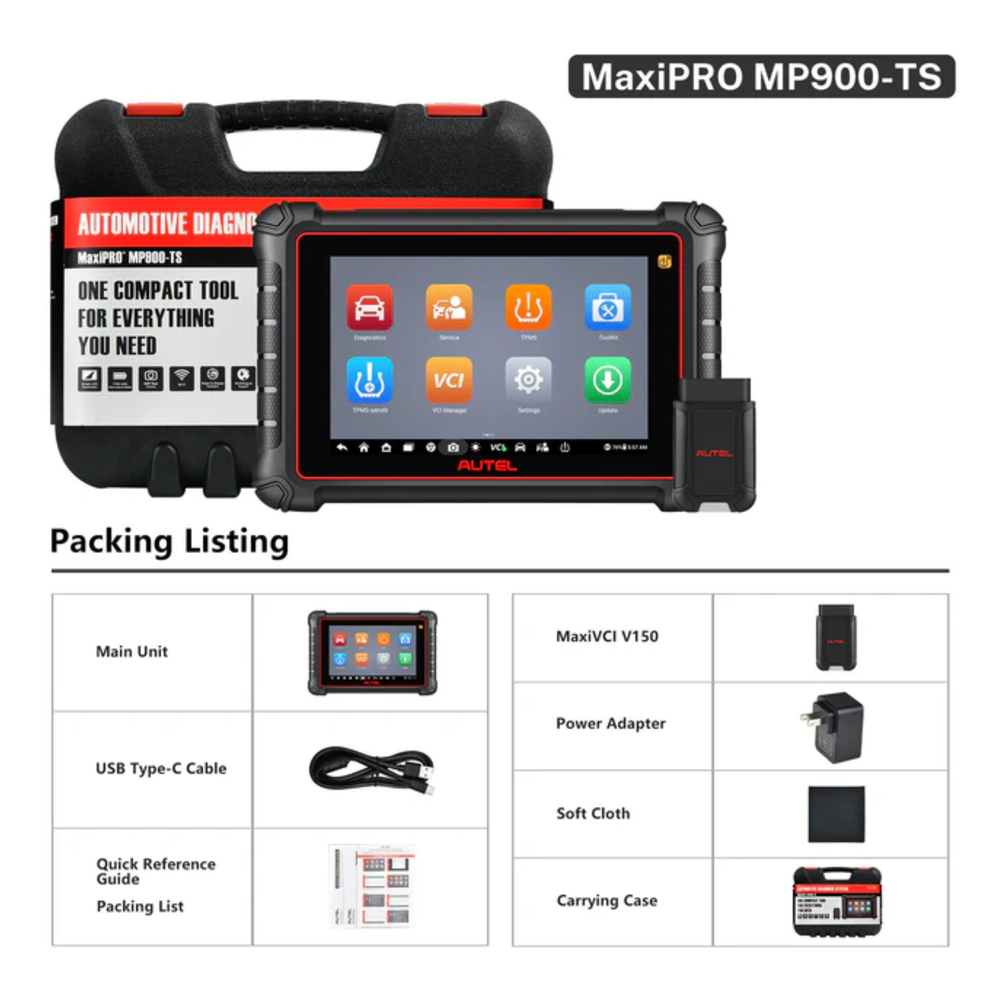

Package Includes

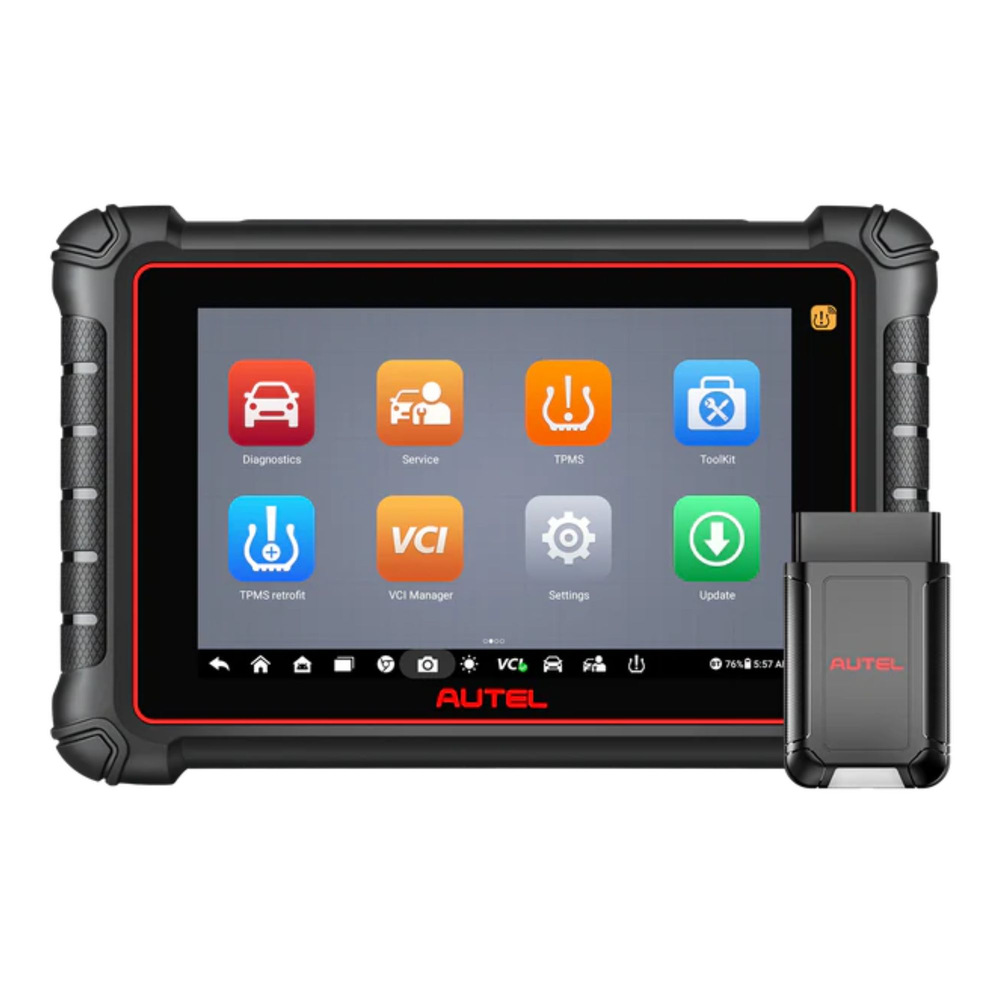

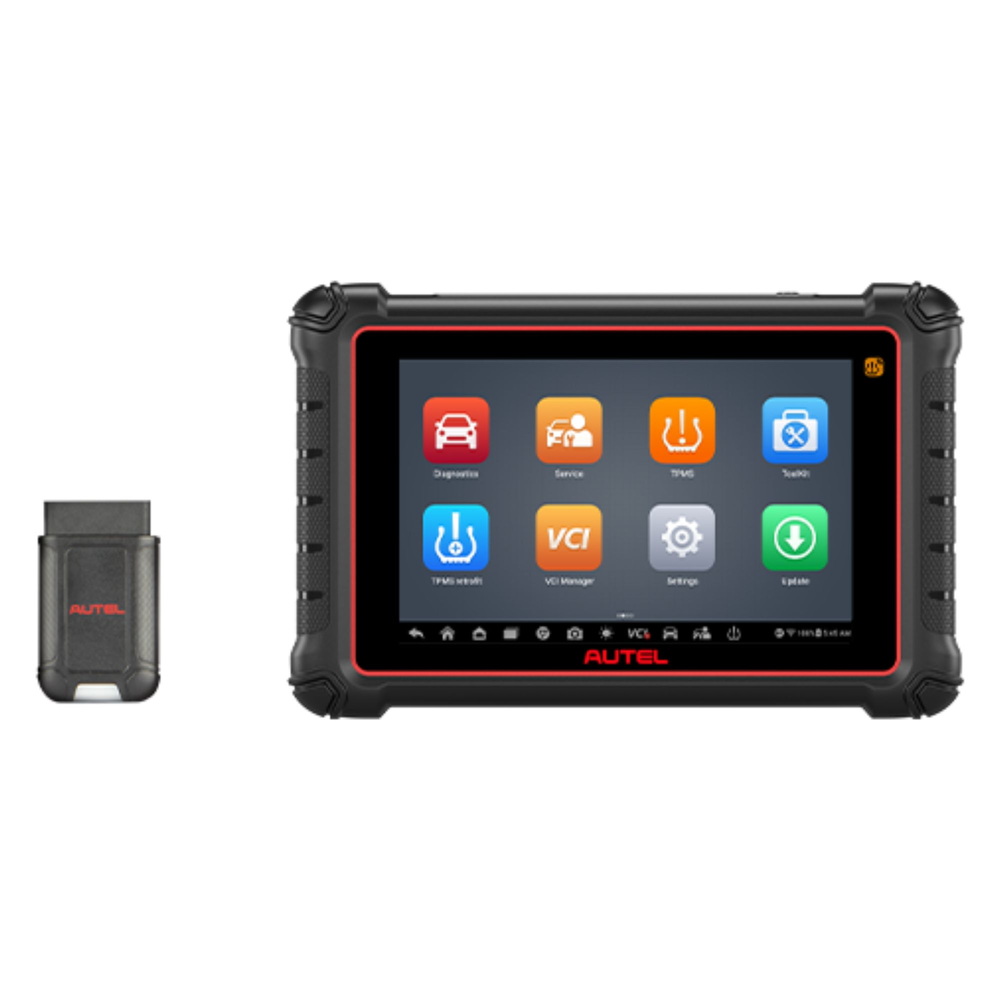

MP900-TS Diagnostic Tablet

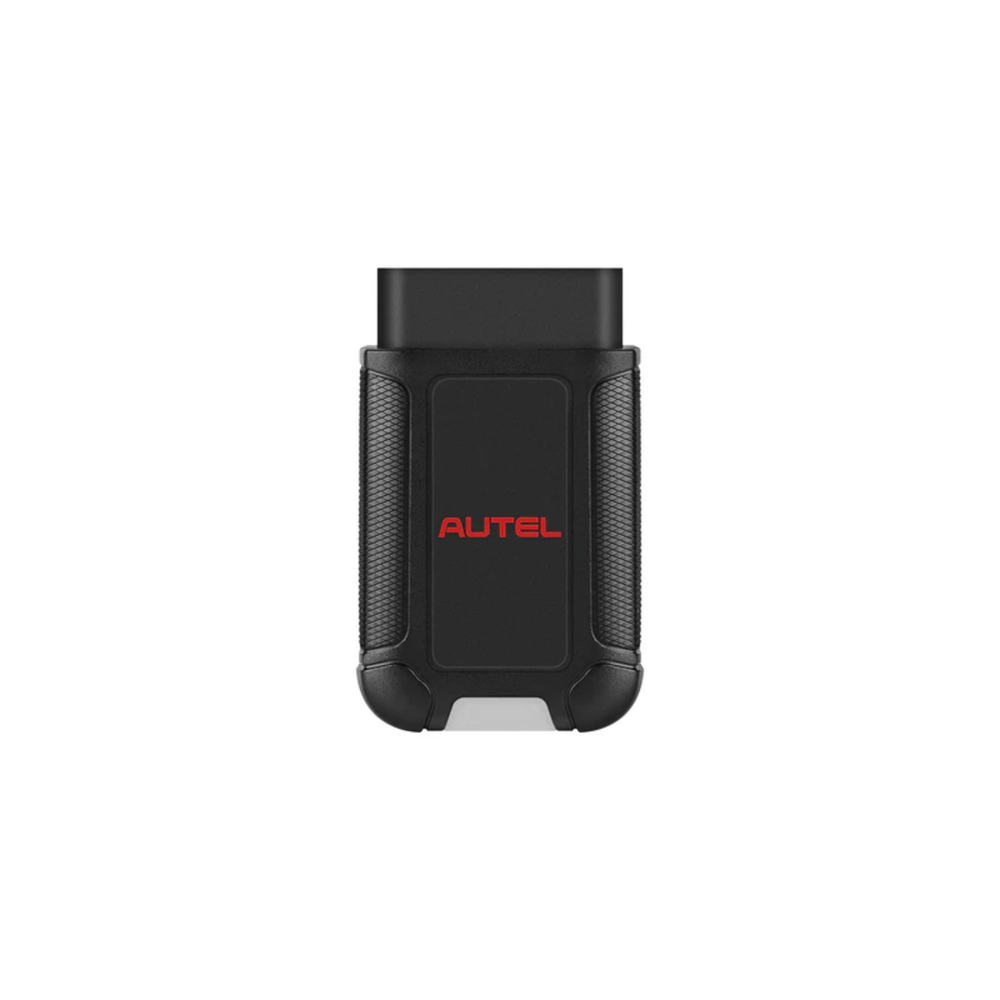

MaxiVCI V150 Wireless Vehicle Communication Interface
Power Adapter
USB Type-C Cable
Soft Cleaning Cloth
Quick Reference Guide
Packing List Document

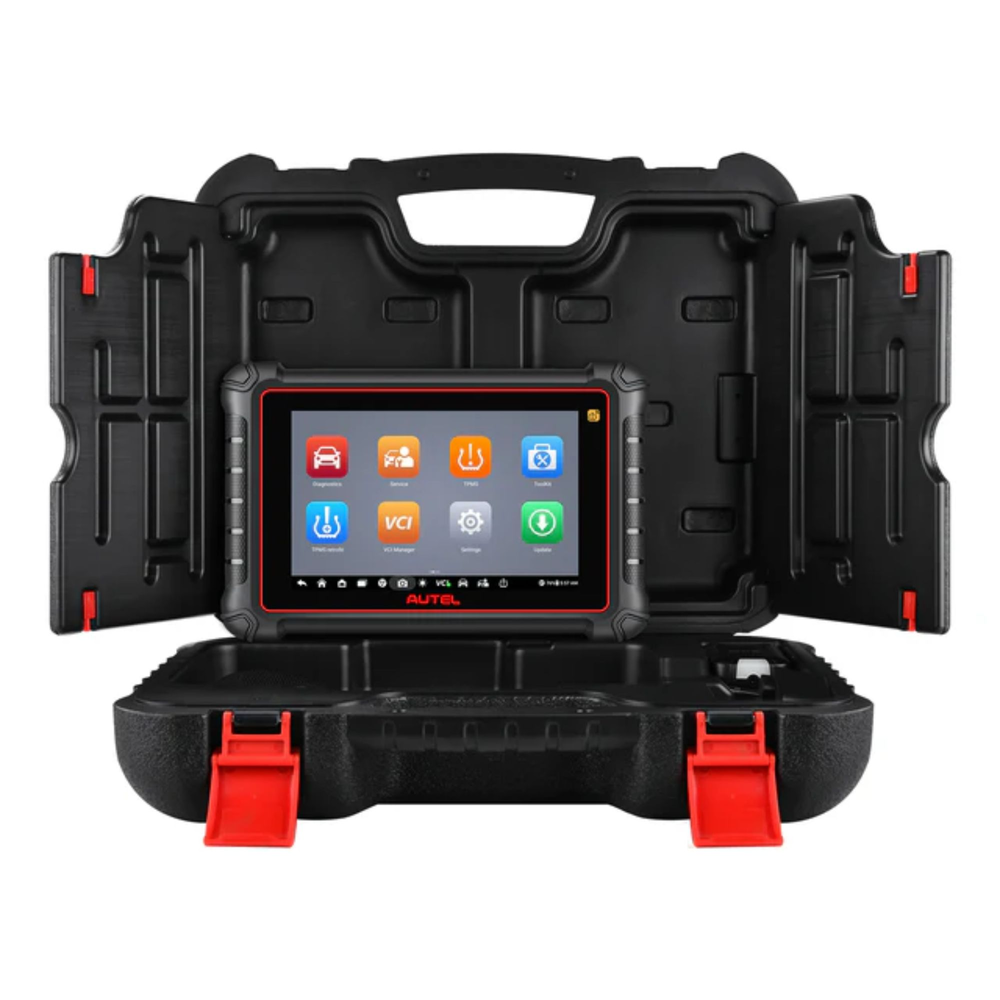

Protective Carrying Case

Advanced Diagnostic & TPMS Capabilities

The Autel MaxiPRO MP900-TS delivers OE-level diagnostic performance across all vehicle electronic systems, enabling precise fault detection, bi-directional active testing, and advanced ECU adaptations. Its support for modern DoIP and CAN FD protocols ensures compatibility with the latest vehicle architectures, making it a reliable platform for professional diagnostic environments.

Equipped with comprehensive TPMS functionality, the MP900-TS provides complete sensor activation, programming, relearn procedures, and detailed TPMS health analysis. One-step system checks and guided on-screen workflows reduce service time while maintaining accuracy, supporting consistent and repeatable workshop operations.

Built on a high-performance Android platform with wireless VCI connectivity, the MP900-TS enhances workshop efficiency through intelligent vehicle identification, remote technical support, and automated software updates. Centralized data management and pre- and post-scan reporting further support structured diagnostics and streamlined service documentation.

Autel Scan Tools

Comparison Table

	MaxiCheck MX808s	MaxiPRO MP808s	MaxiPRO MP808s-TS
Hardware
Display	7.0"	7.0"	7.0"
Processor	Cortex-A9 processor(1.5 GHz)	Quad-core 1.8GHz	Quad-core 1.8GHz
Operating System	Android 11	Android 11	Android 11
Memory	4G + 64G	4G + 64G	4G + 64G
Battery	5000 mAh	5000 mAh	5000 mAh
Vehicle Connection	Wired	Wired	Bluetooth
Software
Full OBD Scan	✓	✓	✓
Read & Clear DTC	✓	✓	✓
Live Data	✓	✓	✓
Auto VIN Identification	✓	✓	✓
Battery Voltage Test	✓	✓	✓
Oil Service Reset	✓	✓	✓
EPB (Electronic Parking Brake)	✓	✓	✓
ETC (Electronic Throttle Control)	✓	✓	✓
BMS (Brake Management Service)	✓	✓	✓
SAS (Steering Angle Sensor Calibration)	✓	✓	✓
DPF (Diesel Particulate Filter)	✓	✓	✓
BLD (ABS Bleed Service)	✓	✓	✓
INJ (Injector Coding Service)	✓	✓	✓
ECU Coding	-	✓	✓
Immobilizer Function	Basic	Basic	Basic
TPMS Service	Basic	Basic	Complete
Advanced TPMS Diagnostics)	-	-	✓
Activate 98% of All Known TPMS Sensors	-	-	✓
Program AUTEL MX-Sensors	-	-	✓
Comprehensive OBD relearn coverage	-	-	✓
On-screen Relearn Procedure	-	-	✓
Battery Analysis	-	-	✓
Software Update	2 Yrs	2 Yrs	2 Yrs
	LEARN MORE	LEARN MORE	LEARN MORE

Autel MaxiPRO MP900-TS Technical Specifications

Technical Specifications

Brand	‎Autel
Recommended Use	‎Indoor
Operating System	Android 11
Processor	‎Quad-core processor (1.8 GHz)
Memory	‎4 GB RAM / 64 GB ROM
Display	‎8-inch LCD capacitive touchscreen, 1280 × 800
Rear Camera	‎8 MP
Connectivity	USB Type-C, USB 2.0, Wi-Fi, Bluetooth, Mini SD (up to 64 GB)
Sensors	Ambient light sensor
Audio Output	Buzzer
Battery	‎3.7 V / 7700 mAh lithium-polymer
Battery Life	Approx. 7 hours continuous use
Charging Input	5 V / 3 A
Power Consumption	‎Approx. 600 mA @ 3.7 V
Storage Temperature	‎-10 to 60 °C (14 to 140 °F)
Operating Humidity	‎5% – 95% non-condensing
Dimensions (W × H × D)	‎259.87 × 168.98 × 33.60 mm
Net Weight	‎998 g (2.2 lbs)
Supported Protocols	‎ISO9141-2, ISO14230-2, ISO15765, K/L-Line, SAE-J1850 VPW/PWM, ISO11898 CAN, SAE J2610, GM UART, Honda Diag-H, TP1.6, TP2.0, DoIP, CAN FD
