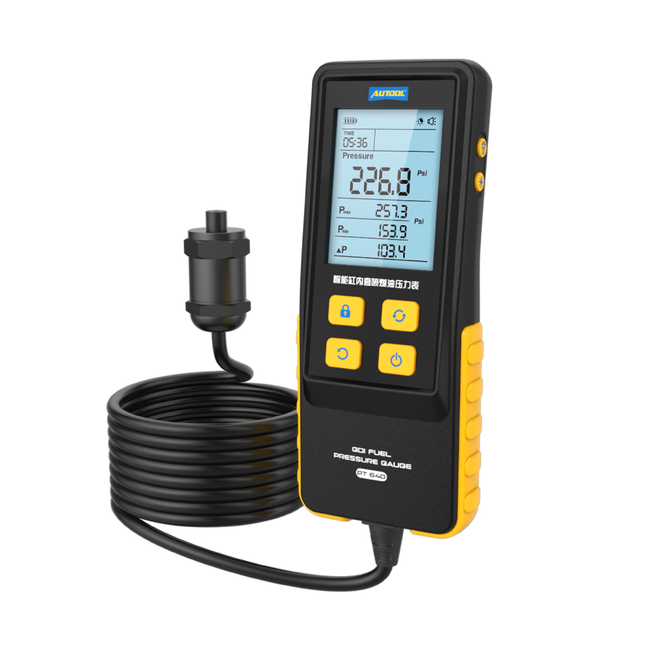

AUTOOL PT640 GDI Fuel Pressure Gauge Kit

AUTOOL PT640 GDI Digital Fuel Pressure Gauge Kit

Professional GDI Fuel System Diagnostic

The AUTOOL PT640 GDI Fuel Pressure Gauge is a professional high-pressure diagnostic testing solution designed for modern gasoline direct injection (GDI) fuel systems. Featuring a precision digital measurement system, multi-unit conversion, and a clear 2.8-inch backlit display, the PT640 delivers fast and accurate fuel pressure readings across a wide pressure range. Built for workshop reliability and ease of use, it supports efficient fault diagnosis, fuel system testing, and maintenance procedures for automotive technicians and repair professionals.

Main Features

Precision Digital Fuel Pressure Testing – Designed specifically for modern GDI fuel systems, the AUTOOL PT640 delivers accurate and stable pressure measurements for professional automotive diagnostics and fuel system analysis.
Wide High-Pressure Measurement Range – Supports pressure testing up to 5221.3 PSI, making it suitable for high-pressure gasoline direct injection systems across a broad range of vehicle applications.

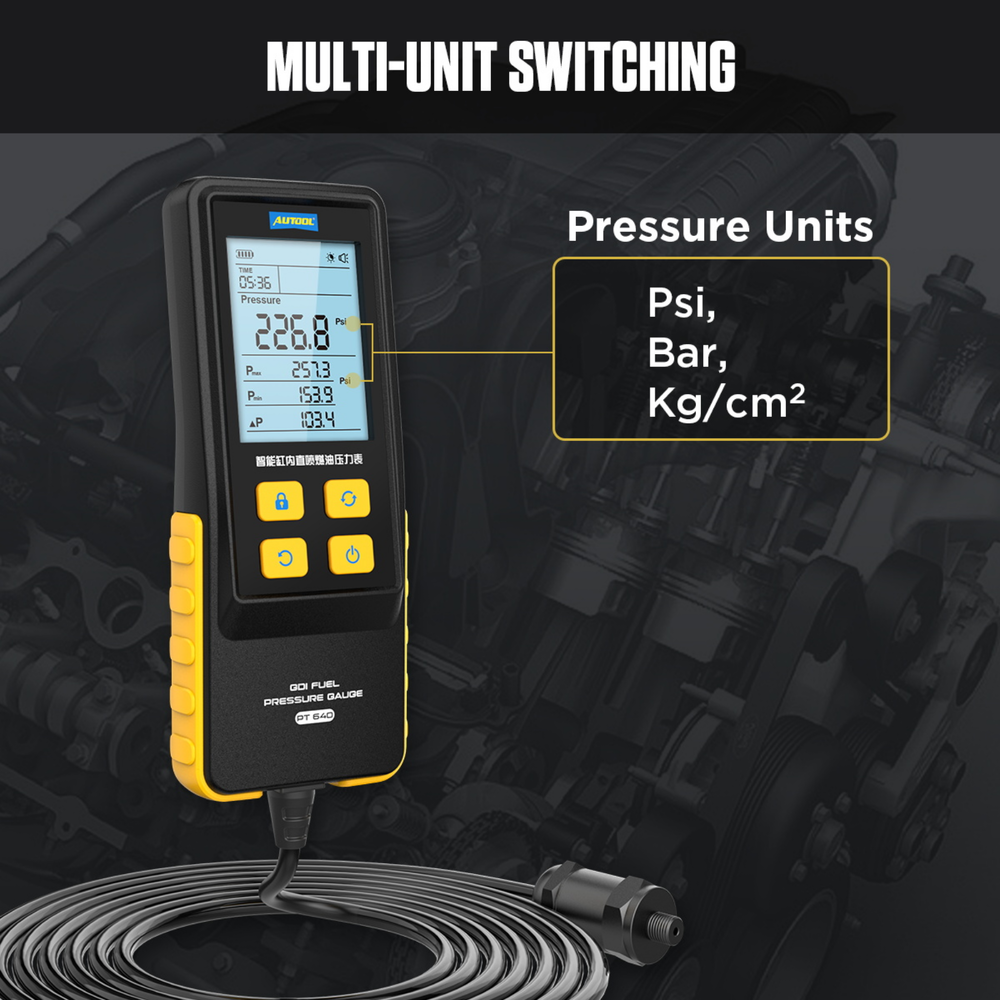

Multi-Unit Pressure Conversion – Allows quick switching between PSI, Bar, and Kg/cm² measurement units to support different workshop preferences and diagnostic requirements.

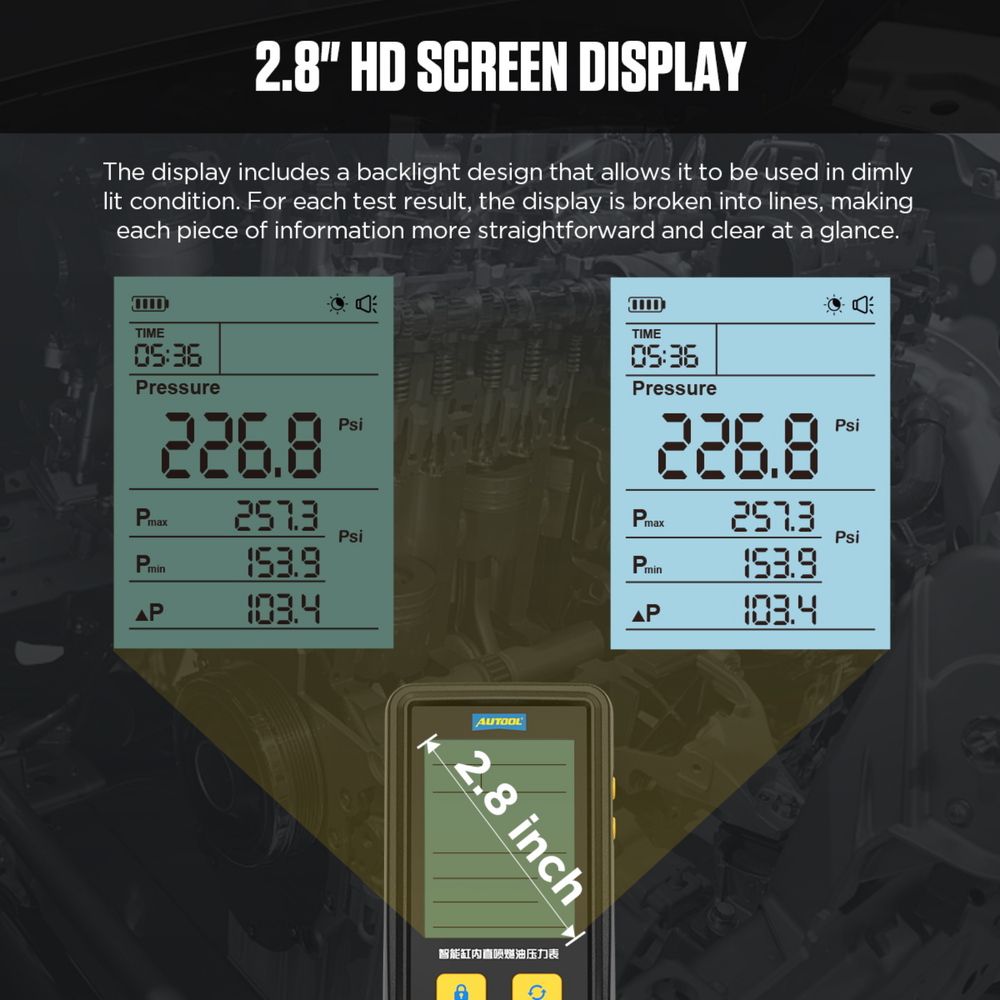

2.8-Inch Backlit Display – Features a clear digital screen with adjustable backlighting for improved readability during low-light workshop inspections and engine bay diagnostics.

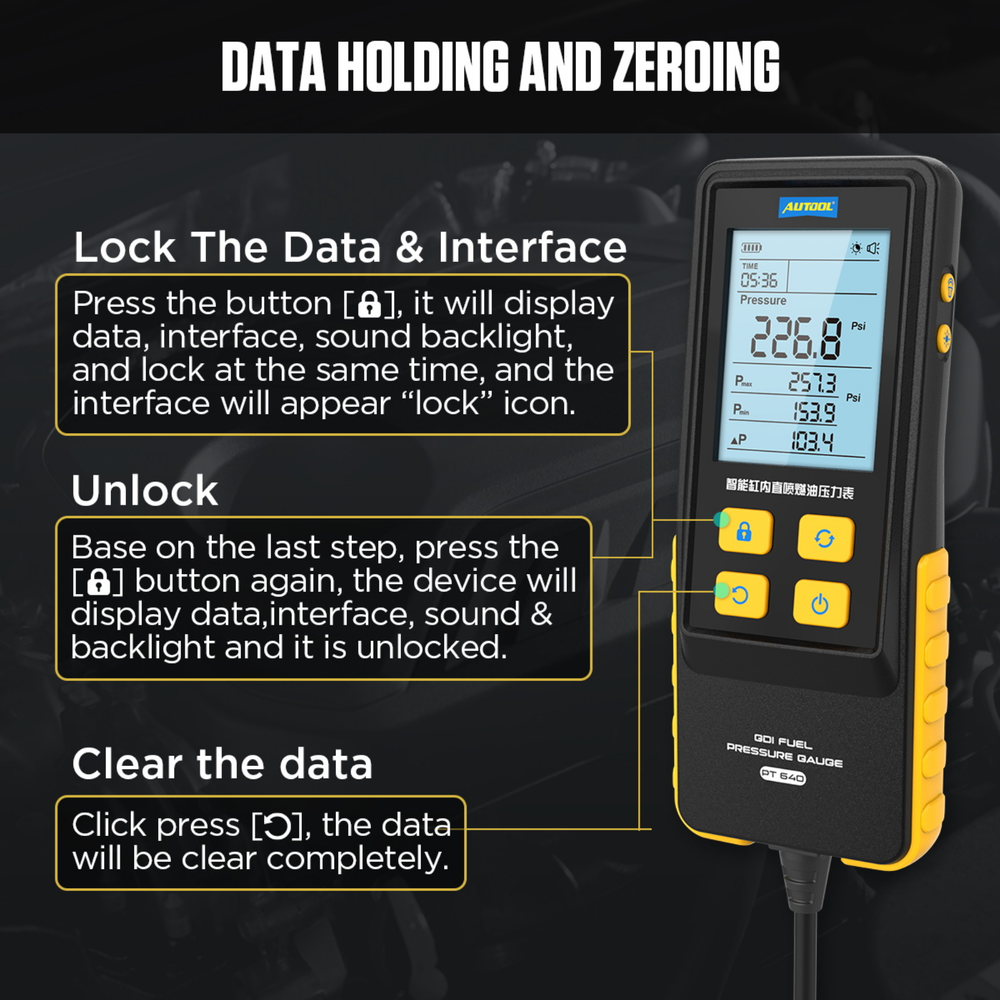

Secure Interface Lock Function – Includes a built-in locking feature that helps prevent accidental setting changes during operation, ensuring stable and uninterrupted testing results.
Advanced Sensor Technology – Combines precision sensors with intelligent digital processing to deliver reliable, responsive, and highly accurate fuel pressure readings.
Workshop-Ready Diagnostic Design – Built for professional automotive technicians, the PT640 offers durable construction suitable for regular workshop and field diagnostic use.
Simple Operating Procedure – Provides a straightforward testing process that supports efficient fuel pressure inspections, system troubleshooting, and maintenance verification.
Broad Vehicle Compatibility – Compatible with a wide range of gasoline direct injection fuel systems using appropriate vehicle-specific adapters.
Three-Year Manufacturer Warranty – Backed by AUTOOL’s 3-year warranty support for non-human-factor manufacturing faults, providing additional confidence for professional users.

Package Includes

AUTOOL PT640 GDI Fuel Pressure Gauge
Fuel Pressure Measuring Probe

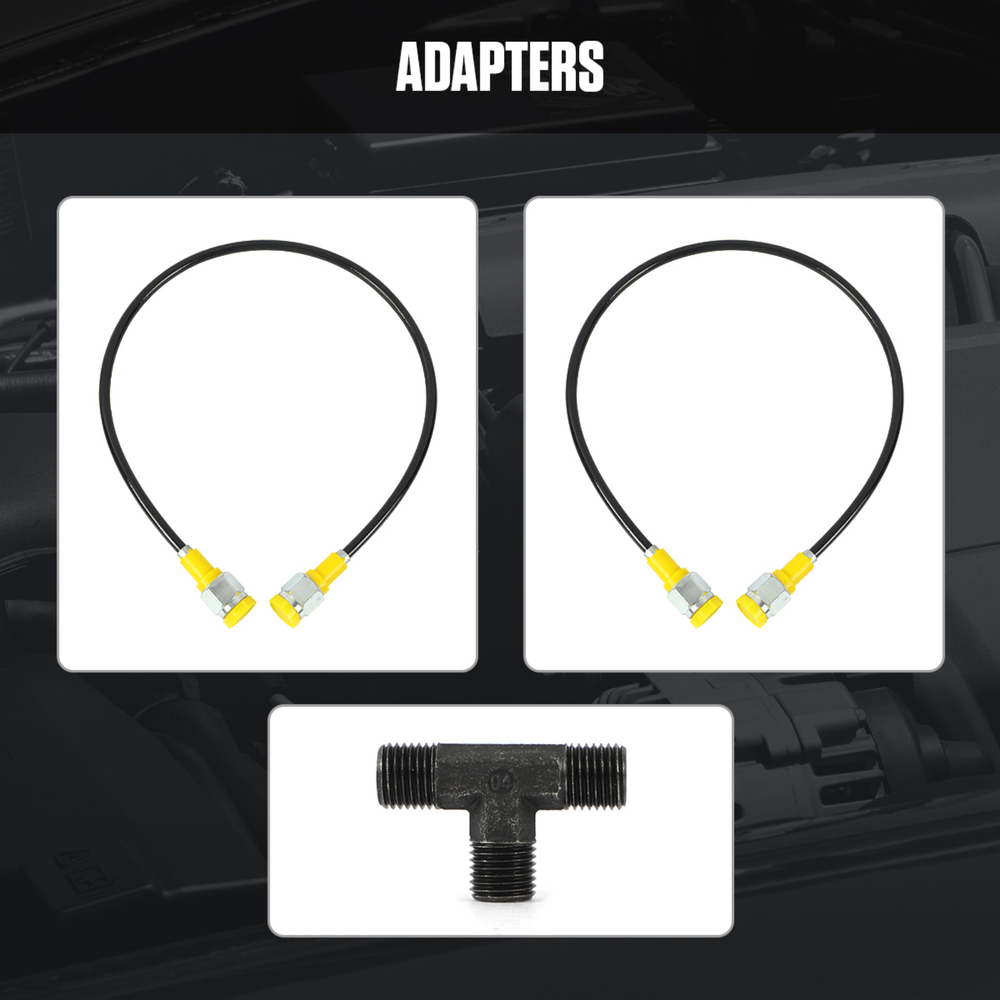

Vehicle Adapter Set
Connection Hoses
Carry Storage Case
User Manual

AUTOOL PT640 is a professional-grade digital fuel pressure testing solution

Designed for GDI fuel system pressure testing

Wide pressure measurement range up to 5221.3 PSI

Digital high-accuracy pressure monitoring

Multi-unit pressure conversion function

2.8-inch backlit display for clear visibility

Interface lock prevents accidental setting changes

Fast and reliable fuel system diagnostics

Suitable for professional automotive workshops

Durable construction for daily workshop use

Includes 3-year manufacturer warranty

AUTOOL PT640 high-pressure fuel system tester

AUTOOL Pressure Gauge Comparison

Comparison Table: PT640 | PT650 | PT660

	PT640	PT650	PT660

DISPLAY & STORAGE
Display Screen	2.8-inch	2.8-inch	3-inch
Data Storage	X	X	X
CONNECTIVITY & ACCESSORIES
Accessory Connectors	3 Types	12 Types	1 Types
Equipped Toolbox	✓	✓	✓
Dual-Channel Pressure Testing	X	X	Simultaneously Measure the Pressure of Two Brake Calipers
MEASUREMENT FUNCTIONS
Data Lock / Clear / Record	✓	✓	✓

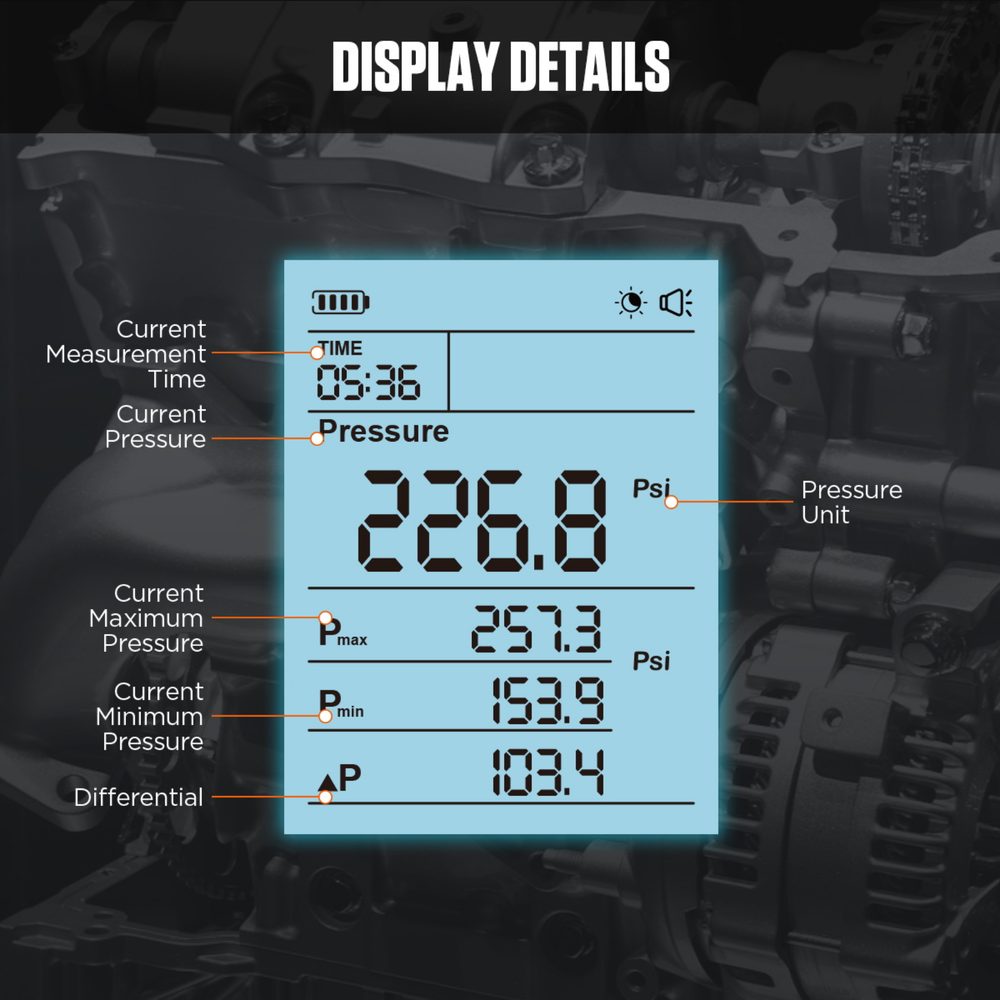

Multi-Parameter Display	Maximum Value, Minimum Value, Differential Pressure Value, Measurement Time, Real-Time Pressure Value	Maximum Value, Minimum Value, Differential Pressure Value, Measurement Time, Real-Time Pressure Value	Maximum/Minimum/Differ ential Pressure Values for Different Calipers, Real-Time Pressure Value
Pressure Units	Psi, Bar, Kg/c㎡	Psi, Bar, Kg/c㎡	Psi, Bar, Kg/c㎡
PRESSURE RANGE
Pressure Range	0–360 bar	0–30 bar	10–210 bar
APPLICATION
Applicable Scenarios	Fuel Injection Pump Pressure in the Automotive Direct Injection System	Automotive Transmission Pressure	Internal Fluid Pressure of the Brake System
	LEARN MORE	LEARN MORE	LEARN MORE

AUTOOL PT640 GDI Fuel Pressure Gauge Kit

Product Model: AUTOOL PT640

Product Type: GDI Fuel Pressure Gauge

Display: 2.8-inch backlit digital screen

Pressure Units: PSI, Bar, Kg/cm²

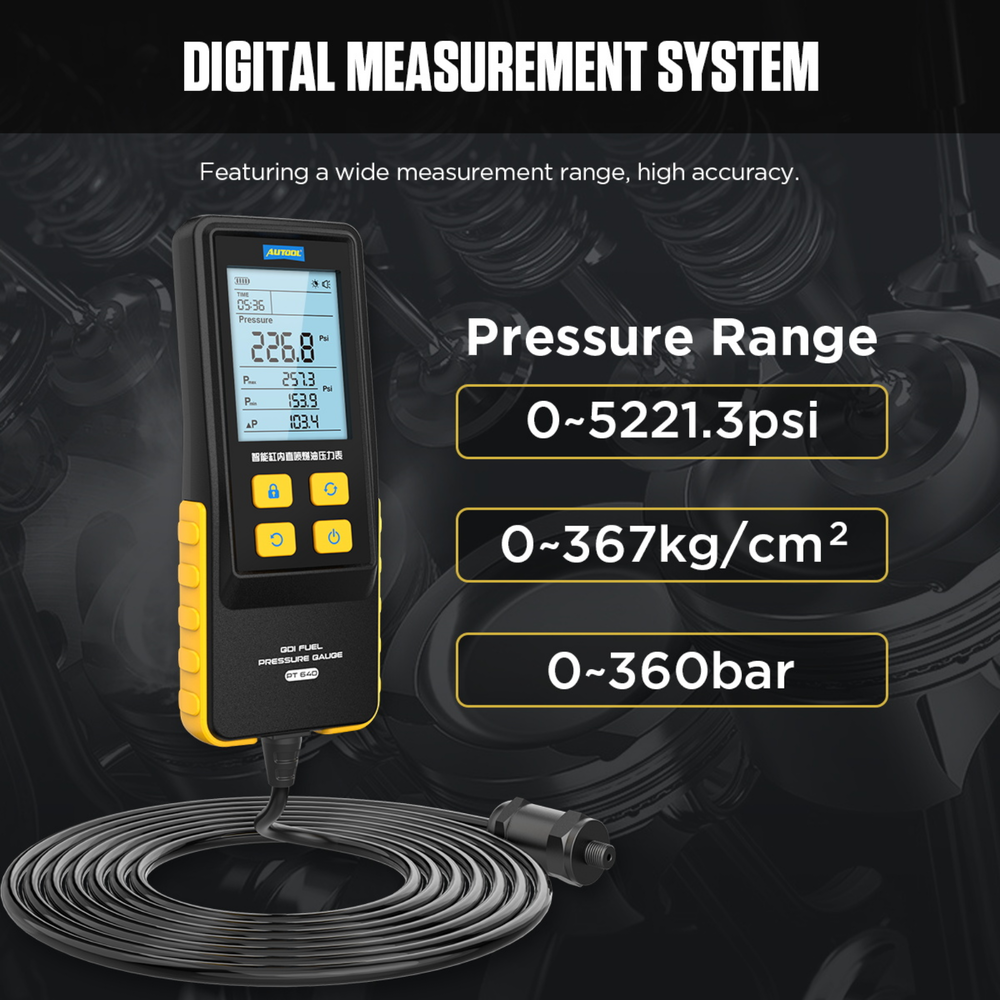

Pressure Range: 0~5221.3psi

Pressure Range (Bar): 0~360bar

Pressure Range (Kg/cm²): 0–367 Kg/cm²

Measurement System: Digital high-precision sensor system

Unit Conversion: One-touch multi-unit switching

Interface Lock Function: Supported

Application: GDI fuel system diagnostics

Warranty: 3 Years

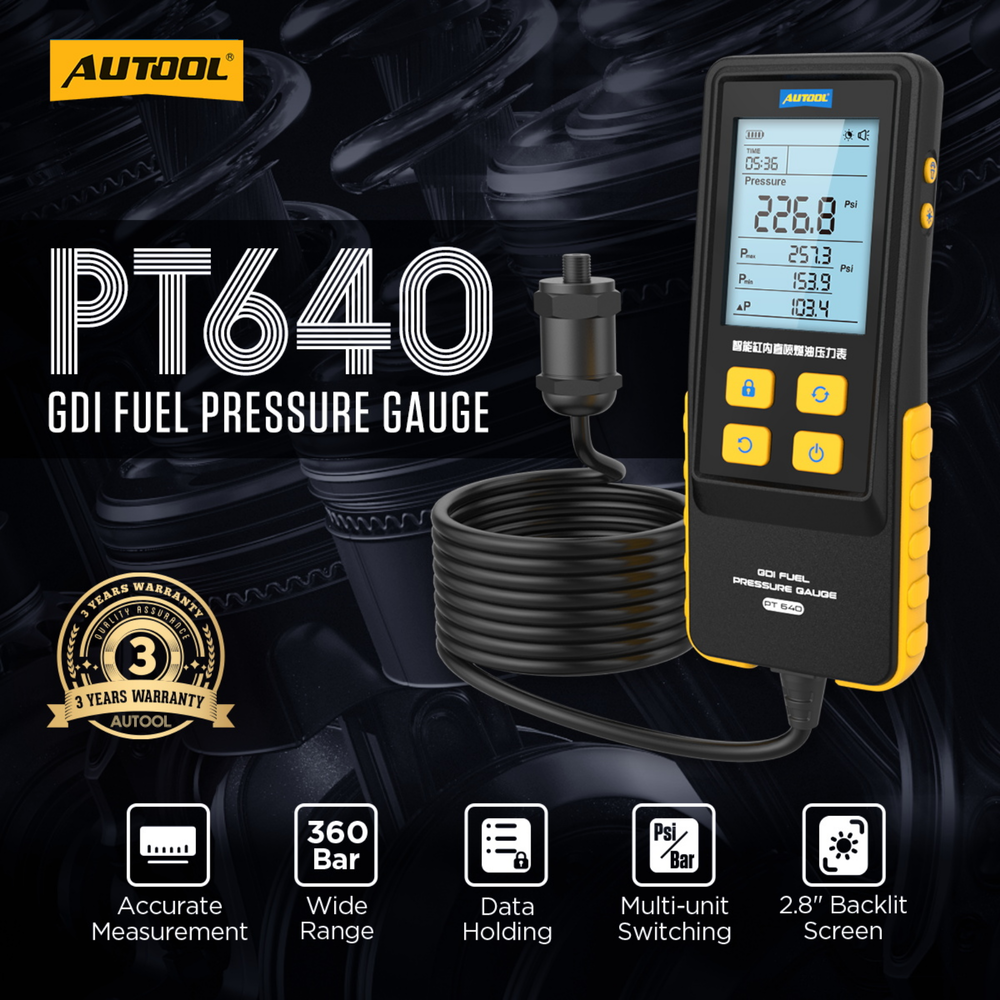

AUTOOL PT640 Technical Specifications
