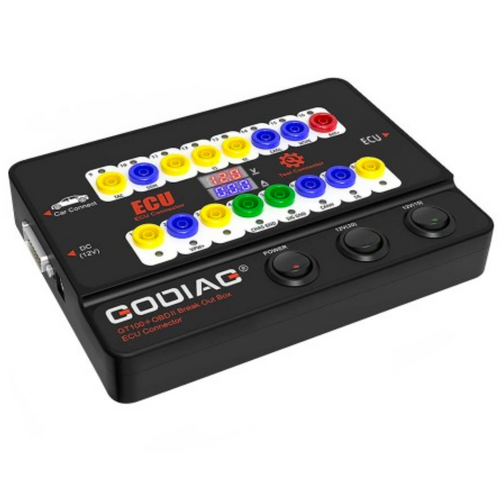

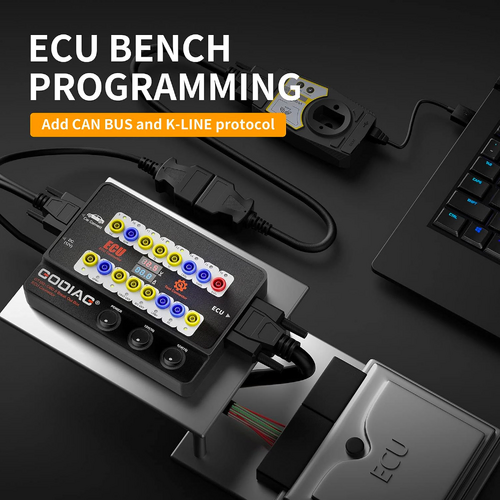

The GODIAG GT100+ OBDII Breakout Box represents the cutting-edge in OBDII protocol communication detection and ECU maintenance, diagnosis, programming, and coding. It serves as a diagnostic tool, assessing the quality of car communication.

Works with most OBD protocols and equipped with a voltage and current display, the GT100+ simplifies the task for automotive technicians and mechanics to assess the current working status of the ECU. Additionally, it provides power to the vehicle during battery changes to prevent data loss in the vehicle control module, automatic locking, key remote control failures, and the illumination of the fault light.

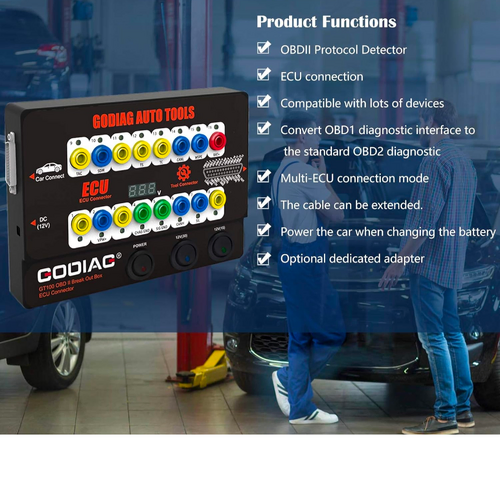

Main Functions

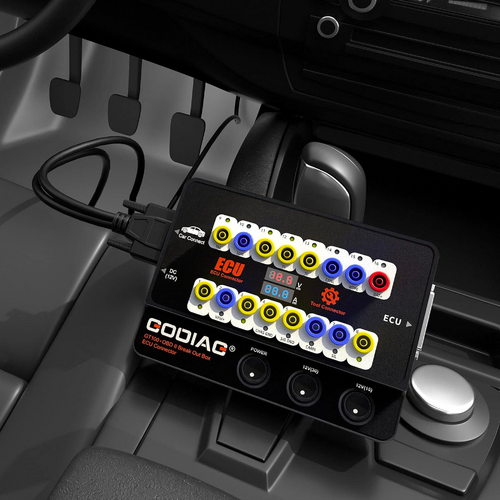

Check The Communication Signals: Verify the communication signals prior to linking your valuable scan tools. Utilize the GT100+ OBDII Breakout Box to ensure proper network communication or to confirm the correct supply of power and grounds to the box assembly. Without adequate power or grounds, there's a risk of damaging your expensive scan tools.

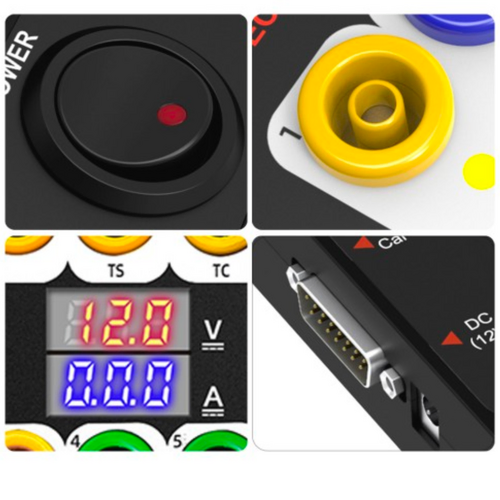

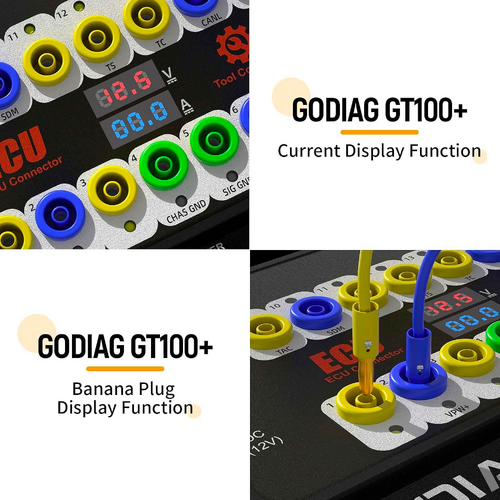

ECU Electronic Voltage & Current Display: Connecting the ECU module through the Banana interface or the DB25 cable allows an intuitive view of the ECU's current and voltage display. This setup offers an easy assessment of cable connectivity and the ECU module's condition.

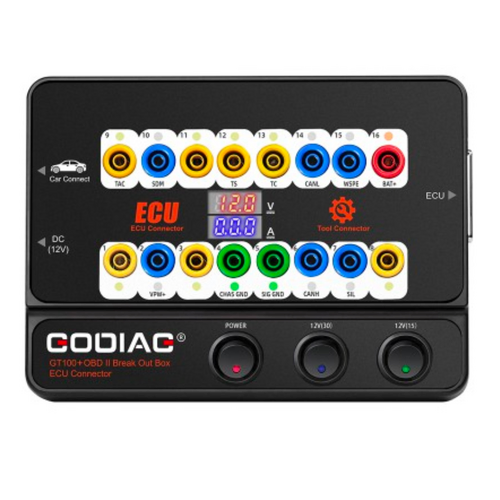

CANBUS Protocol Communication: The GT100+ utilizes Pin 1, 9, 3, 11, 12, 13, 8 (corresponding to the yellow banana connector on the tool) for non-standard OBD2 protocol interface. This configuration can display the CAN BUS or K-Line communication protocol. GT100 showcases CANBUS, K-Line, PWM, VPW+, and KWP 2000 protocol communications.

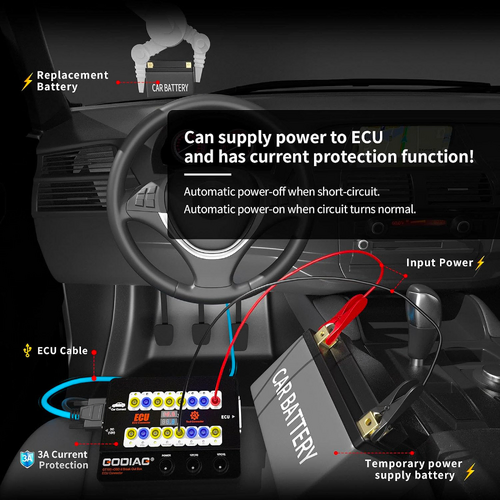

ECU Power Assistance During Battery Replacement: Using GT100+ OBDII Breakout Box and auxiliiary battery to sustain the power supply to the vehicle before replacing the battery, which will ensure that the car has fully power to prevent data loss and audio lock-up or the malfunction due to lack of power to the ECU control module.

Short Circuiting of Pins: Use the GT100+ to short-circuit banana plug connector to lit up the dashboard. In addition, you can also connect with some test platform (e.g. : CASA) to pragram keys.

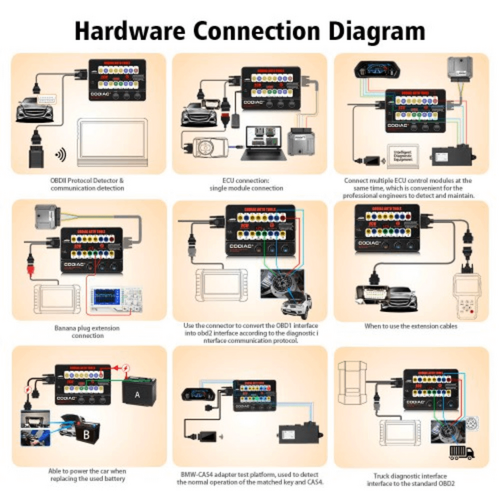

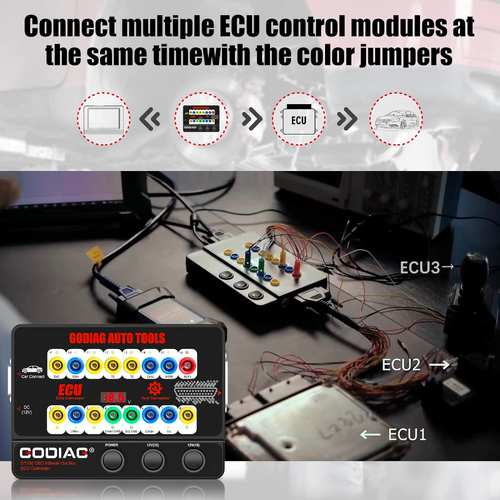

Connects to Multiple ECU's & Modules: The GODIAG GT100 can not only be connected to a single ECU module for single-module diagnosis and programming, but is also capable of connecting multiple ECU control modules at the same time. You can connect the ECU with the color jumpers. (If the ECU is CAN protocol, please check whether you will need to connect a 120 ohm resistor.)

Convert to OBD2 Interface: It can convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion. Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.

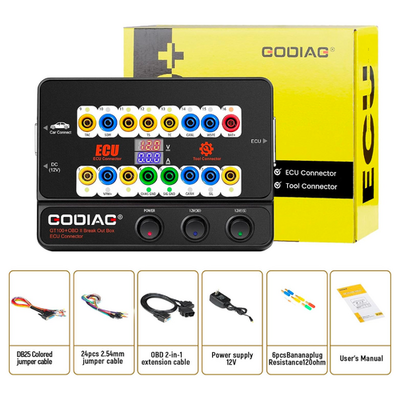

Package includes:

1pc x Host
1pc x OBD 2-in-1 extension cable
1pc x Colored jumper cable
1pc x Power supply 12V
1pc x Resistance 120 ohm
6pcs x Banana plug
24pcs x Wire accessories, Dupont 2.54mm connector female pins

(GT100PLUS)

1. GODIAG GT100+ is a new generation OBDII Break Out Box Including all the functions of GODIAG GT100
2. ECU connection + OBDII Protocol Detector + Electronic Current Display
3. Compatible with tools from LAUNCH, AUTEL,VIDENT etc.
4. Add Current Display for ECU Module
5. Support more protocols like CANBUS, K-Line, PWM, VPW+, KWP2000
6. Support All Key Lost for Porsche, VW,Mitsubishi, etc.

Item	Specification
Diagnostic port	OBDII
Working voltage	DC 9V-24V
Work and power	0.5-0.6W
Adapter power	Input AC100v-240v, Output DC12V 1A
Operating temperature range	-20 to 70 °C ( -4 to 158 °F )
Storage temperature range	-40 to 85 °C ( -40 to 185 °F )
Dimension	L: 23cm, W:18cm, H:7cm
