16 Pin OBD2 J1962 Female Connector Pigtail Cable 30cm

16-Pin Female OBD2 Diagnostic Extension Cable Pigtail Connector

The 16 Pin OBD2 J1962 Female Connector Pigtail Cable is a reliable solution for automotive diagnostics, ECU interfacing, and custom electrical applications. Designed with a standard 16-pin OBDII configuration, it enables stable signal transmission between vehicle systems and diagnostic tools. With a 30cm flexible cable length and colour-coded wiring, it supports professional workshop use as well as DIY automotive projects requiring accurate pin-level connectivity and system integration.

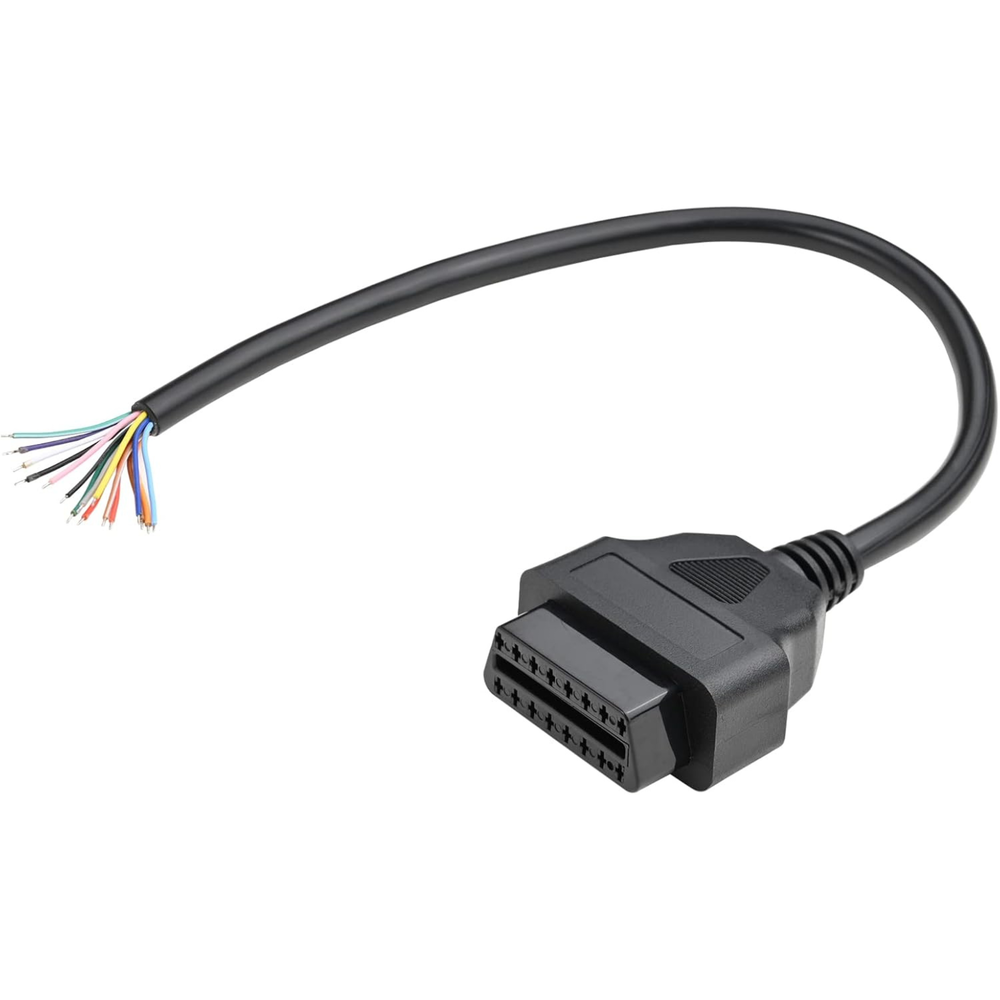

iKKEGOL OBD2 16-pin pigtail connector cable

Main Features

Standard 16-Pin OBD2 Interface Design – Built with a universal J1962 female connector, ensuring compatibility with standard OBD2 diagnostic systems used across modern vehicles.
30cm Flexible Pigtail Extension – Provides additional wiring length for easier access during diagnostics, ECU testing, and custom automotive installations.

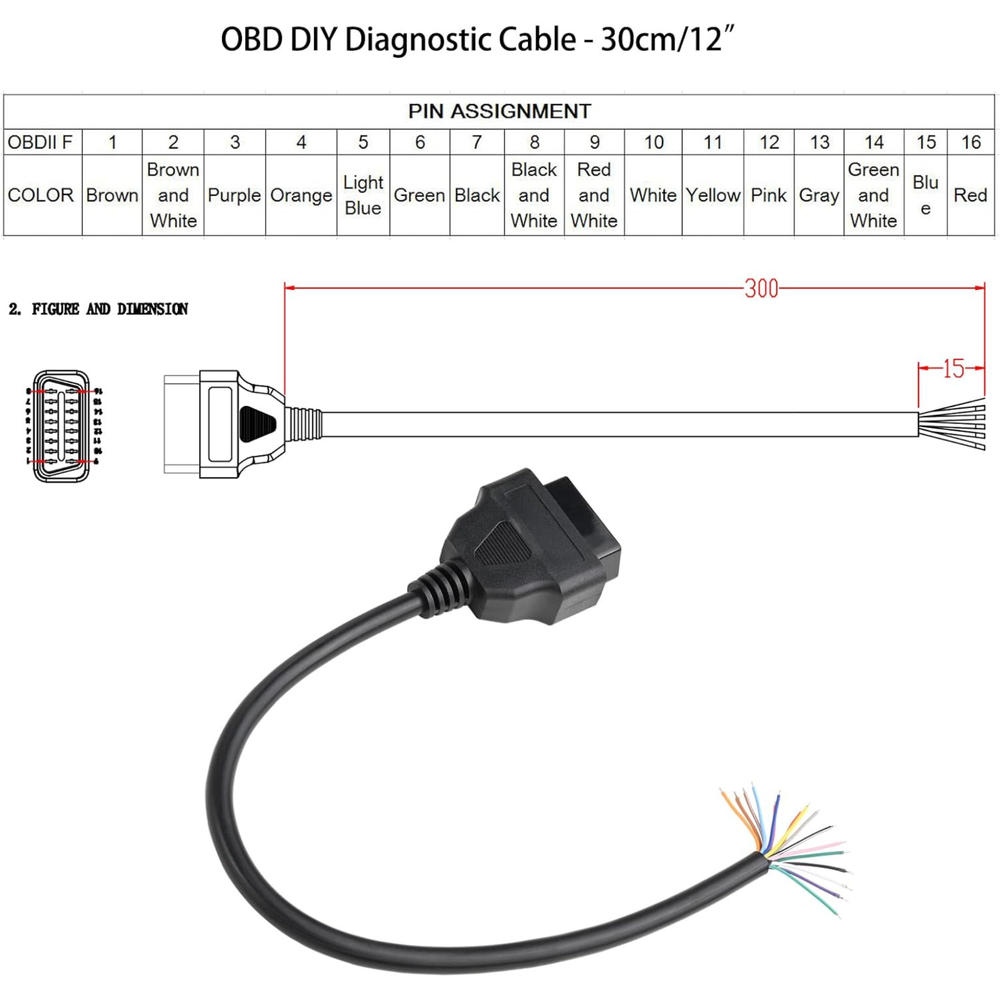

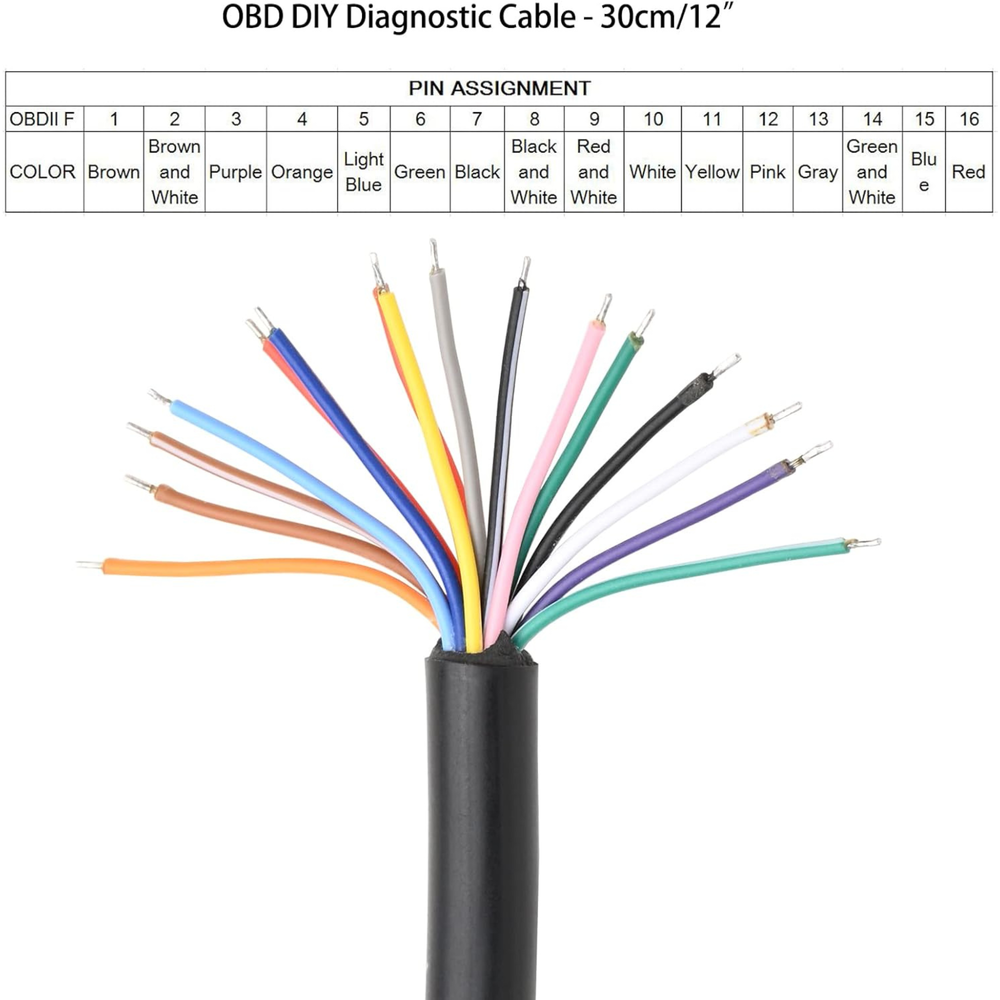

Colour-Coded Wiring System – Each pin is individually colour-coded to simplify identification, reduce wiring errors, and support precise electrical configuration.
Stable Diagnostic Signal Transmission – Ensures consistent communication between ECU systems and diagnostic equipment for accurate testing results.
DIY & Custom Project Compatibility – Ideal for engineers, technicians, and hobbyists developing custom automotive electronics or testing circuits.
Automotive-Grade Construction – Manufactured with durable insulation materials designed to withstand workshop environments and repeated use.

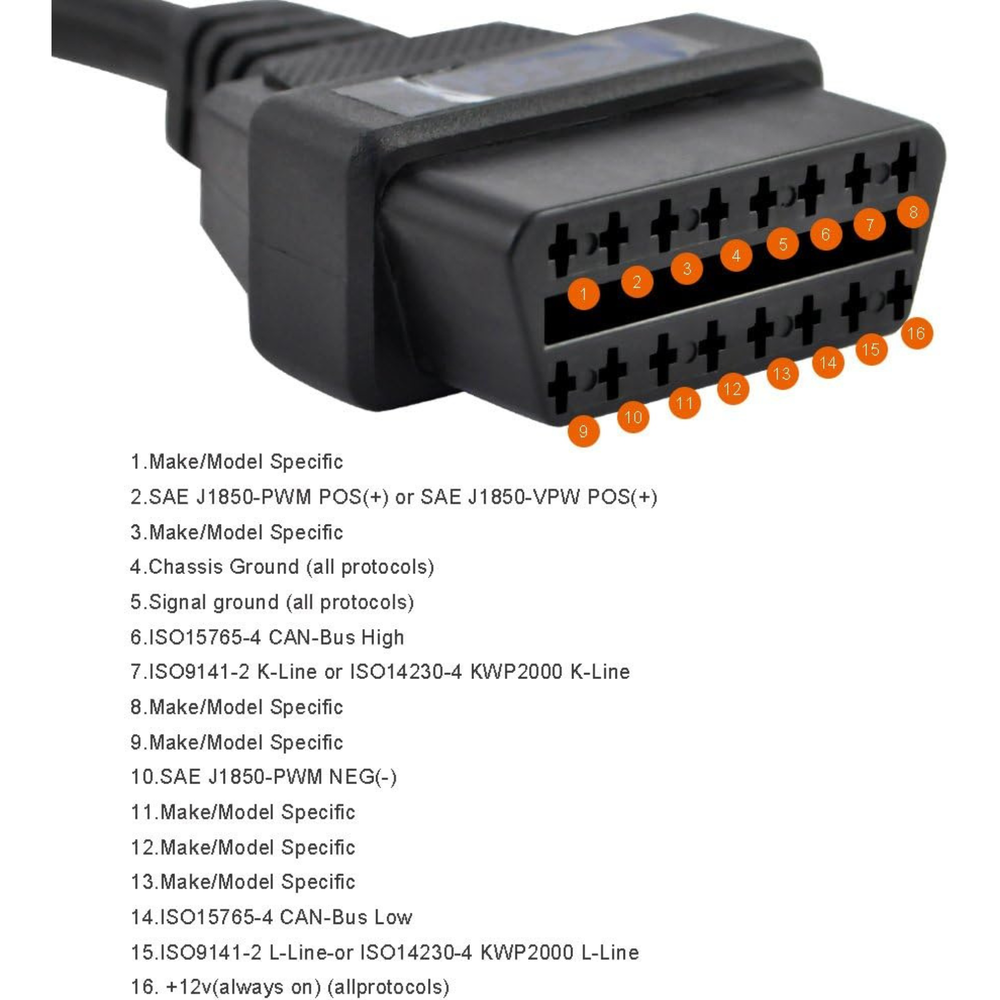

Full 16-Pin Connectivity Support – All OBD2 pins are fully connected, enabling complete diagnostic and communication capability.
Wide Vehicle Compatibility – Works with all OBD2-compliant vehicles, supporting standard automotive diagnostic protocols.

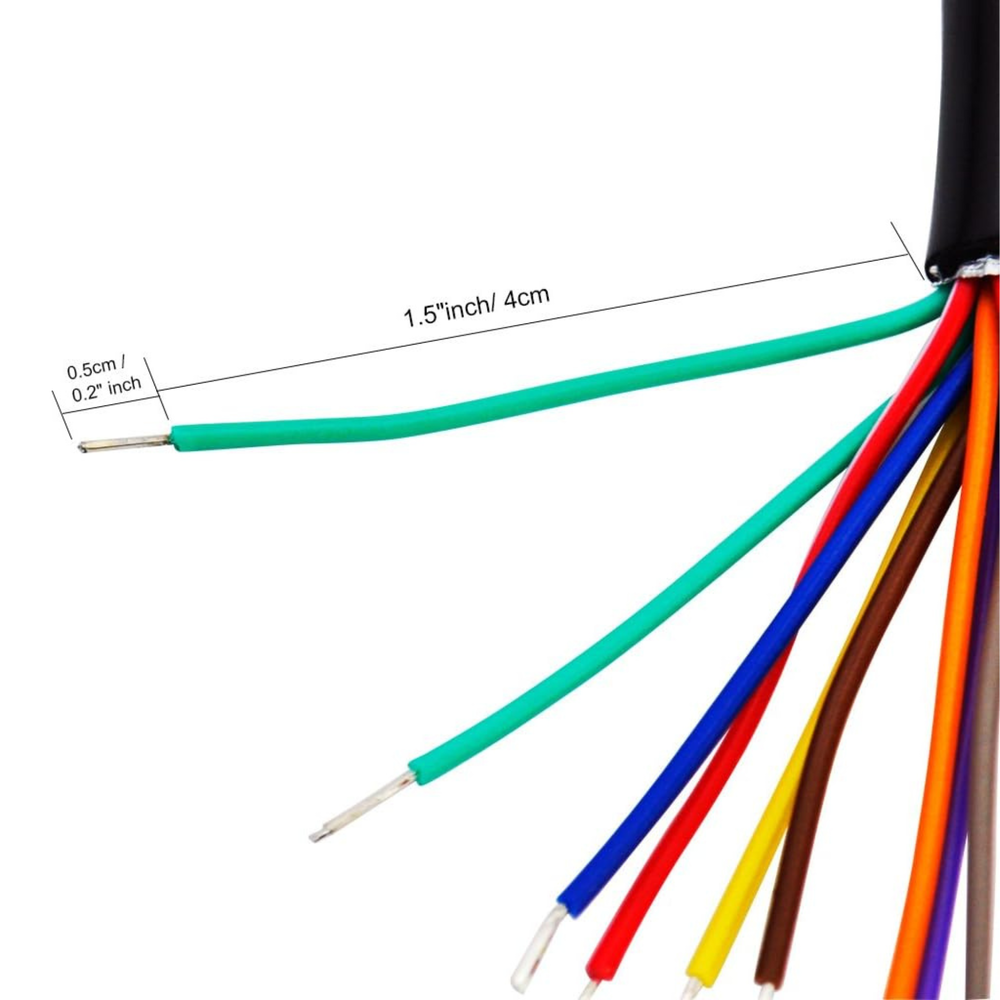

Open Wire Design for Flexibility – Allows direct access to individual pin signals for advanced testing, modification, or integration projects.
Professional Workshop Ready – Suitable for automotive electricians, diagnostic technicians, and system developers.

Package Includes

16 Pin OBDII J1962F Female Connector Pigtail

Professional OBD2 Connectivity & Integration Features

Standard 16-pin OBD2 J1962 female connector

30cm (12") flexible pigtail extension cable

Supports ECU diagnostics and testing applications

Colour-coded wiring for easy identification

Compatible with all OBD2-compliant vehicles

Ideal for automotive and DIY electrical projects

Stable and reliable signal transmission

Suitable for custom wiring and modifications

Durable automotive-grade construction

Plug-level access for advanced diagnostics

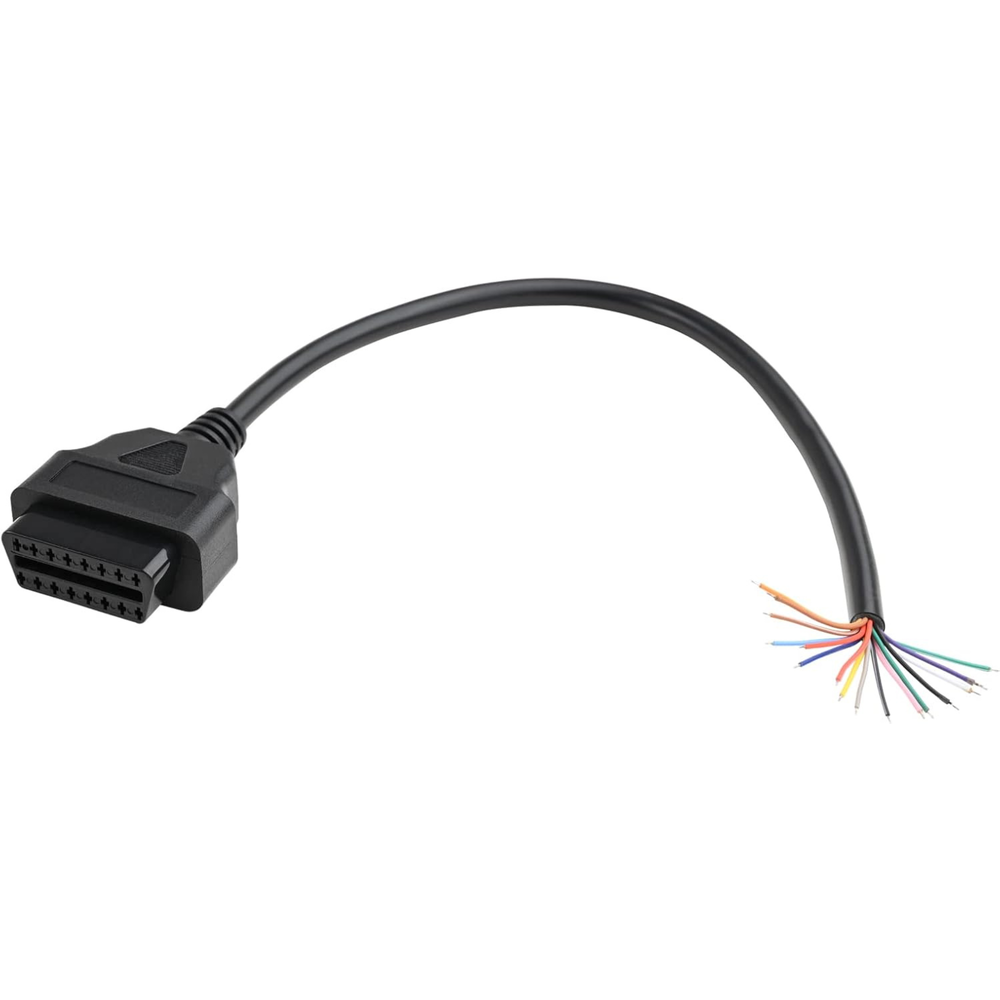

OBD2 diagnostic extension cable open wire harness

The OBD2 16-Pin Diagnostic Extension Cable

Technical Specifications

Connector Type: 16 pin OBD II

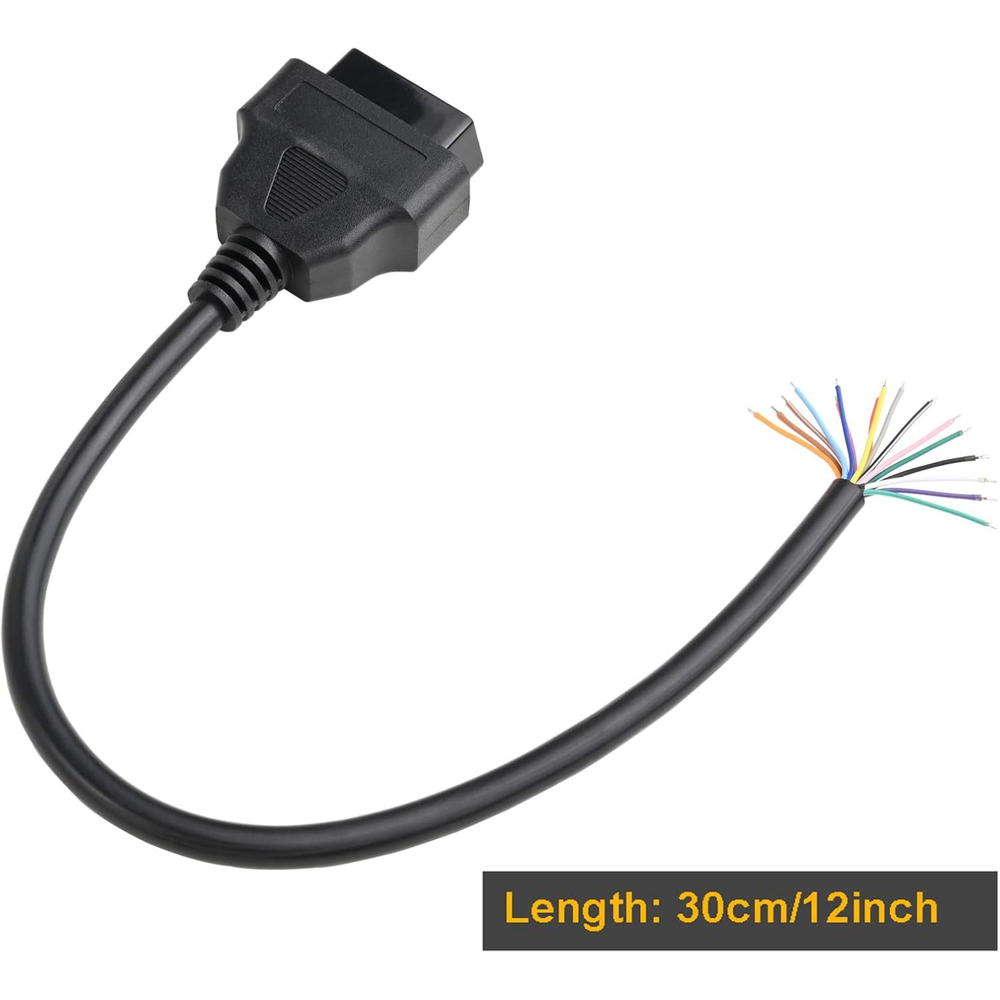

Cable length: 30cm

Compatible Devices: Vehicles with OBD II port

Other Special Features: 16 Pin J1962 OBD2 OBD-II Female Connector to Open Plug Wire, 30cm (12''), OBD Diagnostic Extension Cable Pigtail for DIY, OBD2 Female Connector Extension Pigtail Cable Adapter

Compatible Phone Models: Fit for all vehicles and machinery auto scanner

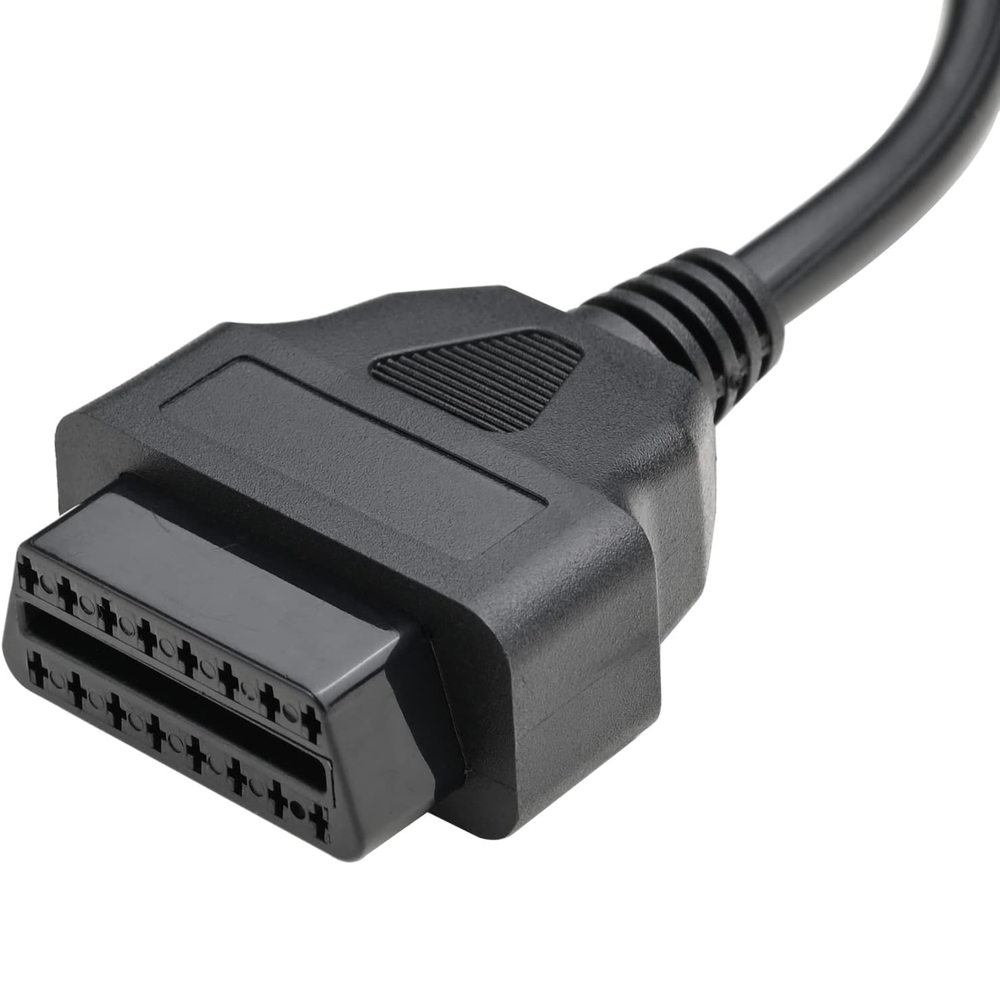

Connector Gender: Female J1962-to-Pigtail

Number of Pins: 16

Maximum Voltage: 12 Volts (DC)

J1962 female 16 pins OBD2 pigtail wiring harness for diagnostics
