LAUNCH X431 Smartlink HD Heavy Diesel Diagnostic Tool

LAUNCH X-431 SmartLink C HD LITE - Commercial Vehicle Diagnostics

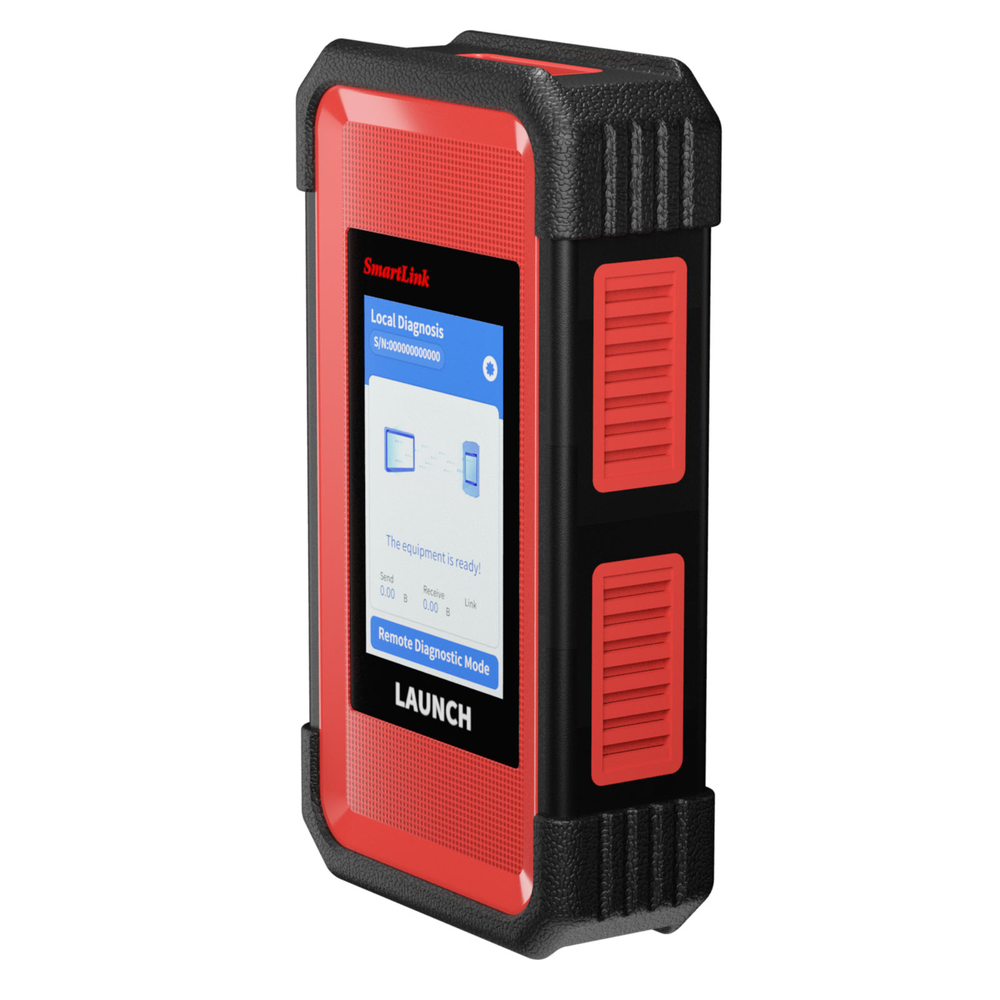

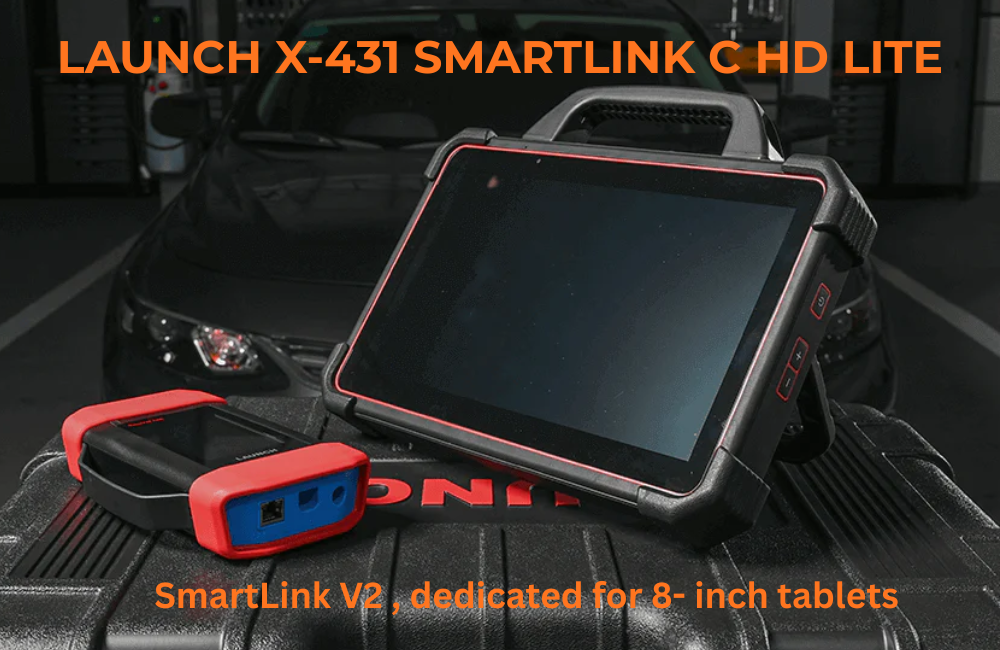

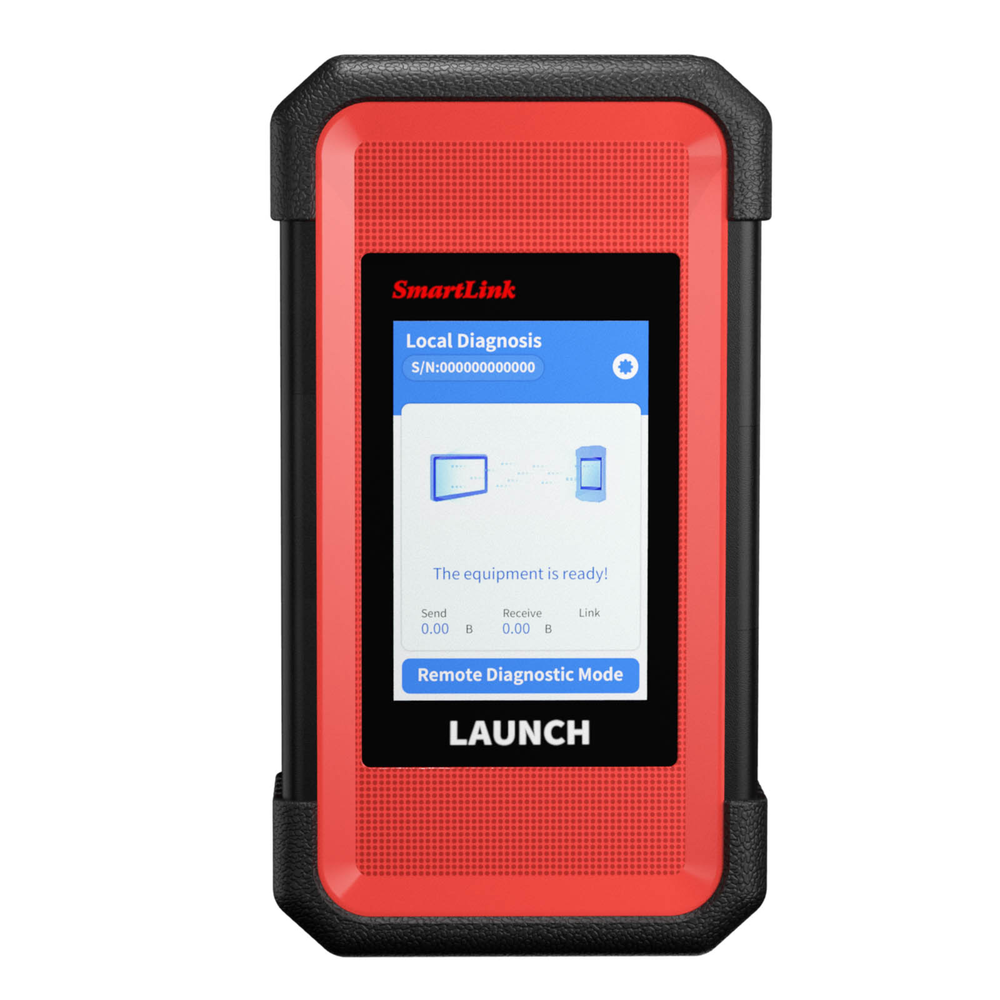

The LAUNCH X-431 SmartLink C HD LITE expansion package includes the advanced SmartLink V2 module, designed exclusively for 8-inch diagnostic tablets. Equipped with dual‐core processors (Cortex-A7 + M7), 8 GB RAM, and 256 MB storage, this rugged module supports Bluetooth, Wi-Fi, and USB connections. It delivers full system fault diagnosis, code reading/clearing, real-time data streaming, bi-directional testing, and special functions. With one year of free software updates, it covers engine systems from Cummins, Bosch, Weichai, and many more for trucks, buses, construction machinery, natural gas vehicles, and beyond.

The LAUNCH X-431 SmartLink C HD LITE expansion package includes the advanced SmartLink V2 module, designed exclusively for 8-inch diagnostic tablets.

Main Features

Dual-core architecture (Cortex-A7 + Cortex-M7) for efficient multi-tasking.
8 GB RAM + 256 MB storage to handle intensive diagnostic workloads
Triple communication: Bluetooth, Wi-Fi, USB for flexible connectivity.
Full system fault code reading & clearing across all electronic control units.
Real-time data stream reading and graphical display.
Bi-directional (active) component testing and action testing.
Industrial drop-resistant housing for workshop durability.
Supports wide voltage range (9 V – 36 V DC) for heavy-duty vehicles.
One year of free software updates with access to 75+ heavy-duty modules.
Covers engine, ABS, transmission, emissions, and special systems.

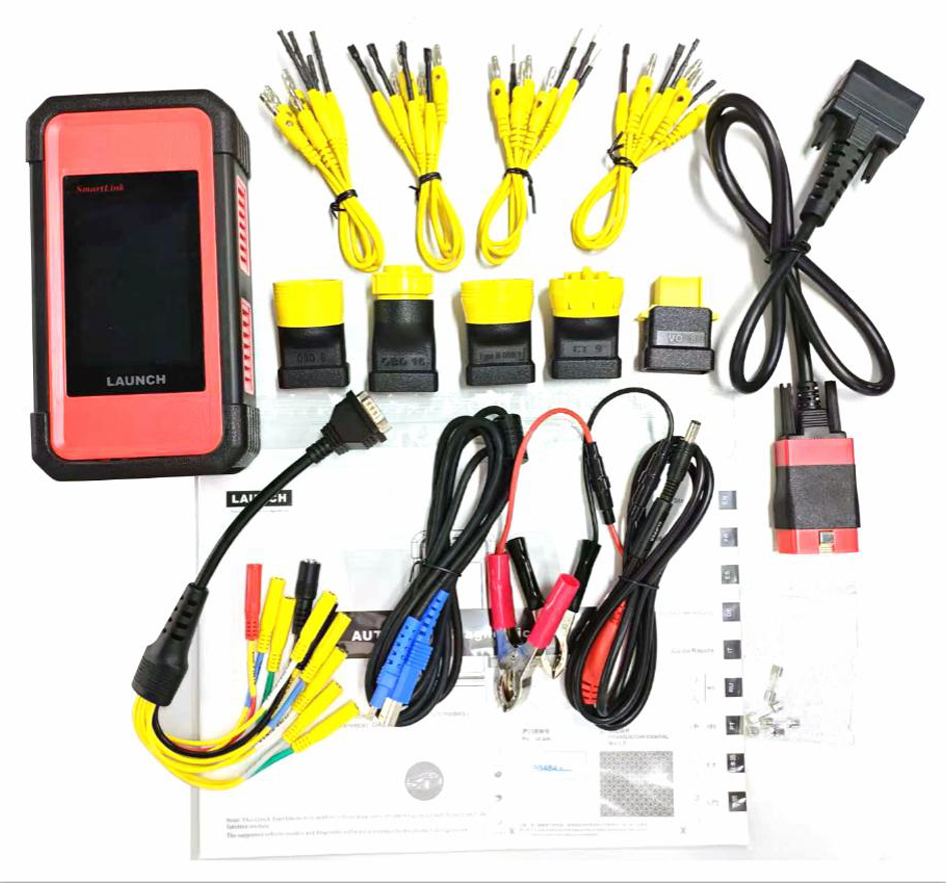

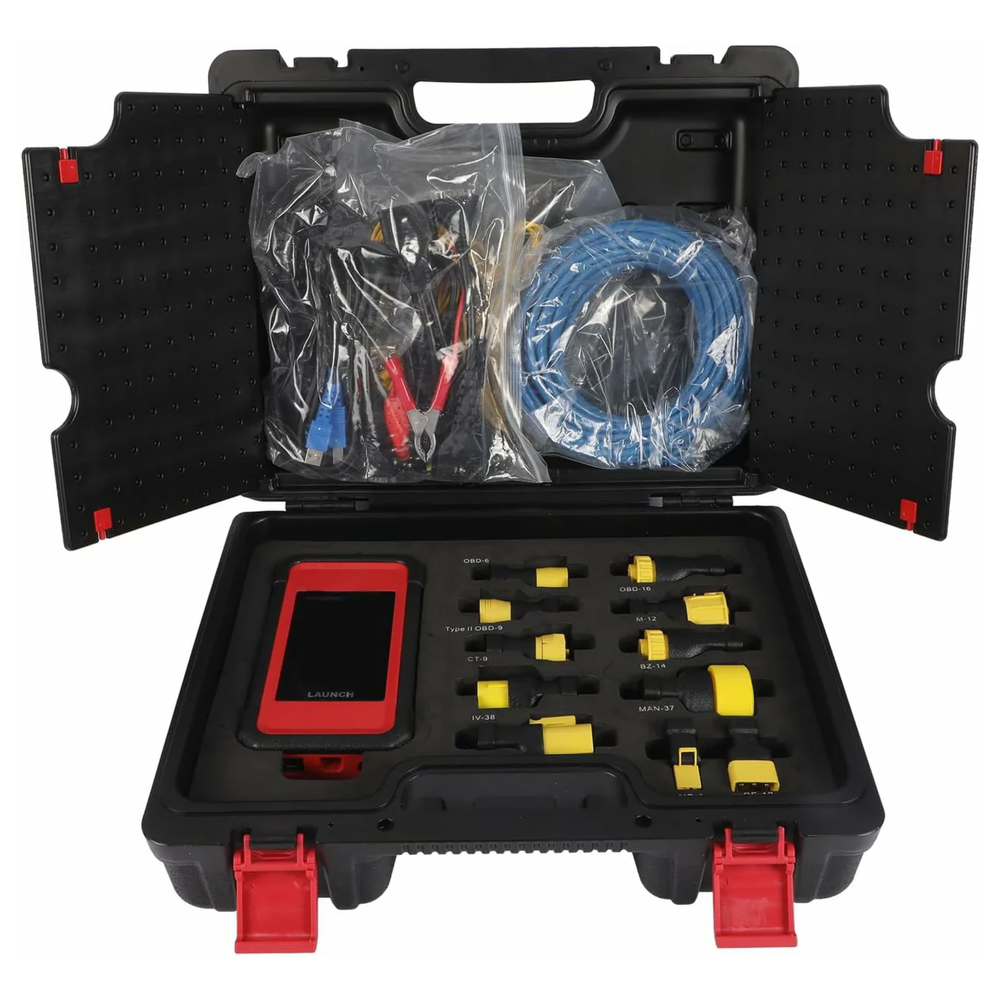

Package Includes:

1 pc x Overseas Super Remote Diagnosis Box V2.0 ( Maintenance Terminal, 98934, No Label )
1 pc x HD15F to OBDII 16 male integrated test connector , RoHS
1 pc x DB15F to HD15F test cable (with HD15M to OBDII 16 -male integrated adapter), RoHS
1 pc x X431 PAD4HD USB Type A to Type B Cable , RoHS
1 pc x X-431 SmartLink C HD Overseas Online Heavy Truck Module Multi-language Quick Start ,RoHS
1 pc x Universal password envelope ( without LAUNCH), RoHS
1 pc x X431 PAD4HDB15M-Type II OBD-9 integrated diagnostic connector ( Type II OBD 9 )
1 pc x X431 PAD4HDB15M-6 integrated diagnostic connector ( OBD 6 )
1 pc x DIY HDB15M-CAT-9 Carter 9 PIN integrated diagnostic connector ( CT 9), RoHS
1 pc x X431 PAD4HDB15M-VOLVO-8/ Volvo 8PIN integrated diagnostic connector ( VO 8 )
1 pc x X431 PAD4HDB15M-16 integrated diagnostic connector ( OBD 16 )
1 pc x X431 PAD4HDB15M-JUMPER-10 Heavy truck jumper 10PIN diagnostic connector - ( JUMPER 10 )
1 pc x X431 PAD4HDB15M-VOLVO-8/ Volvo 8PIN integrated diagnostic connector ( VO 8 )
1 pc x X431 PAD4HDB15M-16 integrated diagnostic connector ( OBD 16 )
1 pc x X431 PAD4HDB15M-JUMPER-10 Heavy truck jumper 10PIN diagnostic connector - ( JUMPER 10 )
1 pc x Double clamp power cord ( English , no LAUNCH), RoHS
4 pc x Fuse , AC250V/5A, φ5*20 mm ROHS
4 pc x X-431 PAD IV electric control adapter cable 1, RoHS
4 pc x X-431 PAD IV electric control adapter cable 6, RoHS
4 pc x X-431 PAD IV electric control adapter cable 7, RoHS
4 pc x X-431 PAD IV electric control adapter cable 8, RoHS

Launch X-431 SmartLink C 2.0 Heavy Duty Truck Module

Dual-Core Processor (Cortex-A7 + M7) – Ensures faster, smoother, and more stable diagnostic performance.

Multi-Interface Connectivity – Supports Wi-Fi, Bluetooth, USB, and Ethernet for flexible operation.

OE-Level Full System Coverage – Reads/clears codes and performs full diagnostics across engine, transmission, ABS, and more.

Live Data & Graphical Display – Monitors real-time system data and sensor parameters for accurate analysis.

Active Tests & Bi-Directional Control – Commands actuators and components directly for functional verification.

Extensive Heavy-Duty Vehicle Coverage – Compatible with major brands like Cummins, Bosch, Volvo, Scania, MAN, and Tata.

1-Year Free Software Package – Includes 75+ diagnostic programs with automatic updates and VIN auto-detection.

Rugged Industrial Design – Drop-resistant, dustproof housing built for workshop and field environments.

SmartLink Remote Diagnostics – Enables cloud-based and remote expert diagnostics for faster troubleshooting.

Wide Power Supply (9V–36V) – Stable operation across trucks, buses, and construction equipment.

Comprehensive Connector Kit – Includes OBD-6, OBD-9, OBD-16, Carter, and Volvo adapters for broad compatibility..

Multi-Language Interface – Supports multiple languages for international workshop use.

Diagnostic Report Management – Generates, stores, and shares test reports for recordkeeping and customer communication.

Optimized for 8-Inch Tablets – Seamless integration with Launch X-431 PRO series devices.

Temperature-Resistant Performance – Operates reliably between 0°C–50°C for diverse work conditions.

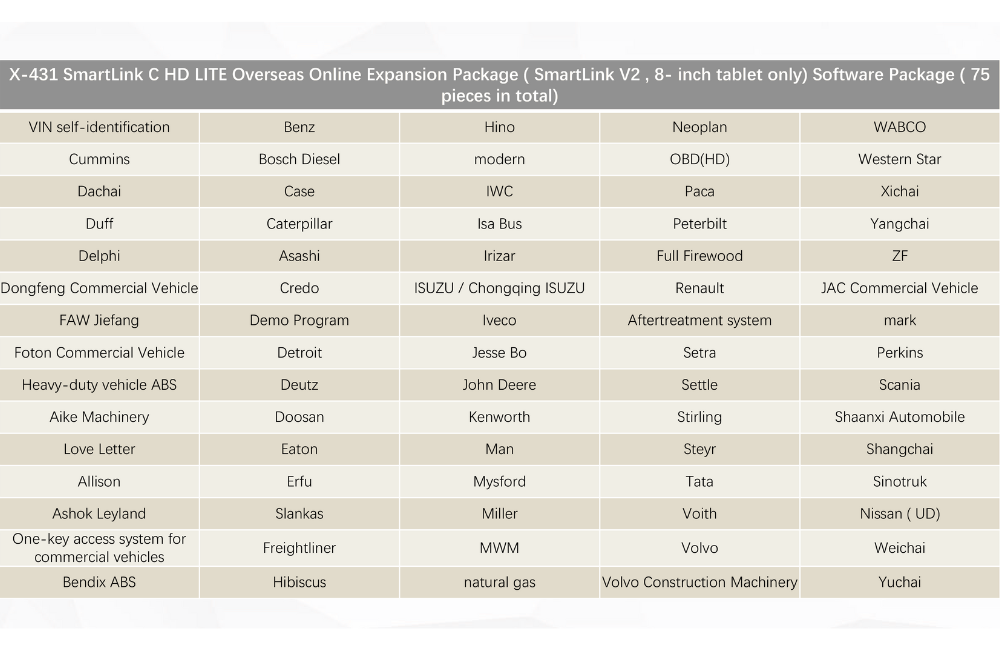

Vehicle Coverage

VIN self-identification, Cummins, Dachai, Duff, Delphi, Dongfeng Commercial Vehicle, FAW Jiefang, Foton Commercial Vehicle, Nissan ( UD)
Heavy-duty vehicle ABS, Aike Machinery, Love Letter, Allison, Ashok Leyland, Bendix ABS, Benz, Bosch Diesel, Case, ZF, Sinotruk, Yuchai
Caterpillar, Asashi, Credo, Demo Program, Detroit, Deutz, Doosan, Eaton, Erfu, Slankas, Volvo Construction Machinery, Shangchai
Freightliner, Hibiscus, Hino, modern, IWC, Isa Bus, Irizar, ISUZU / Chongqing ISUZU, Iveco, WABCO, Xichai, Yangchai, Scania, Weichai
Jesse Bo, John Deere, Kenworth, Man, Mysford, Miller, MWM, natural gas, Neoplan, OBD(HD), Western Star, JAC Commercial Vehicle
Paca, Peterbilt, Full Firewood, Renault, Aftertreatment system, Setra, Settle, Stirling, Steyr, Tata, Volvo, mark, Perkins, Shaanxi Automobile

SmartLink V2 Heavy-Duty Module

LAUNCH X-431 SmartLink C HD LITE - Commercial Vehicle Diagnostics

Technical Specifications

CPU: Dual—Cortex A7 + Cortex M.
Memory / Storage: 8 GB RAM / 256 MB storage
Operating System: Linux
Display Resolution: 320 × 480 (module display)
Power Consumption: < 6 W
Input Voltage: 9 V DC to 36 V DC
Operating Temperature: 0 °C to 50 °C
Dimensions (L × W × H): 200 mm × 110 mm × 47 mm

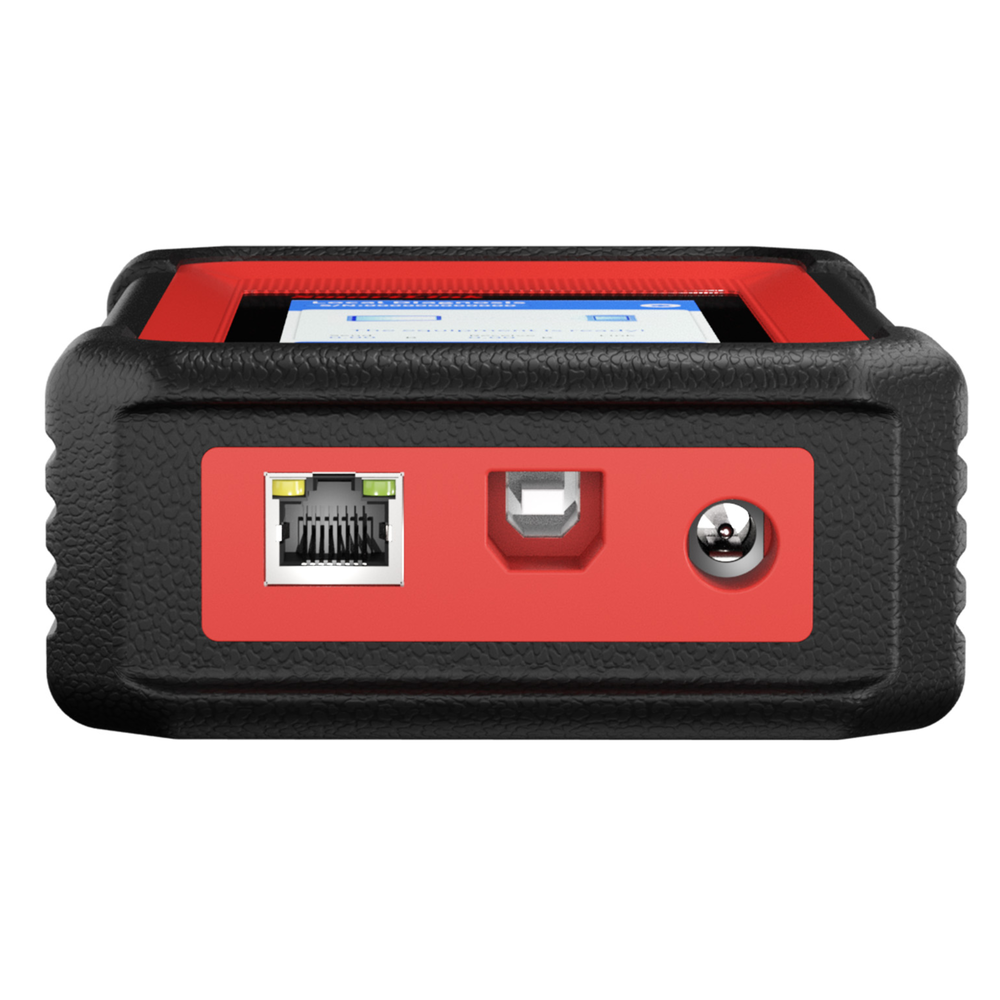

Communication Interfaces: Bluetooth, Wi-Fi, USB, Ethernet option
Diagnostic Scope: Full systems: engine, ABS, transmission, etc.
Supported Vehicle Types: Trucks, buses, construction, nat. gas, etc.
Update / Software Period: 1 year free software updates.
