Oscilloscope probe with high quality tips for better and more testing situations. Attenuation ratio: 1x and 10x optional. Compatible with domestic and international digital and analog oscilloscopes in relevant frequency. Measurement in intermediate and low frequency signals.

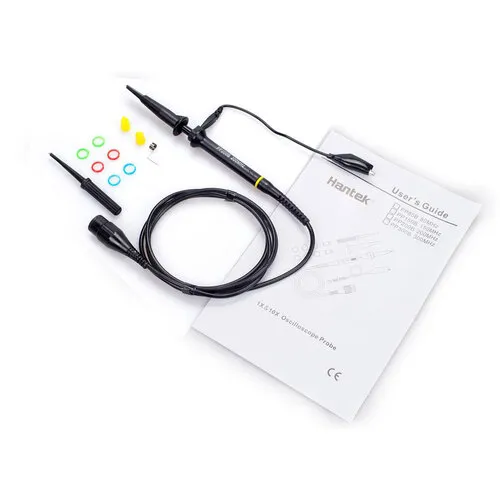

Package Include

  • Operation manual
  • Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.
  • Contractive-type acuminate hook
  • 12cm earth wire with alligator clip
  • 4 pairs of colour cable markers
  • Locating sleeve adapts to IC testing.

(HNPP200)

Oscilloscope probe with high quality tips for better and more testing situations. Attenuation ratio: 1x and 10x optional. Compatible with domestic and international digital and analog oscilloscopes in relevant frequency. Measurement in intermediate and low frequency signals.

Item

PP-80

PP-90

PP-150

PP-150B

PP-200

PP-200B

Attenuation x1  x10
Input resistance 1MΩ: 10MΩ
Input capacitance x1: 85pF-115pF
x10:18.5pF-22.5pF
x1: 85pF-115pF
x10: 18.5pF-22.5pF
Compensation scope 20pF-40pF 15pF-40pF 15pF-35pF
System bandwidth x1:DC-6MHz;
x10: DC-60MHz
x1:DC-6MHz;
x10: DC-80MHz
x1: DC-6MHz
x10: DC-100MHz
x1: DC-6MHz
x10: DC-200MHz
Input voltage x1:<200V DC +Peak AC
x10: <600V DC +Peak AC
weight 55g
Cable length 120cm
Temperature scope: Operation: -10--+50
Not Operation: -20--+75
Humidity 85% (Relative humidity)
