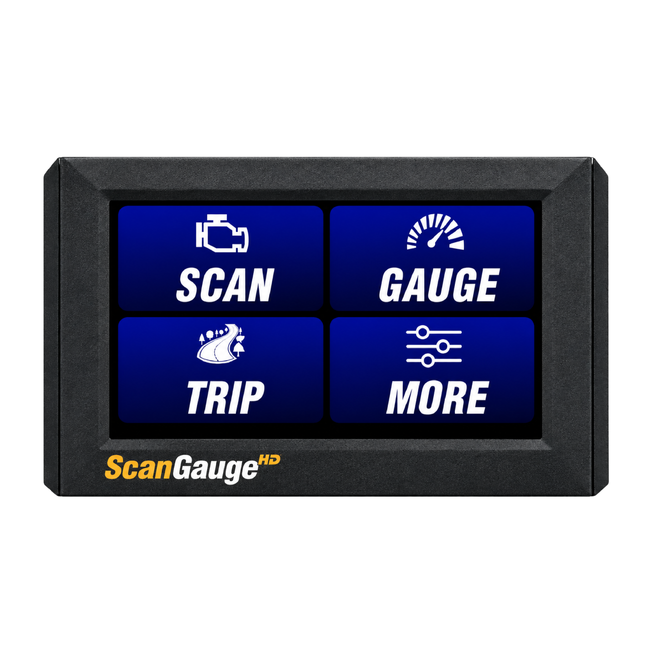

ScanGauge HD Heavy Diesel Touchscreen Monitor & Diagnostic Scan Tool

ScanGauge HD Heavy Diesel Touchscreen Monitor & Diagnostic Scan Tool

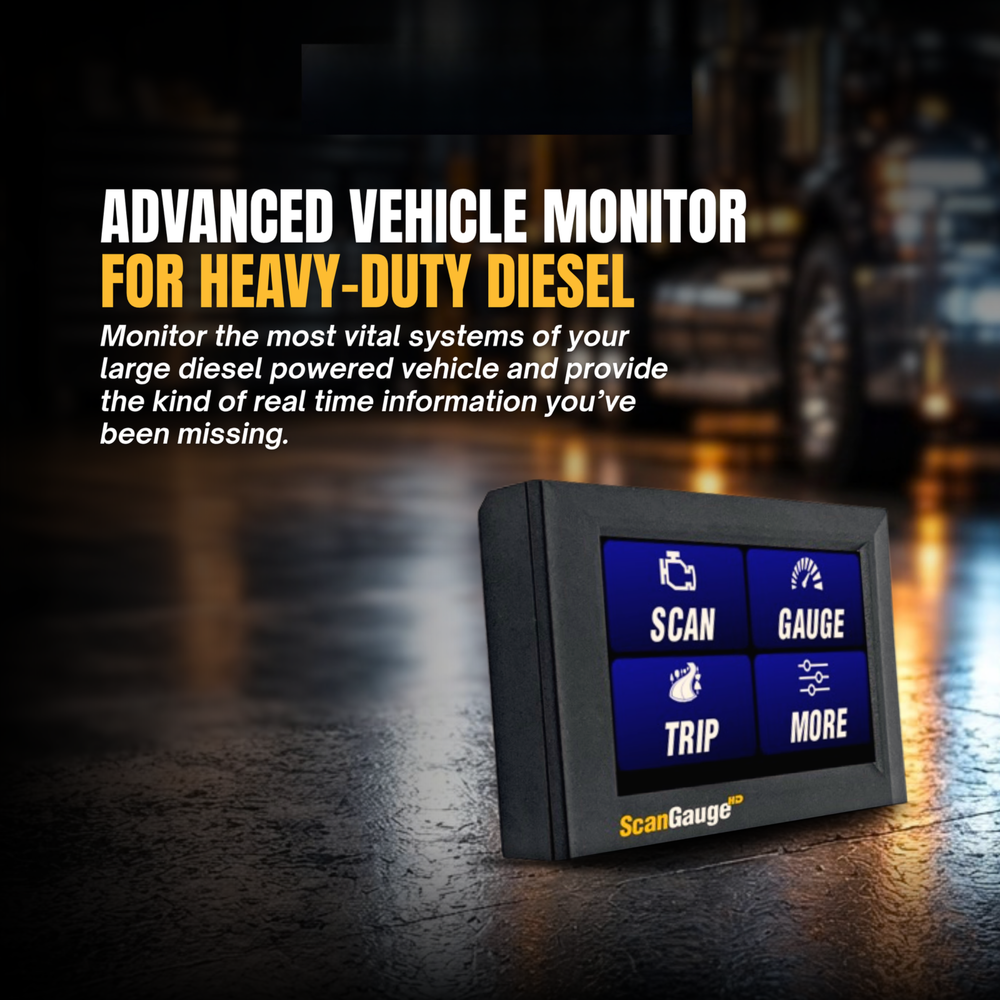

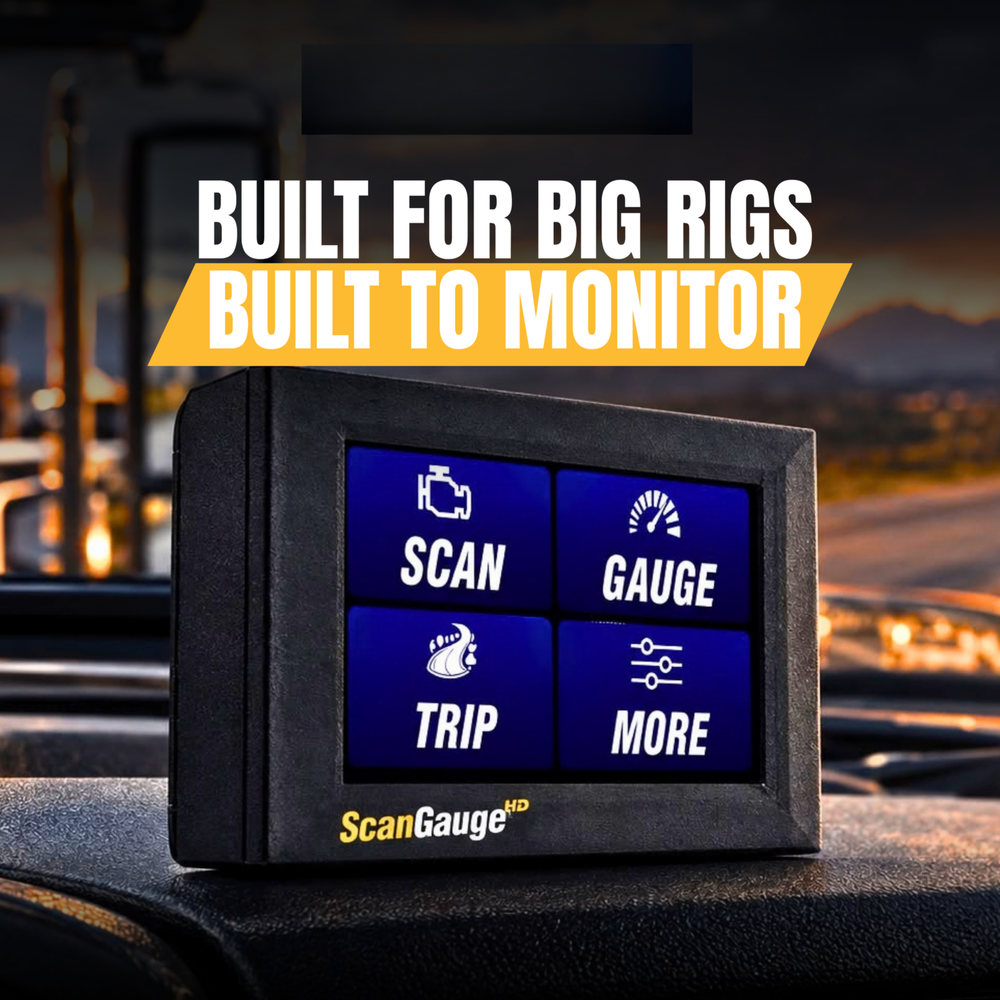

The ScanGauge HD is an advanced heavy diesel monitoring and diagnostic system designed for trucks, buses and heavy machinery. Featuring a colour capacitive touchscreen, it displays up to nine live engine gauges simultaneously, including oil pressure, coolant temperature, boost and fuel economy. Supporting J1939 and J1708 protocols, it offers programmable X-Gauges, fault code diagnostics, five trip computers and customisable alerts. Wi-Fi firmware updates and plug-and-play installation provide convenient operation.

Main Features

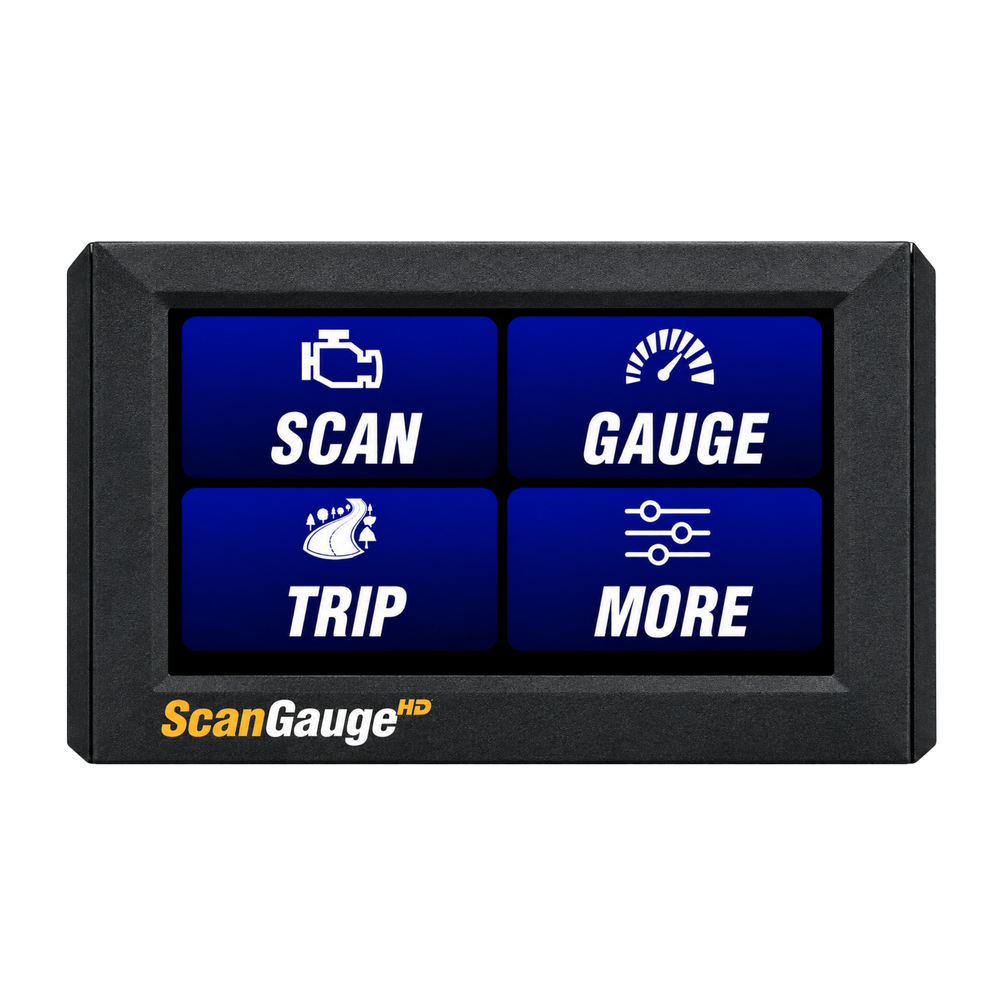

• Colour Capacitive Touchscreen – Features a responsive, multi-colour touchscreen interface for clear viewing and convenient navigation of engine data, trip information and diagnostic functions.
• Dual-Protocol Heavy Diesel Compatibility – Supports SAE J1939 and J1708 communication protocols, providing monitoring and diagnostic functionality for compatible trucks, buses, agricultural machinery and earthmoving equipment.

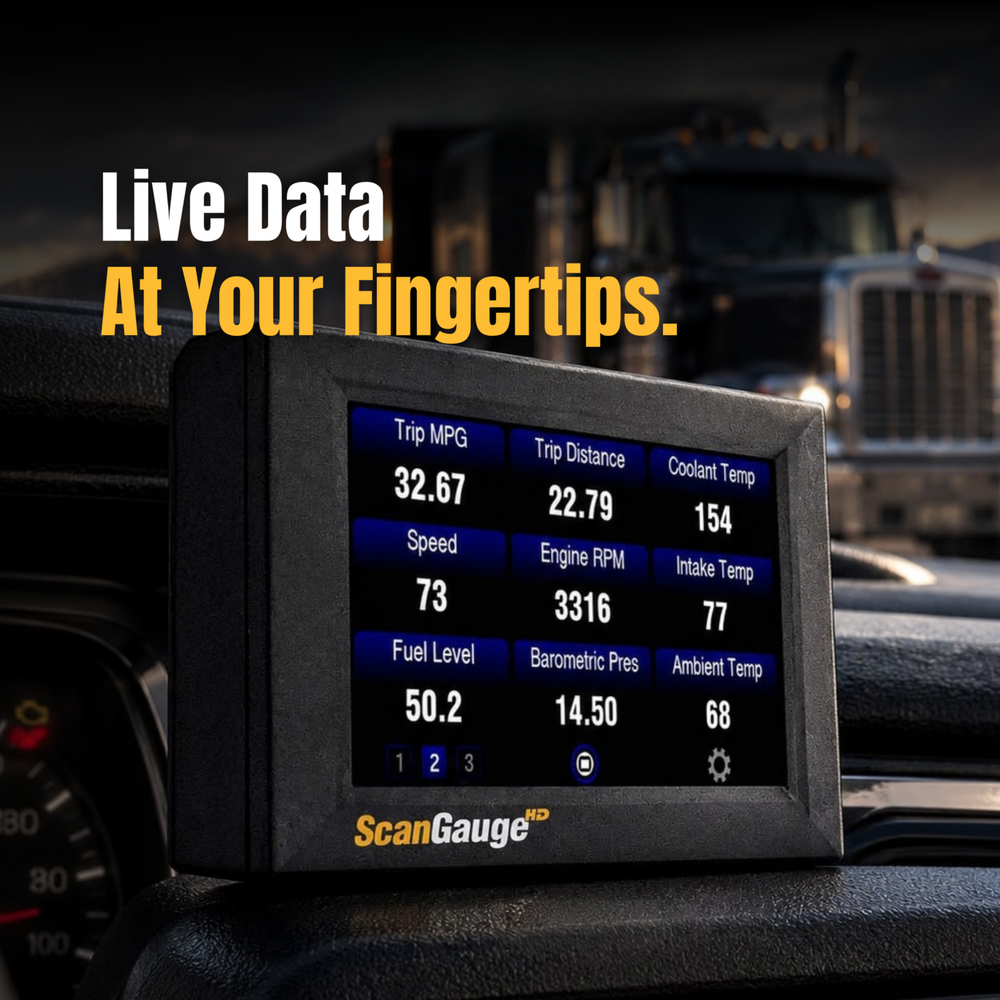

• 15+ Real-Time Engine Gauges – Monitors essential operating parameters, including engine RPM, coolant temperature, oil pressure, boost, battery voltage and fuel consumption, with up to nine gauges displayed simultaneously.
• Automatic X-Gauge™ Configuration – Automatically identifies supported vehicle-specific parameters, enabling access to additional engine and transmission information without manual gauge code entry.

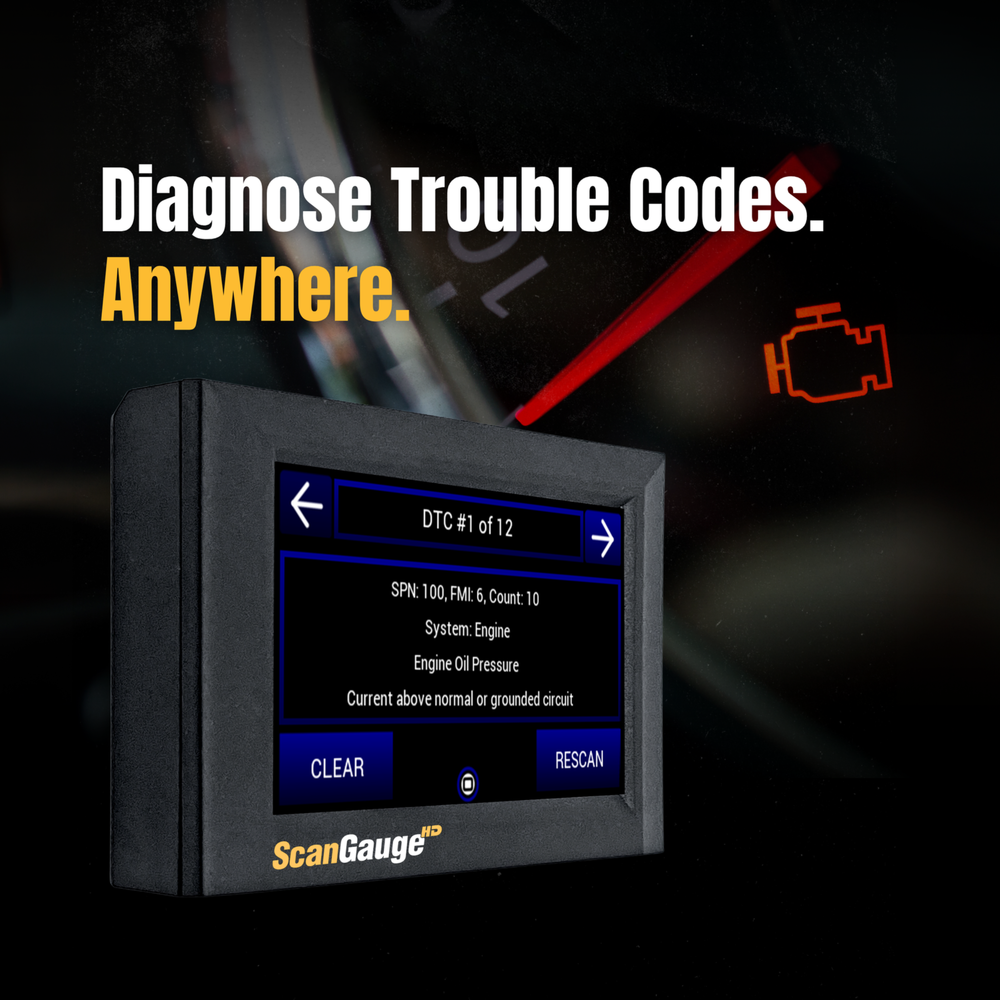

• Heavy Diesel Fault Code Diagnostics – Reads and clears supported diagnostic trouble codes, with access to available fault-related data to assist with troubleshooting and maintenance decisions.

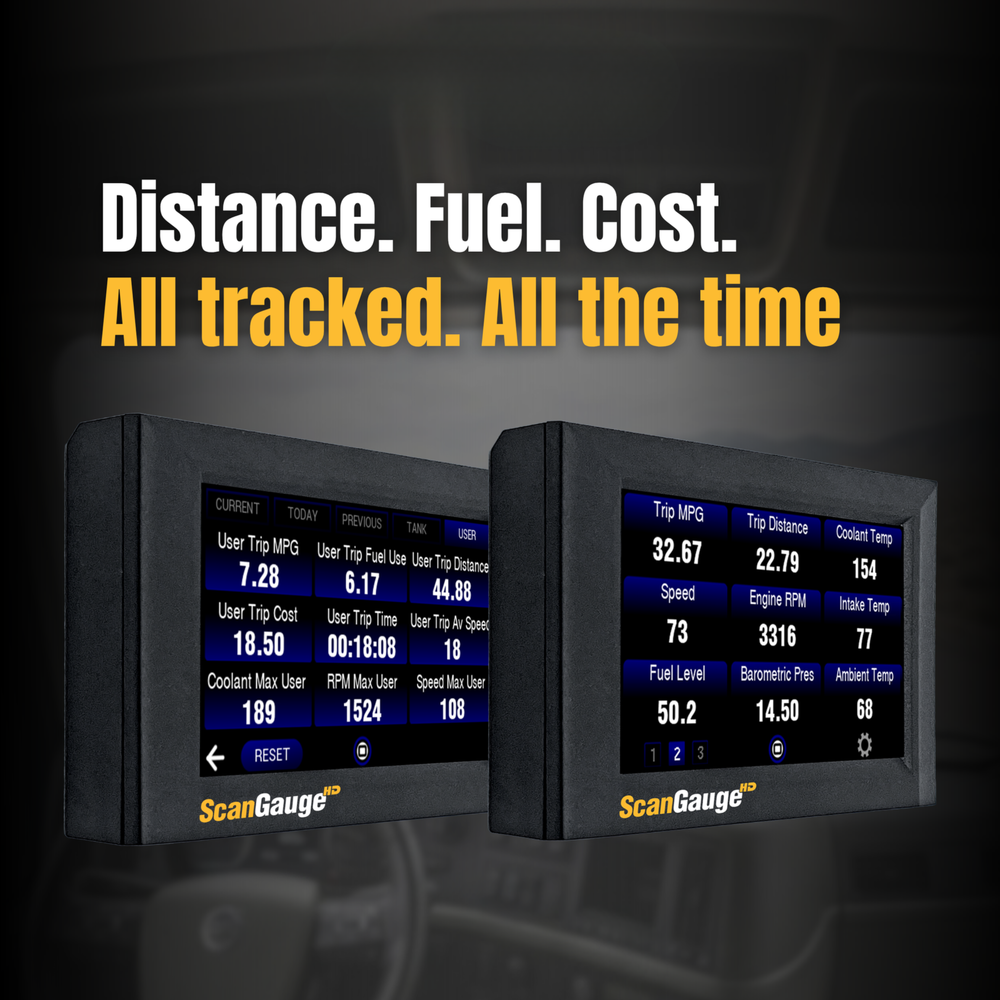

• Five Integrated Trip Computers – Provides three time-and-distance logs and two fuel tank monitoring functions to track travel distance, operating hours, fuel consumption, average speed and estimated fuel costs.
• Advanced Fuel Economy Monitoring – Displays instantaneous and average fuel consumption in L/100km, litres per hour and cost per kilometre, supporting fuel efficiency assessment and operating cost management.
• Customisable Audible and Visual Alerts – Allows high and low alarm thresholds to be configured for supported gauges, helping operators identify abnormal engine conditions such as excessive coolant temperature or low oil pressure.
• Multiple Gauge Display Pages – Supports customisable gauge arrangements and favourite display pages, allowing operators to prioritise relevant engine information for different operating conditions.
• Wireless Firmware Updates – Includes built-in Wi-Fi functionality for convenient firmware updates without connecting the monitor to a computer or using additional programming cables.

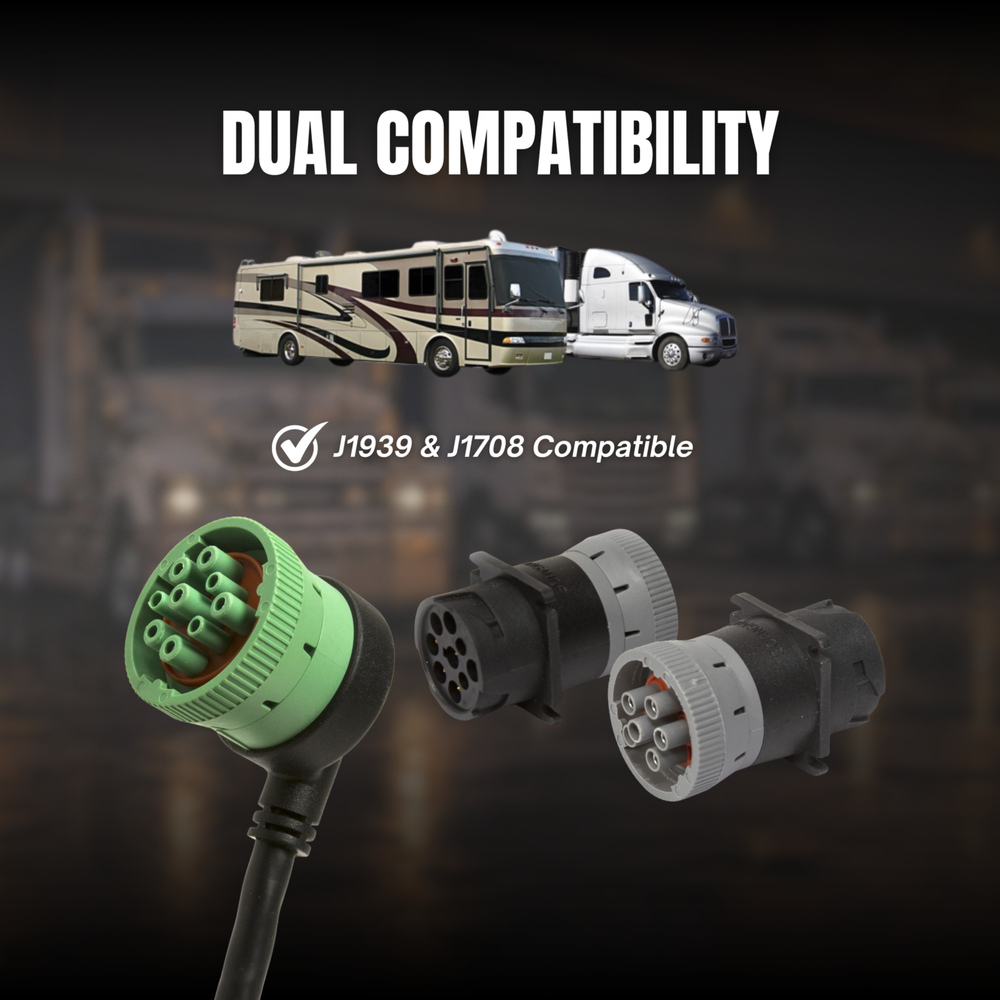

• Plug-and-Play Diagnostic Connection – Connects directly to compatible 9-pin J1939 or 6-pin J1708 diagnostic ports, drawing power from the vehicle and eliminating the need for separate power wiring.
• Metric and Imperial Measurement Support – Provides selectable measurement units, including kilometres, litres, degrees Celsius and kPa, making the monitor suitable for Australian heavy vehicle applications.

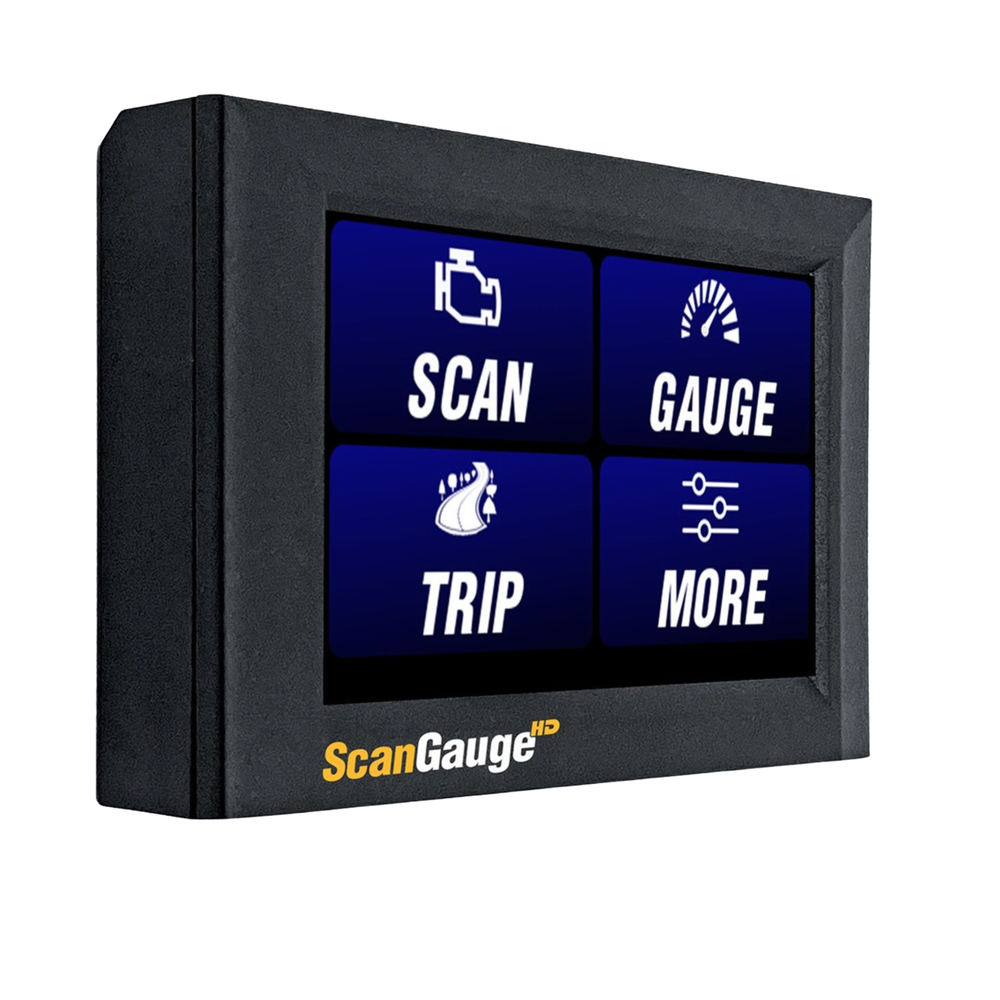

• Compact Window-Mounted Design – Features a compact housing and supplied window mount for convenient positioning within the driver's cabin while maintaining visibility of essential engine information.
• Australian Firmware and Local Support – Supplied with Australian firmware pre-installed, a three-year Australian warranty and access to local product support.

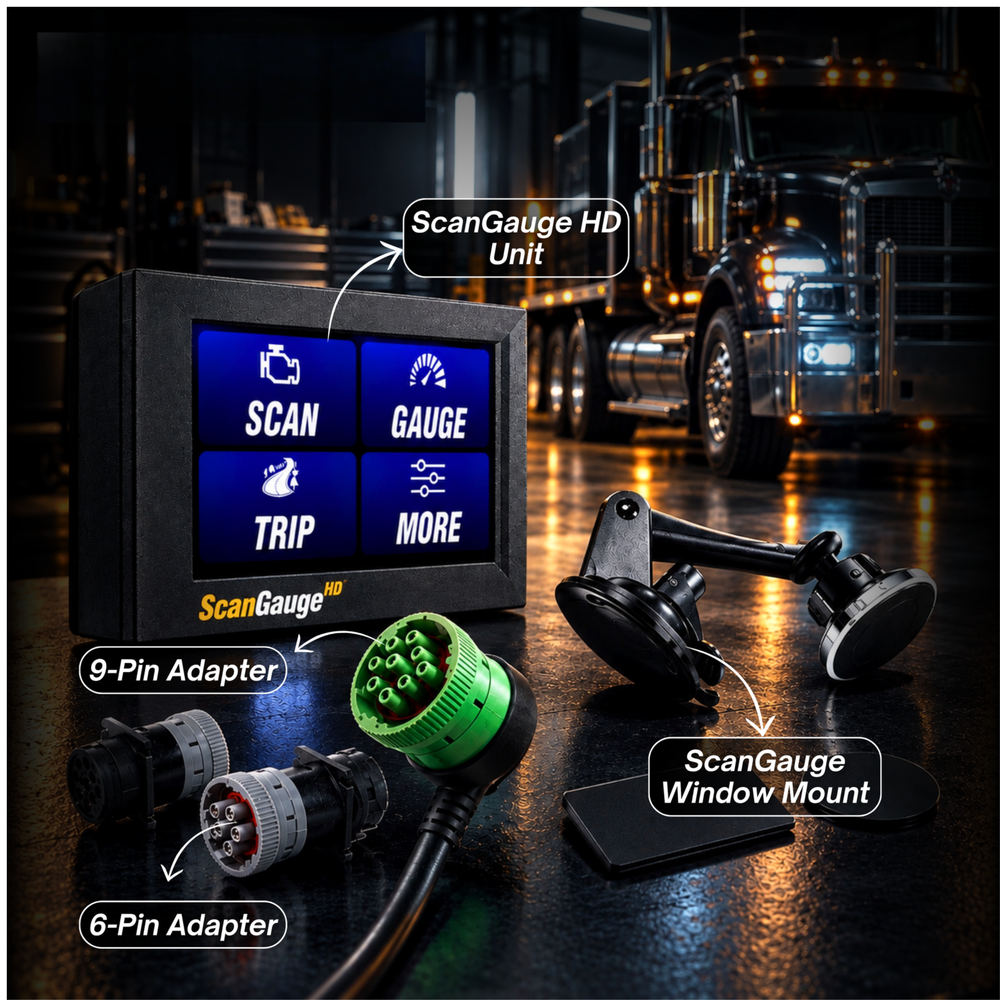

Package Includes

• 1 × ScanGauge HD unit (latest Australian firmware)
• 1 × J1939 9-pin cable
• 1 × J1708 6-pin adapter
• 1 × Window mount
• User Manual
