The Scangauge-KR is a Truck OBD Scan Tool that offers a great way to scan heavy diesel vehicles that use J1939 and J1708 OBD protocols. It effectively monitors your vehicle and provides real-time information crucial to manage your vehicle. Incorporates well over 15 digital gauges, trip data consisting of 5 sets as well as a simple engine scan tool. Features include trip Profit/Loss real-time feedback specially designed for drivers who make income by the hour and by the KM to achieve the maximum amount of profit while driving.

Drive Smarter, Improve Fuel Economy & Increase Profits

The Profit/Loss feature built into ScanGauge-KR combines your reimbursement rate, fuel cost-per-gallon/litre and your actual fuel economy to give you direct feedback of your income-per-hour, while you drive. Now, you can see how adjusting your speed, gearing and other factors you control will effect your income-per-hour. The $PH gauge can be used to find the maximum income point for the current driving conditions.

Digital Gauges

ScanGauge-KR provides real-time gauges to show you what is going on “under the hood” with more than 15 built-in digital gauges. The gauge screen allows you to select and display 4 gauges at a time, so you can monitor the current operating conditions of your vehicle in real-time.

• CLSD LP / OPEN LP: Fuel System Loop Status
• MAP: Manifold Absolute Pressure
• BST: Boost
• KPG / LHK / KPL / KPH: Fuel Economy & Consumption
• RPM: Revolutions Per Minute
• TPS: Throttle Position Sensor
• FWT / CWT: Water Temperature
• AVG: Average Fuel Economy
• TFC: Trip Fuel Cost
• CPM: Cost Per Mile
• VLT: Battery Voltage
• FIA / CIA: Intake Air Temperature
• FPR: Fuel Pressure
• GPH / LPH: Litres / Gallons Per Hour
• IGN: Ignition Timing
• LOD: Engine Loading
• HPR: Horsepower

Auto Trip Computers

Five built-in trip computers keep track of everything from fuel cost to distance traveled and everything in between. The TRIP modes in the ScanGauge can be used to save fuel. Improved driving habits can improve fuel economy by up to 30%.

The ScanGauge-KR lets you try different driving techniques and routes and gives quick feedback on how they affect fuel use. TANK Trip which you reset when you fill up the tank. It can provide you with “to empty” data as well as other useful information.

• Fuel Economy
• Fuel Used and Cost
• Maximum Coolant Temp
• Distance
• Maximum RPM
• Drive Time
• Maximum Speed
• Average Speed
• Total CO2
• Current Tank of Fuel information : Distance to Empty / Time to Empty / Fuel to Empty

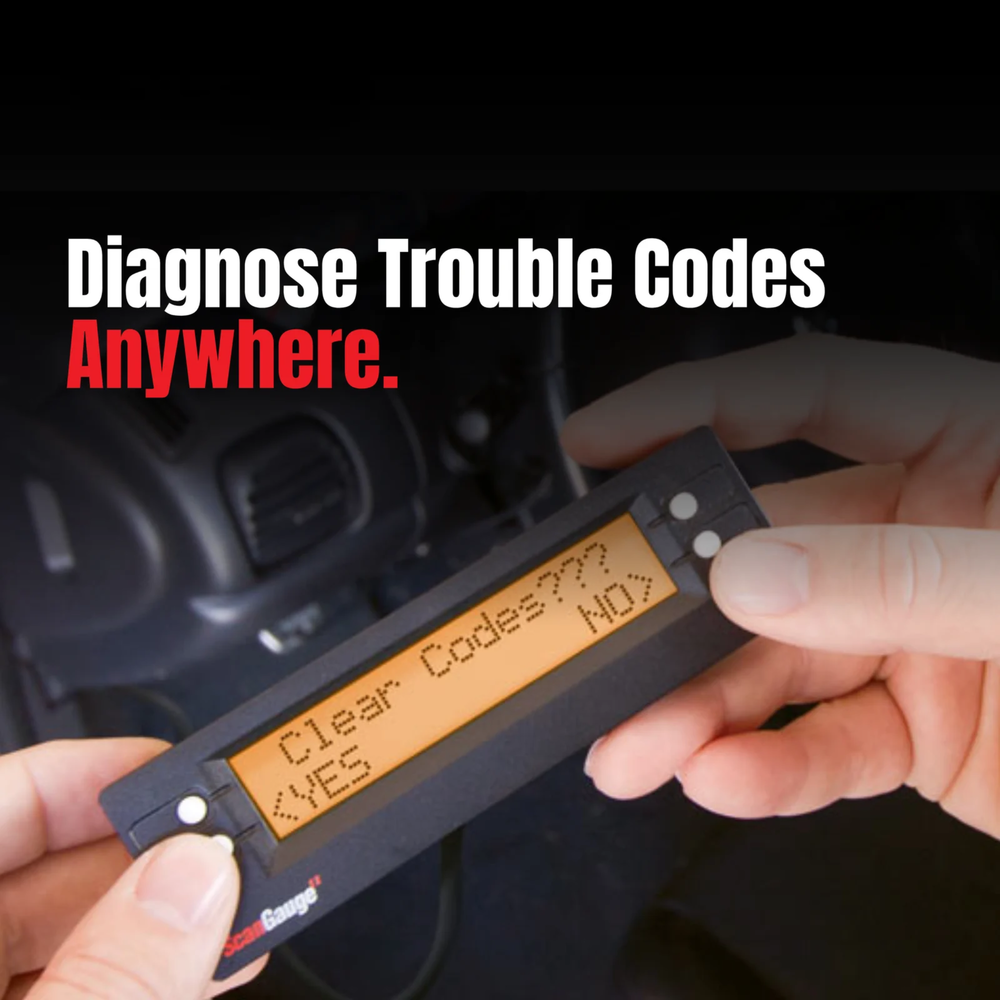

Diagnostic Scan Tool

ScanGauge-KR Can display Diagnostic trouble code, tells you how many there are and the Trouble Codes themselves. Data captured when the Trouble Code was set can be recalled to help troubleshoot the problems.

• Reads and Clears Engine Trouble Codes
• Shows Conditions When Trouble Was Detected (RPM, COOLANT, TEMP etc)
• Turns Off “CHECK ENGINE” Lamp
• Shows When Onboard Tests Have Been Completed And Vehicle Is Ready To Pass OBDII emissions Testing
