TOPDON BT100W Bluetooth 12V Battery Tester

TOPDON BT100W Bluetooth 12V Battery & System Tester

Bluetooth 12V Battery & Electrical System Tester

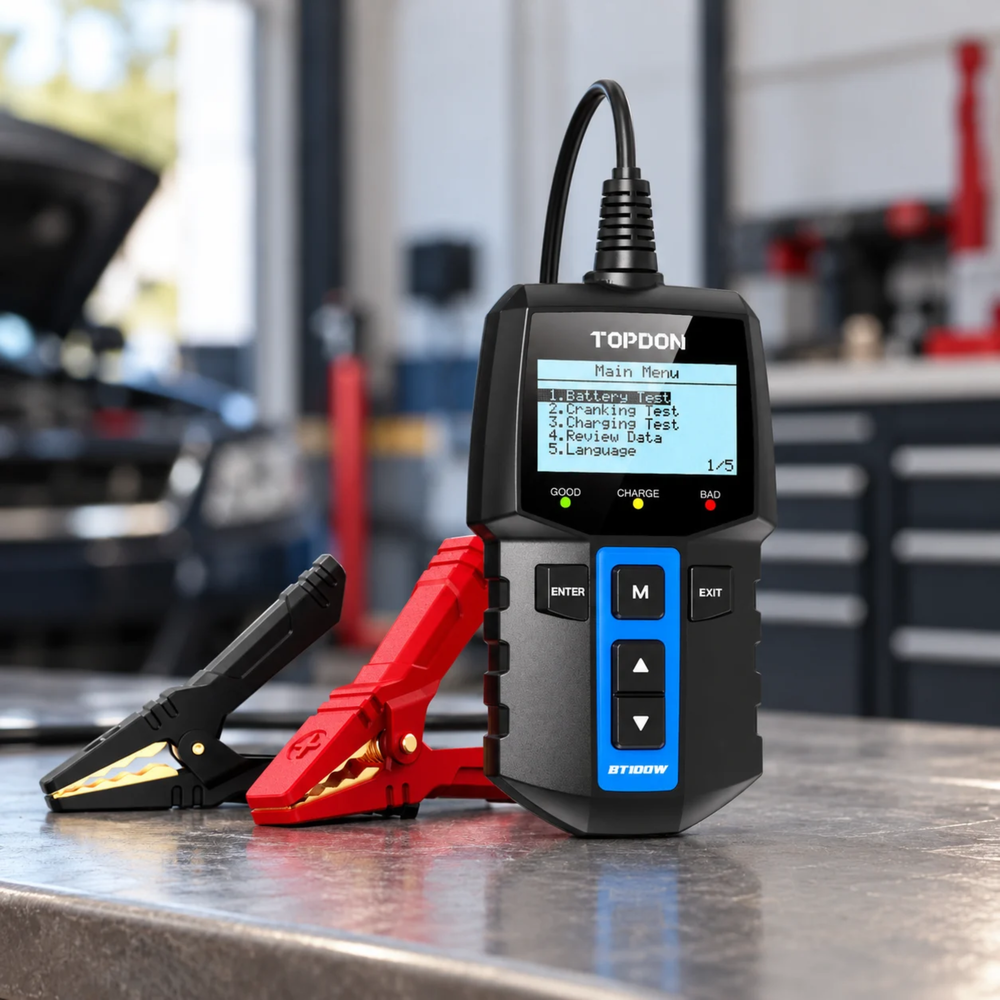

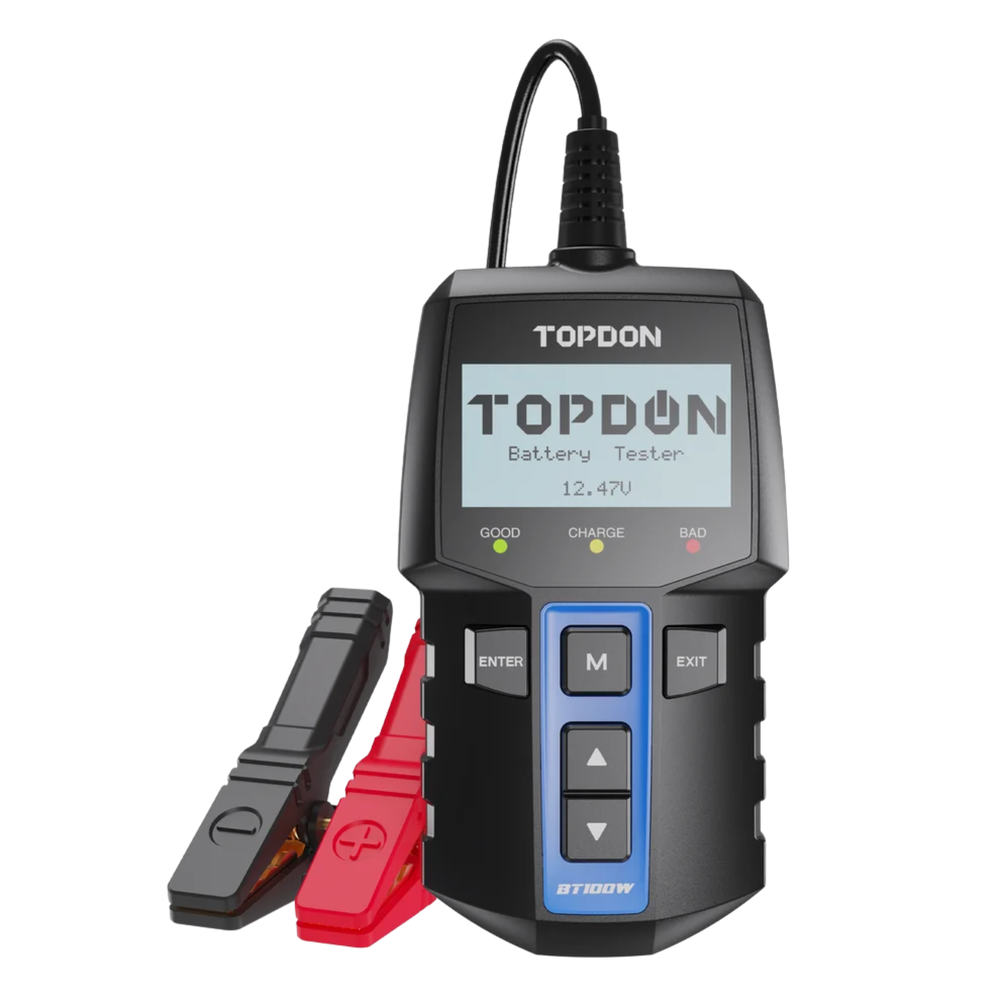

The TOPDON BT100W is a professional 12V automotive battery and electrical system tester with Bluetooth connectivity for convenient mobile app integration. Designed for automotive technicians, workshops and vehicle owners, it performs battery, cranking and charging tests to assess battery condition and electrical system performance. Its standalone interface provides quick on-device testing, while the companion app enables comprehensive system testing, detailed battery analysis, test report management and access to a built-in battery reference library.

The TOPDON BT100W is a professional 12V automotive battery and electrical system tester with Bluetooth connectivity for convenient mobile app integration.

Main Features

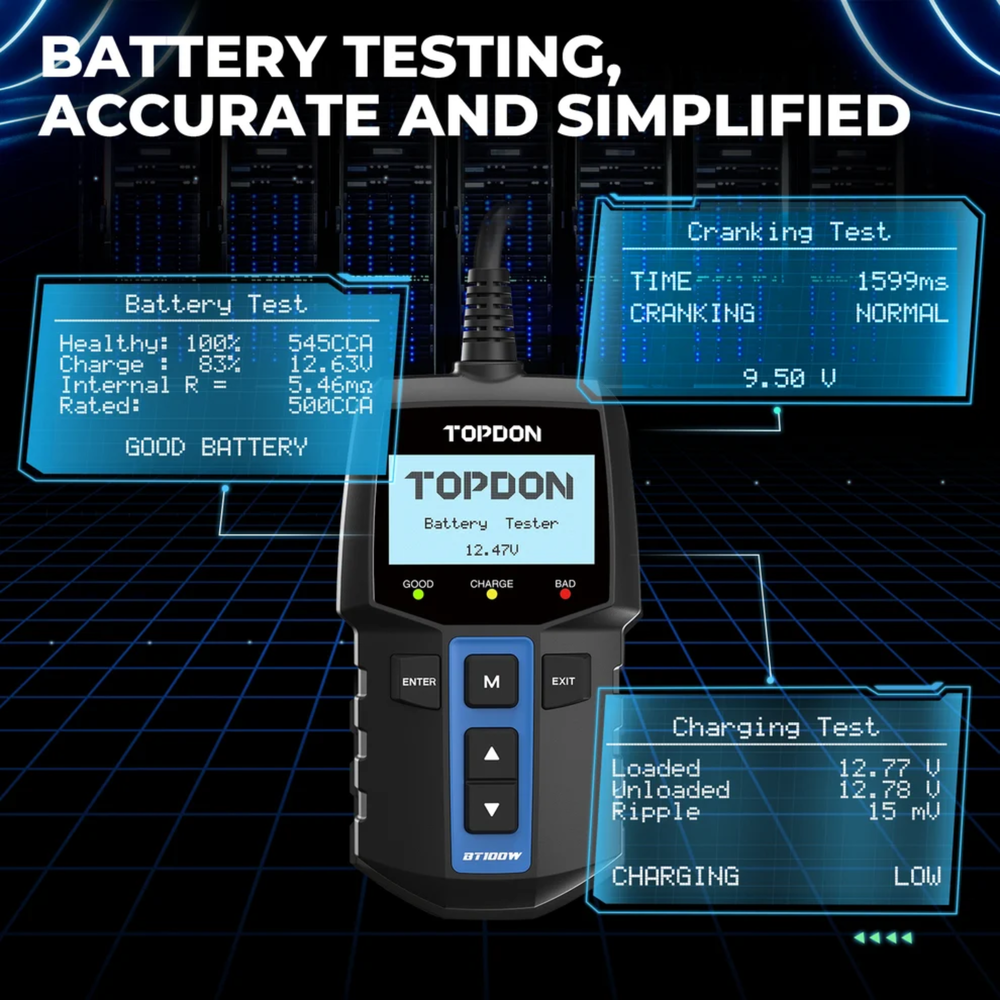

Professional 12V Battery Testing – Evaluates automotive battery condition by measuring state of health (SOH), state of charge (SOC), cold cranking amps (CCA), and internal resistance to identify potential battery performance issues.

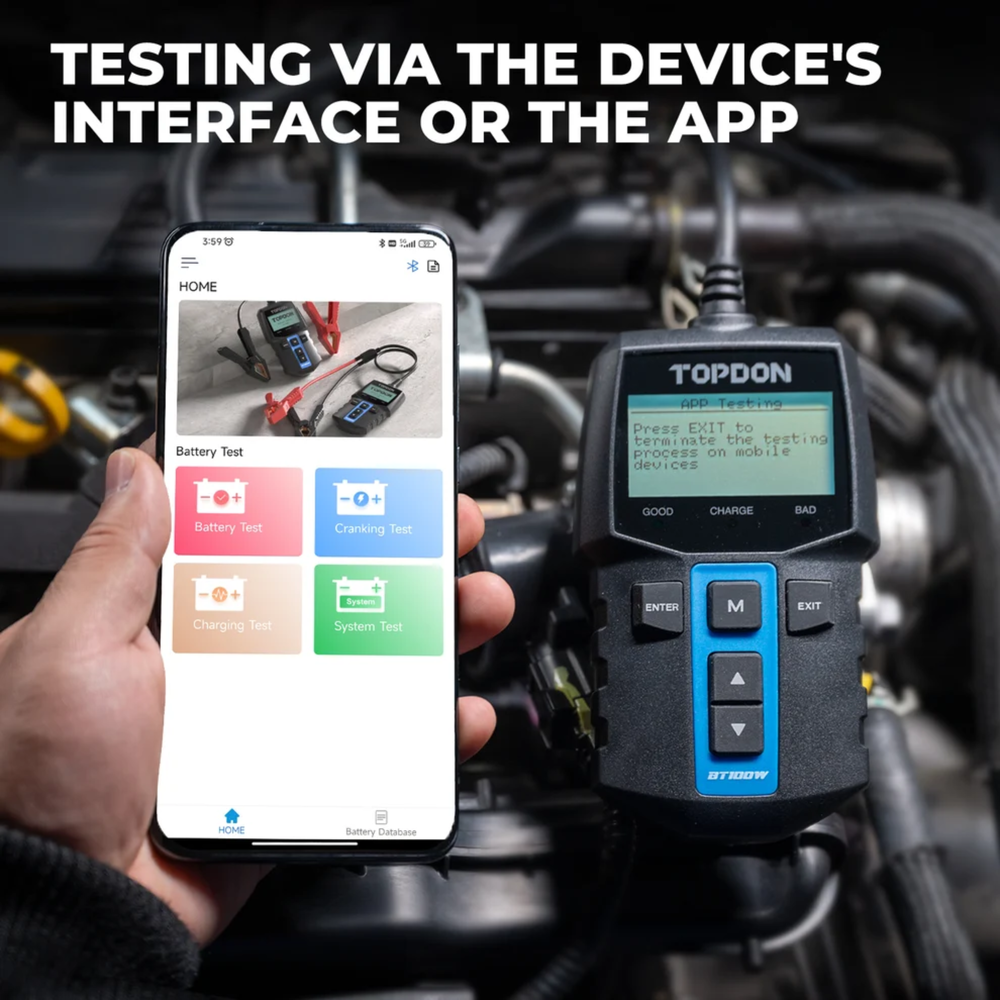

Bluetooth Mobile App Connectivity – Connects wirelessly to the compatible mobile application for advanced battery diagnostics, comprehensive system testing, detailed analysis, and convenient test report management.
Standalone Battery Testing – Performs essential battery tests directly through the integrated LCD interface without requiring a smartphone, providing convenient testing for workshops and automotive technicians.

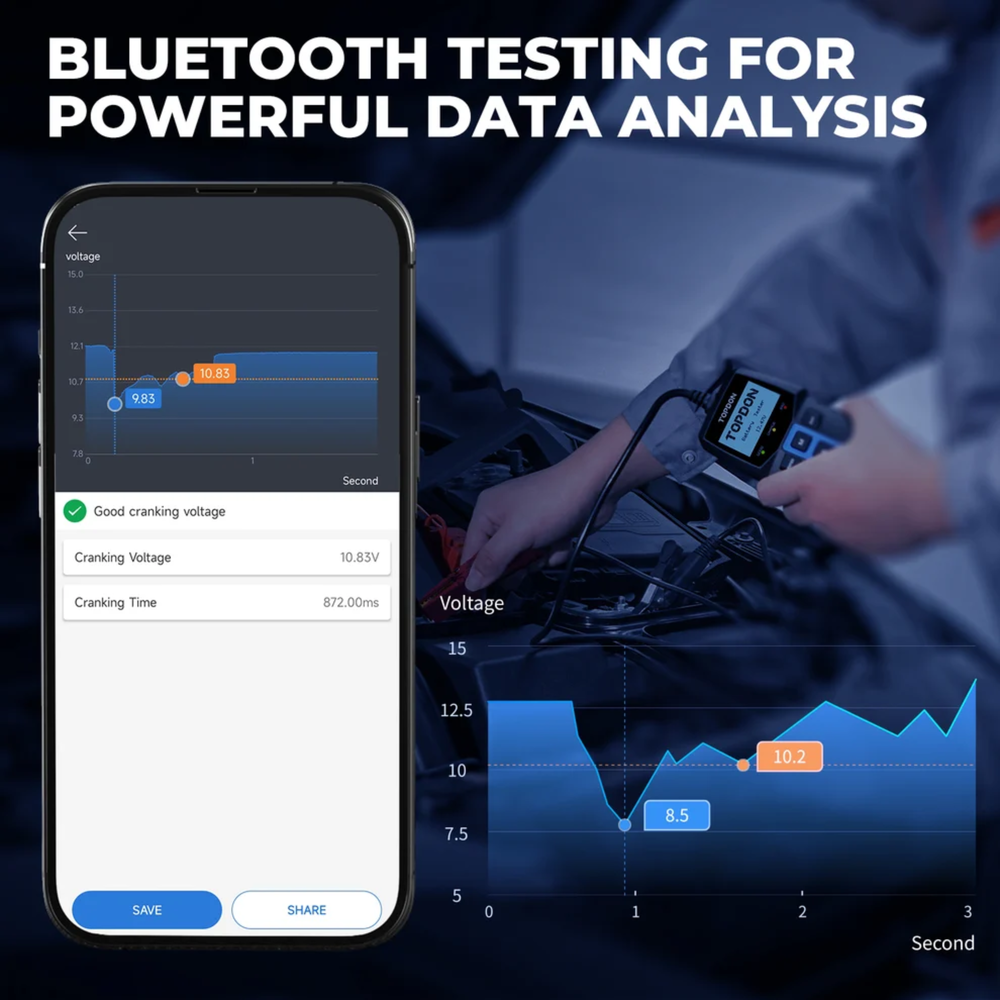

Comprehensive Cranking System Analysis – Measures engine cranking voltage and cranking time to assess starting performance and identify potential battery or starting system faults.
Vehicle Charging System Testing – Evaluates automotive charging system performance to help identify irregular charging conditions and potential alternator-related issues.
One-Touch System Testing – Performs combined battery, cranking, and charging tests through the companion mobile app with a single command, streamlining diagnostic procedures and improving workshop efficiency.

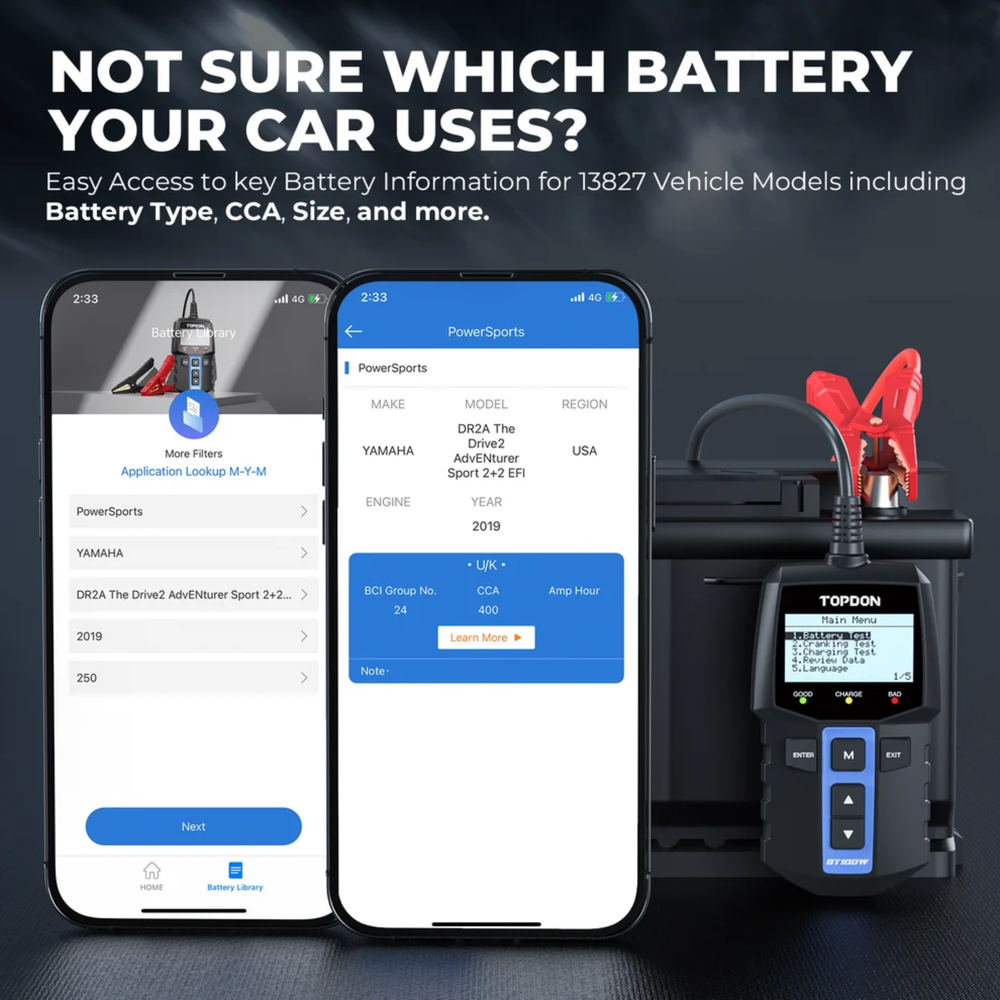

Integrated Battery Reference Library – Provides access to essential battery information, including testing standards, cold cranking amp ratings, and technical specifications, through the mobile application.

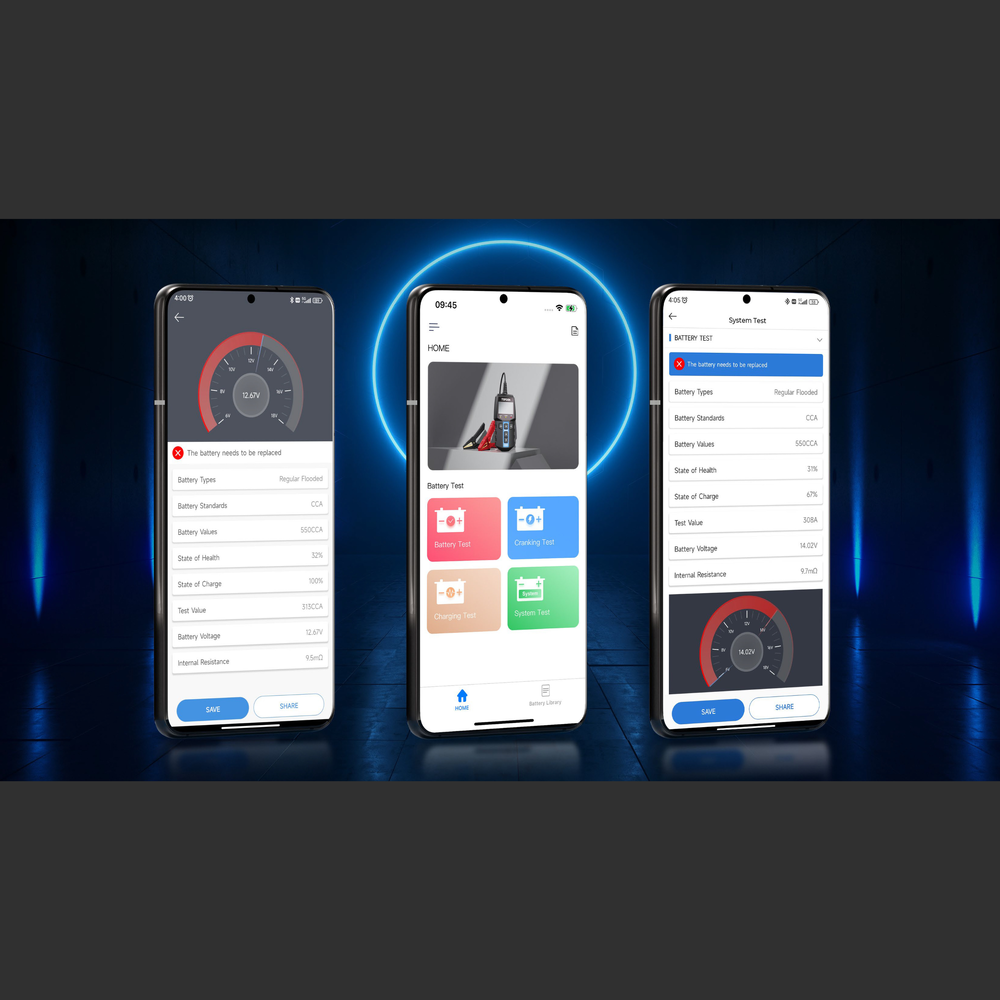

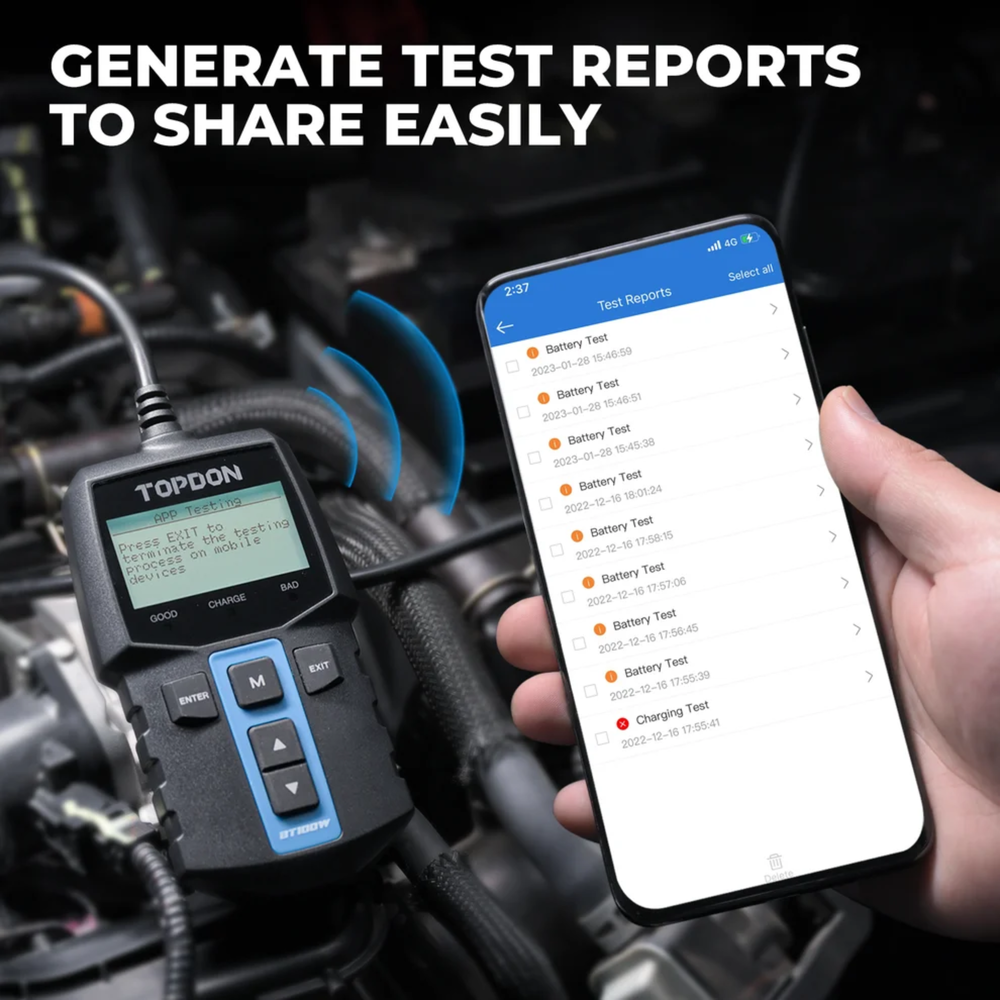

Detailed Digital Test Reports – Generates comprehensive battery diagnostic reports containing state of health, state of charge, internal resistance, and other key measurements for convenient review and recordkeeping.

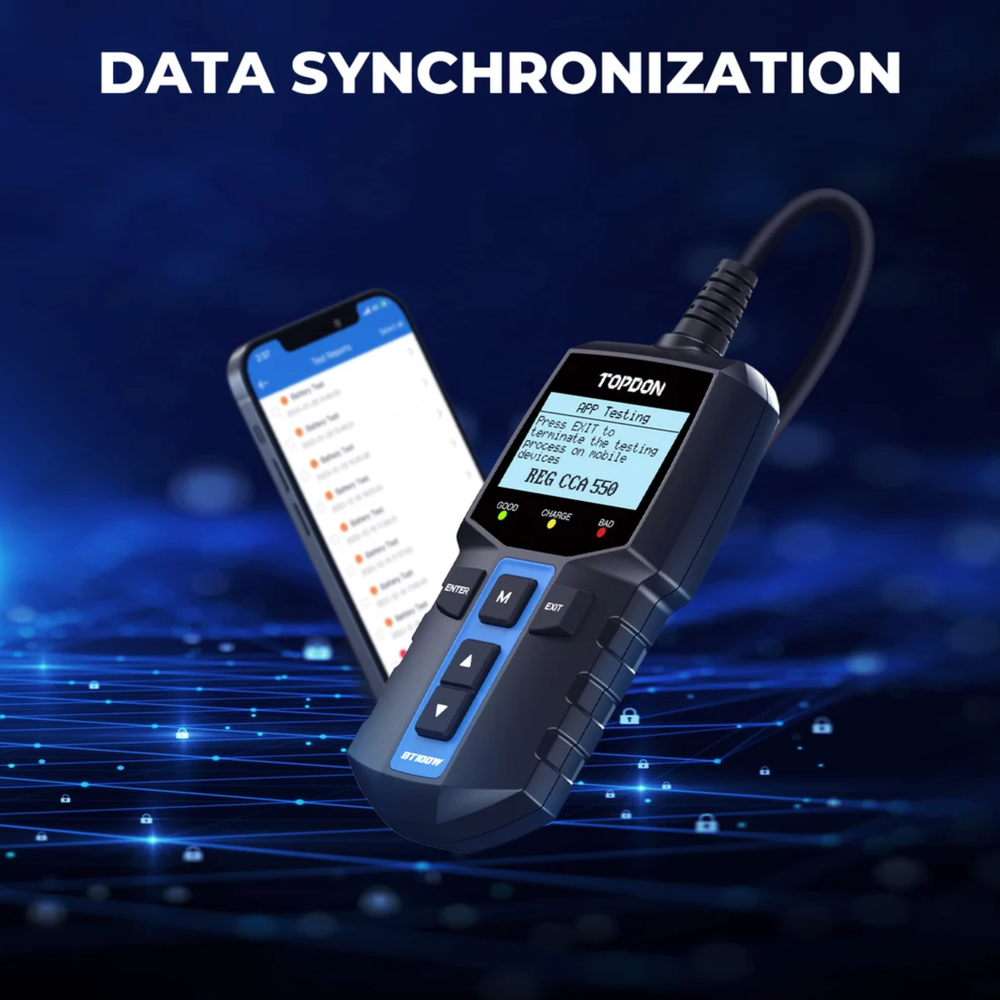

Seamless Data Synchronisation – Synchronises diagnostic information between the BT100W tester and compatible mobile application, ensuring consistent access to battery testing results across both interfaces.
Clear LCD Display – Features an integrated 128 × 64 LCD screen for convenient viewing of battery test measurements, diagnostic information, and test results directly on the device.
Bluetooth 5.0 Wireless Communication – Supports Bluetooth 5.0 connectivity with a communication range of up to 10 metres, enabling convenient wireless operation with a compatible mobile device.
Wide Battery Testing Range – Supports battery testing from 100 to 2000 CCA, providing versatile diagnostic capability across a range of compatible 12V automotive batteries.
Multilingual Device and App Support – Offers eight selectable languages on the tester and nine languages through the mobile application, supporting technicians and automotive workshops across different regions.
Compact and Portable Design – Features a lightweight construction with an integrated testing interface and battery clamps, making it suitable for workshop servicing, routine maintenance, and mobile automotive diagnostics.

Package Includes

1 x TOPDON BT100W Battery Tester
1 x User Manual
1 x Quick User Guide

Why Buy the TOPDON BT100W Bluetooth Battery Tester?

TOPDON BT100W Bluetooth battery diagnostic tool for automotive workshops

Professional 12V automotive battery testing

Bluetooth connectivity for mobile app diagnostics

Standalone battery testing with integrated LCD display

Battery health (SOH), charge (SOC) and CCA analysis

Cranking voltage and starting system testing

Vehicle charging system performance analysis

One-touch battery, cranking and charging system tests via app

Integrated battery reference library and specifications

Digital battery test reports and data synchronisation

Wide battery testing range from 100 to 2000 CCA

Bluetooth 5.0 wireless communication up to 10 metres

Multilingual support with 8 device and 9 app languages

Compact and portable design for workshop diagnostics

TOPDON Battery Tester Comparison: BT100 vs BT200 vs BT300P vs BT600 vs BT600 Plus

Every TOPDON car battery tester uses conductance testing to check battery health in seconds, with no heat, sparks or battery drain. All five test Flooded, AGM, Gel, EFB and VRLA batteries from 100 to 2000 CCA, and double as a cranking (starter) and charging (alternator) tester. The differences are 24V truck support, a built-in printer, screen size and professional workshop features.

Compare features	TOPDON BT10012V battery testerView BT100	TOPDON BT20012V tester, 24V system testView BT200	TOPDON BT300PWith built-in printerView BT300P	TOPDON BT6003.5" screen, printer & system testView BT600	Most capable TOPDON BT600 Plus6V/12V/24V + resistance testView BT600 Plus
Best for	Simple 12V battery checks at home	Home garages, plus 24V cranking & charging tests	Workshops needing printed customer reports	Workshops wanting a big screen, printer & system test	Professional, fleet & 24V truck battery testing
Battery type
Battery voltage tested	12V	12V	12V	12V	6V / 12V / 24V
Cranking & charging system voltage	12V	12V / 24V	12V / 24V	12V / 24V	12V / 24V
Battery types supported	Flooded, AGM, Gel, EFB, VRLA	Flooded, AGM, Gel, EFB, VRLA	Flooded, AGM, Gel, EFB, VRLA	Flooded, AGM, Gel, EFB, VRLA	Flooded, AGM, Gel, EFB, VRLA + internal resistance for lithium, alkaline & carbon-zinc
Test standards
Testing range	100–2000 CCA 30–220Ah (GB)	100–2000 CCA 30–220Ah (GB)	100–2000 CCA 30–220Ah (GB)	100–2000 CCA 30–220Ah (GB)	100–2000 CCA 30–220Ah (GB)
Battery rating standards	CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, GB	CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, GB	CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, GB	CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, GB	CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, GB
Test functions
Battery test	12V	12V	12V	12V	6V / 12V / 24V
Cranking (starter) test	12V	12V / 24V	12V / 24V	12V / 24V	12V / 24V
Charging (alternator) test	12V	12V / 24V	12V / 24V	12V / 24V	12V / 24V
Full system test	–	–	–	12V	12V / 24V
Ripple (alternator diode) test	✓	✓	✓	✓	✓
Internal resistance test	–	–	–	–	✓
Sequence (batch) test	–	–	–	–	✓ Up to 500 batteries per group
Data & software
Stored test results	Last 1	Last 1	Last 1	Last 1	Last 10
Software updates	–	–	–	✓	✓
Smartphone app	–	–	–	–	–
Screen & hardware
Display	2" backlit LCD	2.4" colour	2.4" colour	3.5" colour	3.5" colour
Built-in thermal printer	–	–	✓	✓	✓
Rechargeable internal battery	–	–	–	–	5200mAh Tests flat batteries down to 2V
Other
Languages	English, Spanish, French, German, Italian, Russian	English, Spanish, French, German, Italian, Portuguese, Russian, Japanese	English, Spanish, French, German, Italian, Portuguese, Russian, Japanese	English, Spanish, French, German, Italian, Portuguese, Russian, Japanese	English, Spanish, French, German, Italian, Portuguese, Russian, Japanese

Battery voltage tested is the battery the tester can assess directly. Cranking & charging system voltage is the vehicle system it can check. Only the BT600 Plus tests 24V batteries directly; the BT200, BT300P and BT600 test 12V batteries and check the cranking and charging systems of 24V vehicles.

Comparison tables are for reference only and based on TOPDON specifications. Refer to each product page or contact us for more information.

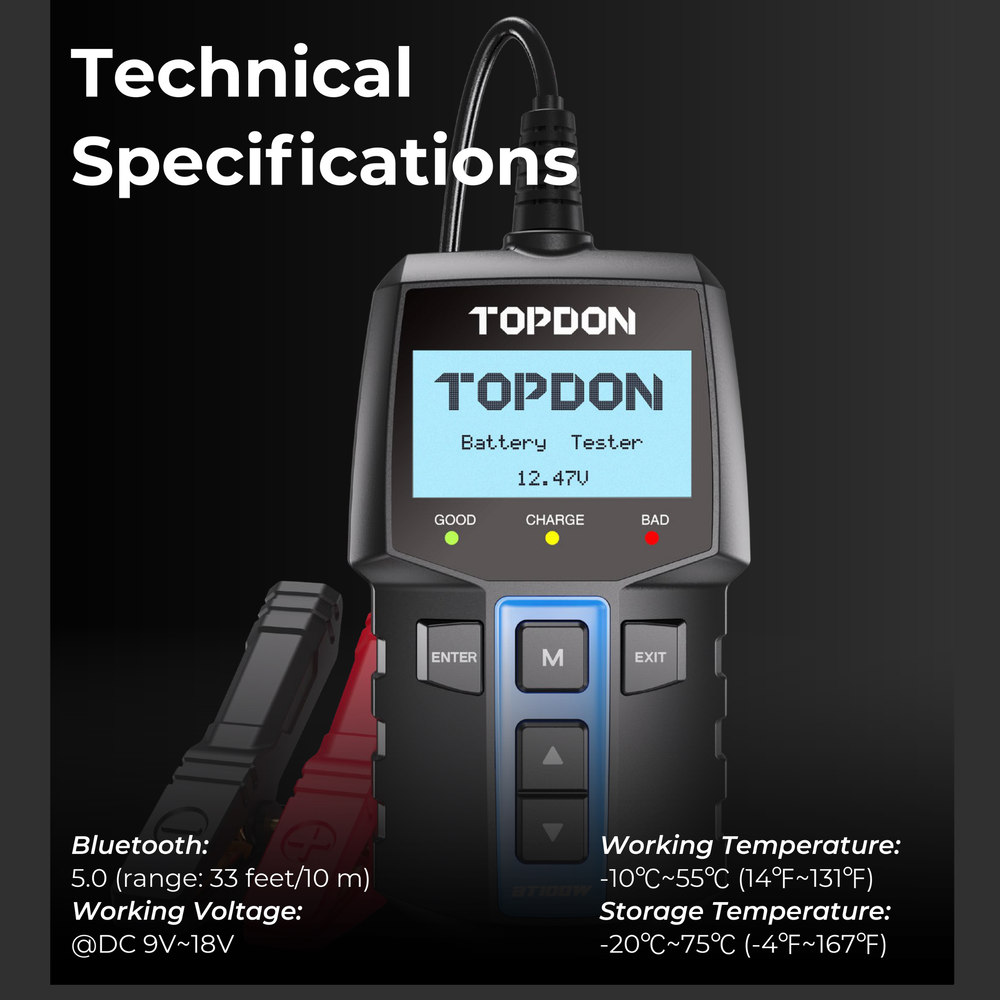

TOPDON BT100W Bluetooth Battery Tester – Technical Specifications

TOPDON BT100W professional battery tester with LCD display

Model: BT100W

Testing Range: 100–2000 CCA, 30–220 Ah (GB)

Testing Voltage: 12V

Battery Standards: CCA/CA/BCI/MCA/DIN/IEC/EN/SAE/JIS/GB

Ripple Test: Yes

12V Battery Test: Yes

12V Cranking Test: Yes

12V Charging Test: Yes

System Test: 12V

Mobile App: Smartphone compatible

Display: 128 x 64 LCD display

Built-in Printer: No

Compatible Battery Types: Flooded, AGM, Gel, EFB and VRLA

Battery Library: Yes

Data Retrieval: Limited

Device Languages: English, Spanish, French, German, Italian, Portuguese, Russian and Japanese

App Languages: English, Chinese, Spanish, French, German, Italian, Portuguese, Russian and Japanese

Updates: Available (subject to app support)
