TOPDON V4500 Plus 12V 4500A Jump Starter & Battery Analyzer

12V Jump Starter & Battery Analyzer 4500A

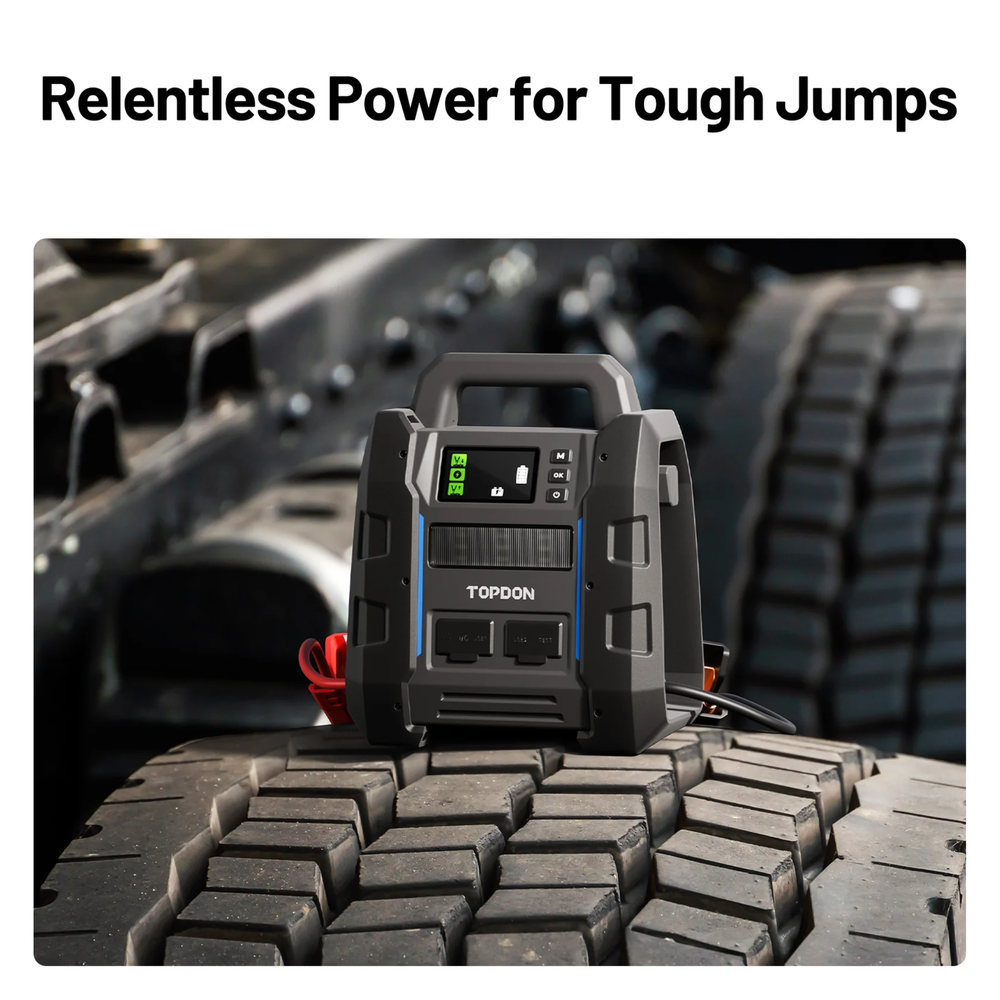

The TOPDON V4500 Plus is engineered for professional and high-displacement vehicles, delivering up to 4500A peak current to jump-start trucks, trailers, off-road vehicles, and boats within seconds. Supporting up to 45 jump-starts per charge, it doubles as a battery analyzer through the app, enabling preemptive battery checks. With 120Wh capacity, PD100W fast charging, 15 ultra-bright LEDs, and six red warning lights, it provides reliable on-the-go power, safety, and illumination in any condition.

The TOPDON V4500 Plus is engineered for professional and high-displacement vehicles, delivering up to 4500A peak current to jump-start trucks, trailers, off-road vehicles, and boats within seconds.

Main Features

Wide Vehicle Compatibility – Supports semi-trucks, trailers, SUVs, RVs, off-road vehicles, boats, pickups, motorcycles, and other 12V high-displacement vehicles for reliable portable starting power.

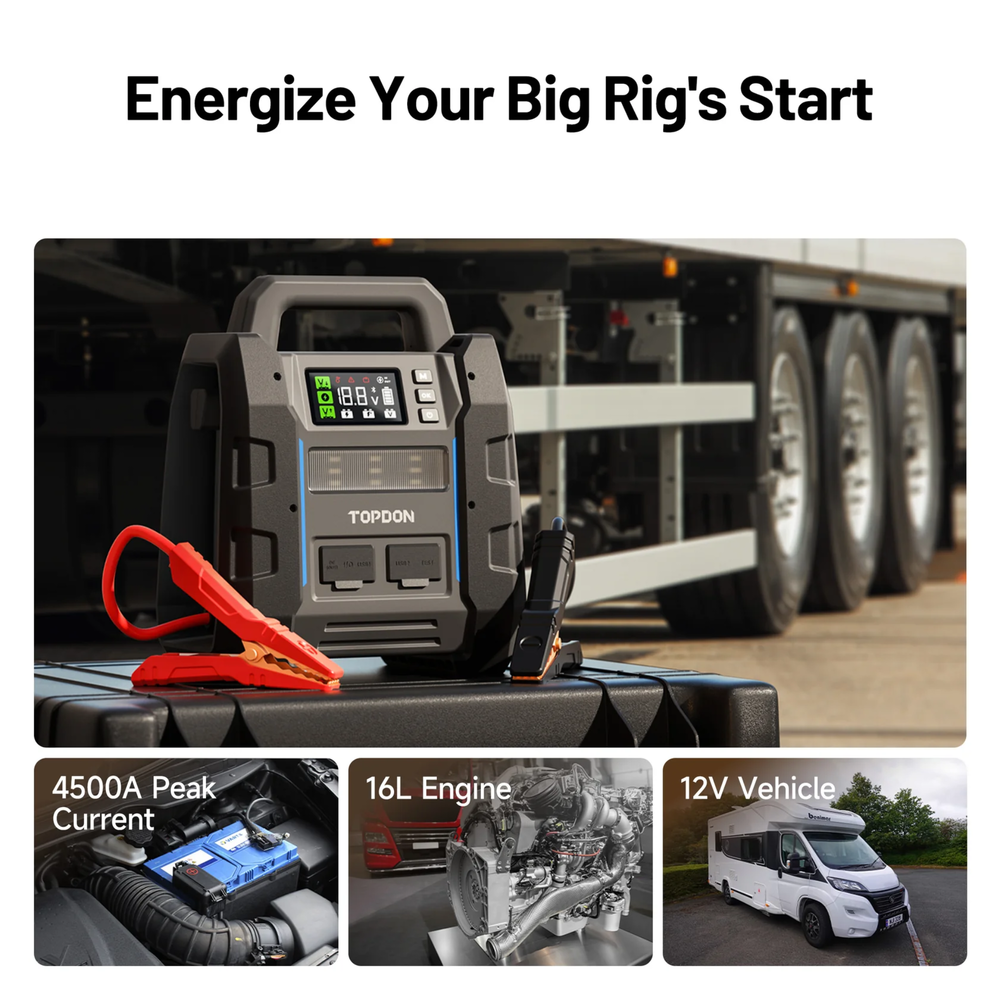

High Peak Current – Delivers 4500A for rapid jump-starts on engines up to 16L, including gasoline and diesel, even in extreme conditions or with deeply discharged batteries.

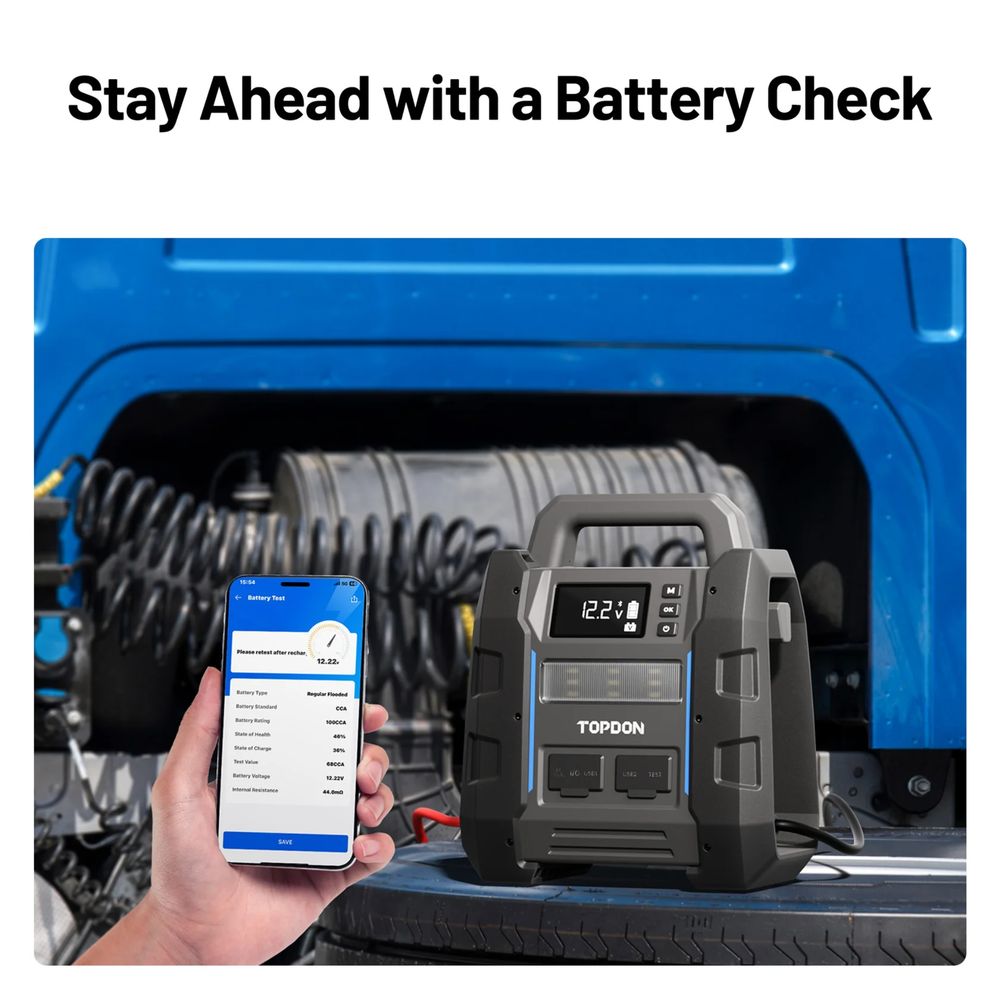

Battery Testing via App – Pair with the TOPDON app to check battery health, perform tests, and identify potential issues, reducing unnecessary service visits.
Boost Mode for Tough Batteries – Sustained 3-minute output ensures multiple jump-start attempts for stubborn or cold-weather batteries.
Portable 120Wh Powerbank – Charges phones, tablets, laptops, mini-fridges, and 12V DC devices, ensuring reliable on-the-go power.

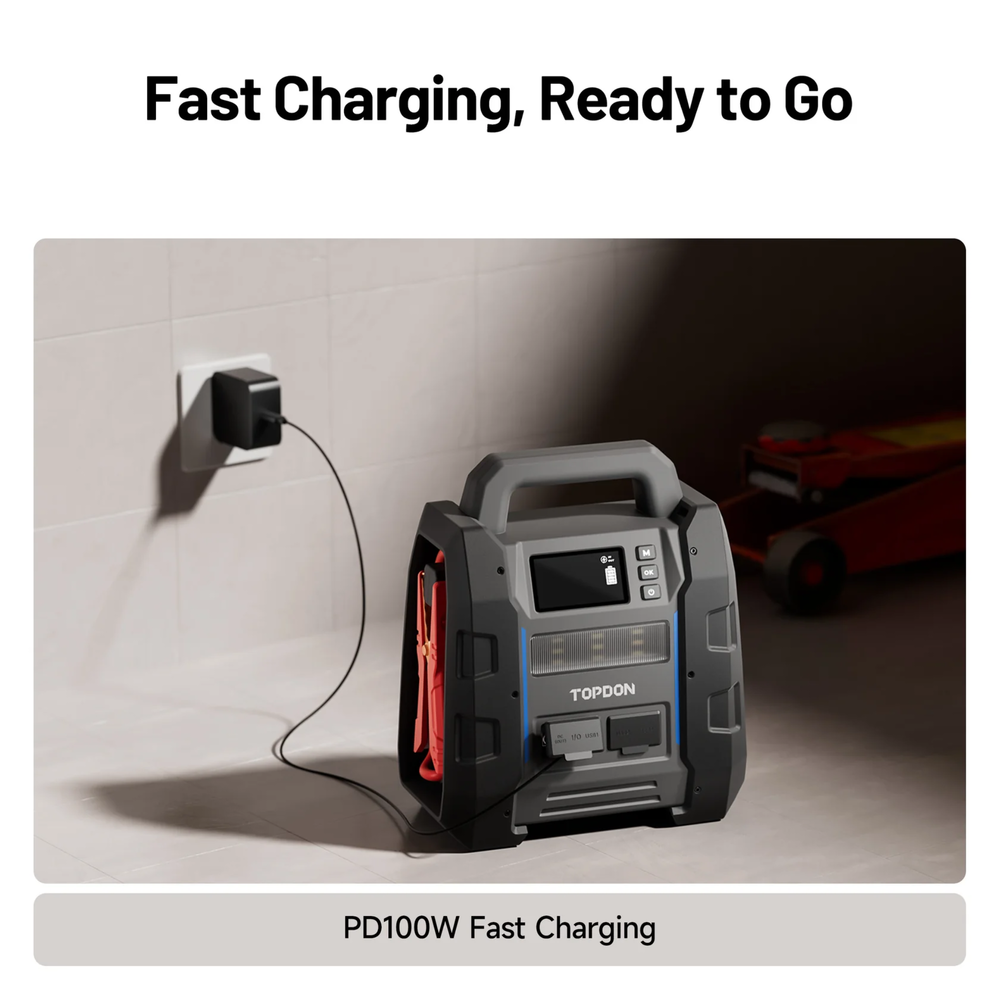

PD100W Fast Charging – Dual-direction port fully charges phones in 25 minutes and laptops in 100 minutes.
Ultra-Bright LED Lighting – 15 LEDs and 6 red warning lights provide 500 lumens for emergencies, repairs, or outdoor use, with up to 800 hours on a full charge.
Rugged & Weatherproof – IP65-rated casing protects against dust, dirt, and water for reliable outdoor use.
Comprehensive Safety Protections – 10 intelligent safeguards including reverse-polarity, short-circuit, overload, overcurrent, and temperature protections.

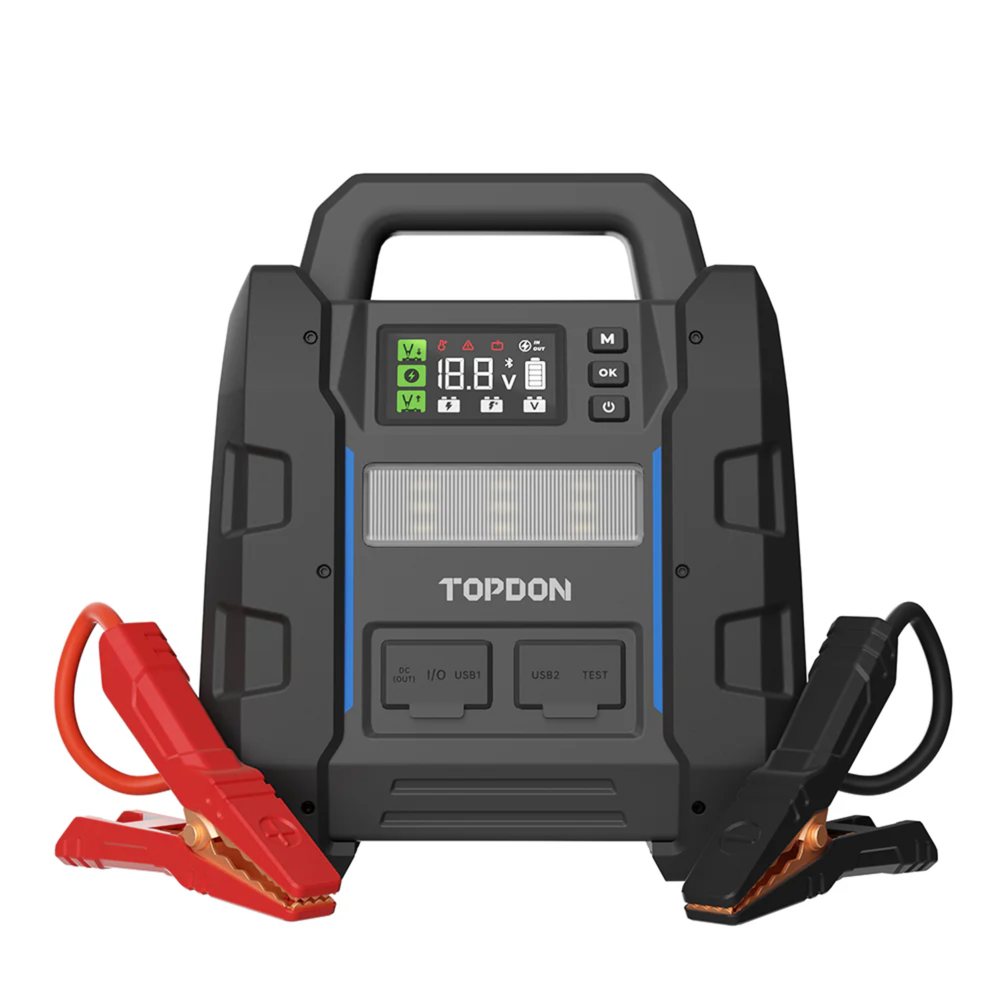

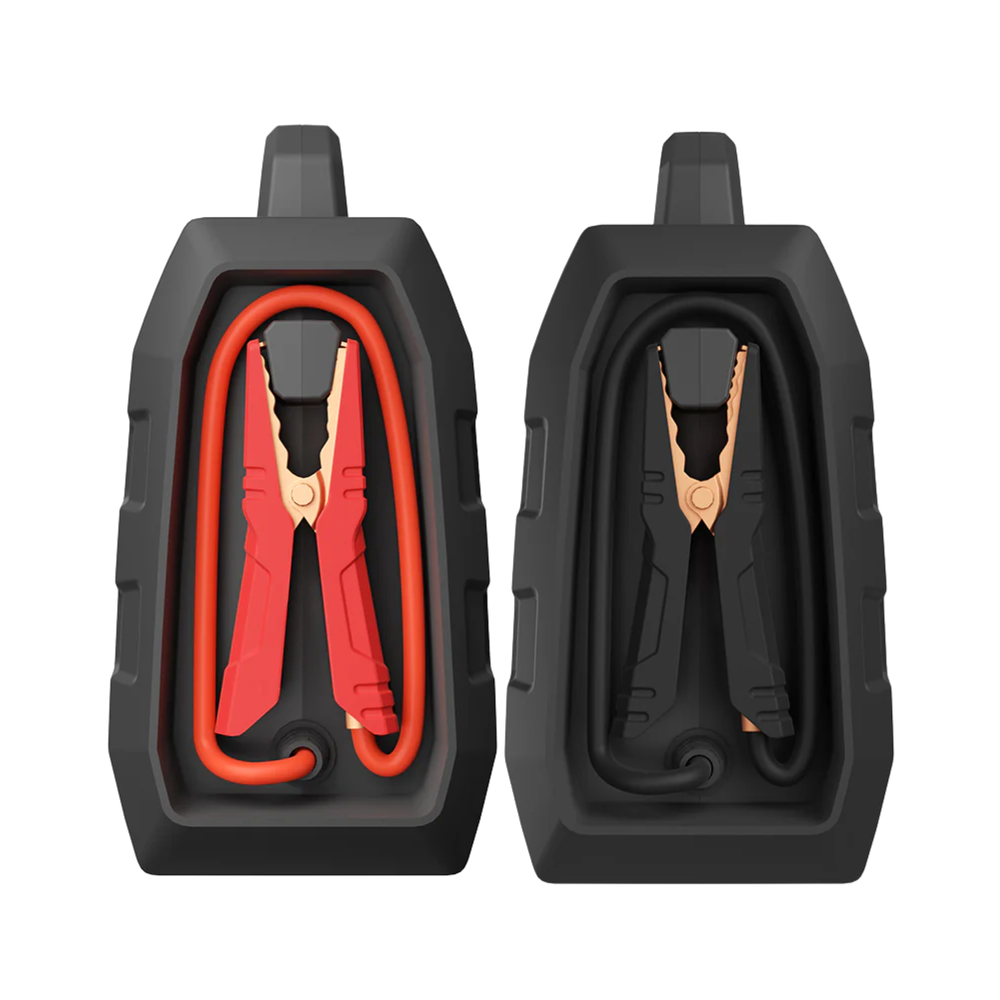

Heavy-Duty Cables & Ergonomic Design – 100% copper clamps, long cables, and compact design ensure durability and ease of operation.

Package Includes

V4500 Plus
Battery Test Clamps
PD45W Charger Adapter
DC Adapter
PD100W Cable
User Manual
Packing Box

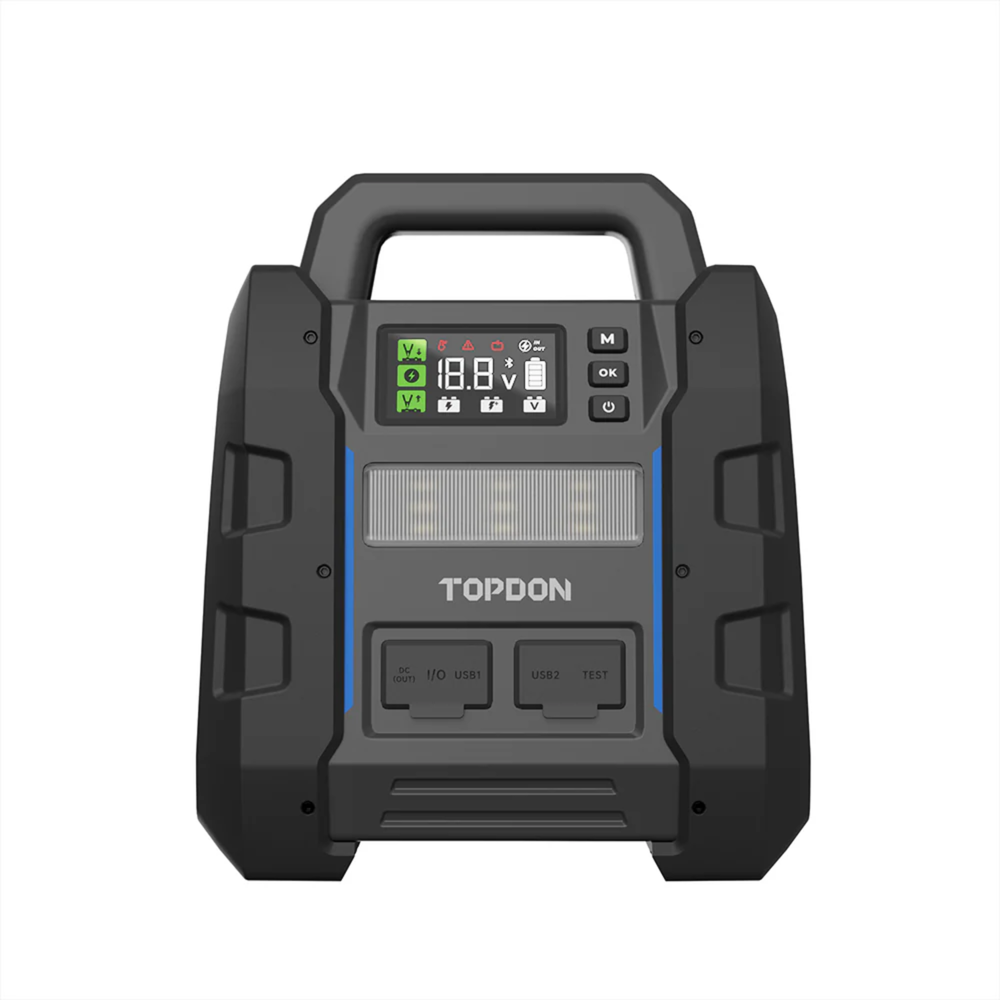

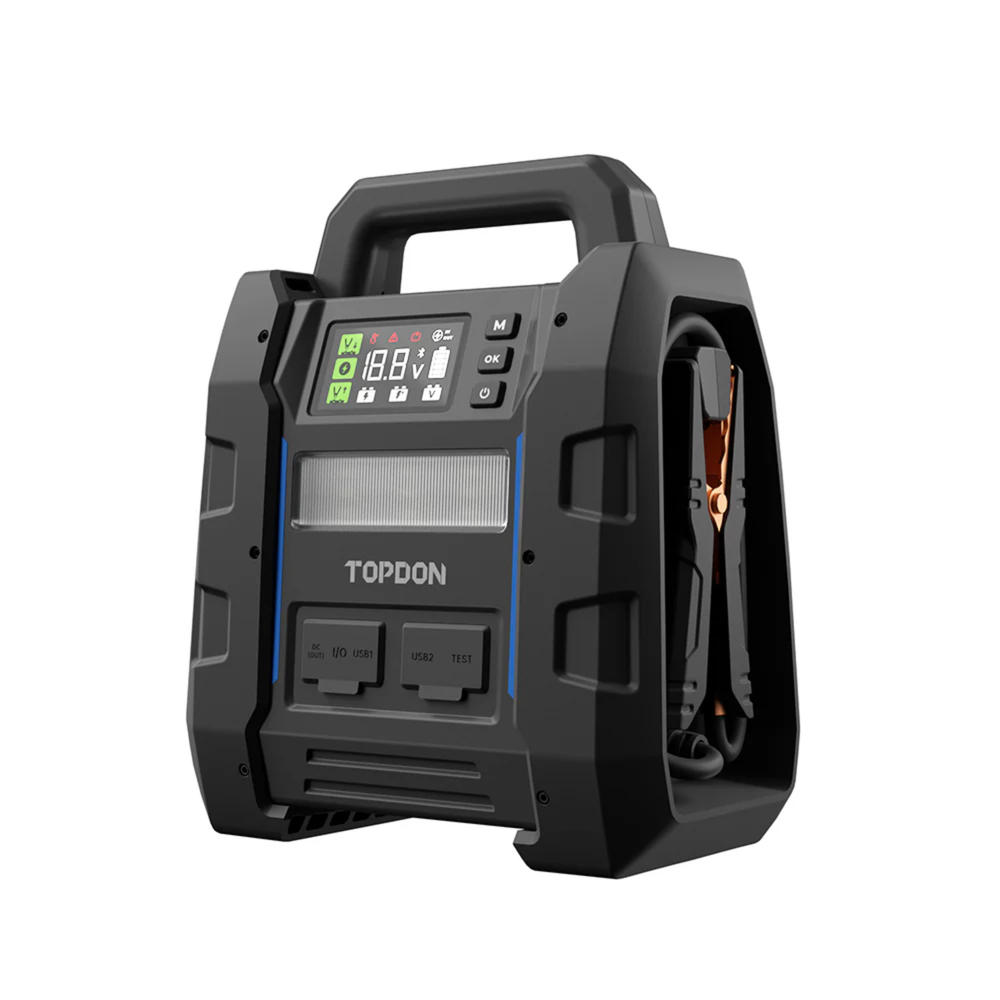

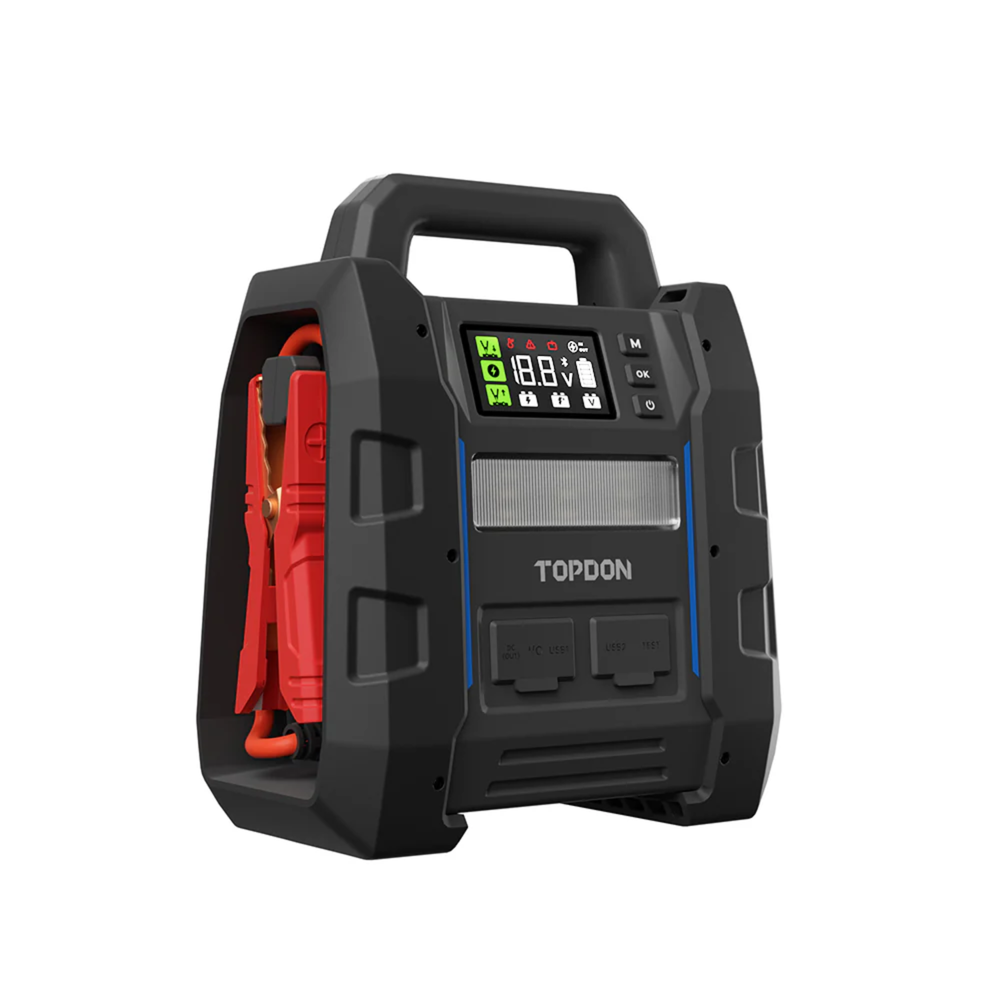

TOPDON V4500 Plus 12V 4500A Jump Starter

Peak Current 4500A – Instant starts for heavy-duty vehicles.

Supports High-Displacement Engines – Up to 16L gasoline/diesel.

Battery Testing via App – Monitor battery health proactively.

120Wh Portable Powerbank – Charge phones, laptops, DC devices.

PD100W Fast Charging – Phone in 25 min, laptop in 100 min.

15 Ultra-Bright LEDs + 6 Red Warning Lights – 500 lumens.

Boost Mode – 3-min sustained output for tough starts.

IP65 Dust & Water Resistant – Reliable in harsh conditions.

10 Intelligent Safety Protections – Reverse polarity, overload, overheating, and more.

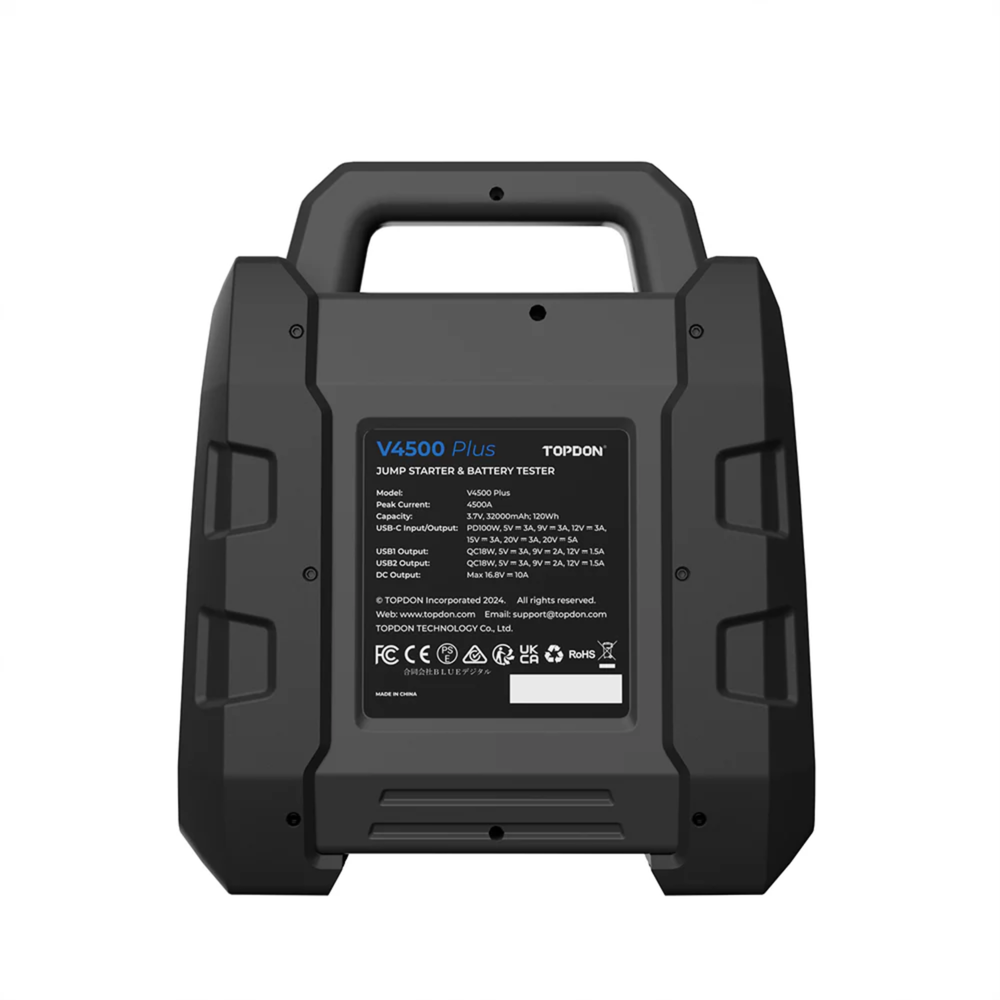

TOPDON V4500 Plus Technical Specifications

Model: V4500 Plus

Peak Current: 4500A

Battery Capacity: 3.7V, 32000mAh; 120Wh

Type-C Input: Bidirectional, PD100W, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A, 20V⎓5A

Type-C Output: Bidirectional, PD100W, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A, 20V⎓5A

USB1 Output: QC18W, 12V⎓1.5A, 9V⎓2A, 5V⎓3A

USB2 Output: QC18W, 12V⎓1.5A, 9V⎓2A, 5V⎓3A

DC Output: Max 16.8V⎓10A

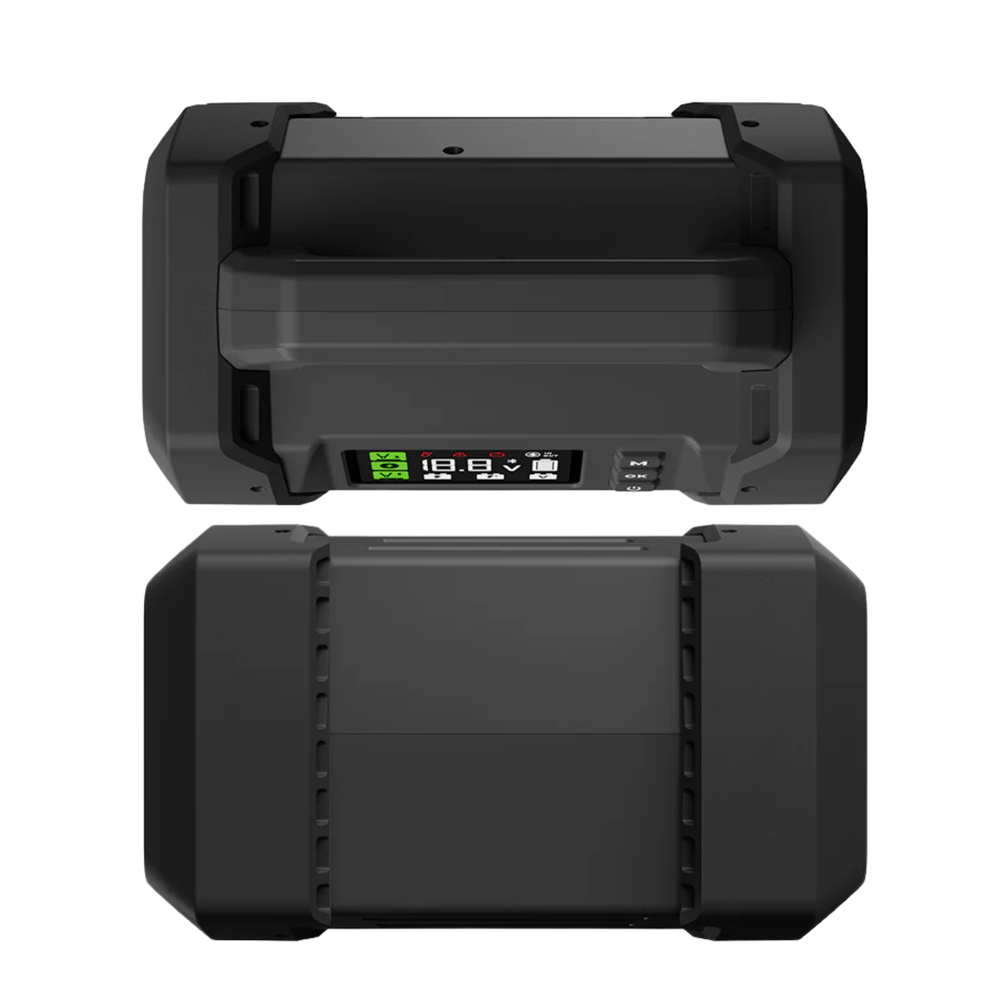

Dimensions: 320*310*175mm (12.6*12.2*6.9 inches)

Weight: 4400g (9.7lb)

Cable Length: Positive: 380mm Negative: 380mm

Working Temperature: -10℃~55℃ (14℉~131℉)

Storage Temperature: -20℃~55℃ (-4℉~131℉)

Safety: Reverse-connections, Reverse-charging, Short circuits, Over-currents, Overheating, Over-discharges, Overload , Voltage fluctuations, Low temperature, Low voltage

The TOPDON V4500 Plus is engineered for professional and high-displacement vehicles, delivering up to 4500A peak current to jump-start trucks, trailers, off-road vehicles, and boats within seconds.
