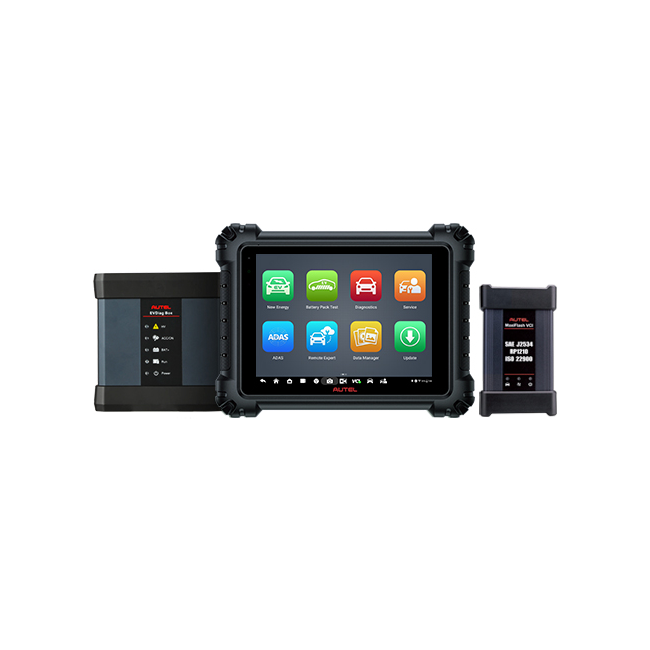

Autel MaxiSys MS909EV OBD Diagnostic Scan Tool

The Autel MaxiSys MS909EV is a professional-grade diagnostic tablet built to meet the needs of modern workshops servicing both traditional internal combustion engine (ICE) vehicles and advanced electric vehicles (EVs). Equipped with Autel’s industry-leading EV System Diagnostics, it enables precise reading and clearing of DTCs, real-time monitoring of battery pack State of Charge (SOC) and State of Health (SOH), and in-depth tracking of voltage, current, and temperature data across multiple modules. These comprehensive insights allow technicians to identify and resolve complex issues in hybrid and electric systems with confidence and accuracy.

Engineered for efficiency, the MS909EV features Topology 2.0 for intelligent network mapping, Online ECU Programming, over 40 Hot Service Functions, and Active Tests for precise component validation. Its intuitive interface, combined with the built-in High-Voltage System Block Diagram, delivers clear visual guidance on wiring, components, and circuit layouts. This advanced functionality makes the MS909EV an all-in-one diagnostic solution for professional workshops servicing both EV and ICE vehicles.

Scan Tool Main Features

Comprehensive Vehicle Coverage – Supports advanced diagnostics for U.S., European, and Asian electric, hybrid, gasoline, and diesel vehicles
High-Voltage System Diagnostics – Performs rapid analysis of EV high-voltage systems, including the ability to read and clear DTCs, and monitor live voltage, current, and temperature data.
Detailed System Visualisation – Provides comprehensive high-voltage block diagrams, component maps, and socket layouts with step-by-step disassembly guidance for accurate and safe service.
Accurate Battery Evaluation – Analyses battery State of Charge (SOC) and State of Health (SOH) to assess true battery performance and condition.
Dual Battery Pack Analysis – Conducts battery diagnostics via OBD or direct connection using the included specialty cables and jumpers, with detailed on-screen graphics ensuring safe and correct testing procedures.
Real-Time Software Updates – Delivers automatic system and software updates through the internet with instant push notifications to keep diagnostics current.
Interactive Data Logging – Enables direct communication with Autel Support for live troubleshooting, ensuring quick resolution of diagnostic errors or system issues.
Efficient Workshop Management – Features one-stop multitasking for organised management of diagnostic files, customer information, and vehicle records.
Cloud-Based Data Storage – Securely saves all customer details, vehicle data, scanner logs, and technician notes through Autel’s integrated cloud-based Data Manager.

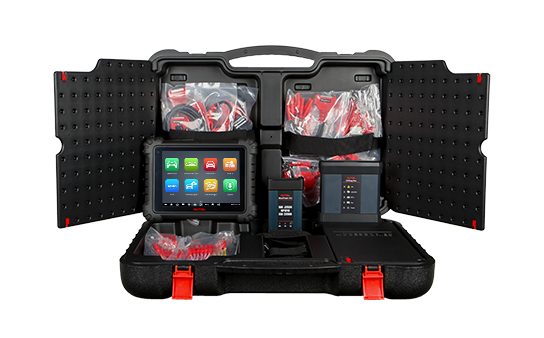

Package Includes:

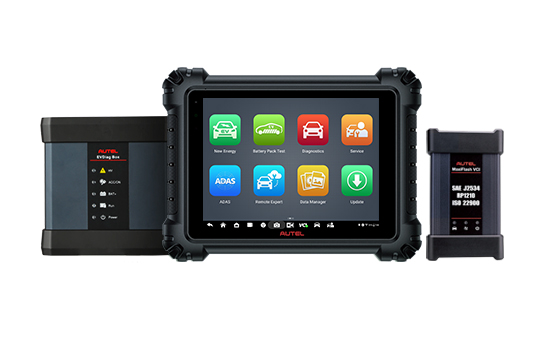

1× MaxiSys MS909EV Main Tablet
1× MaxiFlash VCI/J2534 Vehicle Communication Interface

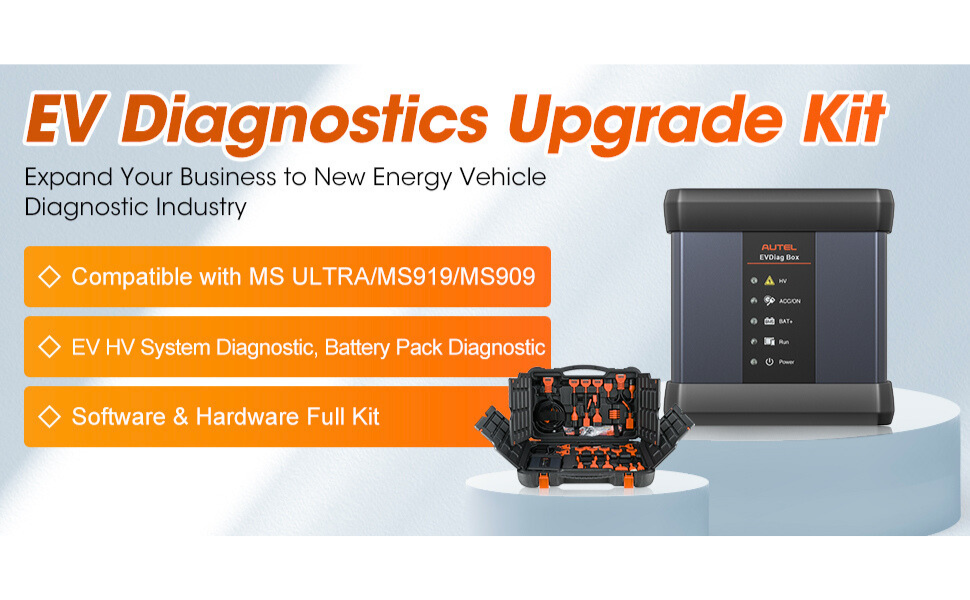

1× EVDiag Box
1× Specialty Cables & Jumpers for EV Analysis
1× AC/DC Power Adapter (12V/3A)
1× OBDII Cable & Connectors
1× USB and HDMI Cables
1× Carrying Case
1× User Manual

Why Buy the Autel MaxiSys MS909EV?

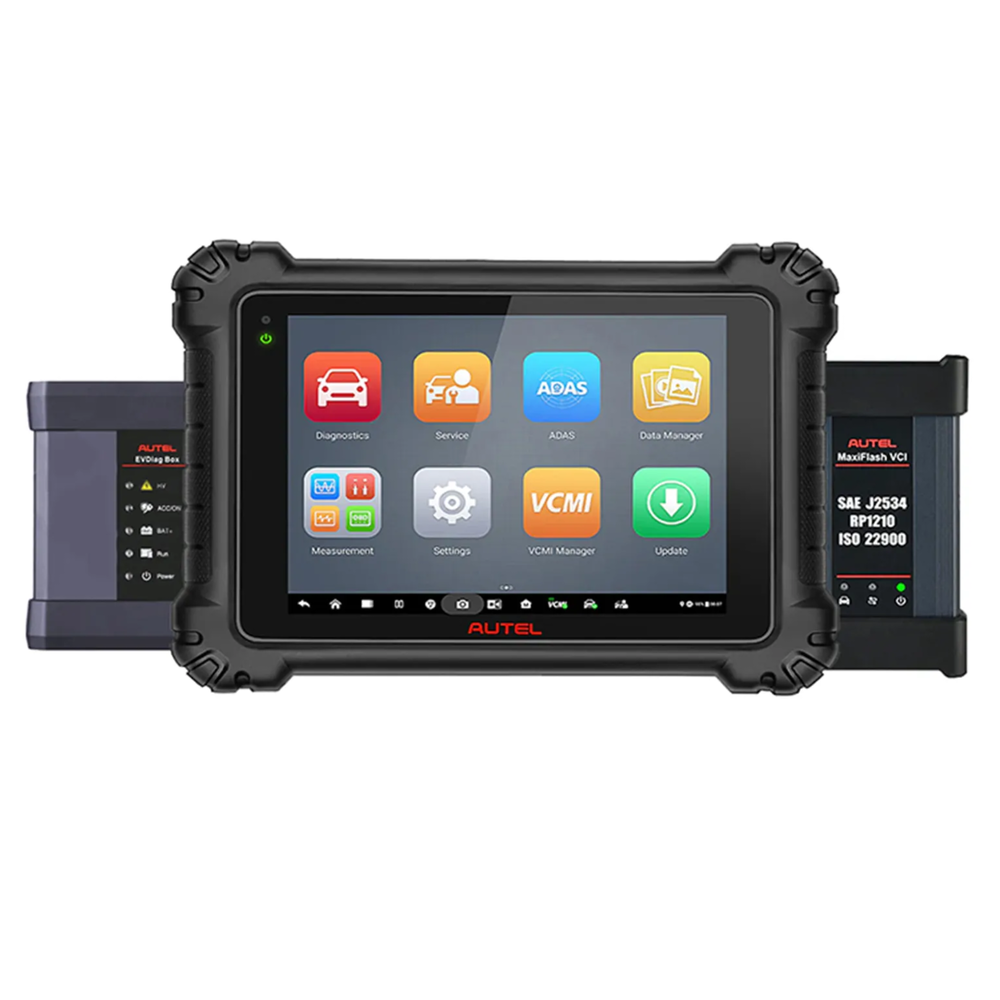

Autel MaxiSys MS909EV Diagnostic Scan Tool for EV Hybrid Petrol Diesel

All-in-One Vehicle Diagnostics: The Autel MaxiSys MS909EV offers comprehensive coverage for U.S., European, and Asian vehicles — including electric (EV), hybrid, gasoline, and diesel models. Designed for professional technicians, it delivers full-system diagnostics across all major control modules, allowing quick detection and correction of system faults.

Advanced High-Voltage System Analysis : Purpose-built for EV and hybrid vehicles, the MS909EV performs rapid analysis of high-voltage systems with the ability to read and clear diagnostic trouble codes (DTCs), view live voltage and current data, and monitor temperature changes across multiple components. This functionality ensures accurate fault location and faster troubleshooting in complex EV systems.

Comprehensive Visual Guidance : Featuring detailed high-voltage block diagrams and component illustrations, the system provides technicians with an intuitive visual map of the vehicle’s electrical structure. Step-by-step disassembly instructions and socket diagrams enhance safety and accuracy during high-voltage maintenance and repair operations.

Intelligent Battery Pack Evaluation :The MS909EV delivers precise State of Charge (SOC) and State of Health (SOH) analysis for EV battery packs, offering a true representation of battery condition and longevity. This feature helps technicians evaluate charging performance, detect cell imbalance, and verify the overall health of hybrid and EV batteries.

Flexible Battery Pack Testing Options : Battery analysis can be conducted via the vehicle’s OBD connection or directly through the included specialty cables and jumpers. The tablet’s high-resolution display provides clear graphics and guided connection prompts, ensuring safe, accurate, and secure testing even for complex high-voltage systems.

Seamless Software and System Updates : With automatic over-the-air (OTA) updates, the MS909EV ensures that diagnostic databases, system protocols, and vehicle coverage remain up to date. Real-time push notifications keep technicians informed of the latest enhancements and firmware improvements, maximizing tool reliability and performance.

Interactive Data Logging & Remote Support : The built-in Data Logging function allows direct contact with Autel’s technical support team for immediate assistance. Technicians can share diagnostic sessions, error reports, and log files in real time to receive expert troubleshooting and software guidance directly from Autel engineers.

Optimized Workshop Efficiency : The MS909EV supports one-stop multitasking for streamlined management of shop operations. Users can store and organiae diagnostic reports, vehicle records, and customer data all within the tablet, reducing administrative time and improving overall workflow efficiency.

Cloud-Based Data Management : Autel’s secure cloud-based Data Manager ensures all diagnostic files, vehicle data, and technician notes are automatically backed up and accessible from anywhere. This provides an organised and reliable record-keeping system, essential for large or multi-technician workshops.

Autel MaxiSys MS909EV Intelligent Diagnostic Scan Tool

MaxiFlash VCI/J2534 Interface Included with MS909EV for electric vehicles

Technical Specifications

Operating System: Android 10.0

Processor: Qualcomm 660 Octa-core (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

Memory: 4GB RAM / 128GB Storage

Display: 9.7" TFT-LCD (1536×2048) with capacitive touchscreen

Connectivity: Dual-band Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO), Bluetooth 5.0, GPS, USB 2.0, HDMI 2.0, SD Card (up to 256GB)

Cameras: Front 16MP / Rear 16MP with Flash

Sensors: Gravity Accelerometer, Ambient Light Sensor

Audio: Microphone, Dual Speakers, 3.5mm headset jack

Battery: 15,000mAh 3.8V lithium-polymer battery

Input Voltage: 12V/3A Adapter

Operating Temp: 0–50°C

Storage Temp: -20–60°C

Dimensions: 304.4 × 227.8 × 42.5 mm

Weight: 1.66 kg

Protocols Supported: DoIP, CAN-FD, PLC J2497, J1939, J1708, ISO-14229 (UDS), ISO-15765, J1850 PWM/VPW, ISO-9141, ISO-14230, and more.
