GODIAG GT100 OBD Breakout Box

The GODIAG GT100 serves as an advanced OBDII Breakout Box designed for OBDII protocol communication detection, ECU maintenance, diagnosis, programming, and coding. It helps convert the car's OBD2 interface into a 16-pin setup for signal detection and electrical level conversion. This adaptable tool can be connected with single or multiple vehicle modules. Works with any diagnostic tools to verify the quality of car communication. Additionally, during battery changes, it provides power to the car, preventing data loss in the vehicle control module, automatic locking, key remote control failures, and the illumination of the fault light.

Main Functions

Check The Communication Signals: Verify the communication signals prior to linking your valuable scan tools. Utilise the GT100 OBDII Breakout Box to ensure proper network communication or to confirm the correct supply of power and grounds to the box assembly. Without adequate power or grounds, there's a risk of damaging your expensive scan tools.
ECU Electronic Voltage Display: Connecting the ECU module through the Banana interface or the DB25 cable allows an intuitive view of the ECU's voltage display. This setup offers an easy assessment of cable connectivity and the ECU module's condition.

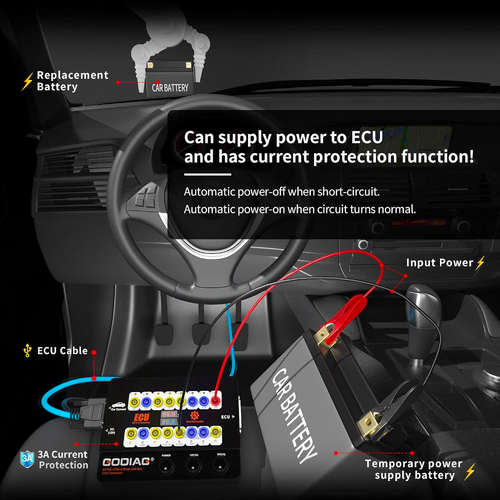

ECU Power Assistance During Battery Replacement: Using GT100 OBDII Breakout Box and auxiliary battery to sustain the power supply to the vehicle before replacing the battery, which will ensure that the car has fully power to prevent data loss and audio lock-up or the malfunction due to lack of power to the ECU control module.
Short Circuiting of Pins: Use the GT100 to short-circuit banana plug connector to lit up the dashboard. In addition, you can also connect with some test platform (e.g. : CASA) to program keys.

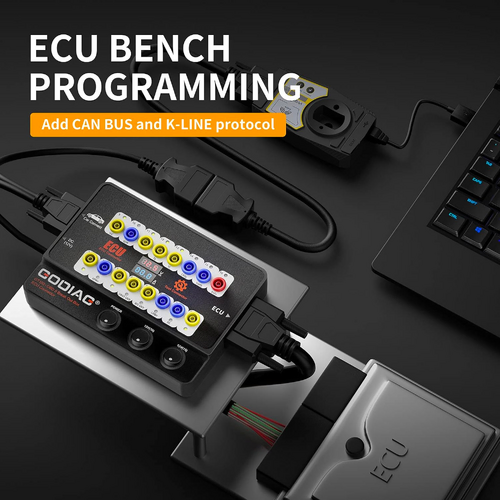

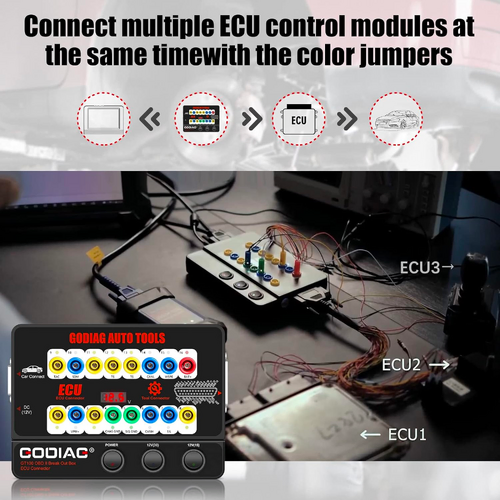

Connects to Multiple ECU's Modules: The GODIAG GT100 can not only be connected to a single ECU module for single-module diagnosis and programming, but is also capable of connecting multiple ECU control modules at the same time. You can connect the ECU with the colour jumpers. (If the ECU is CAN protocol, please check whether you will need to connect a 120 ohm resistor.)
Convert to OBD2 Interface: It can convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion. Use the connector to convert the OBD1 interface into OBD2 interface according to the diagnostic interface communication protocol.

Package includes:

1pc x Host
1pc x OBD 2-in-1 extension cable
1pc x Coloured jumper cable
1pc x Power supply 12V
1pc x Resistance 120 ohm
6pcs x ;Banana plug
24pcs x Wire accessories, Dupont 2.54mm connector female pins

GODIAG GT100 OBD Breakout Box

ECU connection + OBDII Protocol Detector + Electronic Current Display

Compatible with tools from LAUNCH, AUTEL, FOXWELL, XHORSE, VXDIAG, CGDI, etc.

Add Current Display for ECU Module

Support more protocols like CANBUS, K-Line, PWM, VPW+, KWP2000

Support All Key Lost for Porsche, VW,Mitsubishi, etc.

GODIAG GT100 OBD Breakout Box

Technical Specifications

Diagnostic port	OBDII
Working voltage	DC 9V-24V
Work and power	0.5-0.6W
Adapter power	Input AC100v-240v, Output DC12V 1A
Operating temperature range	-20 to 70 °C ( -4 to 158 °F )
Storage temperature range	-40 to 85 °C ( -40 to 185 °F )
Dimension	L: 23cm, W:18cm, H:7cm
