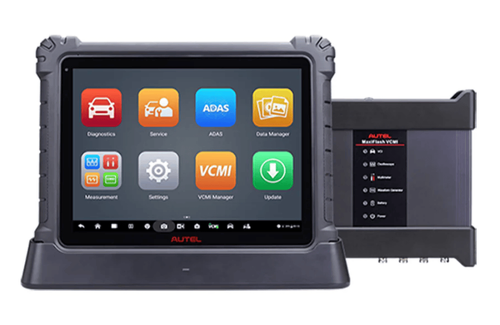

Autel MaxiSys Ultra Professional Diagnostic Tool with VCMI

Autel MaxiSys Ultra Professional Diagnostic Tablet

Advanced Autel Scanner with Top-Level Diagnostics, ECU Programming & Intelligent ADAS Support

The Autel MaxiSys Ultra is Autel’s most powerful and feature-rich diagnostic tablet, designed for advanced workshops, dealerships, and mobile technicians. Featuring a huge 12.9-inch touchscreen with Android 7.0, an octa-core processor (4x ARM Cortex-A72 + 4x Cortex-A53), 256GB built-in memory, and Autel’s new MaxiFlash VCMI (4-in-1 device) that combines VCI, oscilloscope, multimeter, and CAN BUS tester.

With comprehensive OE-level diagnostics, ECU coding, J2534 reprogramming, bi-directional active tests, topology mapping, ADAS calibration, and over 36+ service functions, the MaxiSys Ultra gives professionals everything they need to diagnose, repair, and service modern vehicles—including EVs, hybrids, and vehicles with advanced CAN FD & DoIP protocols.

Autel MaxiSys Ultra Scan Tool. OE-level diagnostics, ECU coding, J2534 reprogramming, bi-directional active tests, topology mapping, ADAS calibration, and over 36+ service functions, the MaxiSys Ultra gives professionals everything they need to diagnose, repair, and service modern vehicles—including EVs, hybrids, and vehicles with advanced CAN FD & DoIP protocols.

Scan Tool Main Features

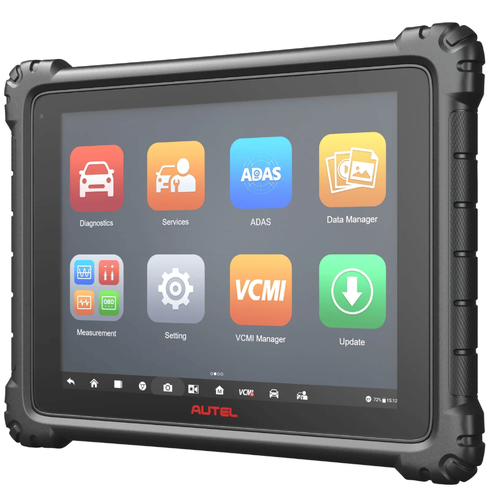

12.9” Ultra-HD Touchscreen Tablet with split-screen multitasking for simultaneous diagnostics & data display
Octa-core processor (4x Cortex-A72 + 4x Cortex-A53) with 256GB storage and 18,000mAh battery for all-day performance
MaxiFlash VCMI 4-in-1: Advanced VCI + 4-channel oscilloscope + waveform generator + multimeter + CAN BUS tester
Full System Diagnostics: Read/clear codes, view live data (text/graph), freeze frame, ECU information across all systems
Bi-directional Active Tests to trigger actuators and perform functional tests in real time
Advanced ECU Coding & Online Programming for BMW, Mercedes-Benz, VW/Audi, Porsche, Jaguar, Land Rover & more
Topology Mapping: Visualises all vehicle systems and communication structure for faster, easier troubleshooting
ADAS Calibration Support (with optional ADAS kit) for camera, radar, lidar and night vision systems
36+ Service Functions: Oil reset, EPB, BMS, SAS, DPF regen, injector coding, throttle adaptation, gearbox reset, immobiliser functions, TPMS service and more (vehicle dependent)
Cloud-based Repair Assistance: Technical bulletins, DTC analysis, repair tips and guided functions via MaxiFix platform
Smart AutoVIN & AutoScan for instant vehicle identification and complete system scan in minutes
DoIP & CAN-FD Protocols supported without extra adapters—ready for next-generation vehicles
Multi-language interface with automatic software updates via Wi-Fi (1 year free updates)

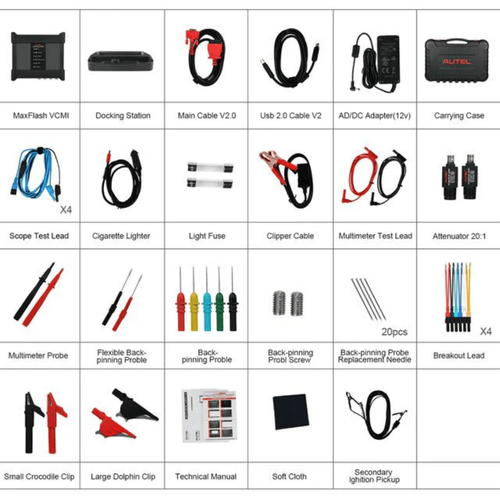

Package Includes

Main Devices

1 × MaxiSys Ultra Main Unit
1 × MaxiFlash VCMI (4-in-1 Oscilloscope, Waveform Generator, Multimeter, CAN BUS Tester)
1 × Docking Station
1 × Carrying Case
1 × Tool Box

Cables & Power

1 × Main Cable V2.0
1 × USB 2.0 Cable V2
1 × AC/DC Power Cable V2
1 × Cigarette Lighter Cable
1 × Clipper Cable

Test Leads & Probes

4 × Scope Test Leads
2 × Multimeter Test Leads
2 × Secondary Ignition Pickups
2 × Attenuators 20:1
4 × 6pcs Breakout Leads
1 × 2pcs Multimeter Probes
2 × 2pcs Flexible Back-pinning Probes
1 × 5pcs Back-pinning Probes (Red / Green / Blue / Yellow / Black)
2 × Back-pinning Probe Screws
20 × Back-pinning Replacement Needles
2 × Small Crocodile Clips (V2)
1 × 2pcs Large Dolphin Clips

Documentation & Accessories

1 × User Manual
1 × Packing List
1 × Soft Cloth

Why Buy the Autel MaxiSys Ultra?

One powerful platform for everything – The Autel MaxiSys Ultra is built for professionals who want one tool that does it all: full-system diagnostics, advanced ECU programming, active testing, service resets, and even oscilloscope and multimeter functions through the integrated VCMI.
Faster, smoother workflow – With its 12.7-inch touchscreen, Android 10 OS, and 2.3GHz Octa-core processor, the Ultra is designed for speed, multitasking, and an intuitive user experience.
Unmatched compatibility – Covering 150+ brands and 200,000+ vehicles worldwide (cars, SUVs, light trucks, and heavy-duty vehicles with the included SmartLink VCI), the Ultra ensures you’re ready for almost any job in your workshop.
Smart & future-ready technology – Equipped with CAN FD & DoIP protocols, J2534 pass-thru programming, and the powerful MaxiFlash VCMI module, the Ultra is built to handle both current and next-generation vehicles.
Enhanced service value – With 40+ maintenance functions, guided diagnostics for complex repairs, and built-in repair tips, you can provide faster, more accurate, and more professional service to your customers.

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 256GB On-board Memory
Display	12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity	WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C Input Voltage 12V/3A Adapter
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)	366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight	2.18kg (4.81 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
