Hantek CC-65 AC/DC Current Clamp 65A 20kHz

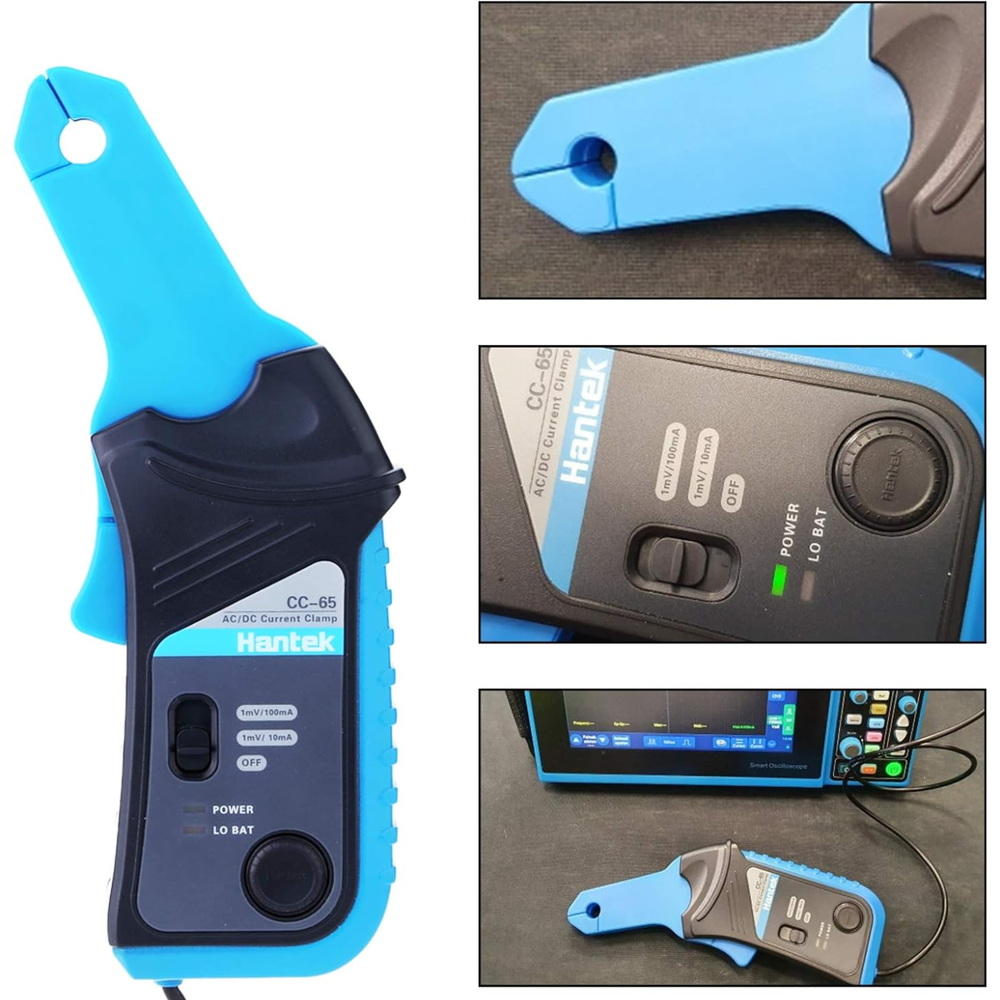

Hantek CC-65 AC/DC Current Clamp Probe

Measure current waveforms and data across AC and DC circuits

The Hantek CC-65 is a precision AC/DC current clamp transducer designed for technicians, auto electricians, and electronics engineers who need accurate current measurement without breaking the circuit. Using a Hall effect sensor and permalloy core, it linearly converts AC or DC current into a proportional voltage signal — ready to feed directly into your oscilloscope.

Whether you're diagnosing a parasitic drain, analysing a motor drive, or troubleshooting power electronics, the CC-65 gives you reliable current data from 20mA all the way up to 65A, across frequencies up to 20kHz.

Key Features

AC/DC measurement up to 65A and 20kHz bandwidth
Hall effect transducer for linear, accurate conversion of AC/DC current to voltage

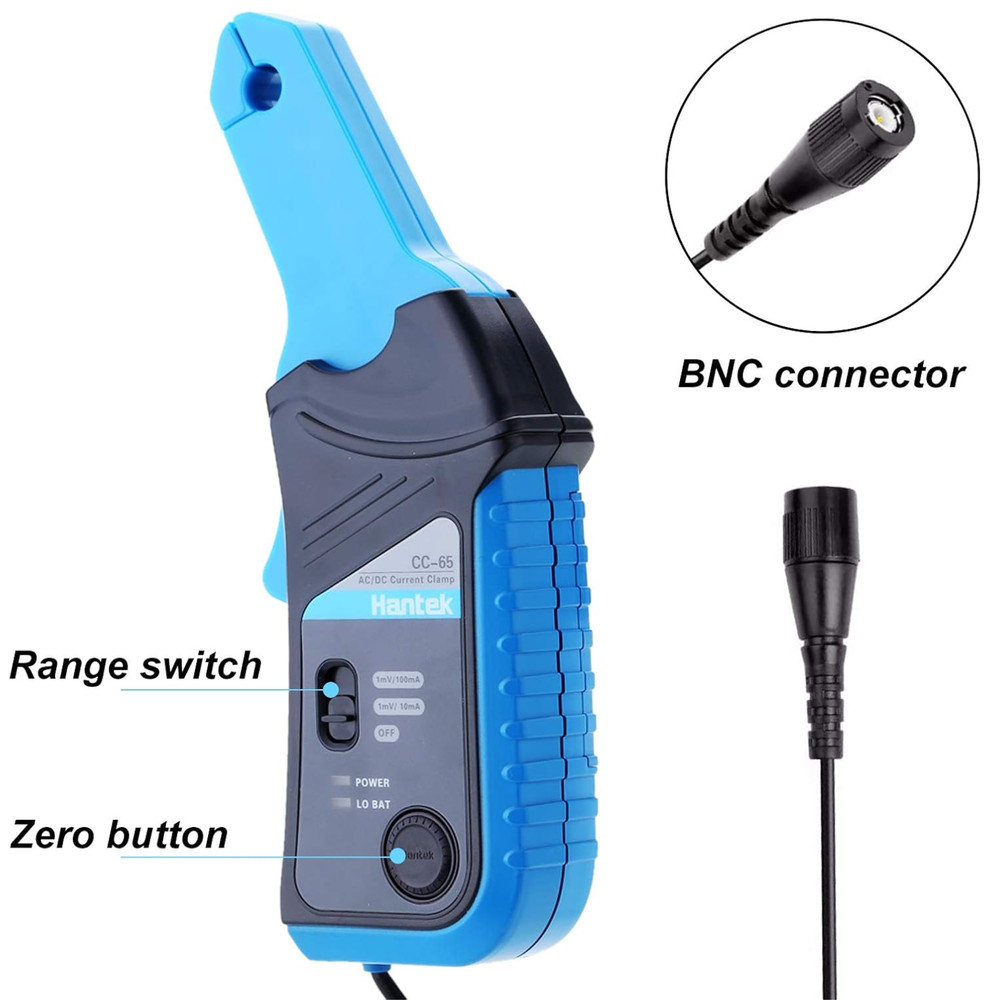

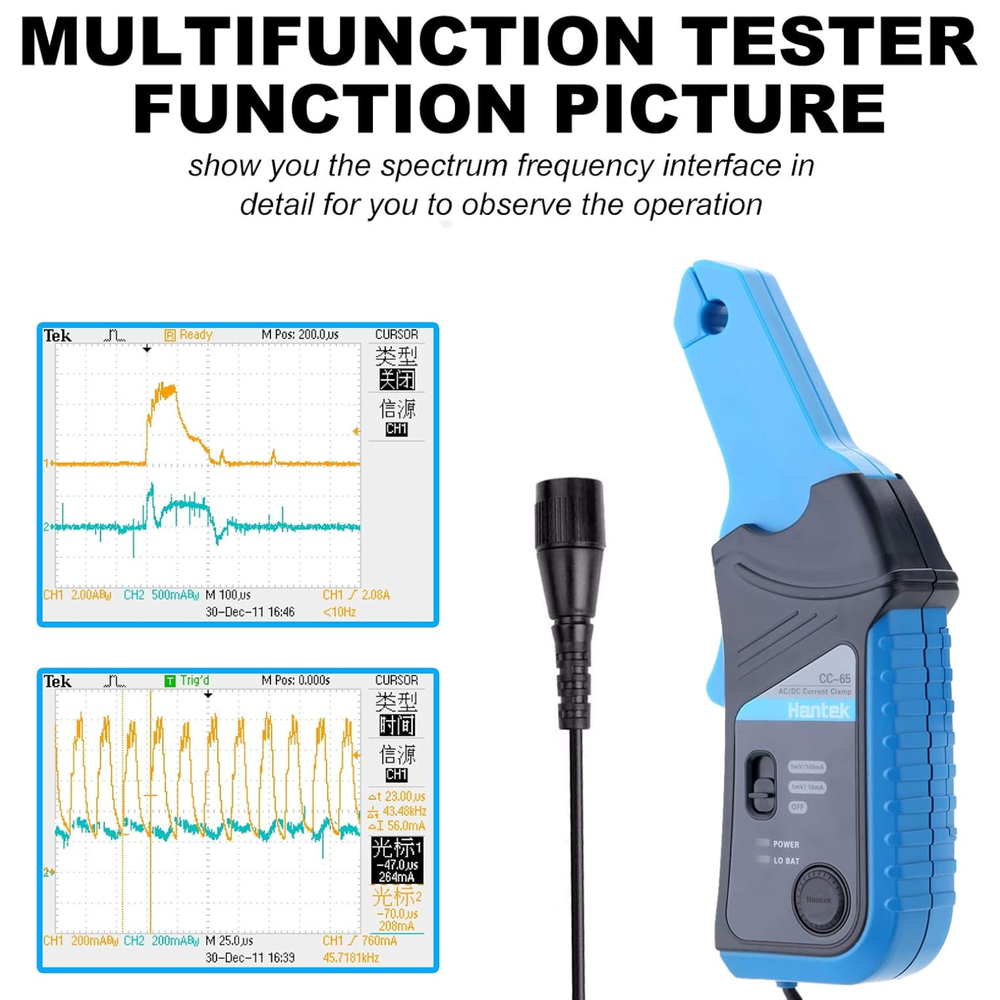

BNC connector output — connects directly to your oscilloscope to visualise current waveforms
1mV/10mA sensitivity for fine low-current resolution down to 20mA
9mm jaw capacity suits most automotive and electronics wiring
Low battery LED indicator
Compact and lightweight at 250g
100-hour battery life (standard 9V alkaline)

Applications

Power circuit measurement and malfunction analysis — pinpoint faults and measure current behaviour in live power circuits without interrupting the circuit
Motor drive and frequency converter measurement — analyse current waveforms through inverters, VFDs, and other drive electronics where waveform shape matters as much as the value
Power electronics equipment measurement — test and validate current flow across switchmode power supplies, converters, and other power electronics during development or fault-finding

Hantek CC-65 AC/DC Current Clamp Probe

AC/DC frequency range: Up to 20 kHz

Effective Measurement Range: 20mA to 65A DC

It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.

Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.

DCA Range	1 mV /10mA	±(1.5%±5mA) 10mA ~ 20A
DCA Range	1mV/100mA	±(2%±20mA) 100mA ~ 40A; ±(4%±0.3A) 40A ~ 65A
ACA Range	1mV/10mA	±(2%±30mA) 100mA ~ 10A (40Hz ~ 2KHz); ±(4%±30mA) 100mA ~ 10A (2KHz ~ 10KHz); ±(6%±30mA) 100mA ~ 10A (10KHz ~ 20KHz); ±(8%±30mA) 10A ~ 15A (40Hz ~ 20KHz)
ACA Range	1mV/100mA	±(2%±30mA) 200mA ~ 40A (40Hz ~ 1KHz); ±(4%±30mA) 200mA ~ 40A (1KHz ~ 2KHz); ±(6%±30mA) 200mA ~ 40A (2KHz ~ 5KHz); ±(8%±0.3A) 40A ~ 65A (40Hz ~ 20KHz)

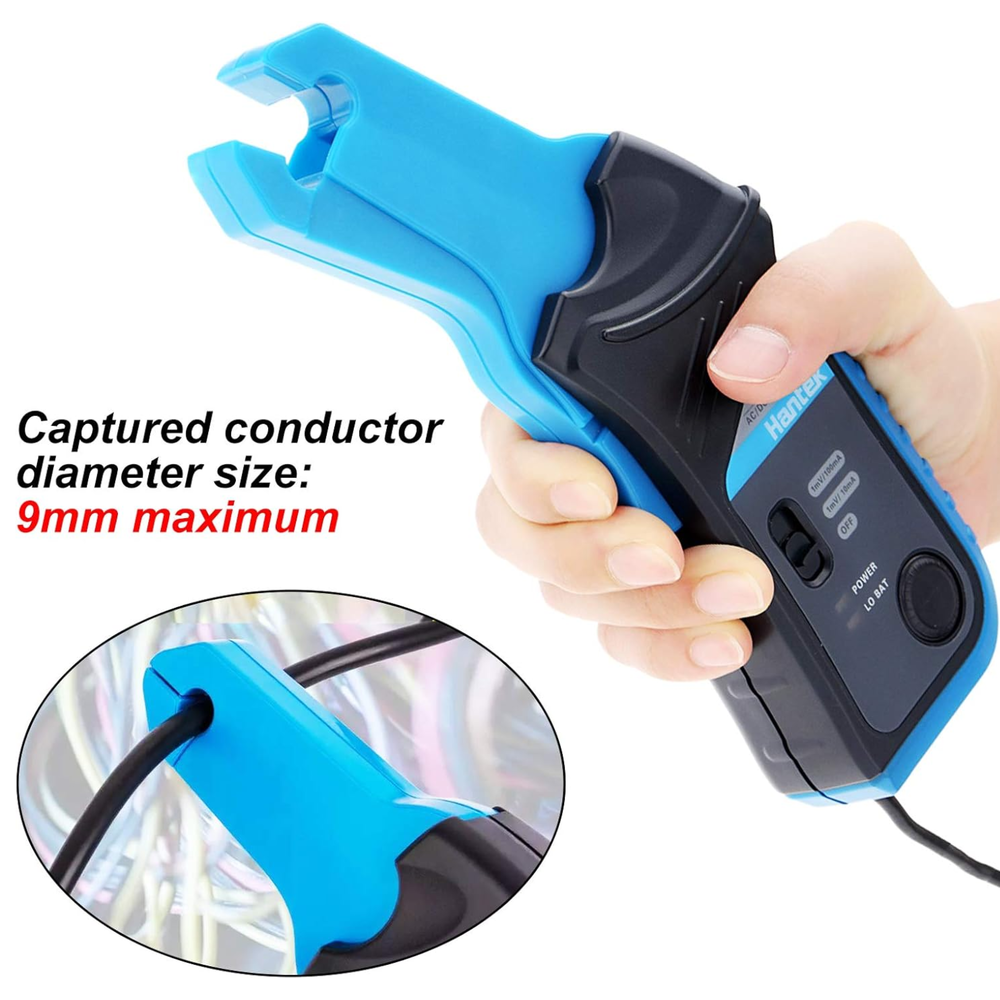

Captured Conductor Size		9mm maximum
Low Battery Indictor		red LED lighting
Operating Temperature		0℃to 50℃70% R.H.
Storage Temperature		-20℃ to +70℃, 80% R.H.
Battery Type		9V DC, NEDA 1604, 6F22,0006P
Battery Life		100 hours typical with alkaline
Weight		250 gm typical

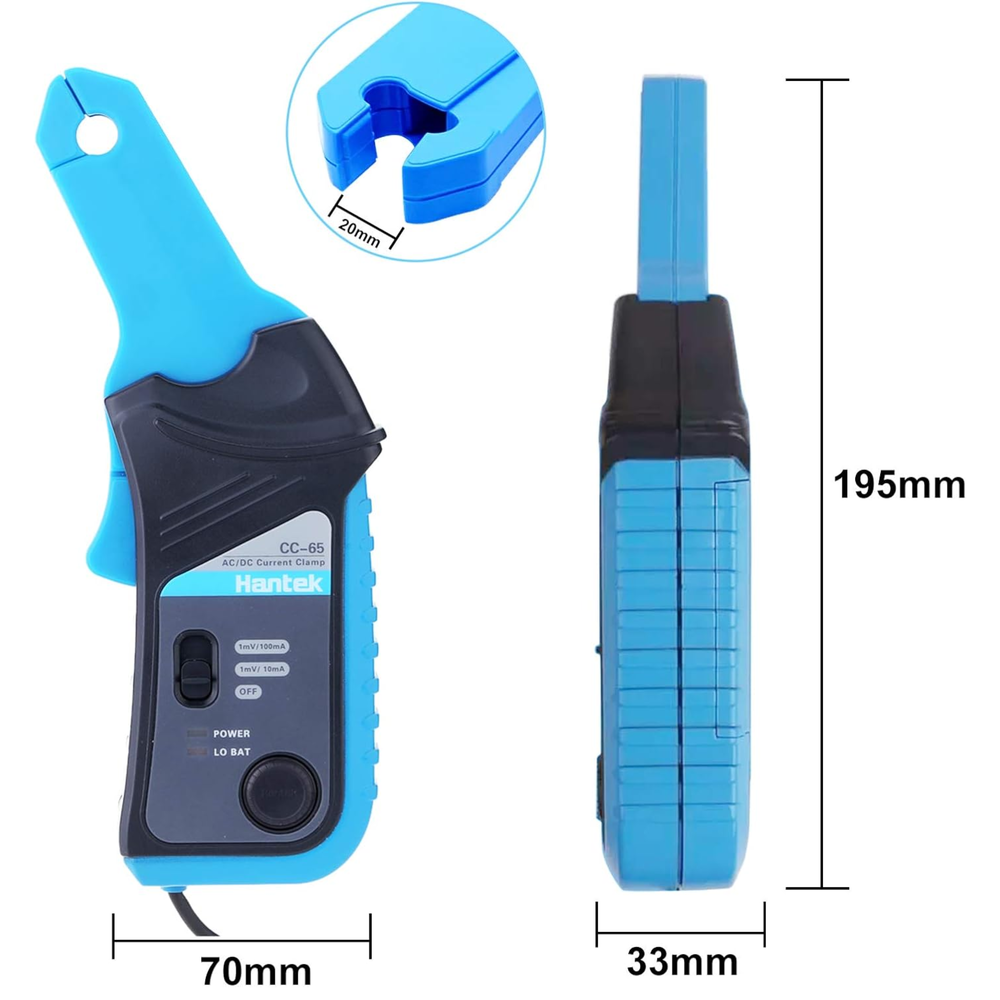

Dimensions		195mm(H) x 70mm(W) x 33mm(D)
Output		Supplied with coil cable with straight banana plug or BNC plug.
