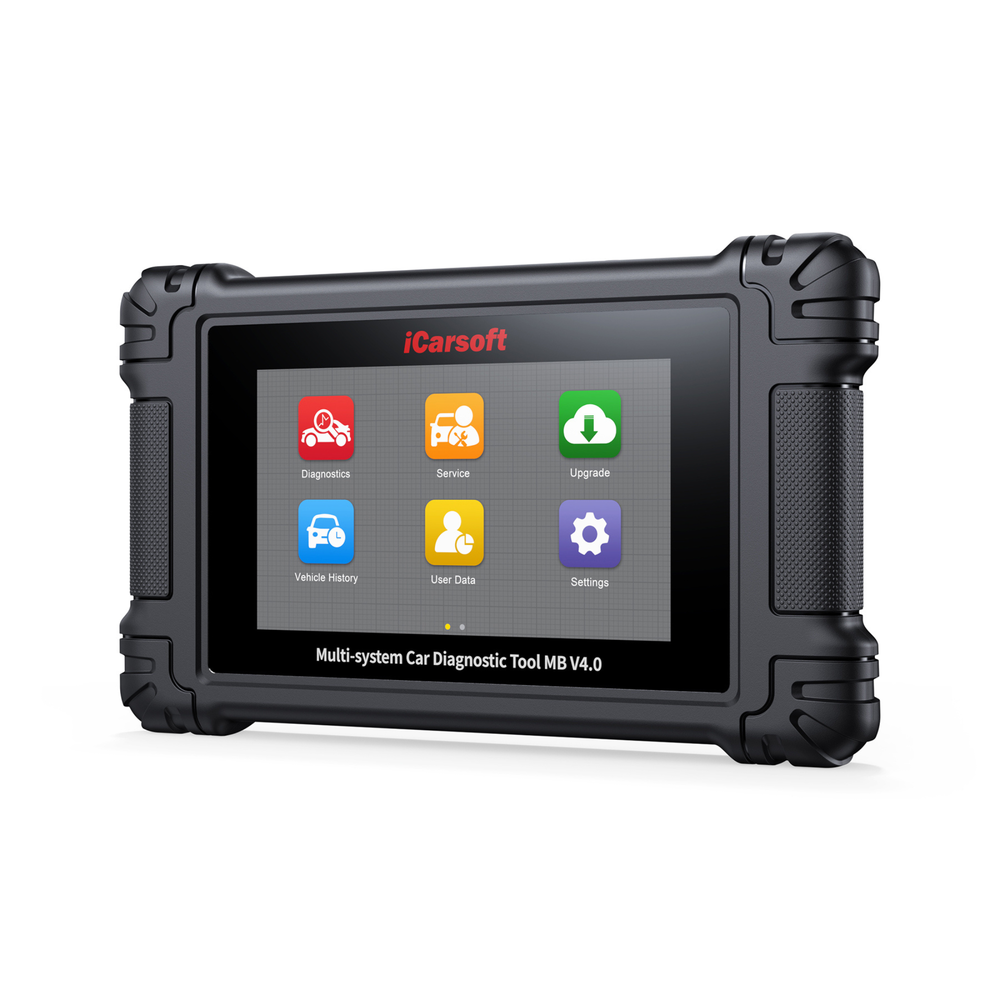

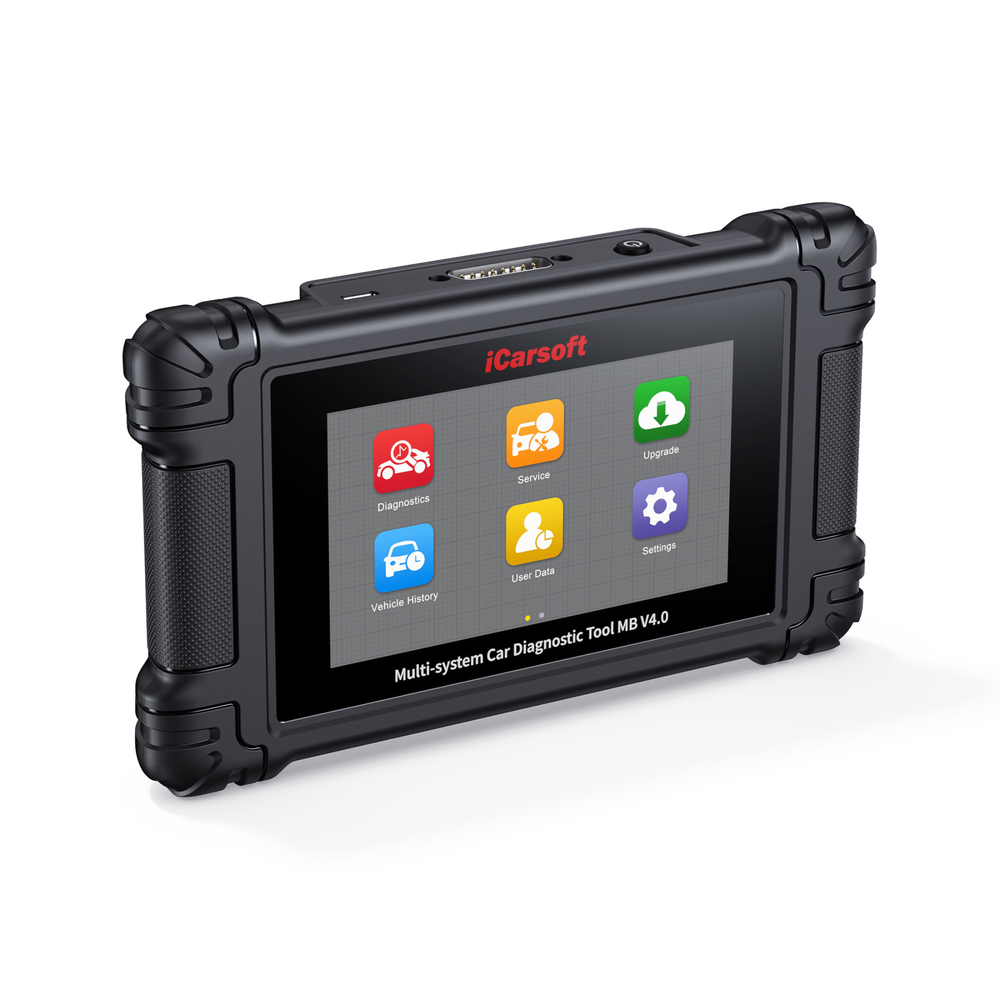

iCarsoft MB V4.0 Diagnostic OBD Scan Tool for Mercedes-Benz & Sprinter

iCarsoft MB V4.0 Diagnostic Tool for Mercedes-Benz

The iCarsoft MB V4.0 is a next-generation professional diagnostic solution engineered specifically for Mercedes-Benz, Sprinter, Smart, and Maybach vehicles. Designed for technicians and advanced users, it delivers full-system diagnostics, bi-directional control, and intelligent AutoVIN identification. With a responsive 5-inch touchscreen, integrated Wi-Fi updates, and extensive service functions, it enables accurate fault detection, system calibration, and preventative maintenance—supporting reliable vehicle performance and reducing long-term servicing costs.

iCarsoft MB V4.0 diagnostic scanner for mercedes benz. icarsoft australia

Scan Tool Main Features

Full-System Diagnostics Coverage – Provides complete access to all major and advanced vehicle systems including engine, ABS, airbag, transmission, and body modules for comprehensive fault detection.
Bi-Directional Control Functionality – Enables active testing by sending commands to vehicle systems (e.g. windows, mirrors, throttle), assisting technicians in pinpointing faults efficiently.
AutoVIN Identification Technology – Automatically retrieves vehicle identification data, reducing manual input and ensuring accurate diagnostics.
Integrated Wi-Fi Updates – Supports seamless one-click updates via Wi-Fi, ensuring the tool remains current with the latest vehicle software and protocols.
Extensive Service Reset Functions – Includes oil reset, EPB, DPF regeneration, TPMS reset, SAS calibration, injector coding, and more for routine maintenance operations.
Advanced ECU Access & Control – Reads ECU information, live data streams, freeze frame data, and supports coding and calibration procedures.

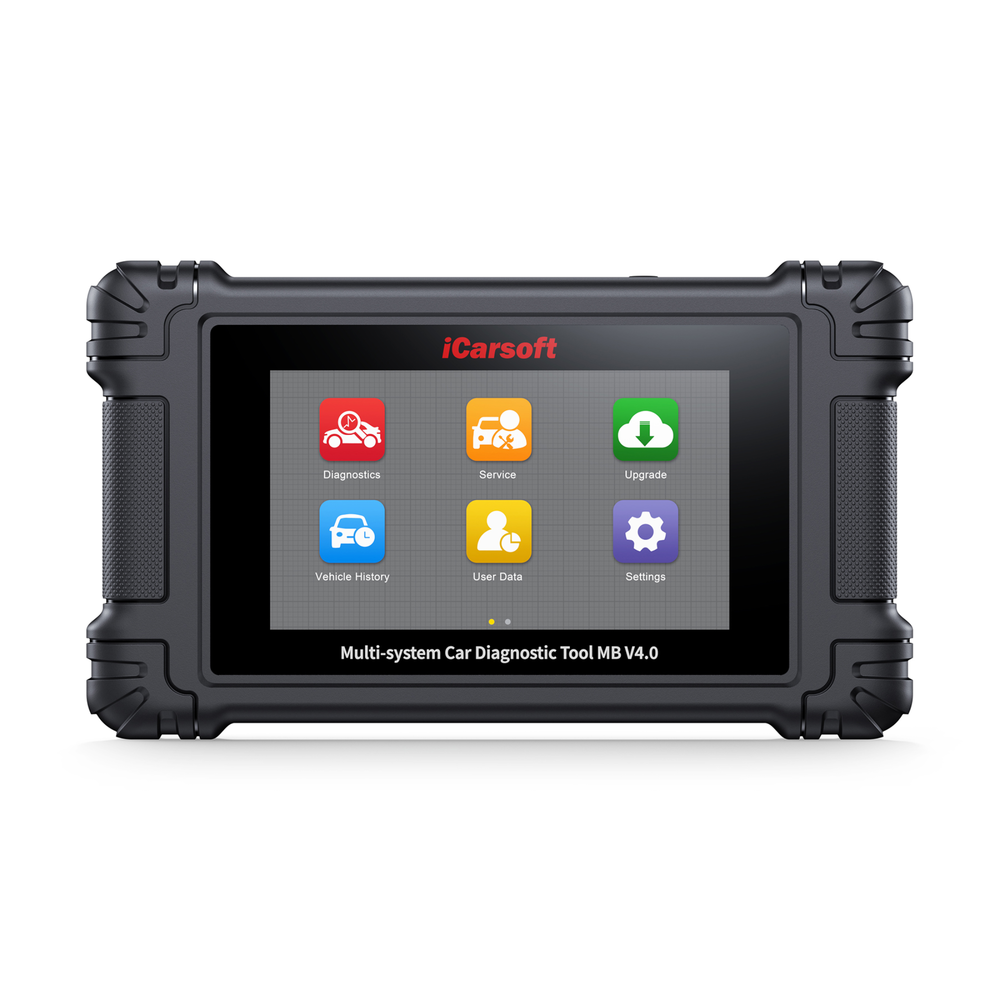

5-Inch Touchscreen Interface – Equipped with a responsive capacitive display for clear data visualisation and simplified navigation.
Battery Testing Capability – Monitors battery health and performance to support preventive maintenance and system reliability.
Multi-Language Support – Supports multiple languages including English, German, French, Spanish, and more for global usability.
Diagnostic Reporting & Printing – Generates detailed reports that can be saved, shared, or printed via PC connection for documentation and analysis.

Package Includes

MB V4.0 scan tool
Packing Box
Storage Bag
User's Manual
Main Cable
Data Cable

Why Buy the iCarsoft MB V4.0?

Full system diagnostics for Mercedes platforms

Advanced bi-directional control capabilities

Fast AutoVIN vehicle identification

5-inch touchscreen with intuitive interface

Lifetime free software updates via Wi-Fi

9+ service reset functions for maintenance

Full OBDII/EOBD diagnostic support

Multi-language system compatibility

Battery testing and live data monitoring

Diagnostic report generation and printing

Professional automotive diagnostic tool Mercedes systems. Icarsoft australia

iCarsoft MB V4.0 Multi-Systems Car Diagnostic tool

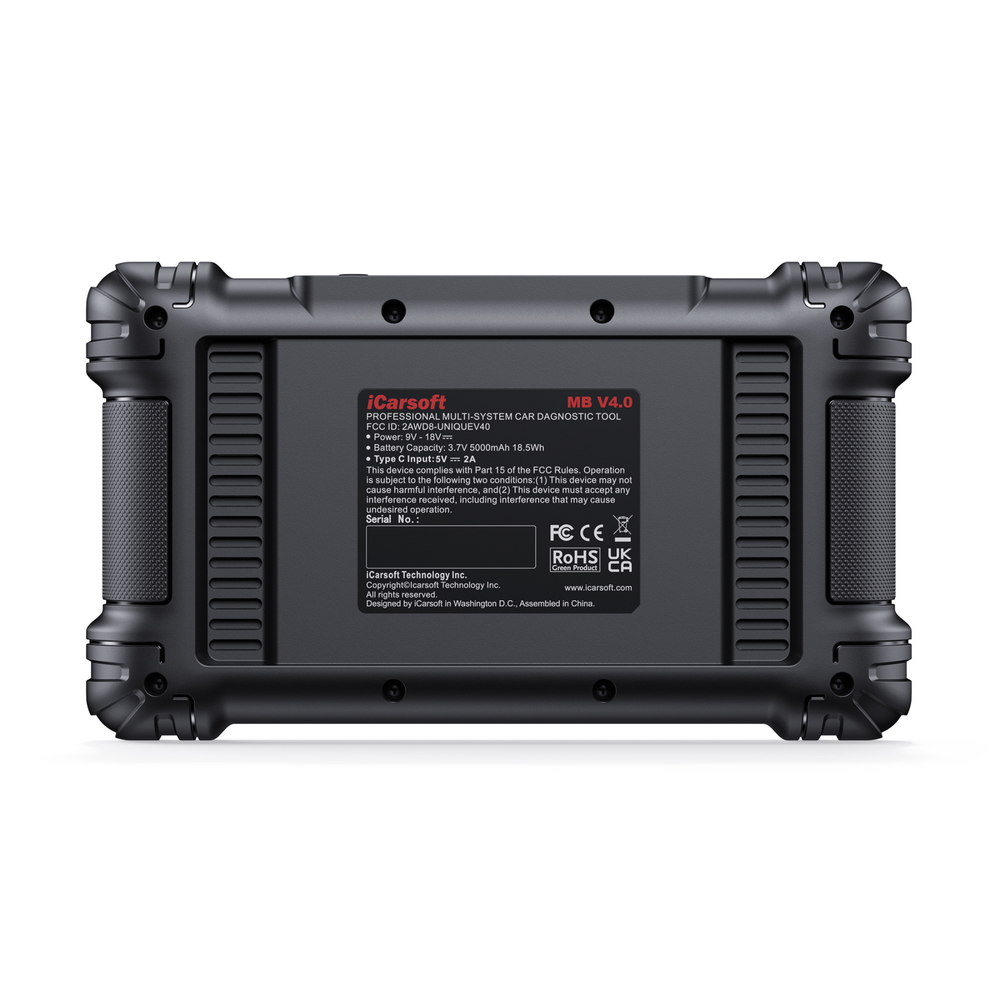

Technical Specifications

Operating System: Android

Processor: Quad Core 1.3 GHz

Memory : 32GB

Display: 5-inch LCD capacitive touchscreen with 854x480 resolution

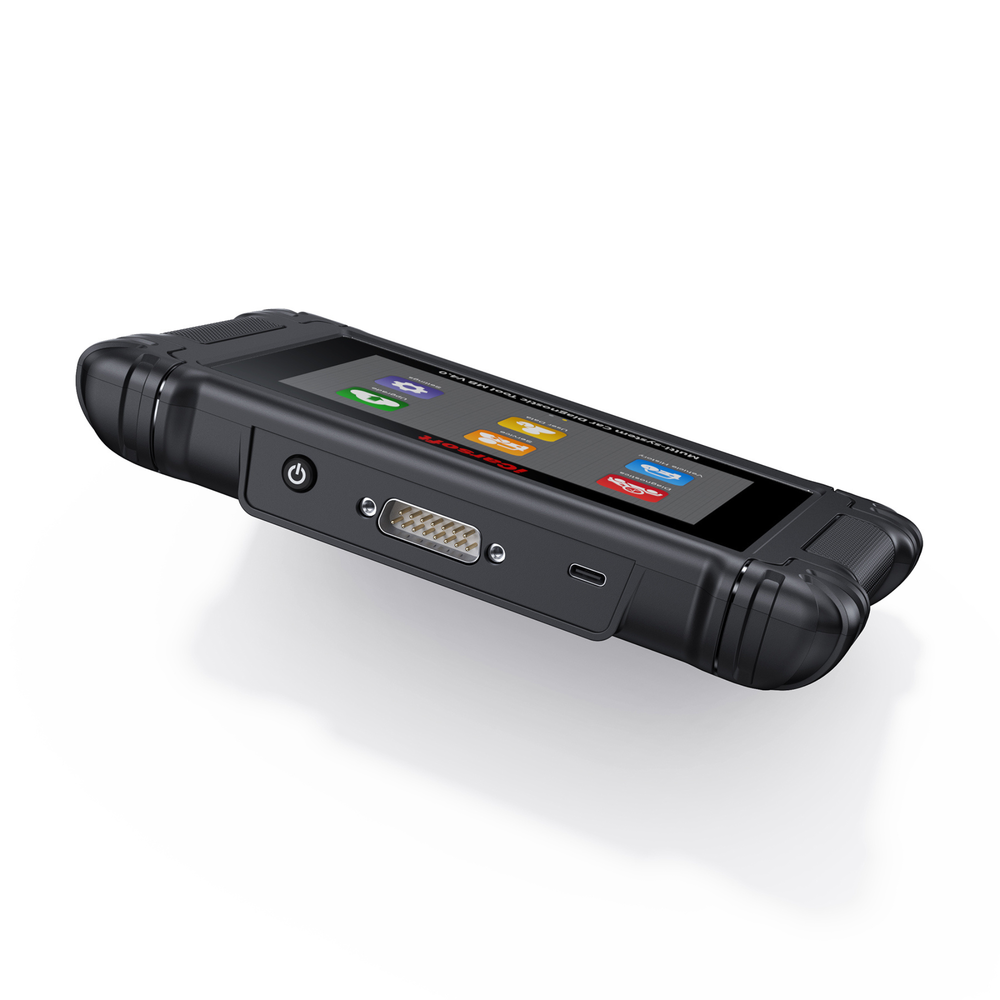

Connectivity: USB 2.0, Wi-Fi (2.4GHz), OBDII

Power: 9-18V

Operating Current: ≤500mA

Battery Capacity: 3.7V 5000mAh 7.4Wh

Tested Battery Life: Around 6 hours of continuous use

Type C Input:5V --- 2A

Power Consumption: 500mA (LCD on with default brightness, Wi-Fi on) @3.7 V

Operating Temp: 0 to 50°C (32 to 122°F)

Storage Temp: -20 to 70°C (-4 to 158°F)

Operating Humidity: 5% - 95% non-condensing

Dimensions (W x H x D): 200mm X 116mm X 30.2mm (7.87inch X 4.57inch X 1.19inch)

Net Weight： ≈380g

Supported Automotive Protocols: ISO9141-2, SO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN), CAN FD, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

iCarsoft mercedes benz obd scanner. Sprinter obd scanner. Icarsoft australia
