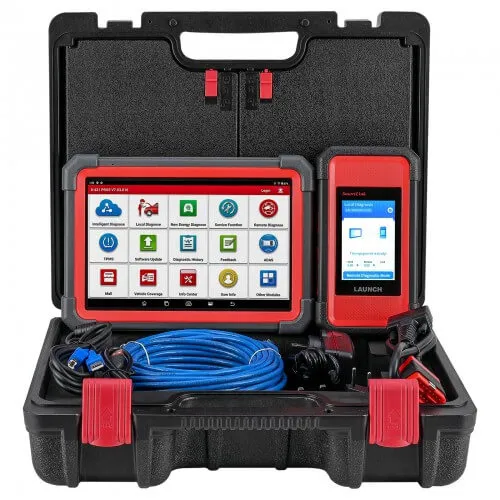

LAUNCH X431 PRO5 Plus – Advanced Full-System Diagnostic & Programming Tool

The LAUNCH X431 PRO5 Plus is a professional workshop-grade scan tool designed for full system diagnostics, ECU programming, and vehicle repair functions on a wide range of 12V and 24V vehicles. Equipped with the latest SmartLink C 2.0 VCI, it supports J2534 programming, CAN FD, DoIP, heavy-duty truck software (optional), and over 50 maintenance functions. Designed to handle modern diagnostics with ease, this powerful Android-based tool also features Topology Mapping, AutoAuth (FCA), and remote diagnostics capability. Includes 2 years of free software updates.

Main Features:

Read and clear fault codes across all systems
View and graph live data from multiple modules
Access ECU information and freeze frame data
Perform active tests to check component functionality
Carry out adaptations and calibrations where supported
Reset or reprogram control modules (vehicle dependent)
Generate pre-scan and post-scan diagnostic reports

OE-level diagnostics for all available systems (engine, transmission, ABS, SRS, BCM, etc.)
Bi-directional active tests and functional tests (e.g. fuel pumps, solenoids, windows, valves, etc.)
50+ reset and maintenance functions including engine oil service reset, battery reset, DPF regen and DPF reset, Injector Coding, ABS bleeding, EPB reset, SAS & more
Topology Mapping for visual overview of all modules and communication status
Supports AutoAuth login for FCA vehicles (Jeep, Dodge, Chrysler, etc.)
Fast AutoVIN and AutoScan technology for automatic vehicle identification and system check
Compatible with latest communication protocols – CAN FD (used in GM, Hyundai, Nissan) and DoIP (used in Volvo, Land Rover, BMW)
Android 9.0 tablet with 10.1” touchscreen, 8-core CPU, 4GB RAM, 64GB storage (expandable)
Wi-Fi and Bluetooth connectivity, fast system response and intuitive navigation
Professional-grade diagnostics for 12V passenger and 24V commercial vehicles (HD module sold separately)
SmartLink C 2.0 VCI supports J2534 ECU programming, remote diagnostics, and CAN FD / DoIP protocols
2 years free online updates included

Special Functions:

Oil Reset: Reset the oil life system and turn off the oil light after replacing the oil or oil filter to start a new cycle.
TPMS Reset: Quickly look up the tire sensor IDs from the vehicle’s ECU, and perform TPMS replacement and sensor test.
EPB Reset: Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.
BMS Service: Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information and prevent the related control module from detecting false information.
IMMO Keys: Disable the lost vehicle keys and program a new replacement key fob.
ABS Bleeding: Bleed the air of a brake system to restore ABS brake sensitivity.
SAS Calibration Reset: Calibrate the steering angle after replacing the steering angle position sensor and the mechanical parts of the steering system, etc. Stores the current steering wheel position as the straight-ahead position in the steering angle sensor and clear fault memory.
DPF Regeneration: Perform the regeneration procedure as know as the DPF cleaning operation to clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.
Injector Coding: Code the injector after replacing or adjusting to correct the fuel injection volume of each cylinder more accurately.
Suspension: Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.
And Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Trans Adaption, etc.

Packaging Includes:

LAUNCH X431 PRO5 Plus Android Tablet
SmartLink C 2.0 Bluetooth/Wi-Fi VCI (J2534-compliant)
OBDII main diagnostic cable
OBDI and regional adapter kit
USB power cable and charger
Rugged carry case
Quick start guide

(X431Pro5)

Launch X431 PRO 5 PRO5 Full System Diagnostic Tool with Smartlink 2.0 Support J2534/ CANFD/ DoIP Upgrade Version of X431 Pro3.

Specifications:

Operating System: Android 9.0
Processor: 1.8GHz Octa-core
Display: 10.1” IPS Touchscreen (1920×1200 resolution)
Memory: 4GB RAM
Storage: 64GB (expandable via microSD)
Connectivity: Wi-Fi 2.4GHz/5GHz, Bluetooth 5.0, USB-C
Battery: 7000mAh lithium-polymer
Rear Camera: 8MP
Supported Protocols: OBDII, CAN, CAN FD, DoIP, KWP2000, ISO9141, J1850, J2534
Vehicle Compatibility: 12V passenger and 24V commercial (with HD software)
Software Updates: 2 years free via Wi-Fi
