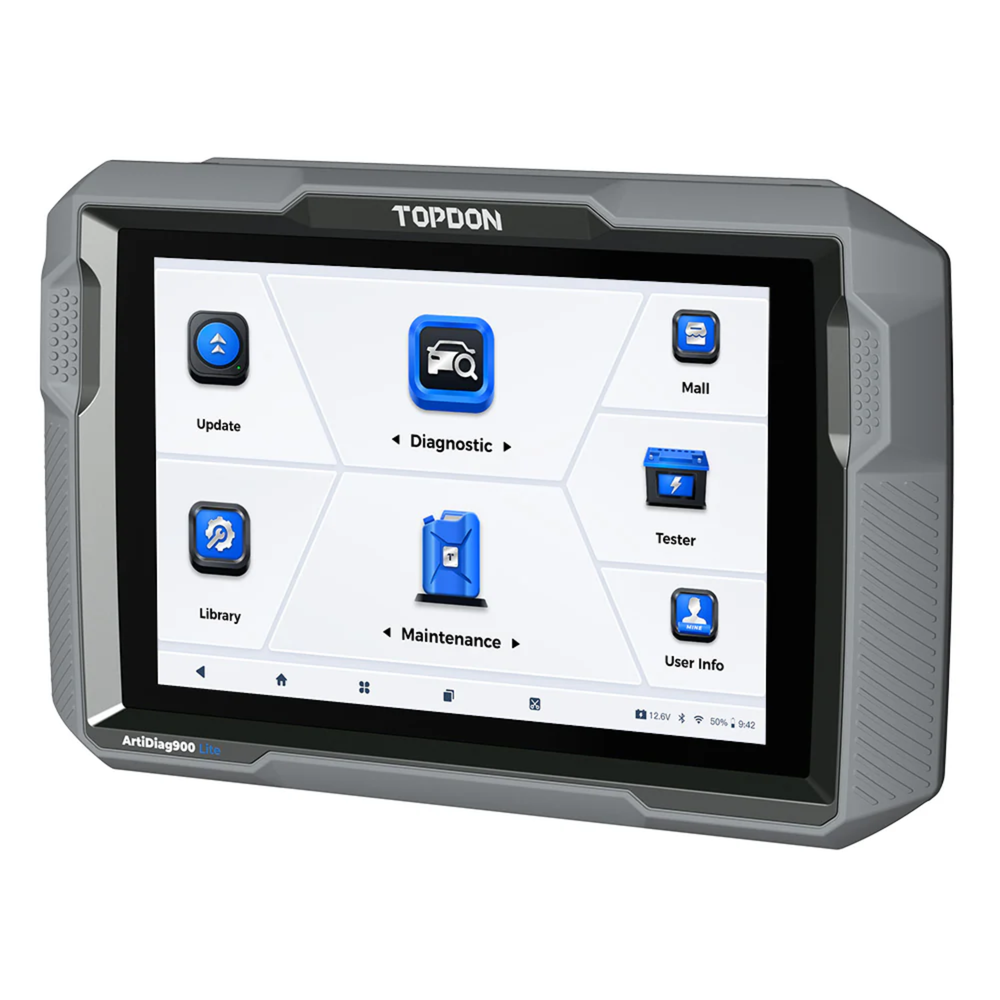

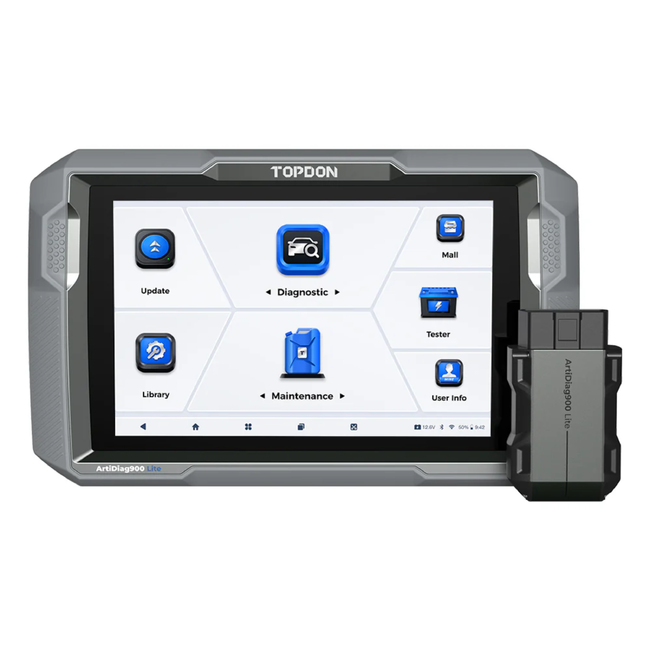

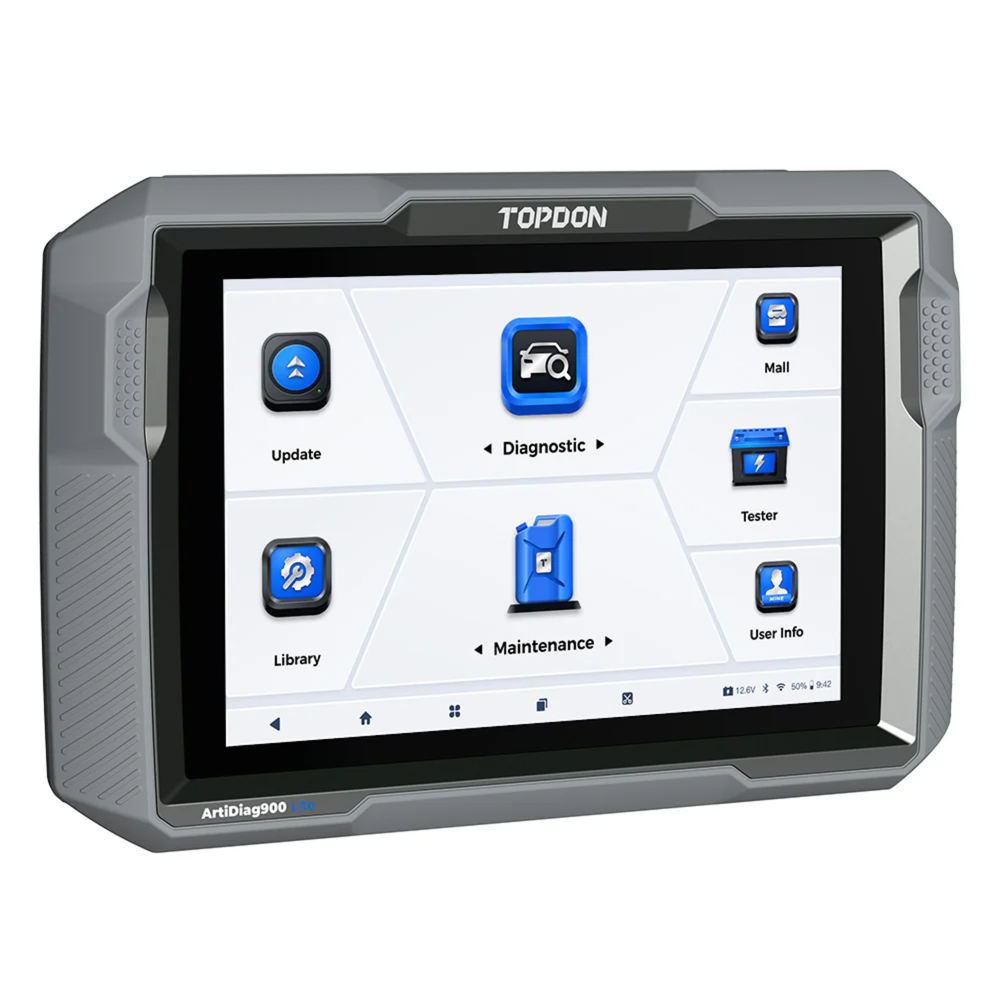

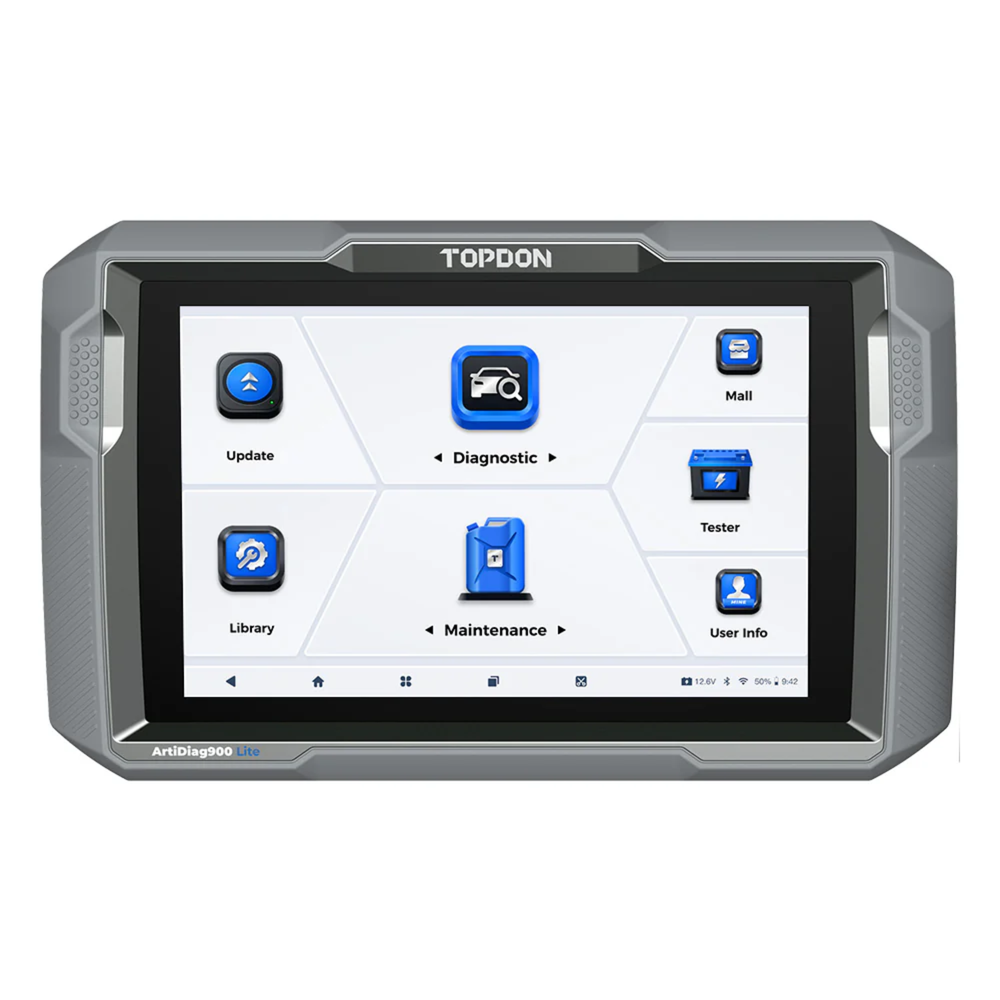

TOPDON ArtiDiag900 Lite Bluetooth Diagnostic Scanner

TOPDON ArtiDiag900 Lite Wireless Bluetooth Diagnostic Scan Tool

Wireless Professional Vehicle Diagnostics

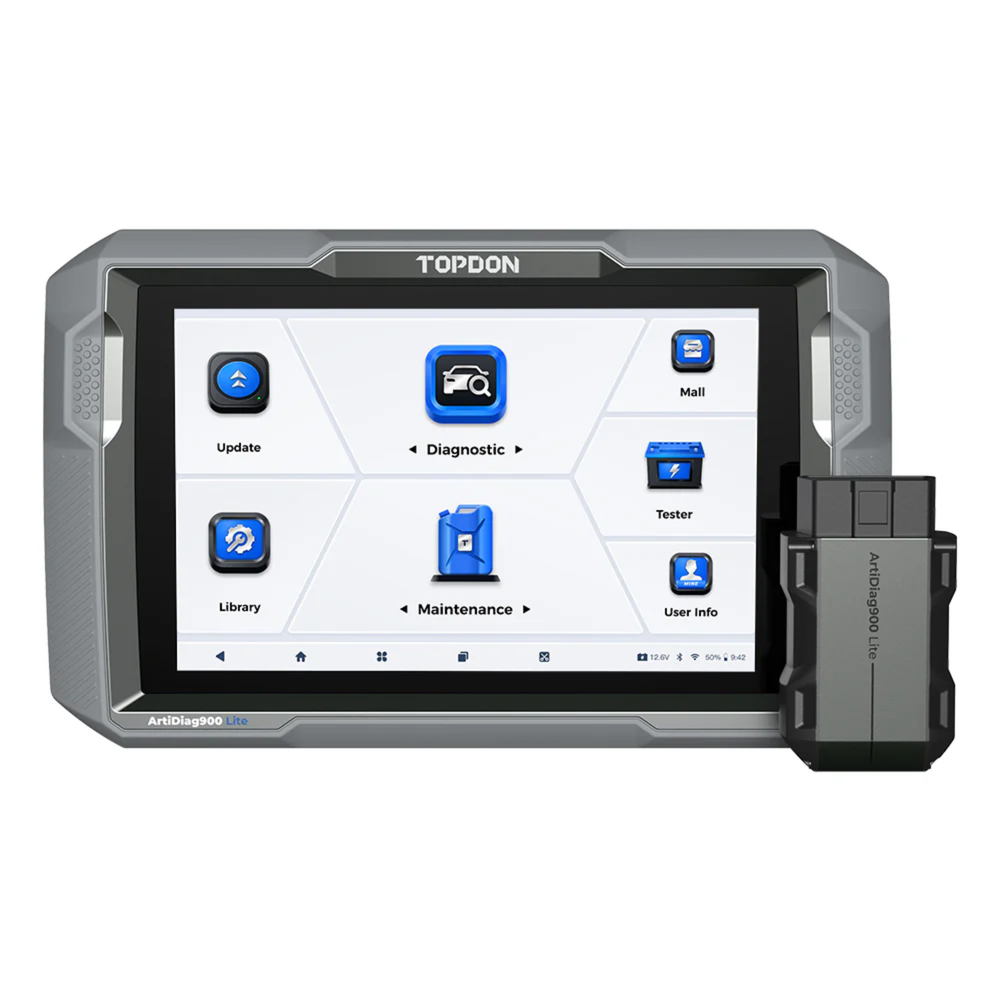

The TOPDON ArtiDiag900 Lite is a professional-grade wireless diagnostic scanner designed for workshops and automotive technicians requiring fast, accurate vehicle diagnostics. Supporting full system diagnostics across more than 100 vehicle brands, it combines bidirectional control, 8 essential maintenance functions, advanced OBD2 testing, AutoVIN, AutoScan and SGW access in one powerful Android-based platform. Its Bluetooth VCI, long-lasting battery and integrated repair data library help improve diagnostic efficiency while reducing downtime.

The TOPDON ArtiDiag900 Lite is a professional-grade wireless diagnostic scanner designed for workshops and automotive technicians requiring fast, accurate vehicle diagnostics.

Main Features

Full System Diagnostics – Performs comprehensive diagnostics across all major vehicle systems, including the engine, transmission, ABS, SRS, TPMS, air conditioning, steering, body control modules and more for over 100 vehicle manufacturers.
Professional Bidirectional Control – Activates vehicle components and actuators for active testing, allowing technicians to verify component operation, isolate faults and diagnose problems with greater accuracy.
Complete OBD2 Diagnostics – Supports all 10 OBD2 diagnostic modes, including reading and clearing fault codes, live data, freeze frame, oxygen sensor testing, EVAP testing, onboard monitoring and emissions readiness.
Eight Essential Service Functions – Includes Oil Reset, EPB Reset, Steering Angle Calibration, ABS Bleeding, DPF Regeneration, Battery Management System Reset, Airbag Reset and Throttle Adaptation for routine vehicle servicing.

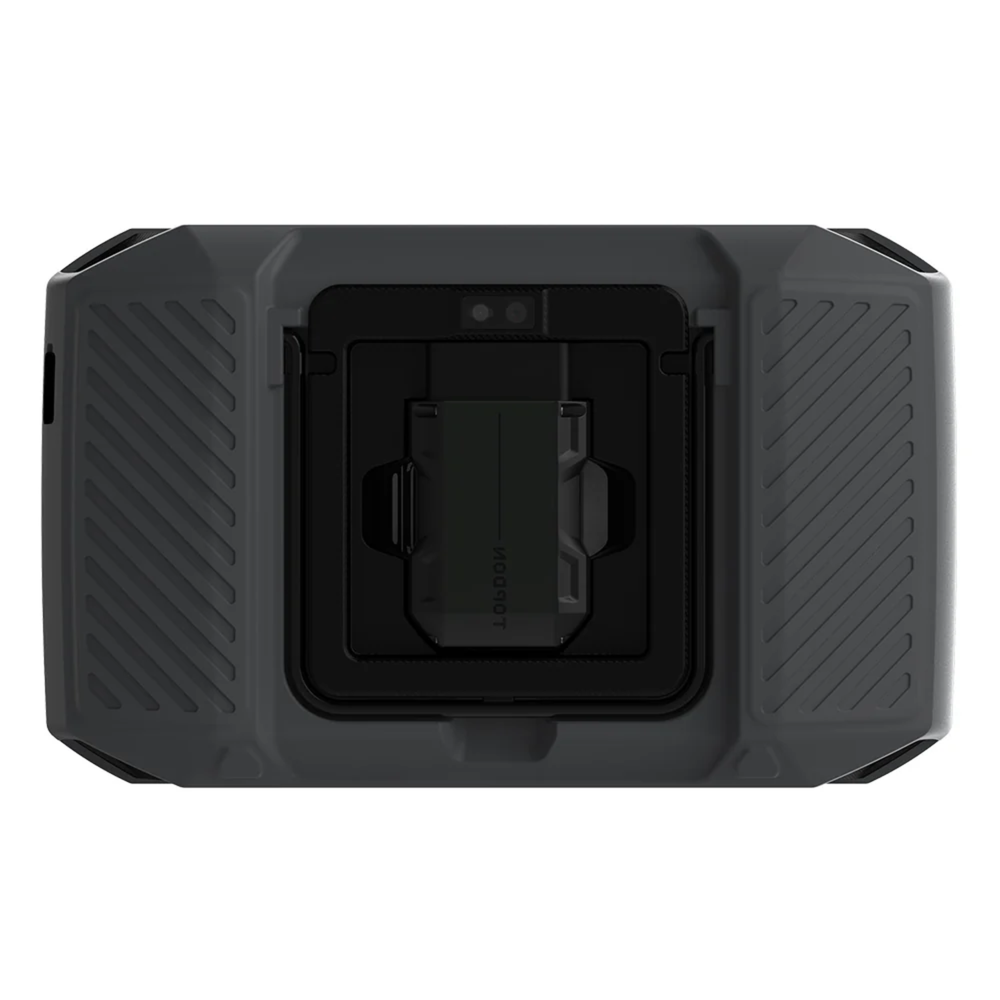

Bluetooth Wireless Diagnostics – Features a magnetic Bluetooth VCI that securely attaches to the tablet, providing reliable wireless communication and greater flexibility when diagnosing vehicles.
AutoVIN & AutoScan – Automatically identifies compatible vehicles and performs a complete scan of all available control modules, reducing setup time and improving diagnostic efficiency.
Integrated Repair Data Library – Provides built-in access to DTC definitions, repair guidance, service bulletins, warning light information and DLC location references to support faster repairs.
Secure Gateway (SGW) Access – Supports authorised SGW access for selected FCA, Renault, Nissan and other compatible manufacturers, enabling diagnostics and service functions on protected vehicle systems.
High-Performance Android Platform – Powered by Android 11 with 2GB RAM, 32GB storage and an 8-inch HD touchscreen for responsive operation and smooth diagnostic performance.
Long-Lasting Battery – Equipped with a high-capacity 10,000mAh rechargeable battery, delivering extended operating time to support busy workshop environments.
Expandable Connectivity – Includes USB Type-A, USB Type-C, HDMI, RJ45 and TF card support, providing flexible connectivity and storage expansion up to 128GB.
Optional Wireless Battery Testing – Compatible with TOPDON BTMobile Pros battery testers, enabling advanced wireless battery health analysis and performance testing when required.

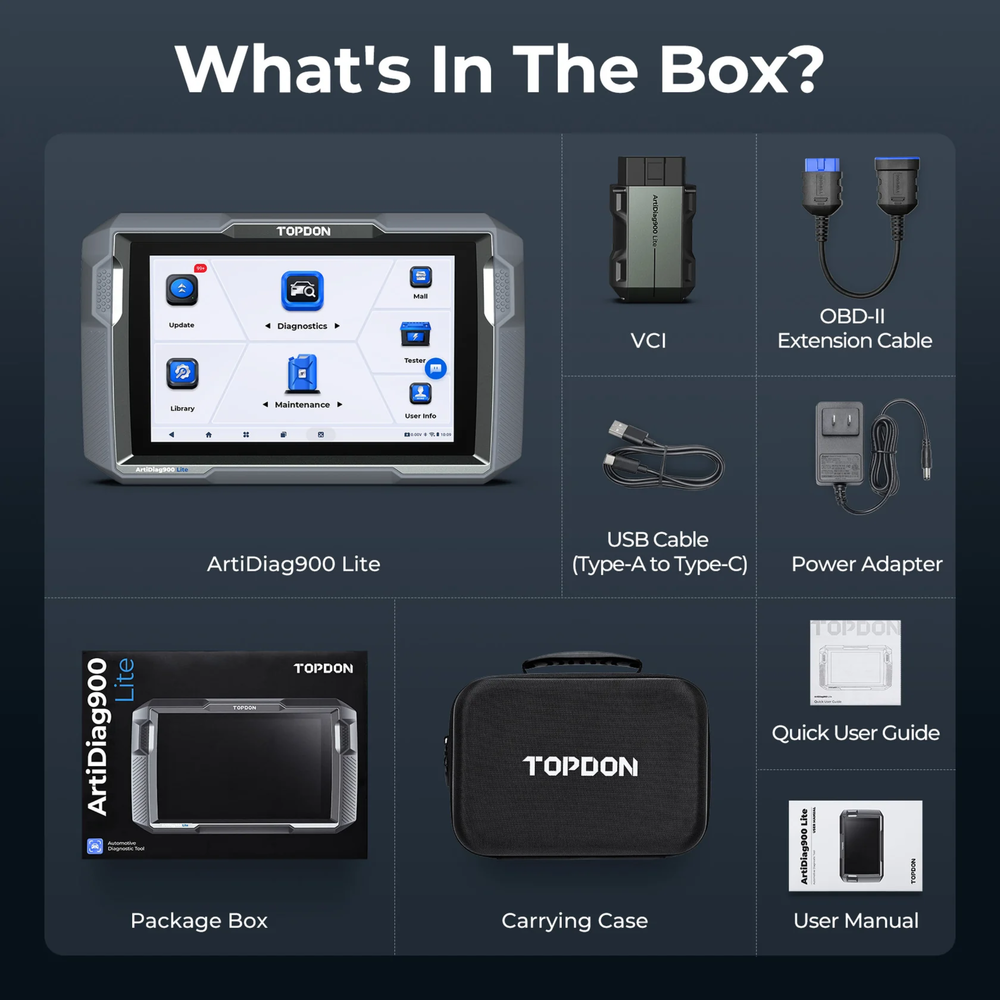

Package Includes

ArtiDiag900 Lite
VCI
Power Adapter
OBD-II Extension Cable
USB Cable (Type-A to Type-C)
Quick User Guide
User Manual
Carrying Case
Package Box

Professional-grade Wireless Diagnostic Scanner

Full System Diagnostics for 100+ vehicle brands

Professional Bidirectional Control (Active Tests)

Complete OBD2 Functions with Lifetime Access

8 Essential Service Reset Functions

Bluetooth Wireless VCI Connection

AutoVIN & AutoScan Technology

Integrated Repair Data Library

SGW Access for Modern Vehicles

Android 11 Operating System

10,000mAh High-Capacity Battery

TOPDON ArtiDiag900 Lite Bluetooth OBD2 Scan Tool

TOPDON ArtiDiag900 Lite Specifications

ArtiDiag900 Lite's Specifications

OS: Android 11.0

Storage Capacity: RAM 2G & ROM 32G

Screen: 8 inches, 1280*800 Resolution

Connectivity: Bluetooth 5.0/SPP USB Wi-Fi

Camera: 5 mega-pixels

Battery Capacity: 10000mAh

Ports: USB Type-A/USB Type-C/RJ45/HDMI/DC Charging Port

Input Voltage: 12V DC

Dimensions (L x W x H): 255*155*50 mm (10*6.1*1.97 in.)

Working Temperature: 0°C to 50°C (32°F to 122°F)

Storage Temperature: -20°C to 60°C (-4°F to 140°F)

VCI's Specifications

Operating Temperature: -10°C to 60°C (14°F to 140°F)

Working Voltage: 9-18 V

Working Current: ≦100 mA

Dimensions: 84*50*27 mm (3.3*2.0*1.1 inch)

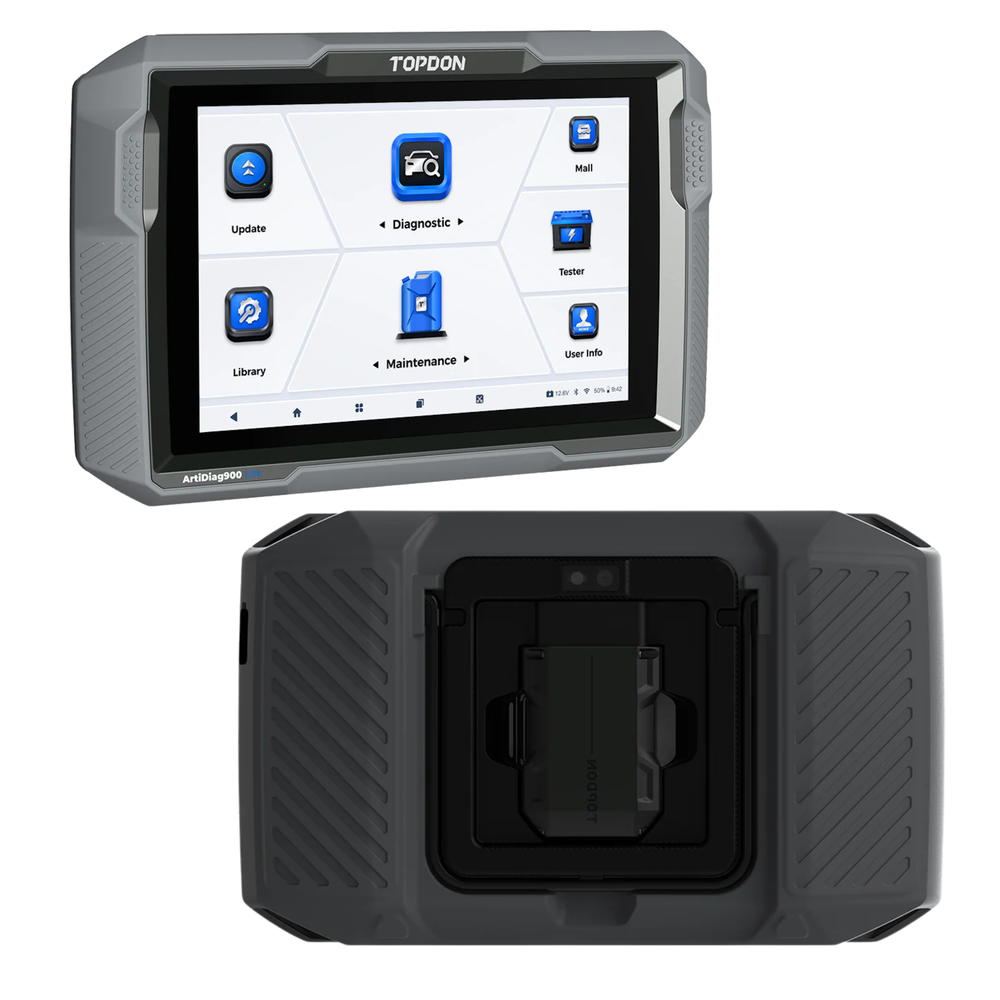

TOPDON ArtiDiag900 Lite Full System Vehicle Diagnostics
