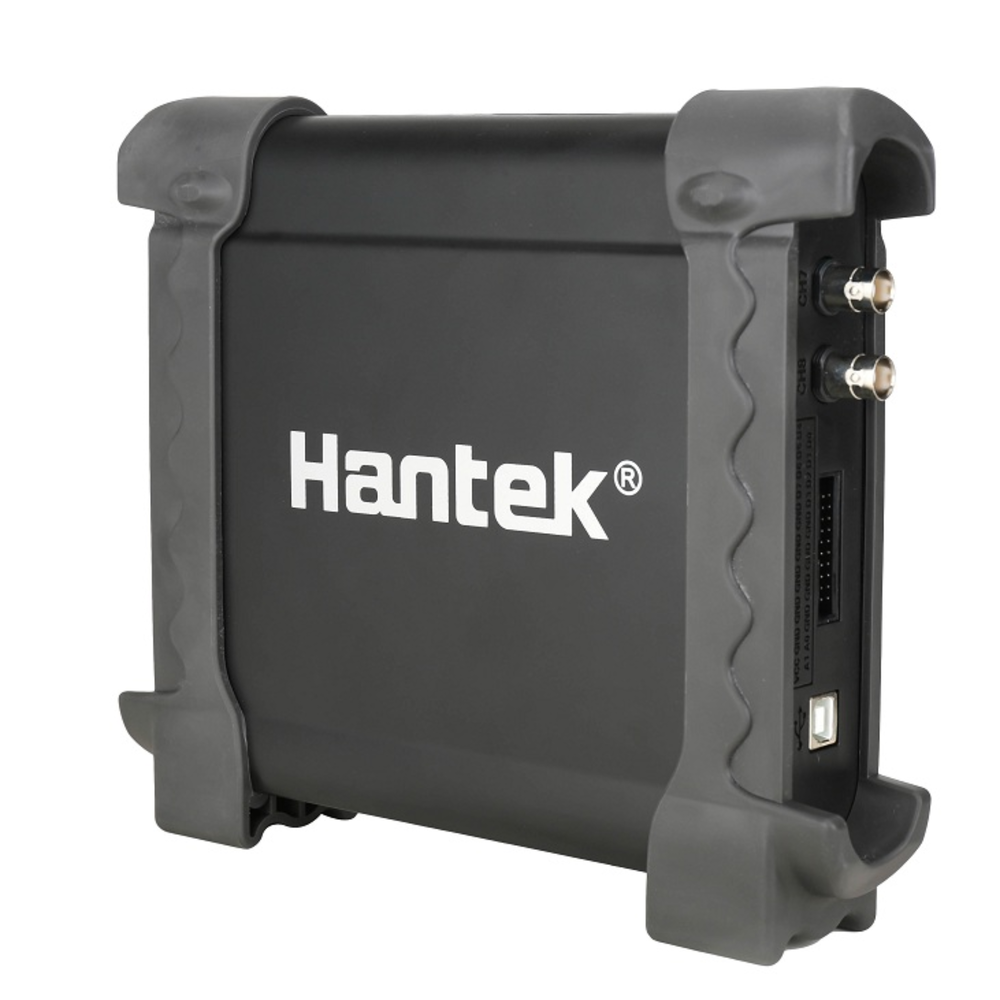

Hantek1008B 8CH Automotive Oscilloscope Diagnostic Tool

Hantek1008B 8-Channel Automotive Diagnostic Oscilloscope

The Hantek1008B Automotive Diagnostic Oscilloscope is a high-performance 8-channel testing solution designed for professional vehicle diagnostics and advanced fault analysis. Equipped with over 80 diagnostic functions, it enables precise evaluation of ignition systems, sensors, actuators, and communication networks including CAN and LIN bus. With integrated signal generation, long-duration waveform recording, and USB-powered plug-and-play functionality, it delivers reliable, real-time diagnostics without requiring an external power supply..

TThe Hantek1008B Automotive Diagnostic Oscilloscope is a high-performance 8-channel testing solution designed for professional vehicle diagnostics and advanced fault analysis.

Main Features

8-Channel Simultaneous Diagnostics – Enables concurrent measurement across eight channels with independent voltage control, allowing comprehensive system analysis in real time.
Extensive Diagnostic Coverage – Supports over 80 vehicle diagnostic functions including ignition systems, sensors, actuators, CAN/LIN bus communication, and engine performance testing.
Integrated Signal Generator – Provides programmable signal output up to 250kHz to simulate crankshaft and camshaft signals for advanced testing scenarios.
One-Button Screenshot & Reporting – Instantly capture waveforms and generate diagnostic reports for documentation, analysis, and customer records.
USB Plug & Play Operation – Powered directly via USB 2.0, eliminating the need for external power supplies and ensuring quick setup in workshop environments.
Long-Duration Waveform Recording – Supports continuous waveform capture and playback, enabling detailed fault tracing over extended diagnostic periods.
Reference Waveform Comparison – Includes built-in standard waveform library and REF comparison functionality for accurate fault identification.
Advanced Measurement Functions – Features 20 automatic measurement modes for voltage, frequency, duty cycle, and timing analysis.
Flexible Data Storage Options – Save diagnostic results in multiple formats including TXT, CSV, XLS, DOC, and JPG for easy sharing and reporting.
Multi-Language Interface – Supports multiple languages including English, German, and Chinese for global usability.

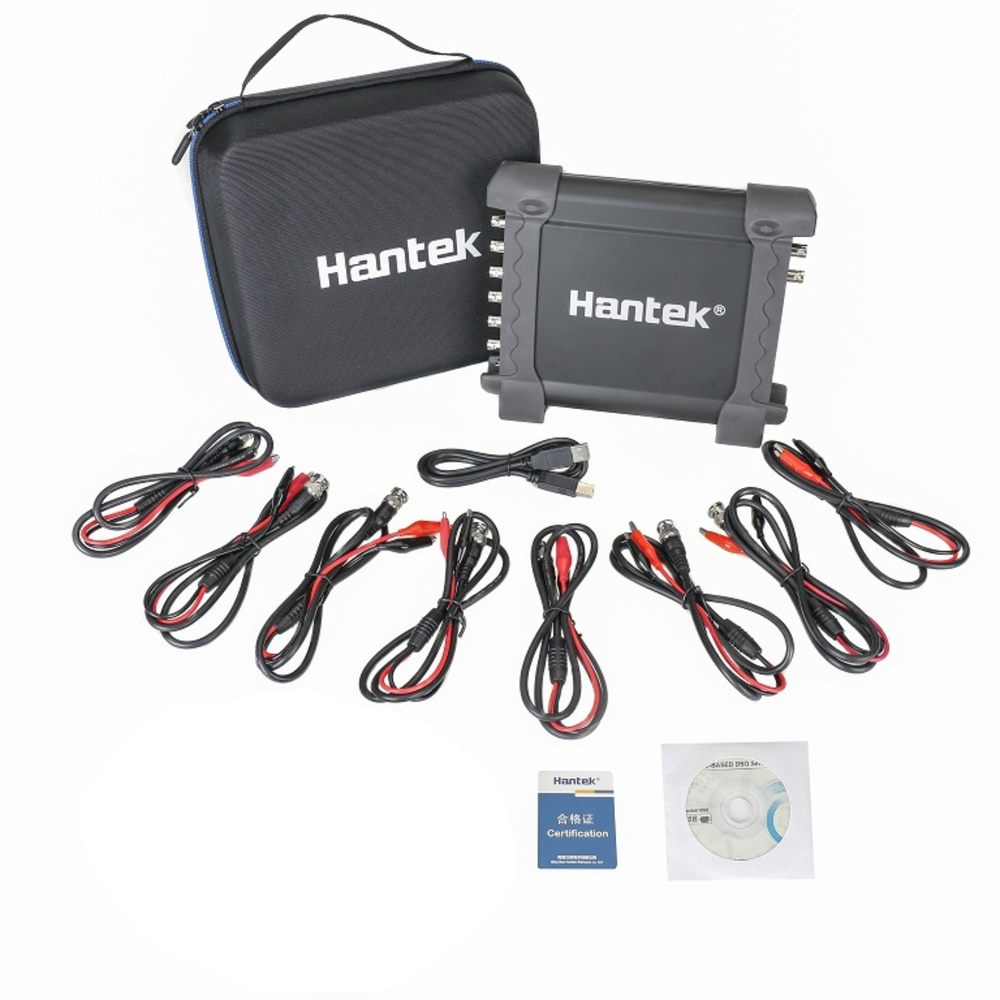

Package Includes

Hantek1008B Automotive Oscilloscope Unit
High Pressure Ignition Probe
USB Cable
Test Leads and Accessories
Software (Downloadable)
User Manual

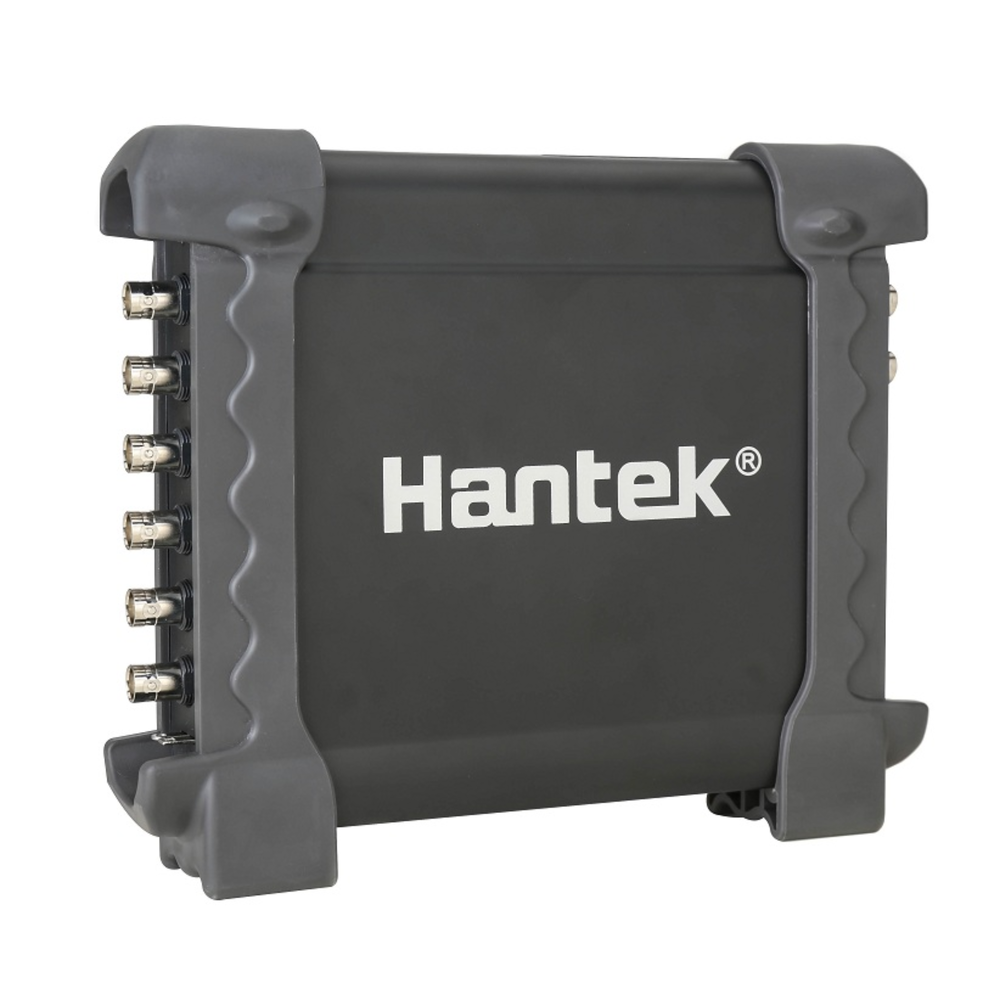

Hantek1008B 8 channel automotive oscilloscope device

8-channel simultaneous signal measurement

Over 80 automotive diagnostic functions

Built-in signal generator (0–250kHz)

One-button screenshot and report generation

USB 2.0 plug-and-play connectivity

Long-duration waveform recording and playback

Integrated reference waveform comparison

Multi-format data storage (CSV, JPG, XLS, etc.)

Automatic measurement with 20 analysis modes

Multi-language interface support

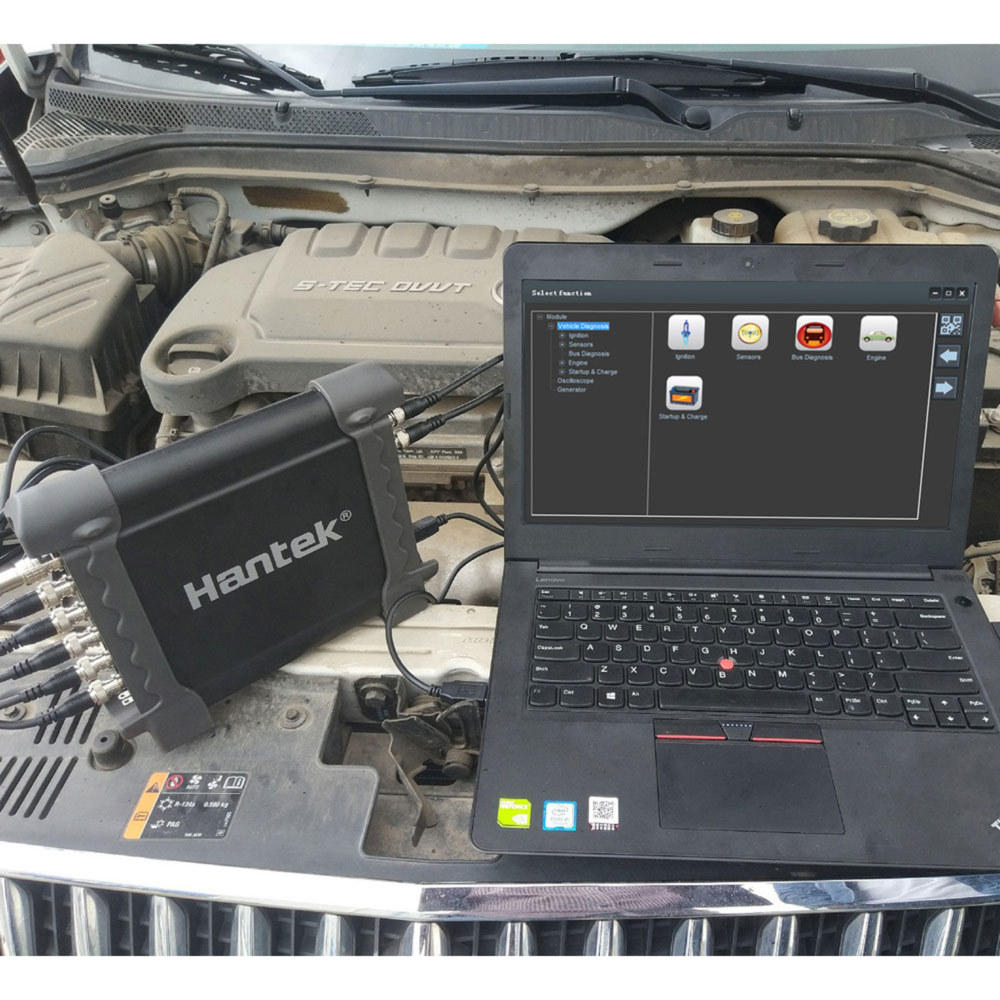

Hantek1008B 8 Channels Oscilloscope for Vehicle Testing

Technical Specifications

Model: Hantek1008B

Display: PC-Based Interface (Software Display)

Channels: 8 Analogue Channels

Resolution: 12-bit

Sampling Rate: 2.4MSa/s

Input Impedance: 1MΩ

Input Voltage: Max. 400V (DC + AC Peak)

Input Sensitivity: 10mV/div to 5V/div

Time Base Range: 1ns/div to 20000s/div

Memory Depth: 4K

Trigger Mode: Edge

Voltage Measurement: Vpp, Vrms, Vmax, Vmin, etc.

Time Measurement: Frequency, Period, Duty Cycle, Rise/Fall Time

Waveform Processing: FFT, Addition, Subtraction, Multiplication, Division

Interface: USB 2.0 (Plug & Play)

Power Supply: USB Powered (No external power required)

Signal Generator: 8CH, 0–250kHz

Data Storage Formats: TXT, CSV, XLS, DOC, JPG

Dimensions: 190 × 167 × 35 mm

Weight: 0.63 kg

Operating System: Windows XP / 7 / 8 / 10

The Hantek TO1154D 8-Channel Simultaneous Diagnostics – Enables concurrent measurement across eight channels with independent voltage control, allowing comprehensive system analysis in real time.
