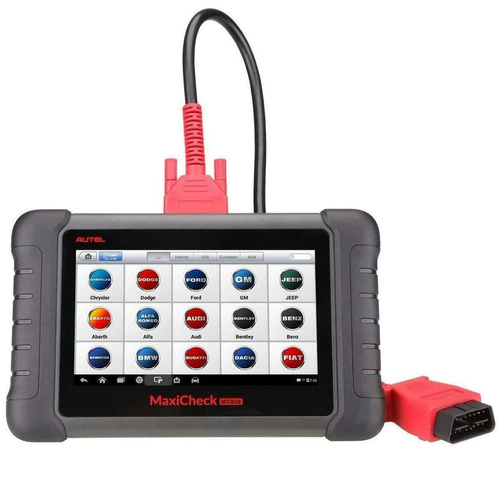

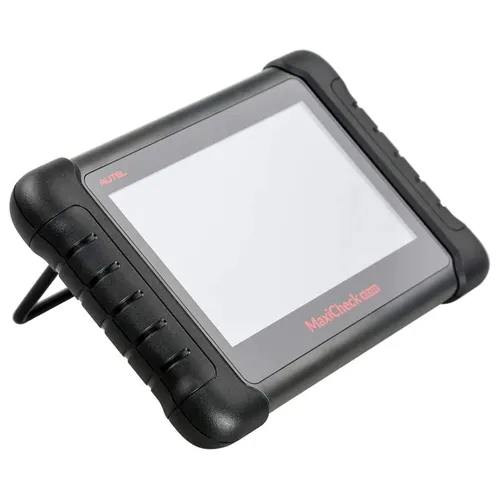

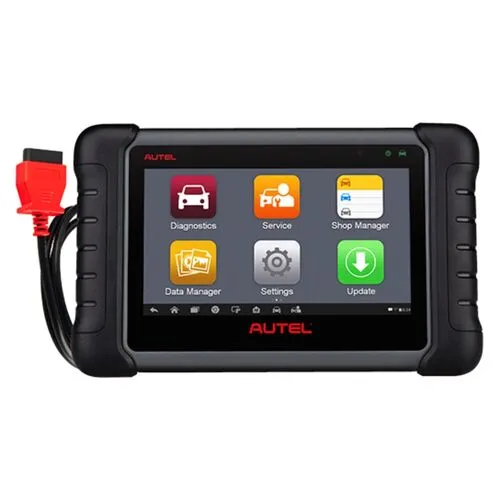

Autel MaxiCheck MX808 OBD2 Diagnostic Scanner
SKU code: MX808
This Autel MaxiCheck MX808 is a full system diagnostic scanner that can quickly test every system module status and faster diagnosis and maintenance via reading/clearing codes and viewing live data, and only costs you a few minutes to finish full scanning. It helps detect the engine ignition, fuel injection, air, and fuel ratio, and exhaust emission conditions in the Engine system to enhance vehicle performance, save energy, and reduce exhaust emission. Also able to perform injector coding and injector relearn values.
Main Features
- Read/clear codes for all available systems
- Display live data in text, graph & analog for easy data review
- Auto VIN technology can automatically identify the vehicle’s make, model, and year information in no time
- Reset Steering Angle Sensor (SAS)
- Reset service mileage and service intervals
- IMMO and key programming functions
- Support Injector Coding functions
- Relearn parking brake pad after replacement
- Support forced DPF regeneration and adjusting injectors
- Support battery registration and reset

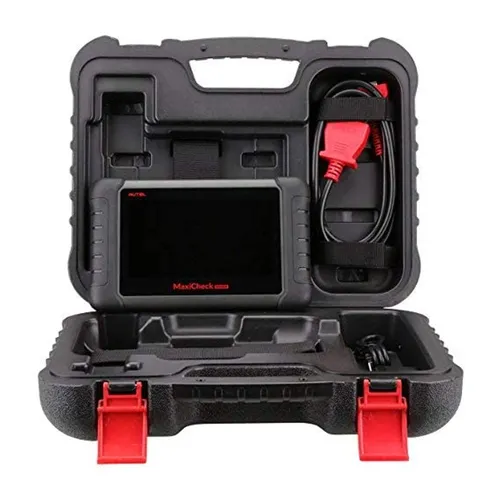

Package Includes
- MX808 Main Unit
- USB External Power Adapter
- Main Cable
- Mini USB Cable
- Carrying Case
- User Manual
(MX808)
Operating System: Android™ 4.4.4, KitKat) |
Processor: Cortex-A9 processor(1.5 GHz) |
Memory: 32GB |
Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution |

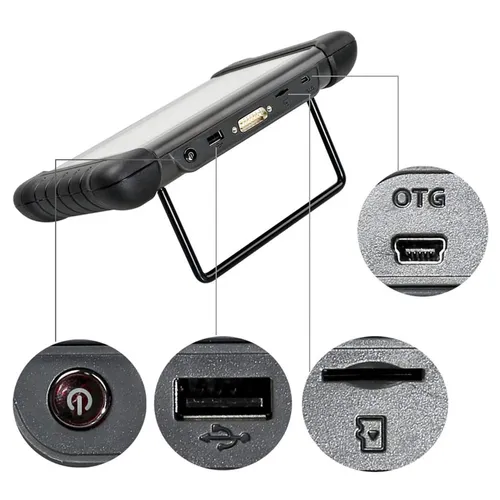

Connectivity: Mini USB 2.0, USB2.0, Wi-Fi, HDMI Type A, and Micro SD card slot(supports up to 32GB) |
Battery: 3.7 V/5000 mAh lithium-polymer battery |
Operating Temp: -10to60°C(14to140°F) |
Storage Temp: -20to70°C(-4to158°F) |
Operating Humidity: 5%-95%non-condensing |
Dimensions: 270.8mm x 176.0mm x 36.0mm |
Recommended Use Indoor |
Weight: 885g |
Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898 (Highspeed, Middlespeed, Low-speed, and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol Honda Diag-H Protocol, TP2.0, TP1.6 |
Delivery
99% of orders are dispatched from our Melbourne warehouse within 24 hours after payment is cleared. All orders are shipped with Australia Post e-Parcel with tracking and signature on delivery.
Express shipping is available at additional cost. For next day delivery, please ensure your postcode is within Australia post Next Day Delivery network.
Returns
We offer 30 days money back guarantee on all orders. If your item was purchased in error, or you've simply changed your mind, it may not be too late for a refund. The item must be returned in original re-saleable condition - Not opened, used or damaged and ready to be put back on the shelf.
Warranty
All products supplied by AZscanners come with 12 months limited warranty unless otherwise specified. Warranty covers defects in materials and/or workmanship. If a defect arises and a valid claim is received, AZscanners may at its option repair or replace the product.
Naturally the warranty cover does not extent to cover damage caused by normal wear and tear, accidents, misuse, lack of maintenance, neglect, natural disaster, or other external causes; to damage caused by operating the equipment in a manner outside that described in the instructions.
Why Buy Scan Tools From Us?
Australia's Trusted Supplier of Premium Diagnostic Scan Tools
Since 2013, AZscanners has been at the forefront of supplying top-quality diagnostic scan tools and products across the nation. Renowned as a trusted Australian-owned company, we have earned the loyalty of a diverse clientele, including major companies, automotive workshops, mobile mechanics and home mechanics looking for best OBD scanners to buy.
30 Days Money Back Guarantee
We aim to make your buying experience as risk free as possible. We offer 30 days money back guarantee on all orders. If your item was purchased in error, or you've simply changed your mind, it may not be too late for a refund. The item must be returned in original re-saleable condition - Not opened, used or damaged and ready to be put back on the shelf.
Premier Quality OBD Scanners
At AZscanners, we're not just about selling tools; we're about offering solutions that match every need and budget. Our commitment to quality is unwavering, with each product meticulously selected for its reliability, performance, and compatibility. From professional-grade equipment for the seasoned mechanic to user-friendly devices for the DIY enthusiast, our range is thoughtfully curated to ensure you find exactly what you need without compromise.
Dedicated Local Support
Unlike many other scan tool sellers in Australia, we have a committed team of expert technicians and customer support centres to help you with any questions you have before or after purchase. Another reason why our customers keep coming back.
Fast & Reliable Shipping
99% of orders are dispatched within 24 hours after payment is cleared. We offer free shipping on the vast majority of items, and deliver to every state in Australia. All orders are shipped with Australia Post e-Parcel with tracking and signature on delivery. Express shipping is also available at additional cost.
Competitive Pricing, Uncompromised Quality
Because we conduct our business purely online and source our products direct from the manufacturer, our overheads are much lower than other retailers so we’re able to pass on huge savings to our customers.
Mx808
Great service,great product,excellent price and excellent after sale advice and help for a non tech savvy customer. Great job guys.25 January 2024
Excellent Scanner
Excellent Scanner has the ability to read codes on vehicles that an OBDII won’t communicate with or doesn’t recognise a lot of faults. For example, Ssangyong Stavic had engine light on but OBDII would read ‘No faults found’. The Autel MX808 read the faults and I was able to sort out the vehicle.28 February 2023
MX808
Very happy with AZ Scanners support team, someone to talk to and solved my issue. Regarding the MX808 I have limited use so far, however I have used it my 2017 Pajero Sports and a 2009 Triton easy to use and scanned the vehicles no worries. I removed the airflow sensor and rescanned created a error code, engine warning lamp on etc, it's simple to read and reset fault codes. Looked at live data again very easy to use. The service function is easy to use, things like oil reset and injector relearn all good, this allows me to service my vehicle and reset all service function as per OEM instructions. Much more to learn but I haven't tried data logging etc. Won't do everything but I'm sure it will assist me to service and make diagnosis of any issues I have while travelling OZ .16 February 2023
2016 Transit 470e
Bought this scanner to carry out DPF forced clean and reset engine light to remove limp mode...it worked perfectly...I highly recommend this product15 October 2022
Autel mx808
Mechanic last 25 years, out of the automotive industry but still do the odd job on the side family, friends & personal vehicles, the scanner is easy to use, does dpf filter regeneration’s & resets oil service lights does all the functions you need to get yourself out of trouble, does a full diagnostic code search, once the scanner is set up you can easily do any software updates with minimal ease, top scanner & value for money compared to the others on the market9 August 2022
First time
Used it to turn of EPB worked really good easy to use.13 July 2022
First time
Used it to turn of EPB worked really good easy to use.12 July 2022
Awesomeness
What great product, I puchased the Autel MX808 maxicheck after returning another product! I knew I had a faulty front right ABS speed sensor and the other product could not detect the fault, I plugged the Autel MX808 maxicheck into my car and then scanned for tha ABS fault and found it straight away. Talk about easy to use, highly recommend this product. Ben31 May 2022
Autel MaxiCheck MX808 OBD2 Diagnostic Scanner
found this device very to use, the staff at Azscanners were very helpful when buying this device, All round a very good experience.17 May 2022
MX808 Review
I'm actually a mechanic and I have only just left my position with the RAA in Adelaide after 16 years. I needed a scan tool so I can monitor my 2017 Isuzu d'max. And also I will be travelling around Australia hopefully picking work up as I go. So required a reasonable scan tool. Very happy with Gary's recommendation.2 May 2022
Quite Impressed with this Scanner
After buying a number of Scanners at around the $200 to $300 figure that said that the Scanner could read and Clear Fault Codes, but couldn't; I called the AZ Scanner People and they spent the time to explain what product would suit my needs; the Autel MaxiCheck MX808 was what I needed to be able to Clear the Fault Codes for DPF Issues on my Mitsubishi Pajero Sport 2017 after the Intercooler Hose had cracked and caused my DPF Warning Light to show, and continue to show even after replacing the Intercooler Hose, and the DPF Regenerating itself (confirmed by putting a borescope through the DPF Pressure Sensor Port and seeing the the Filter was very clean and free of Soot and Ash); I waited a week for the Scanner to arrive and then charged it up, connected it up to my home WiFi and Downloaded the latest Software Updates, and then went out to use it on my car. The Product was so intuitive to use that I didn't even have to read the instruction manual to learn how to use it or Read the Setting on my Car; I very quickly found that the DPF Filter was not at fault, but that the constant DPF Regeneration Attempts had diluted my sump oil with Diesel, and it was actually a Sump Oil issue that was keeping the DPF Light up. The MX808 could not only Read the Fault Codes, it could tell you what the Codes meant and how to address them, it can also command a Forced DPF Regeneration, and check all the Sensors to do with the DPF system. I am not a mechanic by any means, but I was very impressed with the power of the MX808 and what it can do.5 January 2022
