Autel MaxiSYS MS906BT – Professional Diagnostic Scan Tool
OE Diagnostics, ECU Coding & Wireless Bluetooth
Secure Payment Methods
Calculate Shipping

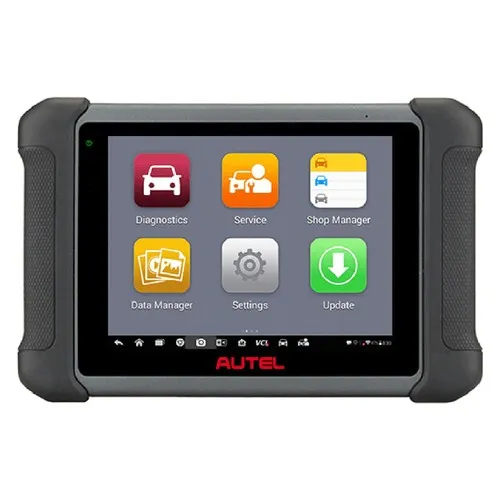

Autel MaxiSYS MS906BT
The Autel MaxiSYS MS906BT is a professional-grade diagnostic tablet built for workshops and advanced technicians who need speed, mobility, and depth of coverage. With its Samsung Exynos Hexa-core processor, 8-inch HD touchscreen, and Bluetooth MaxiVCI, it provides OE-level diagnostics, ECU coding, and complete service capabilities with wireless convenience.
Designed for daily workshop use, the MS906BT covers more than 80 US, Asian, and European makes and models, supporting everything from key programming and coding to service resets and adaptations. Combined with its rugged design, long-lasting 14-hour battery, and integrated workshop management features, the MS906BT is a true all-in-one solution for modern diagnostics.
Hardware Features
- Samsung Exynos Hexa-Core Processor – Delivers fast, smooth performance.
- 8.0” HD Multi-Touch Display – 1024×768 IPS touchscreen with glossy LED backlight.
- 32GB SSD – Reliable storage for fast multitasking.
- 8MP Rear Camera – Autofocus and LED flash for documentation.
- 14-Hour Battery Life – Rechargeable lithium-polymer battery for long operation.
- Rugged Design – Rubberised outer protection with reinforced housing.

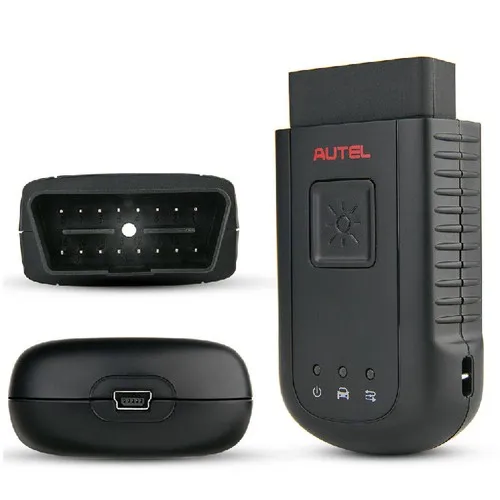

- Wireless Connectivity – Bluetooth MaxiVCI for remote vehicle communication.
- Wi-Fi & USB Ports – Easy access to updates, data, and accessories.
Software Features
- Software OE-Level Diagnostics – Covers 80+ makes and models worldwide.
- Bi-Directional Active Tests – Command components and perform functional testing.
- ECU Coding & Adaptations – Advanced coding and module programming.
- Full System Coverage – Codes, live data, freeze frame, ECU info, matching, adaptation.
- 40+ Service Functions – ABS bleeding, oil reset, SAS calibration, EPB reset, DPF regeneration, battery registration, brake pad reset, key programming, injector coding, and more.
- Smart AutoVIN – Automatic vehicle ID for quick scanning.
- Workshop Tools – Customisable Pre & Post scan reports, multitasking for managing vehicle records, customer data, and files.
- MaxiFix Cloud Support – Access a global database of repair tips, fixes, and troubleshooting.
- Interactive Data Logging – Direct contact with Autel technical support for bug fixes.
- Remote Tech Support – Instant remote troubleshooting anywhere.

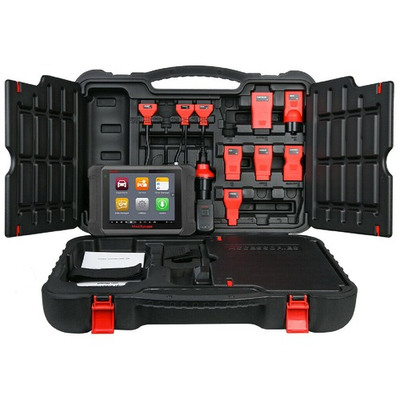

Package Includes
- 1 x MS906BT Tablet
- 1 x User Manual
- 1 x Carrying Case
- 1 x Light Fuse
- 1 x MaxiVCI V100
- 1 x Quick reference guide
- 1 x Adaptor for GM/Daewoo-12
- 1 x Adaptor for PSA-2
- 1 x Adaptor for Fiat-3
- 1 x Adaptor for BMW-20
- 1 x Adaptor for Benz-38
- 1 x Adaptor for Kia-20
- 1 x Adaptor for Mitsubishi/Hyundai-12+16
- 1 x Adaptor for Nissan-14
- 1 x Adaptor for Honda-3
- 1 x Cigarette Lighter
- 1 x Compact Disc (CD)
- 1 x AC/DC External Power Adapter
- 1 x Adaptor for VW/AUDI-2+2
- 1 x Soft Cloth
- 1 x Packing List
- 1 x Mini USB Cable
Why Buy Scan Tools From Us?
Australia's Trusted Supplier of Premium Diagnostic Scan Tools
Since 2013, AZscanners has been at the forefront of supplying top-quality diagnostic scan tools and products across the nation. Renowned as a trusted Australian-owned company, we have earned the loyalty of a diverse clientele, including major companies, automotive workshops, mobile mechanics and home mechanics looking for best OBD scanners to buy.
30 Days Money Back Guarantee
We aim to make your buying experience as risk free as possible. We offer 30 days money back guarantee on all orders. If your item was purchased in error, or you've simply changed your mind, it may not be too late for a refund. The item must be returned in original re-saleable condition - Not opened, used or damaged and ready to be put back on the shelf.
Premier Quality OBD Scanners
At AZscanners, we're not just about selling tools; we're about offering solutions that match every need and budget. Our commitment to quality is unwavering, with each product meticulously selected for its reliability, performance, and compatibility. From professional-grade equipment for the seasoned mechanic to user-friendly devices for the DIY enthusiast, our range is thoughtfully curated to ensure you find exactly what you need without compromise.
Dedicated Local Support
Unlike many other scan tool sellers in Australia, we have a committed team of expert technicians and customer support centres to help you with any questions you have before or after purchase. Another reason why our customers keep coming back.
Fast & Reliable Shipping
99% of orders are dispatched within 24 hours after payment is cleared. We offer free shipping on the vast majority of items, and deliver to every state in Australia. All orders are shipped with Australia Post e-Parcel with tracking and signature on delivery. Express shipping is also available at additional cost.
Competitive Pricing, High Quality
Because we conduct our business purely online and source our products direct from the manufacturer, our overheads are much lower than other retailers so we’re able to pass on huge savings to our customers.
Autel MaxiSys Diagnostic Scan Tools
Comparison Table
|
MaxiSYS MS906 PRO
|
MaxiSYS MS906 BT
|
MaxiSYS Elite
|
MaxiSYS 909
|
|
|---|---|---|---|---|
| Hardware | ||||
| Vehicle Connection | Cable | MaxiVCI | MaxiFlash VCI | MaxiFlash VCI |
| Display Size | 8" | 8" | 9.7" | 9.7" |
| Memory Storage ROM | 32GB | 32GB | 64GB | 128GB |
| Battery | 11600 mAh | 10000 mAh | 13600 mAh | 15000 mAh |
| Connector Kit | ✓ | ✓ | ✓ | ✓ |
| Operating System | Android 7/10 | Android 4.4.2, KitKat | Android 4.4.4 | Android 7 |
| Camera Rear | ✓ | ✓ | ✓ | ✓ |
| Software | ||||
| All System Scan | ✓ | ✓ | ✓ | ✓ |
| Service Reset | ✓ | ✓ | ✓ | ✓ |
| Bi-Directional Control | ✓ | ✓ | ✓ | ✓ |
| Auto VIN Technology | ✓ | ✓ | ✓ | ✓ |
| ECU Coding | ✓ | ✓ | ✓ | |
| (J2534 Pass-Thru) | ✓ | |||
| Data Manager | ✓ | ✓ | ✓ | ✓ |
| Shop Manager | ✓ | ✓ | ✓ | ✓ |
| Optional Add-ons | ||||
| Advanced TPMS | ||||
| Oscilloscope | ✓ | ✓ | ✓ | |
| Inspection Camera | ✓ | ✓ | ✓ | |
| ADAS | ✓ | ✓ | ✓ | |
| LEARN MORE | LEARN MORE | LEARN MORE | LEARN MORE |
Autel MaxiSYS MS906BT
The MS906BT takes everything from the MS906Pro and pushes it further, with faster hardware, wireless Bluetooth diagnostics, longer battery life, and built-in workshop management tools.
It’s not just a diagnostic scanner — it’s a complete workshop platform. From ECU coding and bi-directional control to cloud support, pre/post scans, and data logging, it helps technicians save time, improve accuracy, and manage more vehicles with confidence.
For mechanics and workshops that want a professional, wireless diagnostic solution with advanced ECU coding and all-system coverage, the MS906BT is the ultimate choice.
| Operating System | Android™ 4.4.2, KitKat |
| Processor | Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) |
| Memory | 2 GB RAM & 32 GB ROM |
| Display | 8.0" LED capacitive touch screen with 1024x768P resolution |
| Connectivity |
Wi-Fi (802.11 b/g/n) USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB) |
| Camera (rear) |
Rear-facing, 8.0 Megapixel AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
Microphone, Single Speaker 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery |
10,000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply |
| Input Voltage | 12 V (9-35 V) |
| Power Consumption | 5 W |
| Operating Temperature | -10 to 55°C (14 to 131°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Dimensions (W x H x D) | 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Weight | NW: 1.05 kg (2.3lb.) |
Delivery
99% of orders are dispatched from our Melbourne warehouse within 24 hours after payment is cleared. All orders are shipped with Australia Post e-Parcel with tracking and signature on delivery.
Express shipping is available at additional cost. For next day delivery, please ensure your postcode is within Australia post Next Day Delivery network.
Returns
We offer 30 days money back guarantee on all orders. If your item was purchased in error, or you've simply changed your mind, it may not be too late for a refund. The item must be returned in original re-saleable condition - Not opened, used or damaged and ready to be put back on the shelf.
Warranty
All products supplied by AZscanners come with 12 months limited warranty unless otherwise specified. Warranty covers defects in materials and/or workmanship. If a defect arises and a valid claim is received, AZscanners may at its option repair or replace the product.
Naturally the warranty cover does not extent to cover damage caused by normal wear and tear, accidents, misuse, lack of maintenance, neglect, natural disaster, or other external causes; to damage caused by operating the equipment in a manner outside that described in the instructions.
Don't recommend
I don't recommend this product, try another brand. I've had mine for 2 years and its dead. No warranty after 1 year. They all seem to fail around the same time from what I've seen from other mechanics. Autel won't fix it.26 July 2023
azscanners.com.au Response
Hi Maia, Sorry to hear you are having trouble there. As you mentioned, it is clearly stated that there is 1 year local warranty. Did you reach out to us directly to see if we can help repair there? If no please send an inquiry to our support email and we'll see what we can do.
Good scanner
Has been a good product29 December 2021
