Autel MaxiDiag MD906 Pro | Full System Diagnostic Scanner

Autel MaxiDiag MD906-pro Diagnostic Scan Tool

The Autel MaxiDiag MD906 Pro is a powerful handheld diagnostic scanner built for workshop technicians and serious DIYers who need full-system coverage without the price tag of a tablet-based tool. Replacing the popular MD808 Pro, the MD906 Pro brings a modern Android touchscreen interface, wireless Bluetooth VCI, CAN FD protocol support, and 11 essential service functions into a compact, easy-to-carry unit.

Whether you're resetting an oil service light, bleeding brakes, calibrating a steering angle sensor, or diagnosing a fault across every module in the vehicle, the MD906 Pro handles it all — and with lifetime free software updates included, it stays current without ongoing subscription costs.

Key Features

Full-System Diagnostics — scans all available modules across Engine, Transmission, ABS, SRS, and all other systems for US, Asian, and European vehicles (1996 to current)
11 Service Functions — Oil Reset, Brake Bleeding, Injector Coding, SAS Calibration, Throttle Adaptation, EPB, BMS, TPMS, DPF Regeneration, AFS Headlamp, and Air/Fuel Ratio Adjustment
CAN FD Protocol Support — compatible with newer vehicles using the latest high-speed communication protocol
Wireless Bluetooth VCI — the included V150 Lite VCI connects via Bluetooth, eliminating cables in handheld use
AutoScan DTC Detection — automatically scans all systems and reports fault codes in one sweep
Enhanced Mode 6 Diagnostics — deeper OBD2 test results beyond standard fault code reading
All 10 OBD2 Test Modes — including I/M Readiness and Emissions testing
Live Data & Freeze Frame — view real-time sensor data and capture freeze frame data at point of fault
Auto VIN Recognition — identifies the vehicle automatically for faster workflow
5.5-Inch Android 9 Touchscreen — smooth, intuitive interface replacing the button-driven design of older MD models
64GB Storage & 5,000mAh Battery — ample storage for reports and long battery life for a full day's use
Lifetime Free OTA Updates — no annual subscription; updates delivered over Wi-Fi automatically
Security Gateway Support — compatible with FCA, SFD, and Nissan gateway access (gateway licence sold separately)

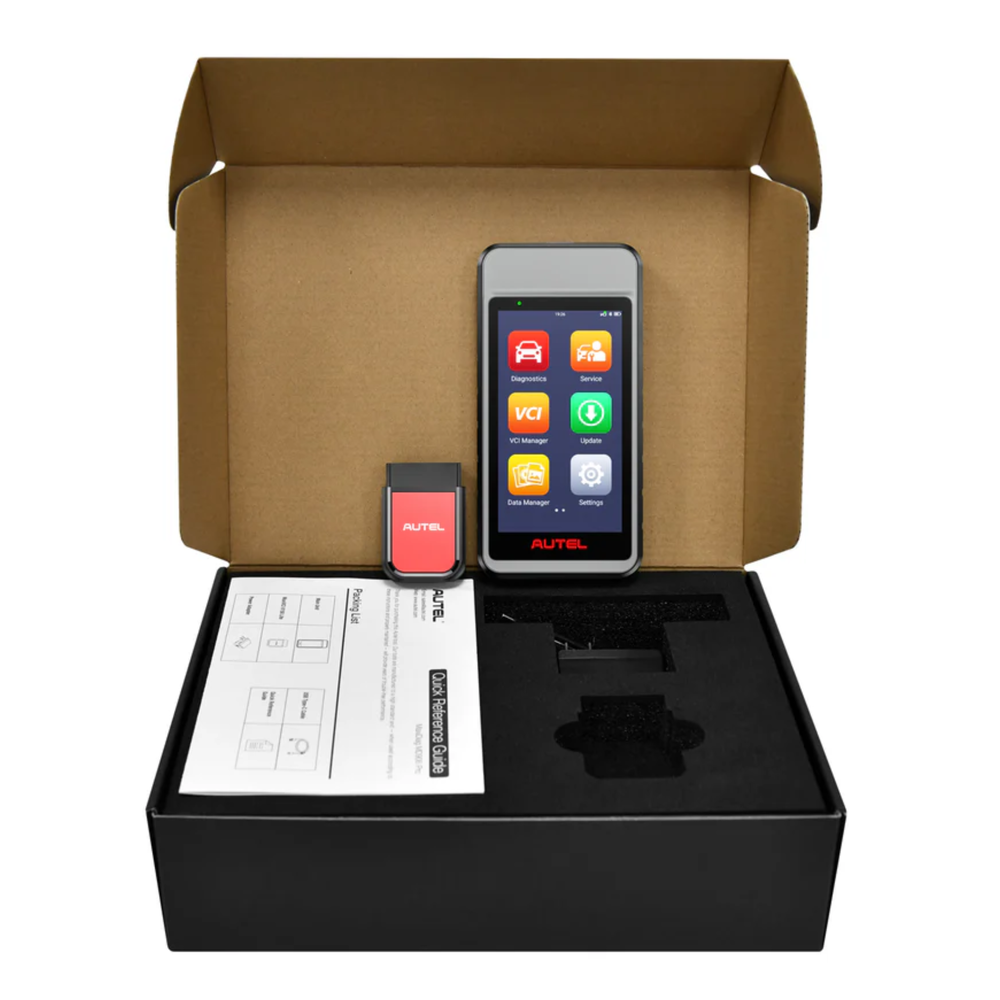

Package Includes:

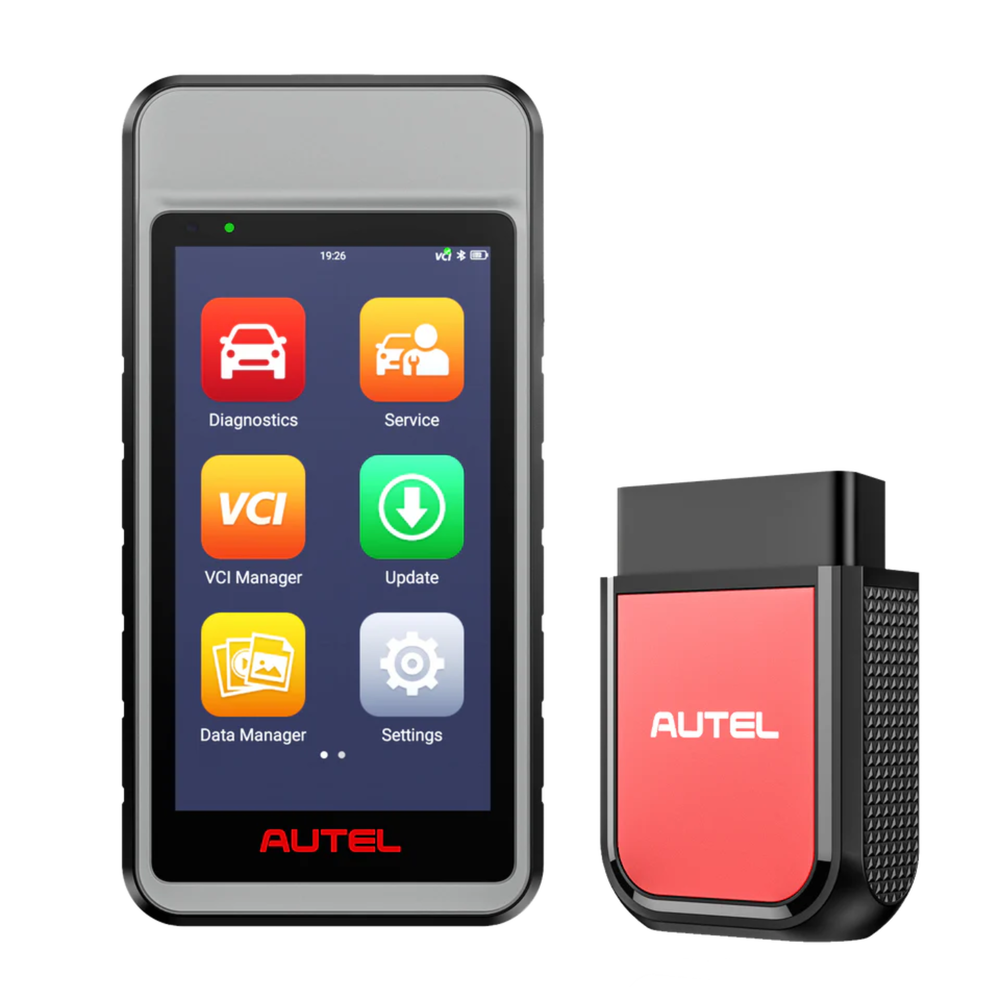

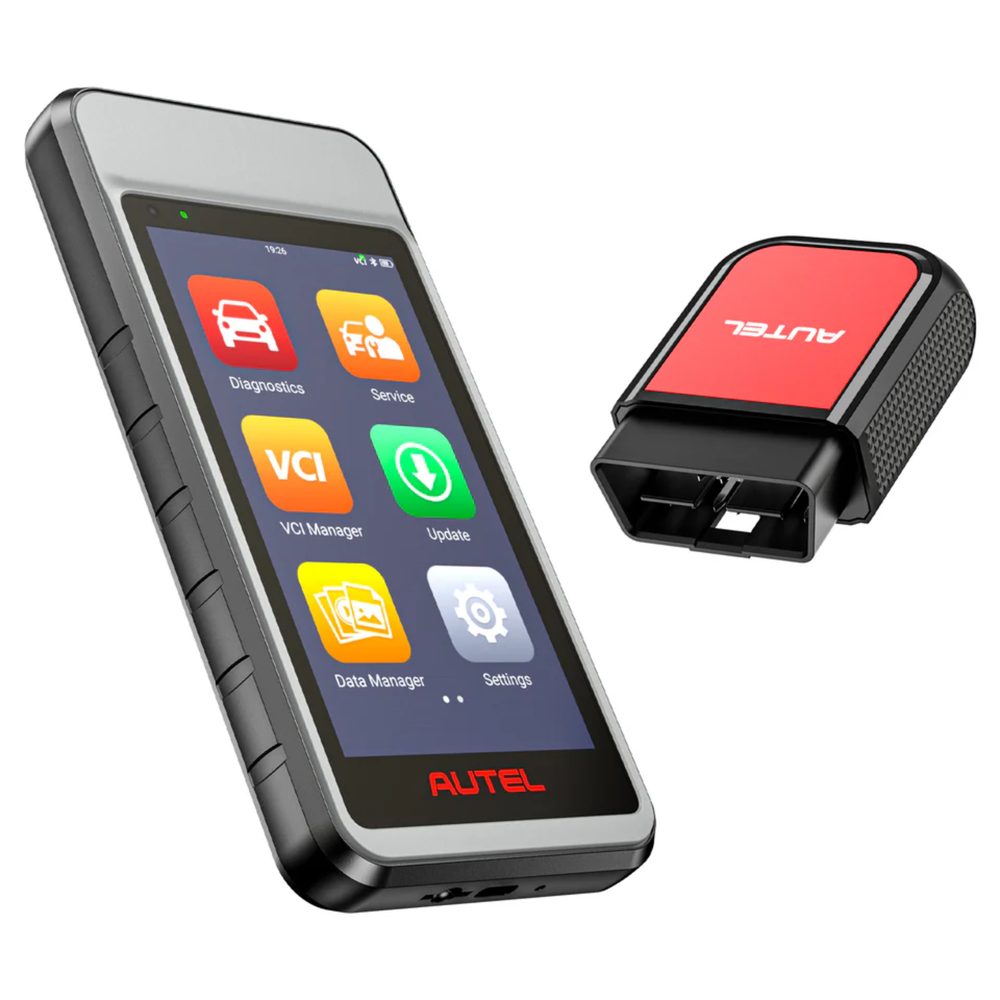

Autel MaxiDiag MD906 Pro
V150 Lite Bluetooth VCI
Power Adapter
USB Type-C Cable
Quick Reference Guide

Works with OBD2 Compatible Cars

Full System Diagnostics

BMS/Oil Reset/ SRS/EPB/DPF/SAS Functions

4" LCD screen

Multi Brand Scanners

Comparison tables are for reference only. They demonstrate general functions and features of our products. The compatibility for these functions may vary depending on vehicle's make, model and year.

Refer to our function lists or contact us for more information.

	i730AU	CR Pro	MD808pro


Vehicle Coverage	70+ Brands	40+ Brands	50+ Brands
		-	-
Compatibility	OBDI/OBDII (up to 1-2 yrs old)	OBDII (up to 3-4 yrs old)	OBDII (up to 1-2 yrs old)
System Scan	All System	Multi System	All System
Live Data	☑️	☑️	☑️
VIN Identification	☑️	☑️	☑️
Oil Service Reset	☑️	☑️	☑️
EPB Electronic Park Brake	☑️	☑️	☑️
DPF Regeneration	☑️	☑️	☑️
Battery Programming	☑️	☑️	☑️
SAS Steering Angle Sensor	☑️	☑️	☑️
ABS Bleed	☑️	☑️
TPA/TPS Throttle Alignment	☑️	-
Injector Coding	☑️	☑️
TPMS Reset	☑️	-
Immobiliser	☑️	-
Gear Box Match	☑️	-
Suspension Match	☑️	-
Sunroof Initialisation	☑️	-
ECU Coding	☑️	-
Software Free Update	FREE	FREE	1 Year
Display Size	4.5” LCD	4.0” LCD	4.0" LCD
	Learn More	Learn More	Learn More

Autel MaxiDiag MD906-pro Diagnostic Scan Tool

Display: 5.5-inch touchscreen, 540×960 resolution

Operating System: Android 9.0

Storage: 2GB RAM + 64GB ROM

Battery: 5,000mAh

Connectivity: Bluetooth (V150 Lite VCI), Dual Wi-Fi 2.4 & 5GHz

VCI Included: V150 Lite

Protocol Support: CAN FD, all standard OBD2 protocols

Vehicle Coverage: US, Asian, European

Updates: Lifetime free OTA

Warranty12 months
