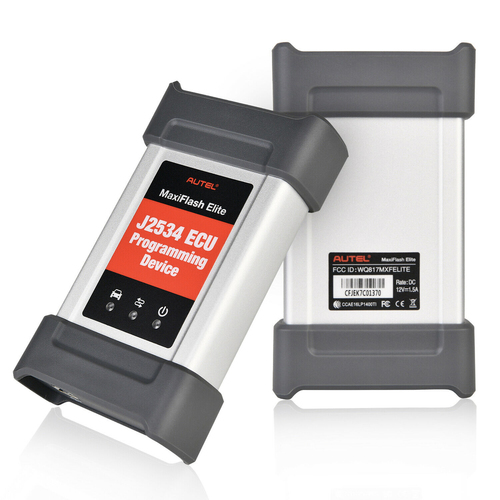

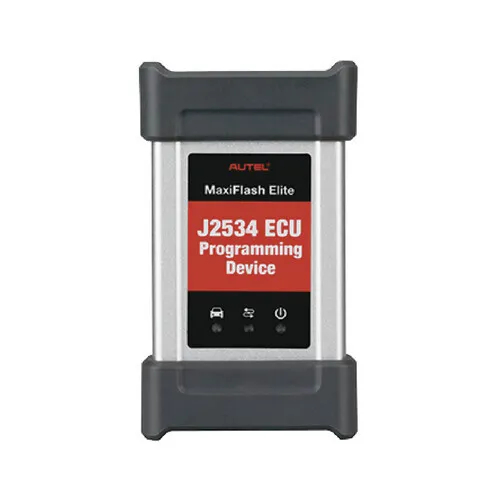

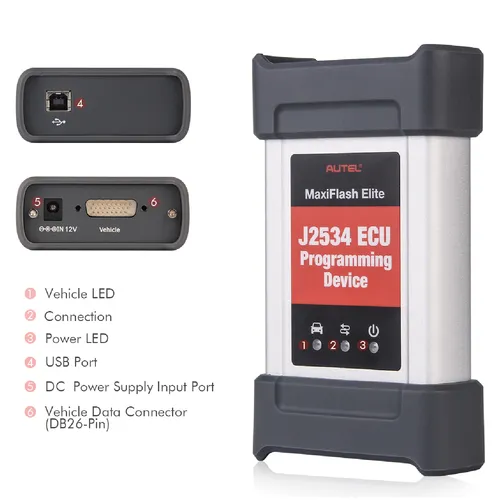

Autel MaxiFlash Elite J2534 ECU Programming Tool

Autel MaxiFlash Elite is a multi-protocol Pass-Thru vehicle interface fully compliant with SAE J2534-1 & SAE J2534-2 ECU reprogramming standard. Suitable for PC communication or with MaxiSys tablets. MaxiFlash Elite offers the most significant features desired by OEM customers: reliability, fast performance and flexibility.

Main Features

Fully compatible with both SAE J2534-1 and J2534-2 reprogramming standards
Performs the standard PassThru J2534 functionality
Compatible with Toyota Techstream, Volvo VIDA, Honda HDS, Jaguar-Land Rover IDS and BMW 3G for OEM diagnostics
Supports multiple device connections to the PC, which can operate diagnostic and reprogramming functions on more than one vehicle at the same time.
Fast performance ensures quickly reprogramming even the newest controllers
Embedded with the ARM9 Dual-core processor (clocked up to 500MHz), which further boosts the communicating speed.
Wireless with advanced networking functions
Built-in wireless and data storage
Rugged design capable of withstanding harsh environments
Internet updatable

Bus Protocols

Primary CAN/ISO15765/GMLAN
Secondary CAN/ISO15765/GMLAN (Dual or Single Wire)
Ford SCP (J1850PWM)
GM Class2 (J1850VPW)
KWP2000 (ISO9141/14230)
Chrysler SCI (J2610)

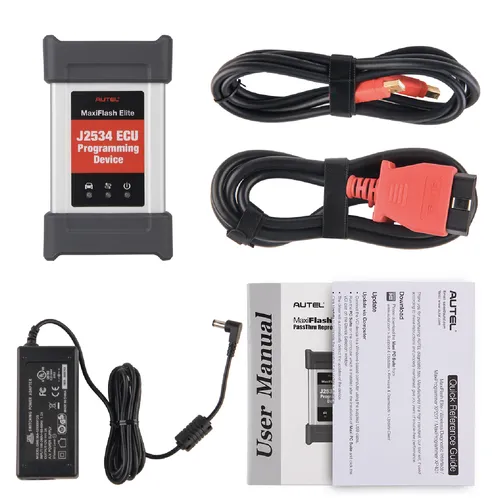

Package Includes

User’s Manual
MVCI to OBDII Cable - provides power to tool and communicates between tool and vehicle, high density DB-26
USB Cable - allows easy connection to PC/MaxiSys display tablet.
Power Adapter - supplies power to the reprogramming tool.
CD - includes user’s manual, software development kit, device driver, etc

Communications: Wireless BT V2.1 + EDR,USB 2.0

Wireless Frequency: Wireless BT V2.1+EDR, 2.4GHz

Input Voltage Range: 12VDC to 24VDC

Supply Current: 170mA @ 12VDC 100mA @ 24VDC

Operating Temperature: -10°C to +60°C (ambient)

Storage Temperature: -20°C to +70°C (ambient)

Dimensions Length: 149 mm (5.87") Width: 86mm (3.38") Height: 35 mm (1.28")

Weight: 0.29kg (0.64lb)
