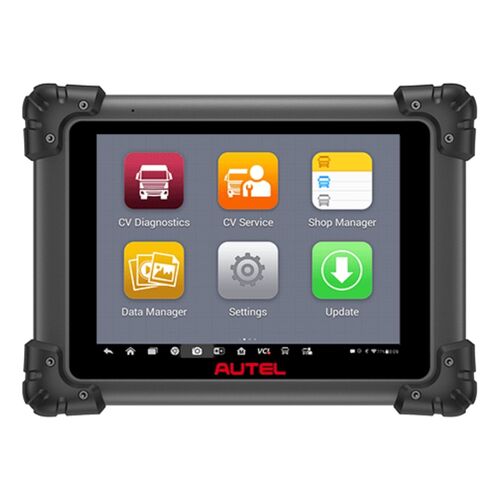

Autel MaxiSys CV Diagnostic Scan Tool For Trucks Heavy Diesel Vehicle

As a new member of Autel’s MaxiSys family, the MaxiSys CV is built on the powerful MaxiSys 908 platform and provides a comprehensive diagnostic solution for virtually all commercial vehicles as well as machines made in North America, Europe and Asia. Offering advanced features and extreme ease-of-use, MaxiSys CV is the ideal solution for independent repair shops, owner-operators and various sized fleets seeking a single scan tool for all their professional heavy duty needs.

Hardware Features

Extraordinarily powerful Cortex-A9 quad-core processor
9.7” 1024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology
Internal reliable and fast 32GB Solid State Drive for better performance
Built-in 5-megapixel rear camera with autofocus and flashlight
Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favourite web resources
Unique shop tough ergonomic design features strong rubber protection and housing;
Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
USB, audio and auxiliary ports make it easy to connect accessories
The VCI connects to the main unit wirelessly with up to 230 meters working range

Software Features

Open source Android Operating System for fast boot-up and multitasking
Easy and intuitive navigation makes finding what you need simple and fast

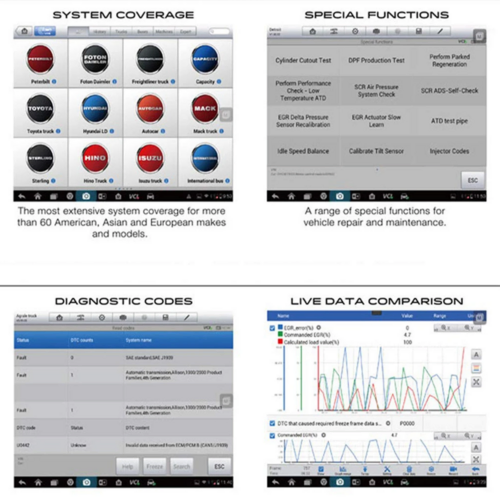

Extensive vehicle coverage for more than 80 US, Asian and European commercial vehicle makes and machines
Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
Displays live data in text, graph, analog and digital gauge for easy data review and analysis
Configures display options, sets triggers, records and playbacks results with one touch
Records and playbacks live data to pinpoint troubles of sensors and components
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Remote technical support for convenient demonstration, training and increased customer satisfaction
Prints out recorded data anytime and anywhere with Wi-Fi technology
Automatic Wi-Fi updates available in new software releases

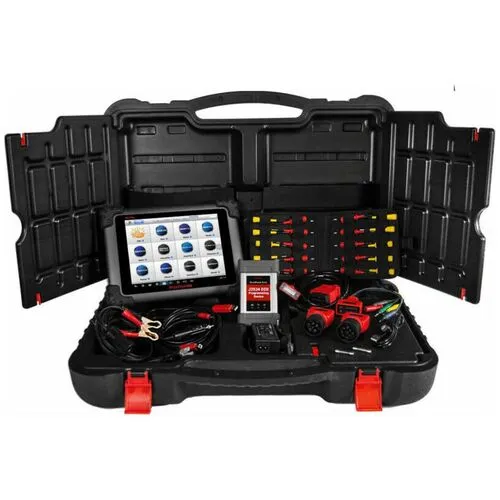

Package Includes

MaxiFlash Elite
Adapter for Deutsch-9
Adapter for Deutsch-6 Adapter for UNI-4
Adapter Case
JW10(x2)
JW9(x2)
JW8(x2)
JW7(x2)
JW6(x2)
JW5(x2)
JW4(x2)
JW3(x2)
JW2(x2)
JW1(x2)
User Manual
Light Fuse
Quick Reference Guide
Main cable
Carry case
USB Cable
Cigarette Lighter
Compact Disc (CD)
AC/DC External Power Adapter
Clipper Cable
Soft Cloth
Packing List
Mini USB Cable

Comprehensive Diagnostic Solutions for Heavy Diesel Vehicles

9.7” 1024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology

Extraordinarily powerful Cortex-A9 quad-core processor

Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding

2 Years Free Software Update

Operating System	Android™ 4.0, Ice Cream Sandwich
Processor	Samsung Exynos Quad-Core Processor 1.4GHz
Memory	2GB RAM & 32GB On-board Memory
Display	9.7 inch LED capacitive touchscreen with 1024x768 resolution
Connectivity	Ethernet: RJ45 Ethernet Connection WiFi (802.11 a/b/g/n) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI
Camera (rear)	Rear-facing, 5.0 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 4-Band 3.5 mm stereo/standard headset jack
Power and Battery	11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply
Input Voltage	12 V (9-24 V)
Power Consumption	6.5 W
Operating Temp	-10 to 55°C (14 to 131°F)
Storage Temp	-20 to 70°C (-4 to 158°F)
Housing	Strong plastic housing with protective rubber boot
Dimensions	300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight	NW: 1.42 kg (3.13 lb.), GW: 8.052 kg (17.75 lb.)
Protocols	SAE J1939; SAE J1708; Manufacturer customised J1939; Manufacturer customised J1708; KWP; VPW; UDS-CAN; CDL
